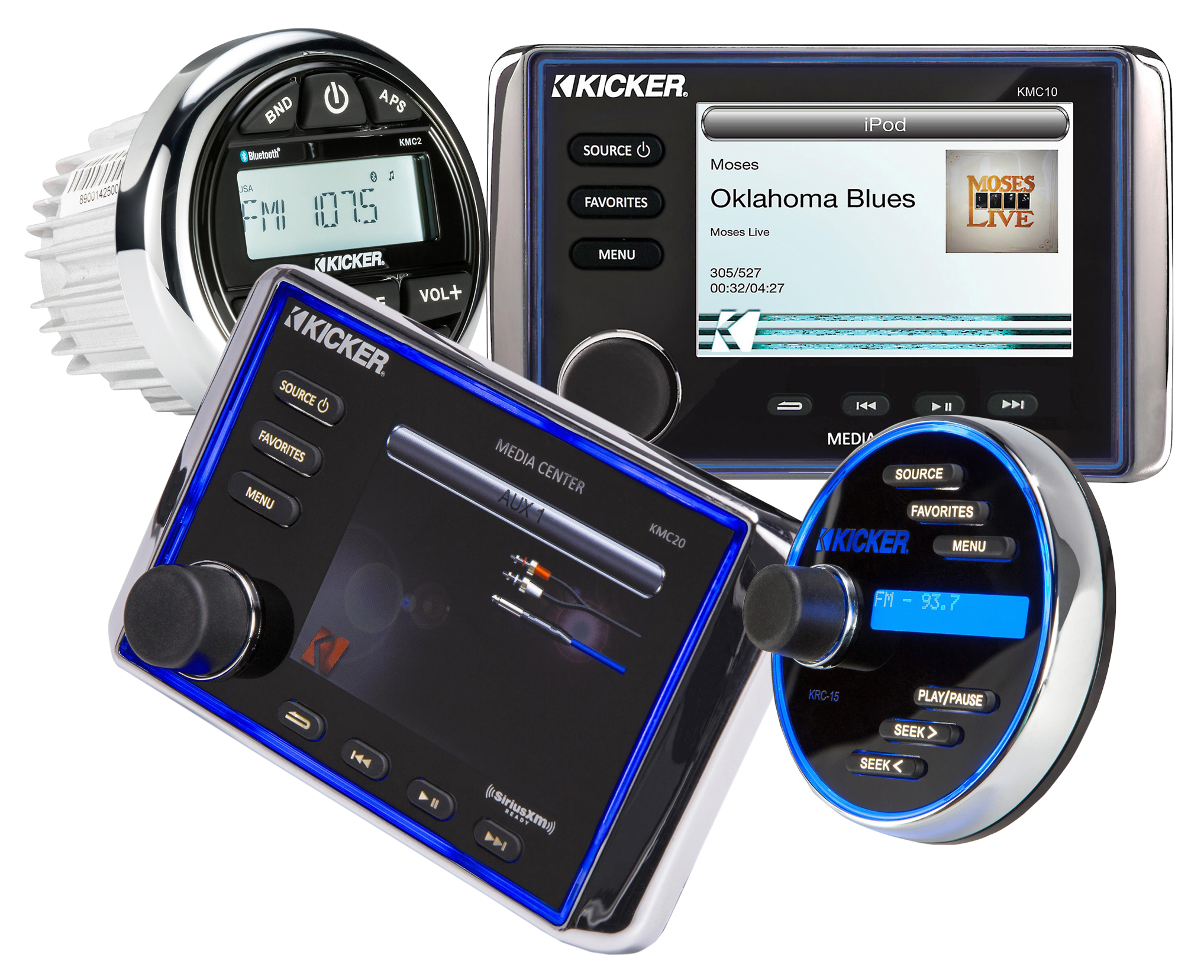

The KICKER family of source units are custom made to be powerful, reliable and flexible - perfect for Livin’ Loud on the lake or the dunes!

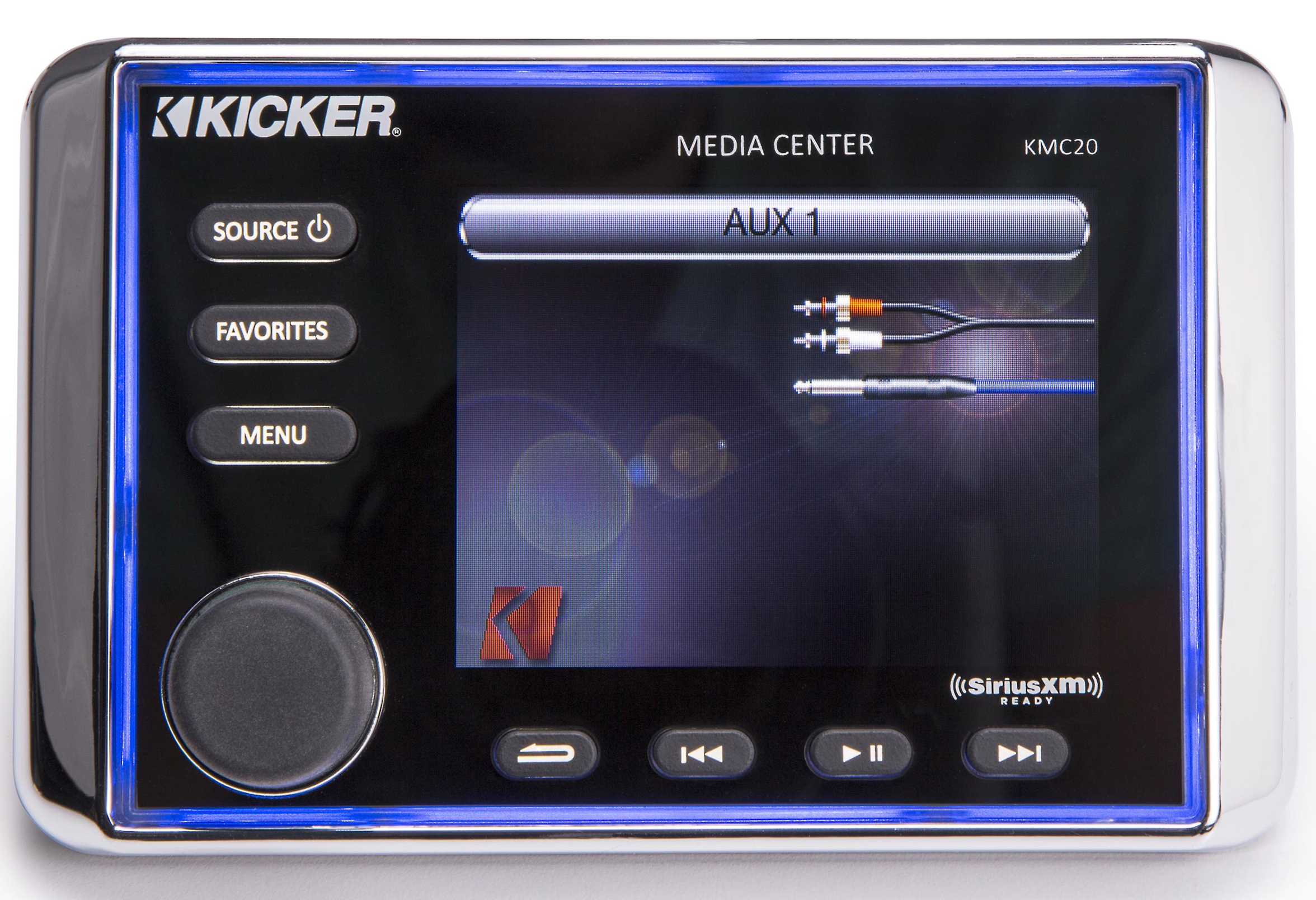

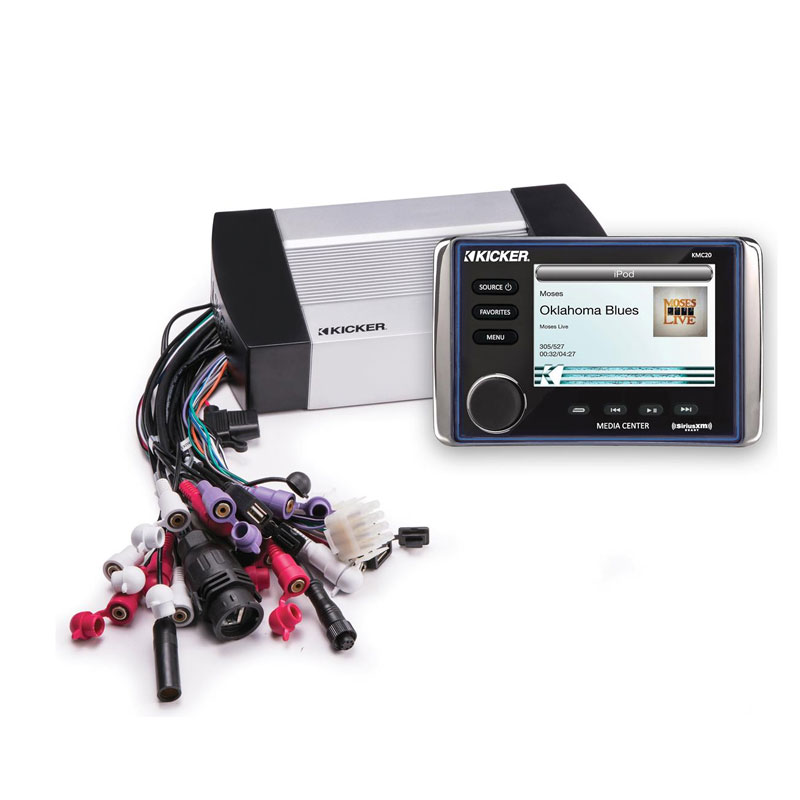

KMC20 Premium Media Center

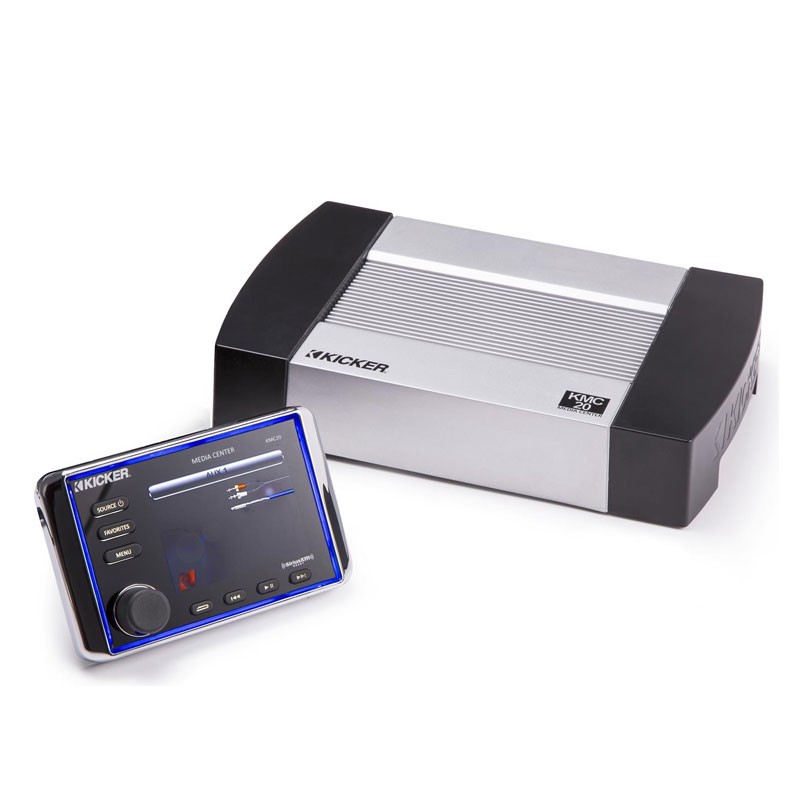

The pinnacle of all-weather receivers, the KMC20 comes chocked with features like dual zone control, satellite radio compatibility, plus multiple RCA and USB inputs. A full complement of RCA outputs - including a dedicated subwoofer out - allows for a truly complete audio system in your boat, side by side, UTV, ROV, MOHUV or anywhere else! With over 200 watts of peak power, the KMC20 is prepared for multiple waterproof remote controls for increased convenience and control. With a simple six-foot cable connecting the display and processor, this “black box” style allows for easy installation, even in tight spaces.*
* Use the KMCEXT25 for installations where the display and processor are mounted more than six feet apart.

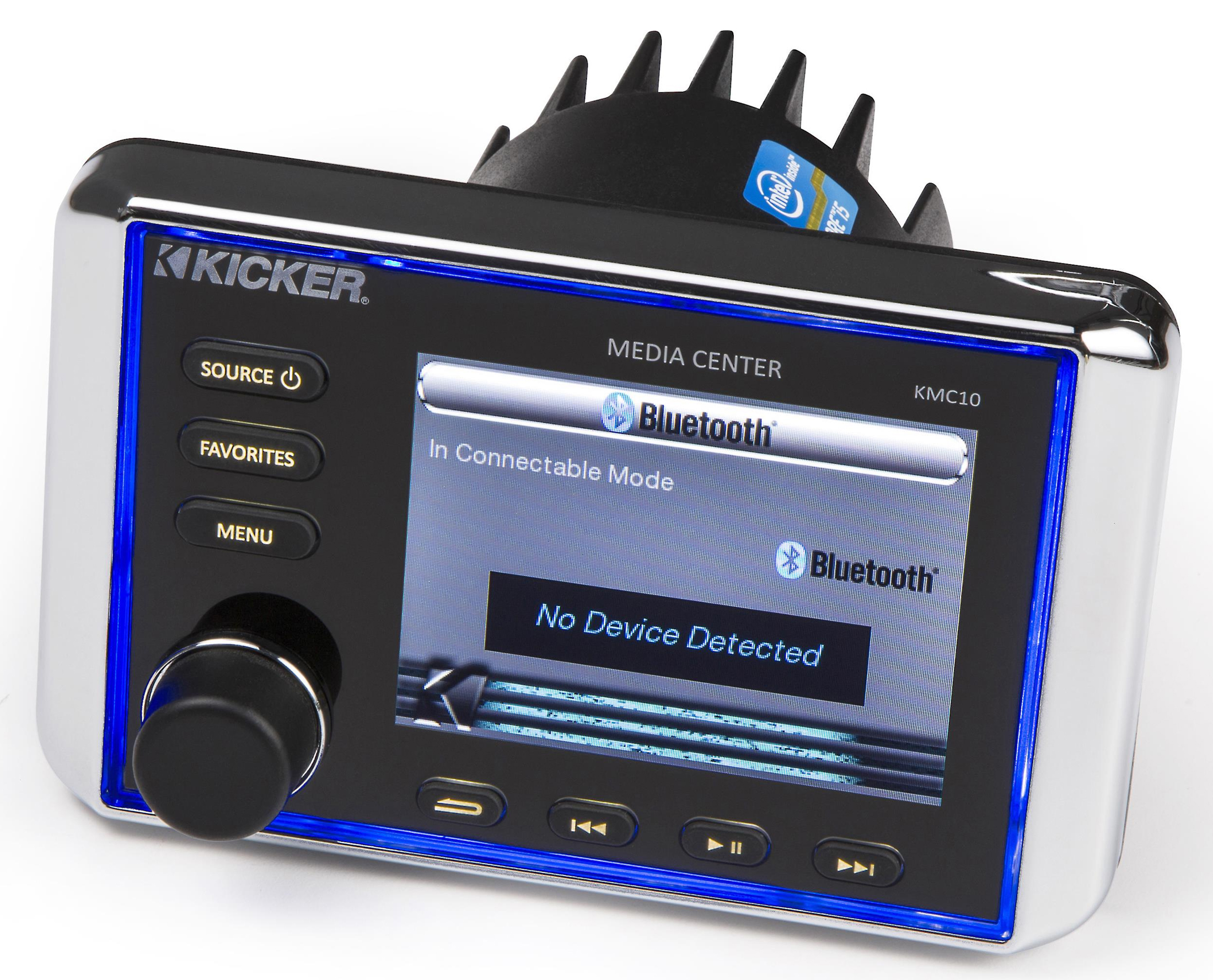

KMC10 Media Center
The KMC10 delivers the same high-quality LCD as the KMC20, including the customizable Day/Night illumination settings. In addition to delivering over 200 watts of peak power, the KMC10 also features two sets of RCA outputs for adding external amplifiers, as well as providing connections for multiple waterproof remote controls.
KMC2 Media Center
The KMC2 is a simple, effective solution when you want great tunes in a compact footprint. Equipped with an easily readable screen, over 200 watts of peak power and several audio inputs (including USB and Bluetooth), this durable Media Center is ready for some fun in the sun!

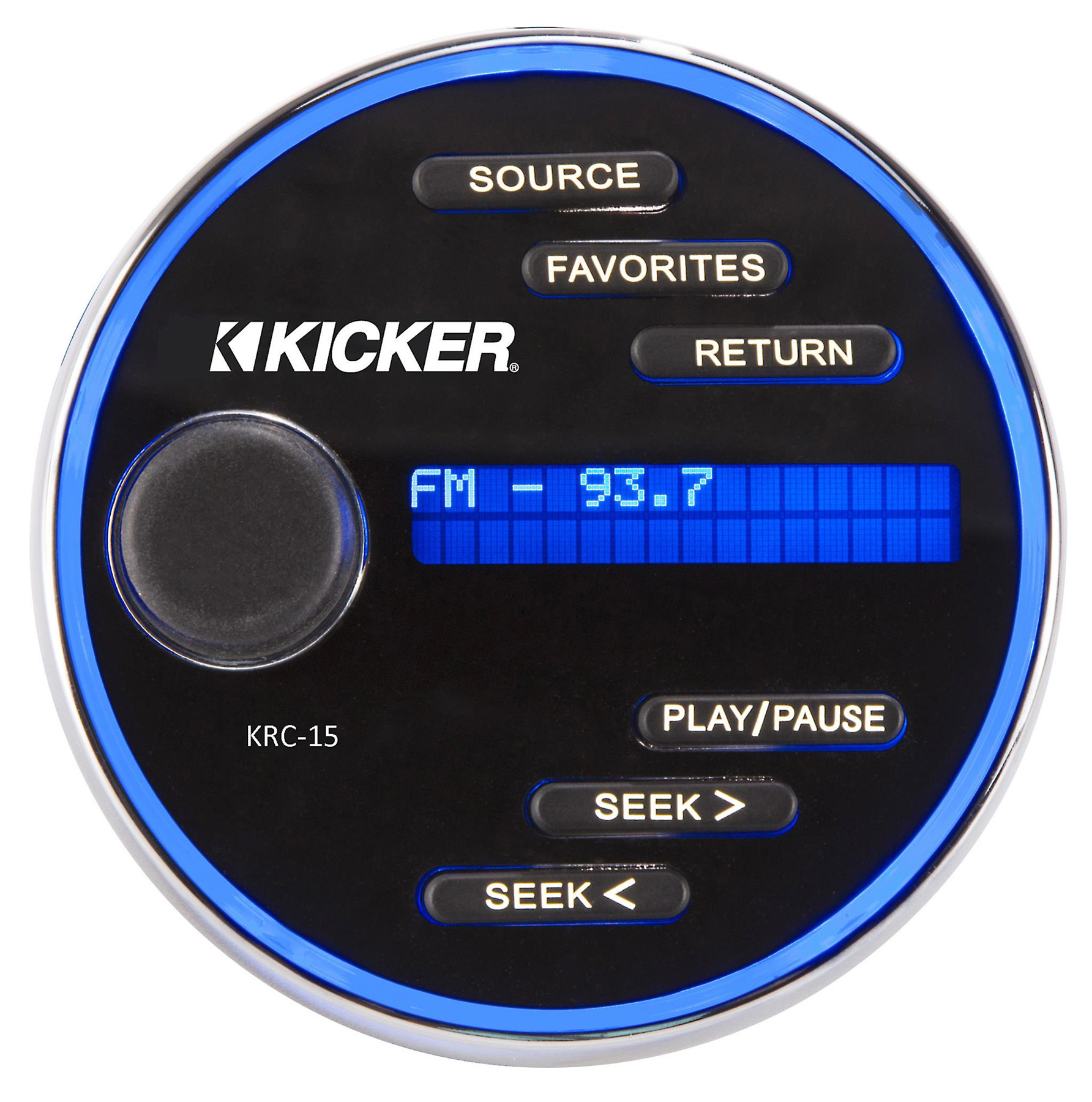

KRC15 Remote
The KRC15 puts you in the driver’s seat from anywhere you want to mount it. Whether you’re topside or in the cabin of your boat, or even in back of your UTV this flexible remote lets you instantly change the source, volume, track and favorites from a bright two-line LCD display. Simply use the KRCEXT25* Extension Cable to connect directly to your KMC10 or KMC20 Media Center. Connect multiple KRC15’s with a KRCY1 Y-Adapter and KRCEXT25 Extension Cable for each remote.

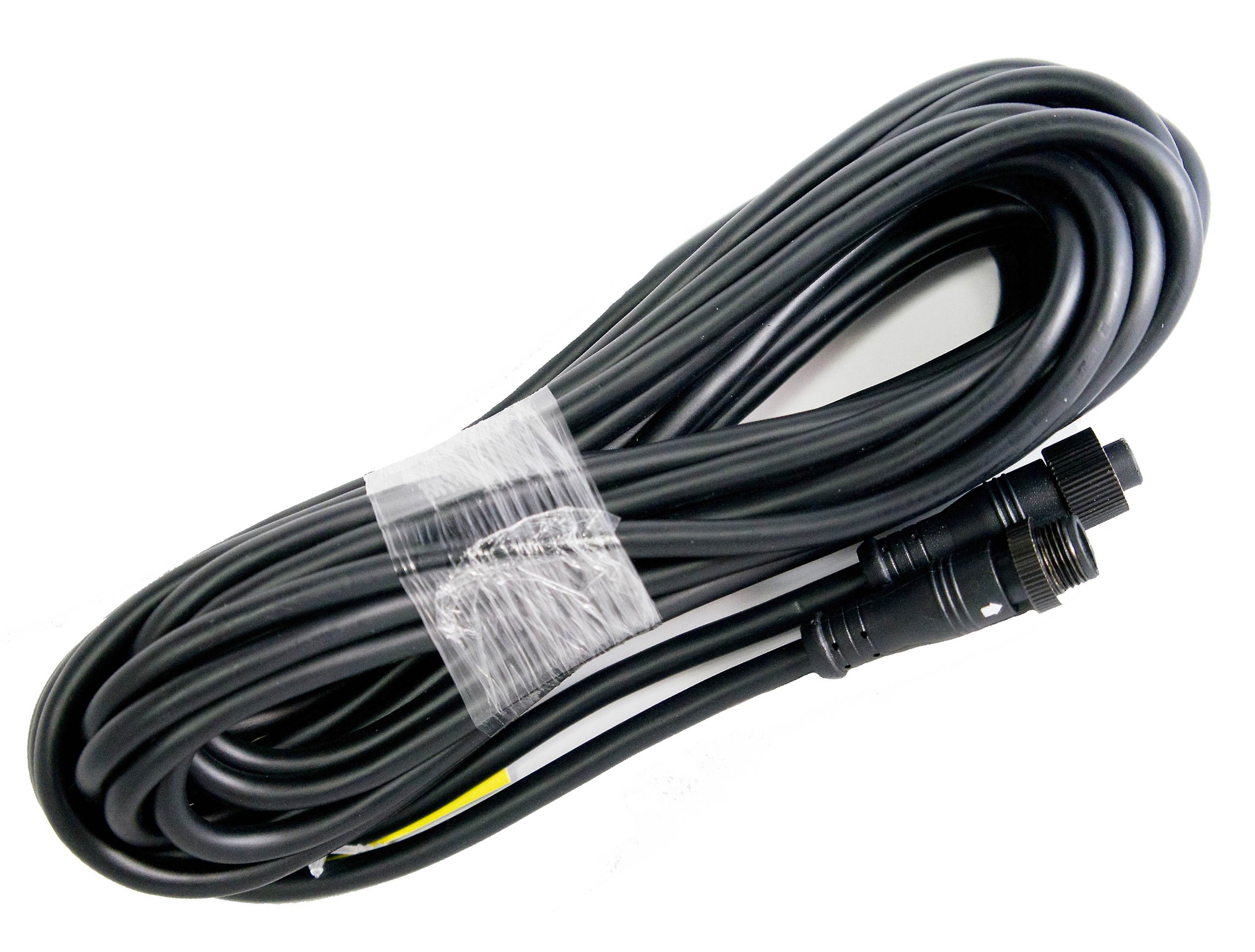

KRCEXT25 Extension Cable
Adding an additional KRC15 Remote Commander to your sound system? Add this extension and a KRCY1 Y-Cable for a complete solution. Requires a KMC20 or KMC10 Media Center.

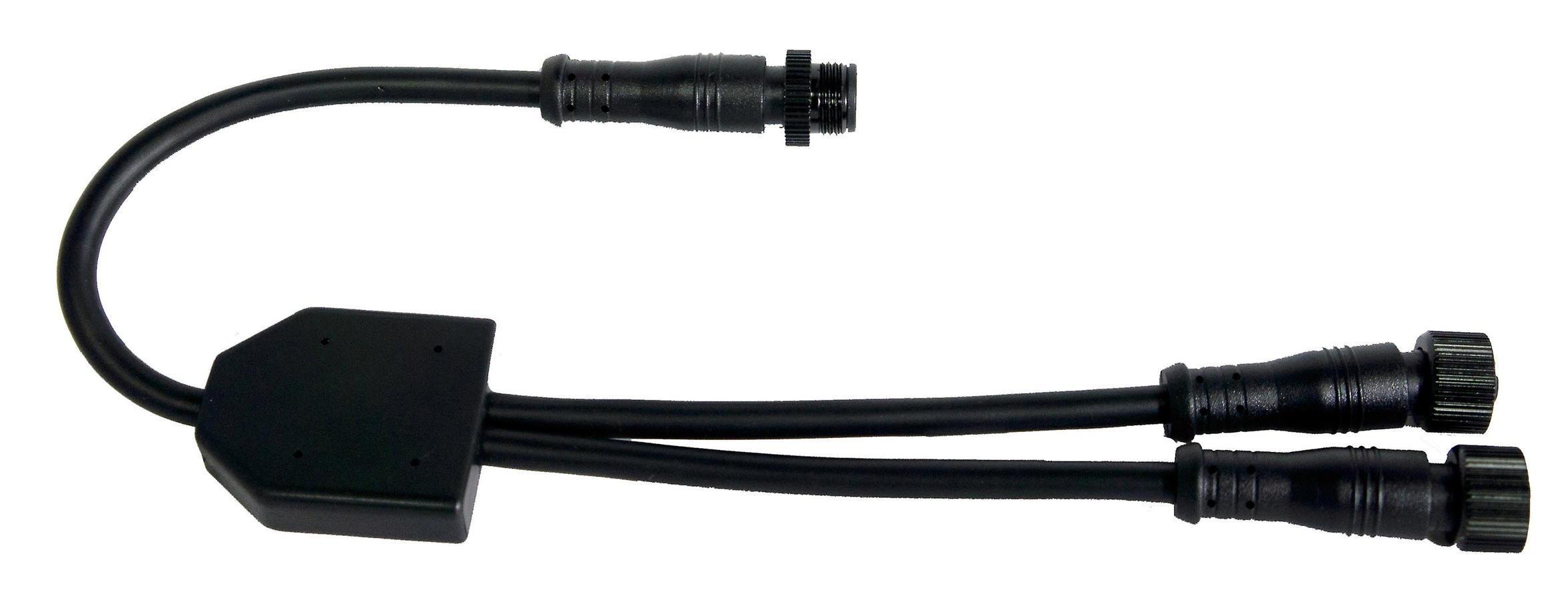

KRCY1 Splitter Cable
Use this secure Y-Cable in conjunction with the KRCEXT25 to easily add multiple KRC15 remotes to your boat. Requires a KMC20 or KMC10 Media Center.
KMCEXT25 Extension Cable
Sometimes a custom receiver requires a custom install! Use the KMCEXT25 between the KMC20 processor and display when six feet of cable isn’t enough.
- Maximum Power : 50 Watts
- RMS Power Output : 25 Watts
- Preamp Voltage : 2 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 2
- Preamp Outputs : 6
In addition to the AM/FM/Weather Band radio, the Media Center streams Bluetooth® audio with full on-screen artist, track and title data. Dual charging USB inputs allow your thumb drive or smartphone to be the center of the party, and with SiriusXM® satellite radio* compatibility, you can enjoy the best in digital music and entertainment nationwide.
To complete an already impressive set of input options, two sets of auxiliary stereo RCA inputs allow you to add other audio devices with ease, then select a custom name for each.
Plug them up. Turn them on. Party as needed. *Requires account and compatible receiver/antenna. See details below.
Product Highlights:
- Automatic low voltage sensor
- Works with Apple® and Android® smartphones
- Hideaway module includes tuner and amplifier (25 watts RMS/50 peak x 4 channels)
- EPROM memory with two-wire power
- AM/FM radio, plus built-in Weather-Band tuner
- Package with hideaway module and control panel with 3-1/2" screen
- Marine digital media receiver (no CD player)
- 5-band EQ
- Bluetooth® music streaming
- Dual source/dual zone control
- Wired control panel meets IPX6 splash-proof standards
- Highly legible LCD screen with day/night mode
- iPod® /iPhone® direct control via USB input
- Compatible with SiriusXM satellite radio tuner
- Inputs: 2 rear USB inputs, 2 rear AUX inputs
- Compatible with Kicker PXIiRCX & KRC15 wired remote controls
| Specifications |
| USB memory |
Bluetooth Compatible |
| Preamp Outputs |
6-channel |
| iPod Compatibility |
Yes |
| RMS Power Bandwidth |
20-20kHz |
| No |
Navigation |
| No |
Android Control |
| European Tuning |
Yes |
| Preamp Voltage |
2 volts |
| Nano |
7/6/5 |
| Switchable Rear Preamp Outputs |
No |
| Rear (2) |
CarPlay |
| Sub Preamp Outputs |
Yes |
| Wireless Remote |
No |
| RMS Power Output |
25 watts |
| Steering Wheel Control Compatible |
No |
| SiriusXM |
HD Radio |
| AUX Input Rear (RCA) |
Audio/video Input |
| No |
Siri Control |
| Radio Data System |
Yes |
| Video Screen |
No |
| EQ Bands |
5 |
| Yes |
Memory Card Slot |
| iPhone |
6S+/6S/6+/6/5S/5C/5/4S/4/3GS |
| Full size |
Classic |
| N/A |
USB Input |
| No |
Android Auto |
| Built-in |
Satellite Radio Ready |
| Touch |
6/5/4 |
| CEA-2006 Compliant |
No |
| Peak Output |
50 watts |
| Display Color |
Full color |
| Key Button Color |
White |
| Tuner |
N/A |
| FM Sensitivity |
N/A |
| Seek/Scan |
Seek |
What's Included:
- 2 End-caps (installed on amp/processor)

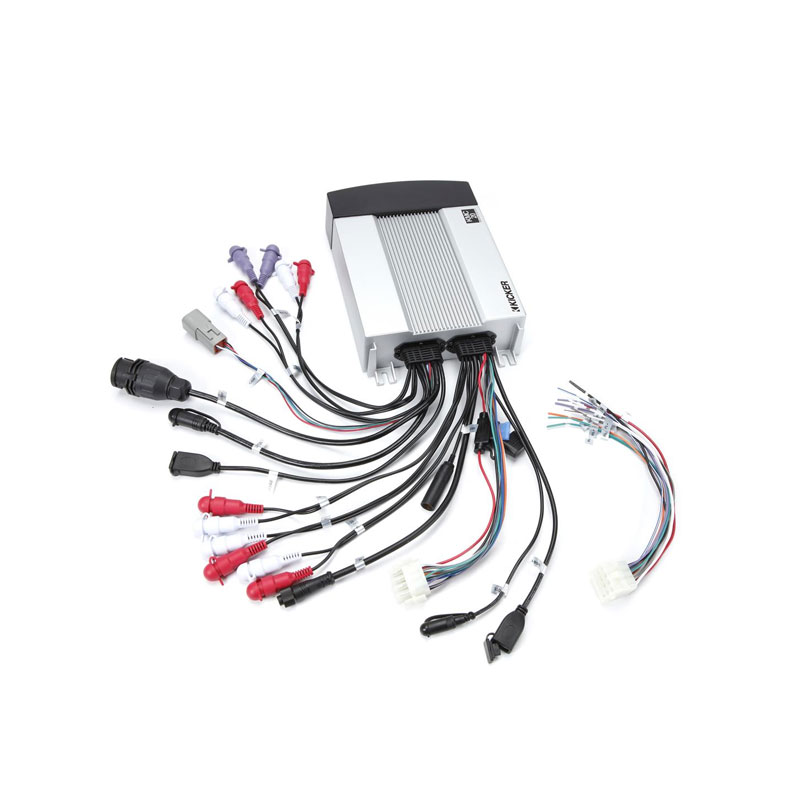

- Hide-away amplifier/processor (15A fuse)
- Wiring harness
- Gasket

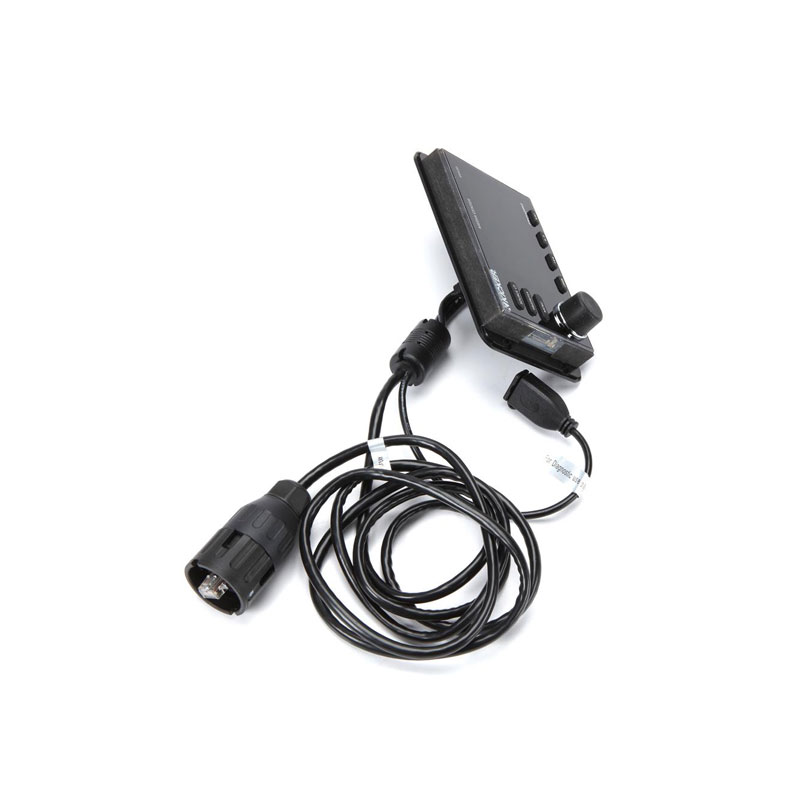

- Marine digital media controller (attached 6' cable)
- Trim-ring
- Kicker KMC20 Owner's Manual
- UPC: 713034068754
- Weight: 6.3
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
