What's Included:
- Metal clearance plate
- One 12" Subwoofer
- Kicker logo sticker
- Owner's Manual
- Manual (English/ Spanish/ German/ French)
- Template on box
- Product Information Inside Box
- 2 Units of 43CVT124
Product Highlights:
- ported box volume: 1.75 - 2.25 cu. ft.
- sealed box volume: 1 - 4.6 cu. ft.
- 12" 4-hm subwoofer
- top-mount depth: 4-3/8"
- sensitivity: 87.1 dB
- injection-molded polypropylene cone with Santoprene rubber surround
- power handling: 400 watts RMS
- peak power handling: 800 watts
- Diameter : 12 Inch
- Maximum Power : 800 Watts
- Low Frequency Response : 25 Hz
- High Frequency Response : 500 Hz
- Sensitivity : 87.1 dB
- Impedance : 4 Ohm
- Frequency Response : 25 - 500 Hz
- Number of Voice Coils : single
- Suggested Sealed Box Volume : 1 - 4.6 Cubic ft.
- Suggested Ported Box Volume : 1.75 - 2.25 Cubic ft.
- Mounting Depth : 4-3/8, 11.1 Inches

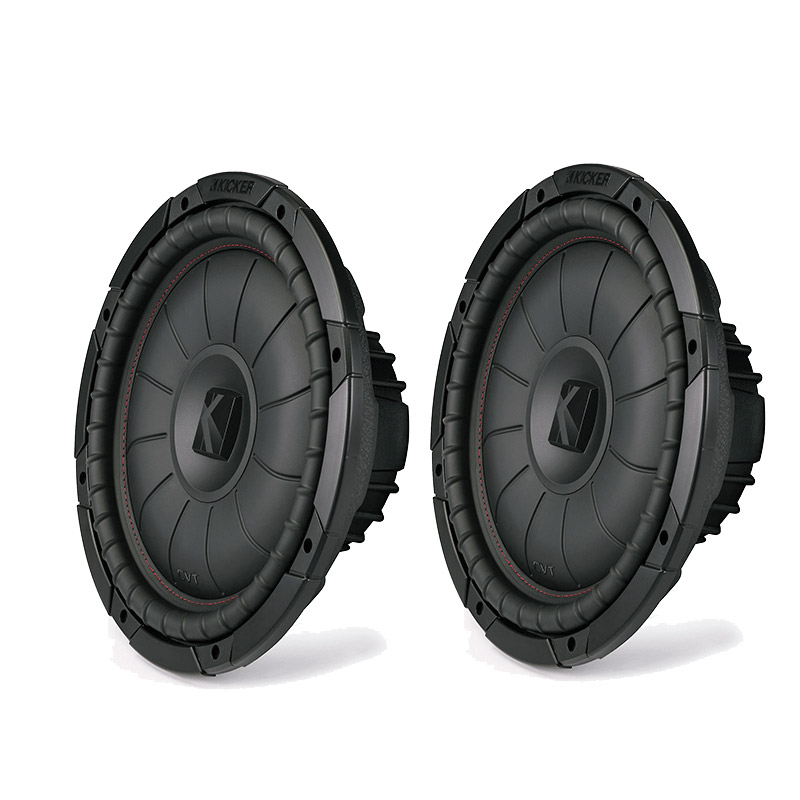

he CompVT 12-Inch Subwoofer is a 4Ω slimline driver. Need serious power without a deep box? The CompVT is made for you. A stiff ribbed cone is held by a wide Santoprene surround.
Perimeter venting keeps the motor cool, and the stamped steel basket is specially shaped to provide plenty of bass, without needing plenty of depth.
This sub produces 400watts of RMS/800 watts of Peak Power with a frequency response of 25- 350 Hz.
The CompVT 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power.
| Specifications |
| Top Mount Depth (inches) |
4 5/16 |
| Cutout Diameter or Length (inches) |
10 15/16 |
| Peak Power Handling (Watts) |
800 |
| Ideal Ported Box Volume (cubic feet) |
1.75 - 2.25 cu. ft. |
| Surround Material |
Rubber |
| Size |
12 -inch |
| RMS Power Range (Watts) |
125-350 |
| Dual Voice Coil |
No |
| Fs (Hz) |
32.7 |
| Impedance |
4 ohms |
| Cone Material |
Polypropylene |
| Ideal Sealed Box Volume (cubic feet) |
1 - 4.6 cu. ft. |
| Free-Air |
No |
| Sensitivity |
87.1 dB at 1 watt |
| Frequency Response |
25 - 500 Hz |
| Vas (liters) |
61 |
| Qts |
0.518 |
| Xmax (millimeters) |
10.5 |
- UPC: 713034049883
- Weight: 26
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
