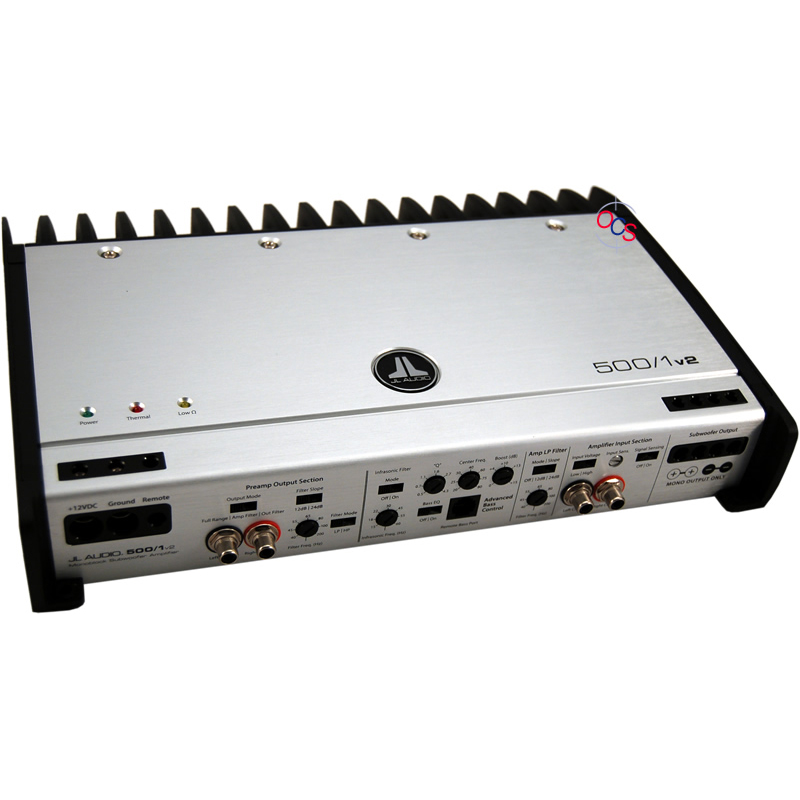

JL Audio 500/1v2 Item# 18474
500W RMS Class D Monoblock Subwoofer Amplifier
JL Audio :: 500/1v2 :: $429.00
MSRP: $629.00
You Save: $200.00 (31%)    On Sale
Our Price: $429.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: 4.5 Star Rating
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

  • High-Damping Class D Circuit with discrete control circuitry (U.S. Patent #6,441,685)
  • Differential-Balanced Input Topology: 1 pair of inputs
  • On-board Crossover: Fully-variable (40-200 Hz), selectable-slope (12 or 24 dB per octave) LP
  • Preamp Output: 2-channel (independent active filter, parallel with amp filter or pass through)
  • Bass EQ: Single-band parametric with variable boost up to +15dB and Remote Bass Option
  • Infrasonic Filter: Fully-variable 24dB/octave from 15-60 Hz
  • Signal-Sensing Turn-On: Permits operation without remote lead
  • Dual mono speaker output connections: Accept up to 8 AWG wire
  • +12V and Ground connections: Accept up to 4 AWG wire
  • S/N Ratio: >95dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • THD at Rated Power: <0.05% @ 4 ohm
  • Damping Factor: >500 @ 4 ohm / 50 Hz , >250 @ 2 ohm / 50 Hz
  • Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
  • Dimensions (L x W x H): 13.40 in. x 9.25 in. x 2.36 in. (340 mm x 235 mm x 60 mm)
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.

    Customer Reviews

    5 Star Rating Willie W From Louisianna

    This amp power is rated like the HULK, pushing 4 12's Kicker Comps in a customized box in my extended cab, excellent power and driving my subs hard, rattling all the windows. I have had no problems.


    5 Star Rating chevy572 From tn

    i have this amazing amp on my w7 10 people think i have two 15's




    5 Star Rating das From key west
    I have this hooked up to two kicker comp vr's at 2 ohms it moves them real well people dont believe i have two 10's
