180 watts RMS x 1 in bridged mode (4-ohm stable in bridged mode)
CEA-2006 compliant
2-channel car amplifier
8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
9-1/2"W x 2-3/8"H x 7-1/8"D
selectable low-pass filter (80 Hz, 12 dB per octave)
60 watts RMS x 2 at 4 ohms (90 watts RMS x 2 at 2 ohms)
fuse rating: 25A x 1
Maximum Power : 400 Watts
Low Frequency Response : 10 Hz
High Frequency Response : 70 Hz
Number of Channels : 2
Frequency Response : 10-70K Hz Hz
Channel Separation : Yes
RMS Power Range : 200 Watts
Amplifier Class : A/B
Fuse Rating : 25 A

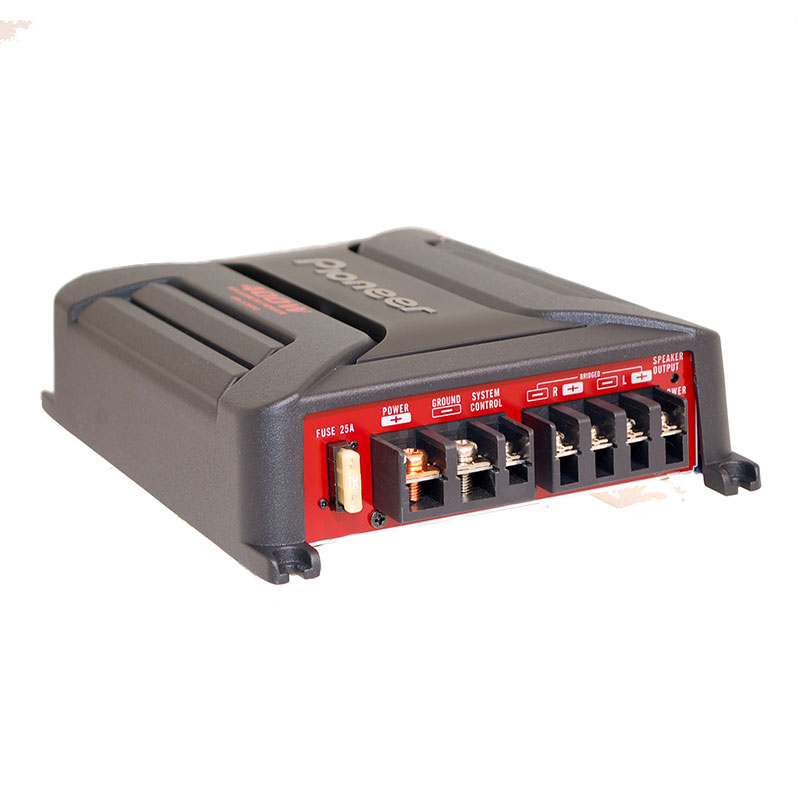

From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality. The 2-channel GM-A3602 delivers 400 watts max in a compact design - plenty of juice to power your speakers. It's also got built-in high-pass crossover, speaker level inputs for easy connection to an OEM headunit, and oversized power terminals.
Specifications
Low-Pass Slope (dB/octave)
12 dB/octave
Bass Boost Frequency
N/A
Amplifier Class
AB
Low-Pass Crossover Frequency
80 Hz
Preamp Outputs
No
Signal to Noise Ratio
78 dB
Input Voltage
14.4v
High-Pass Slope (dB/octave)
N/A
THD at Rated RMS Power
1%
Height (inches)
2-3/8
Bass Boost
No
Bridged Power (Watts x Channels)
180 x 1
Best Frequency Response
10-70K Hz
Speaker Level Inputs
Harness
RMS Power Output (Watts x Channels)
60 x 2
High-Pass Crossover Frequency
N/A
Fan Cooled
No
Fuse Rating
25
Width (inches)
9-1/2
Depth (inches)
7-1/8
Peak Power Output (Watts x Channels)
200 x 2
Power at 2 Ohms (Watts x Channels)
90 x 2
Minimum Impedance Bridged
4
Minimum Impedance Unbridged
2
UPC: 884938219655
Weight: 6
Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties. What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
This is not the "best amp" of all time but it is the best amp for the $. In this price point, you get the quality of a name brand amp, some fundamental features, and good THD and RMS ratings compared to other brands. I paired this amp up with 1 Rockford R2D2-10; it compliments each other well since the RMS specs line up.
Application: Ford F250 paired with 4 JBL full range powered by Pioneer headunit. Sound frequencies are well balanced, perfect for someone who wants a good representation of range while listening to their music.
Pros: LPF, 25amp fuse, low current draw (wont drain the battery quick), Needs 10 gauge wires, small size.
Cons: No adjustable LPF (set at 80 hz), No HPF, bridgeable no lower to 4 Ohms (must purchase specific subs).
Conclusion: I am happy with the puchase and there is no buyers guilt. Do your research before purchasing, know what you want, and configure your ohm settings before buying. If you are wanting heart beat miss bass this is not for you unless you pair up each sub with this amp.
I use this amp to power the tweeters from my Pioneer Tsd 1720c components. The only thing I don't like about this amp is the low pass only crossover. Other than that I find it to be a great amp for all around purpose if you have an outboard crossover.
