JL Audio M1000/5v2 - $899.99
 Item# 46247 / Condition:  Brand New

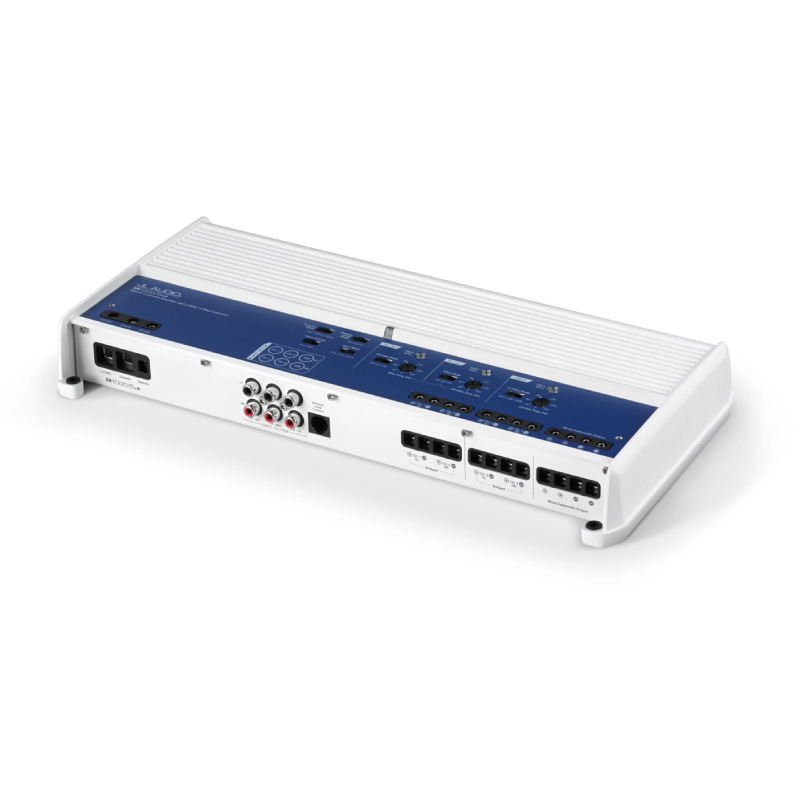

JL Audio M1000/5v2

5 Ch. Class D Marine System Amplifier, 1000 W Review this product

FREE Shipping in US 48!

Savings Of:3% Discount
Add Extended Warranty
In Stock
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

What's Included:


  • Owner's manual
  • 2.5mm Allen wrench
  • JL Audio emblem
  • 5-Channel marine amplifier


Product Highlights:

  • white and gray powder-coat finishes, gasketed control cover, and stainless steel hardware
  • 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • variable high-pass filter on front channels (49-4830 Hz, 12 dB per octave)
  • 5-channel marine amplifier
  • low-pass filter on subwoofer channel (49-483 Hz, 12 or 24 dB per octave)
  • 200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
  • 75 watts RMS x 4 at 4 ohms + 400 watts RMS at 4 ohms
  • 100 watts RMS x 4 at 2 ohms + 600 watts RMS x 1 at 2 ohms
  • Class-D design
  • variable high- or bandpass filters on rear channel (49-483 Hz, 12 dB per octave)
  • optional remote level control
  • 14-3/4"W x 2-1/16"H x 7-1/16"D

Here is the perfect, all-in-one solution to drive a potent 4-speaker + dual subwoofer marine audio system. The M1000/5v2 delivers up to 1000 W of clean power and can comfortably drive two pairs of quality component speaker systems with 75 W x 4 @ 4 Ω, while also delivering a stout 600 W of power to a dual subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching amplifier design. The M1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer output level or master volume for all channels can be directly controlled from the helm. The M1000/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. This amplifier features white and gray powder-coat finish, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.


Minimum Impedance Bridged 4
Speaker Level Inputs Yes
Depth (inches) 7-1/8
Bass Boost No
Signal to Noise Ratio 104 dB
Low-Pass Crossover Frequency 49-483 Hz
Peak Power Output (Watts x Channels) N/A
Bridged Power (Watts x Channels) 200 x 2
Width (inches) 14-13/16
High-Pass Crossover Frequency 49-4830 Hz
Frequency Response at Rated RMS Power 20-20k Hz
High-Pass Slope (dB/octave) 12 dB/octave
Fuse Rating 80
Amplifier Class D
Fan Cooled No
Height (inches) 2
Bass Boost Frequency N/A
RMS Power Output (Watts x Channels) 75 x 4
THD at Rated RMS Power 1%
Input Voltage 14.4v
Power at 2 Ohms (Watts x Channels) 100 x 4
Minimum Impedance Unbridged 2
Low-Pass Slope (dB/octave) 12 or 24 dB/octave
Preamp Outputs No
  • UPC: 699440983587
  • Weight: 10
  • Authorized Internet Dealer
*Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
