- Diameter : 10 Inch
- Maximum Power : 1600 Watts
- Sensitivity : 82.7 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1600 Watts
- Number of Voice Coils : Dual
- Suggested Ported Box Volume : 1 Cubic ft.
- Mounting Depth : 7.34 Inches
- RMS Power Handling : 800 Watts
What's Inside?

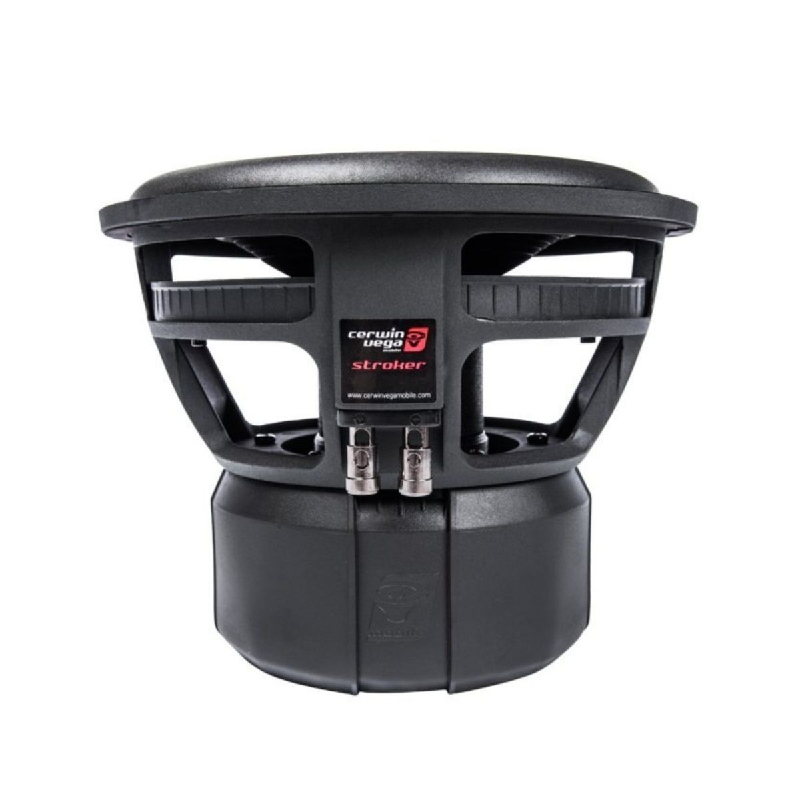

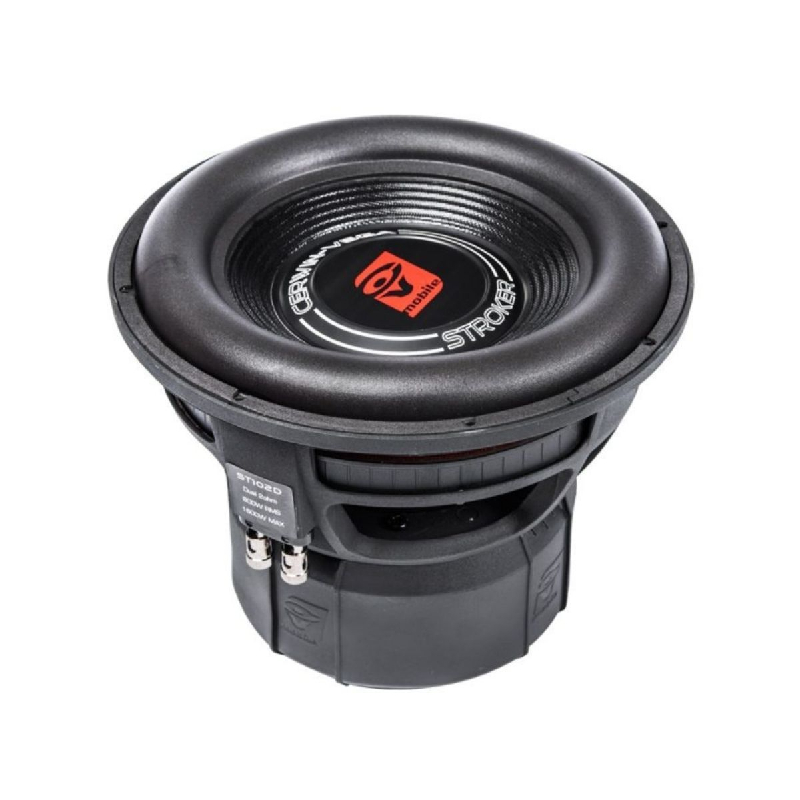

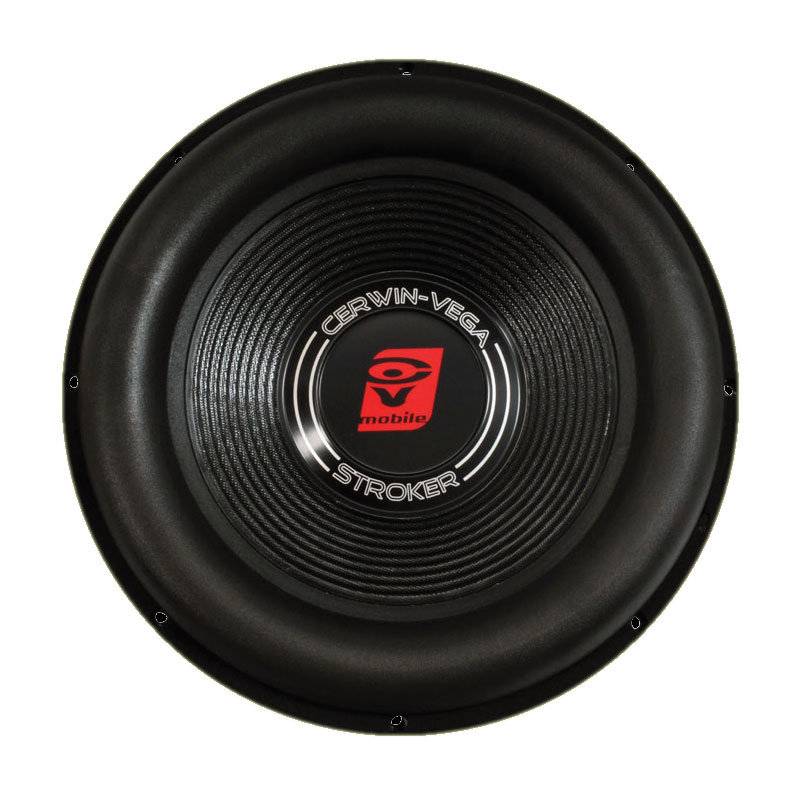

- 1 10" ST Series Dual 4 Ohm Car Subwoofer
Features:
- 10 Inch Dual 4-ohm High Performance High Output Subwoofer
- 1600W MAX / 800W RMS Power Handling
- Laminated Black Ribbed Design Pattern on Treated Semi-Pressed Cone
- Heavy Industrial Strength Textured Basket Frame
- Elevated Motor Structure Cooling Design
- Oversized Polished Black Chrome Finished Terminals
- Klippel DA Optimized Motor and Suspension Symmetry
- Dual Mirror-Imaged Oversized Spider
Specifications:
- 10” Dual 4-ohm High-Powered Subwoofer
- 800W RMS / 1600W MAX Power Handling
- Nominal Impedance (ohms): N/A
- Xmax - Inch(mm): 16.4
- Fs-Free Air Resonance (Hz): 35.0
- Vas (Liter): 17.4
- Qts: 0.52
- Qes: 0.62
- Qms: 3.3
- Re (Ω)[series]: 6.5
- Sd (cm²): 0.033
- Cms (mm/N): 0.115
- Mms (g): 180.0
- BL (T*M): 20.4
- SPL (db): 82.7
- Mounting Depth: 7.34″(186.5mm)
- Total Diameter: 10.29″ (261.5mm)
- Mounting Diameter (inch/mm): 9.31″(236.5mm)
- Screw Hole Diameter: 0.216″(5.5mm)
- Displacement (ft3/L): 0.081 ft3(2.3L)
- UPC: 847169019739
- Weight: 10
