JBL 670GTi Component Speaker System
Voice Coil
An extra long, aluminum edge-wound voice coil provides high excursion for improved low-frequency capability. The two-inch diameter, over-hung voice coil reduces distortion at low frequencies and high input power.

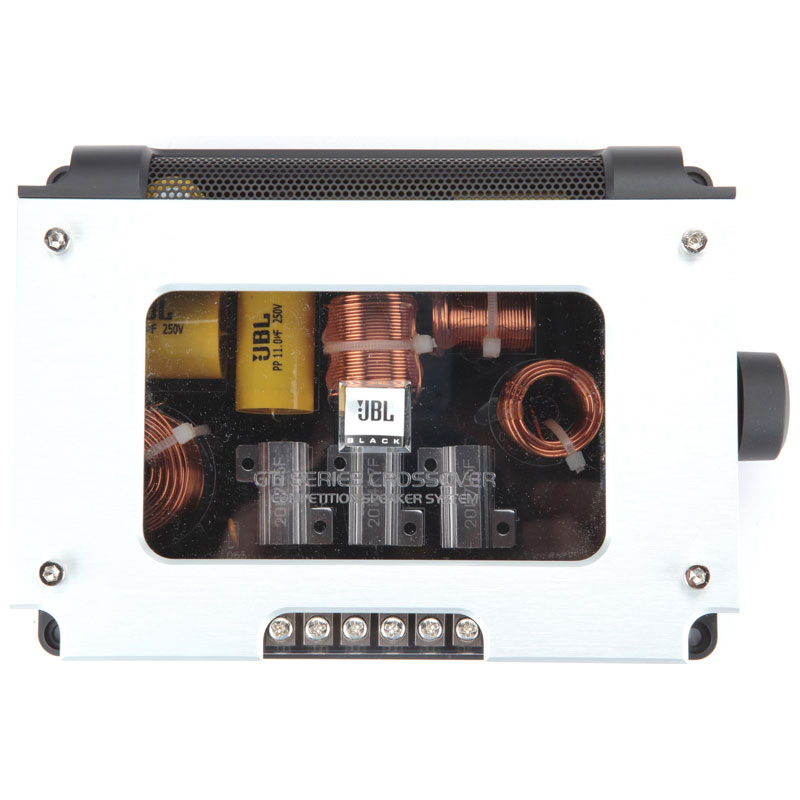

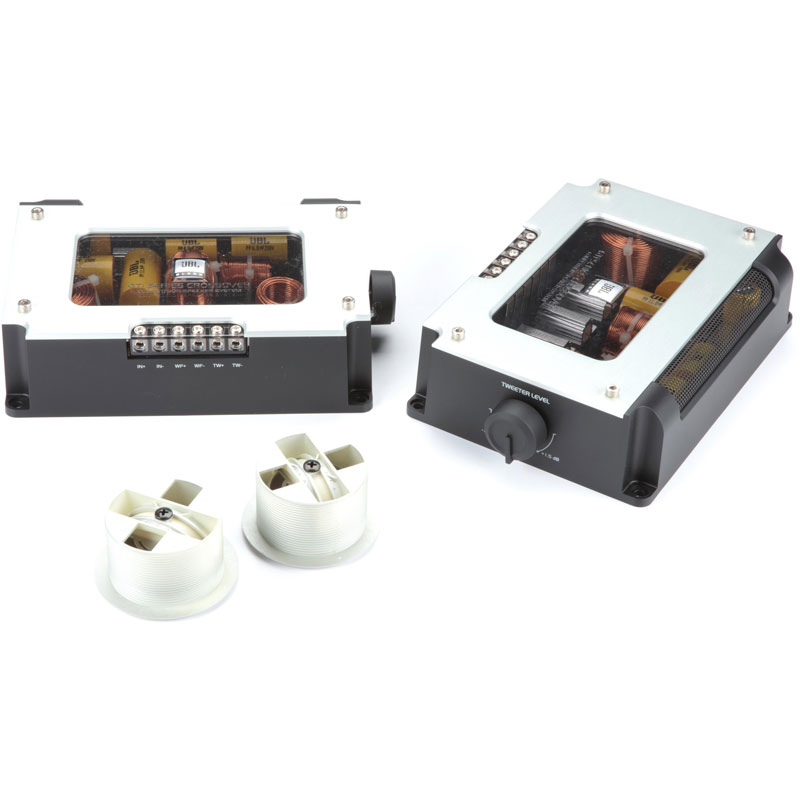

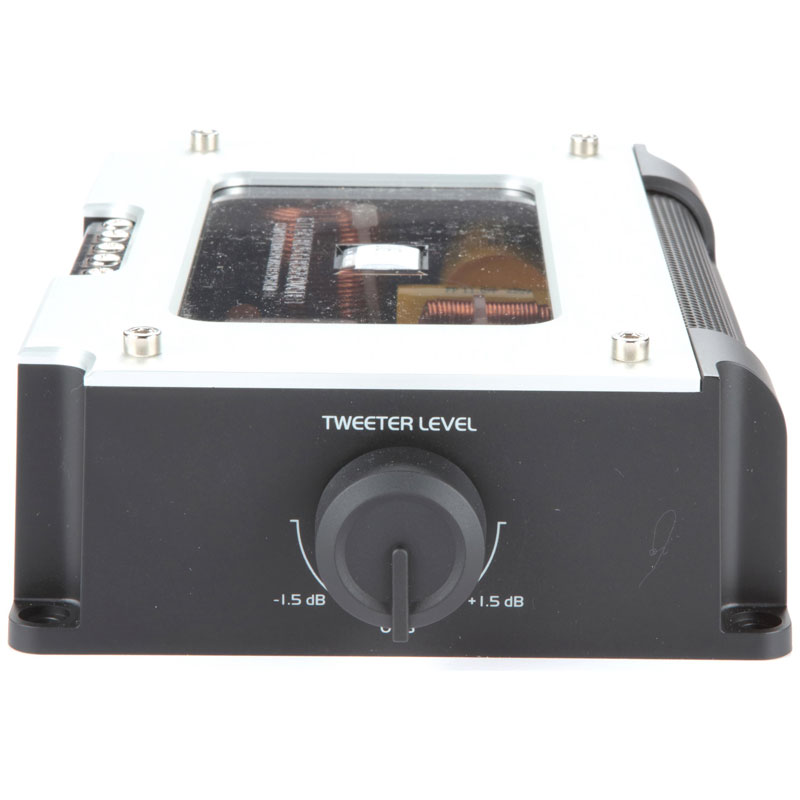

Precision crossover network
Technology and construction you might find in a premium home loudspeaker are right at home in the 670GTi's crossover network. Aluminum-encased, wire-wound resistors and heavy-trace printed circuit boards greatly increase heat dissipation and powre handling, maximizing the amount of amplifier power that reaches the woofer and tweeter.
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Frequency Response : 50-30000 Hz
- Peak Power Handling : 600 Watts
- Shallow Mount : No
- RMS Power Handling : 150 Watts
A decade ago, JBL engineers introduced the 660GTi Component System. The premium system celebrated the company’s 60th anniversary by setting new standards for power handling, distortion reduction and sound quality in cars. Now the 670GTi brings uncompromising JBL performance to a new generation of car audio enthusiasts. Featuring the identical woofers, tweeters and crossover circuits as its predecessor, this reference-class component system delivers huge power-handling capability, flat response and unparalleled distortion elimination. It even simplifies installation by splitting the crossover into separate, one-channel boxes. The product of meticulous design, manufacturing and testing, the 670GTi represents everything JBL engineering stands for.
Product Highlights:

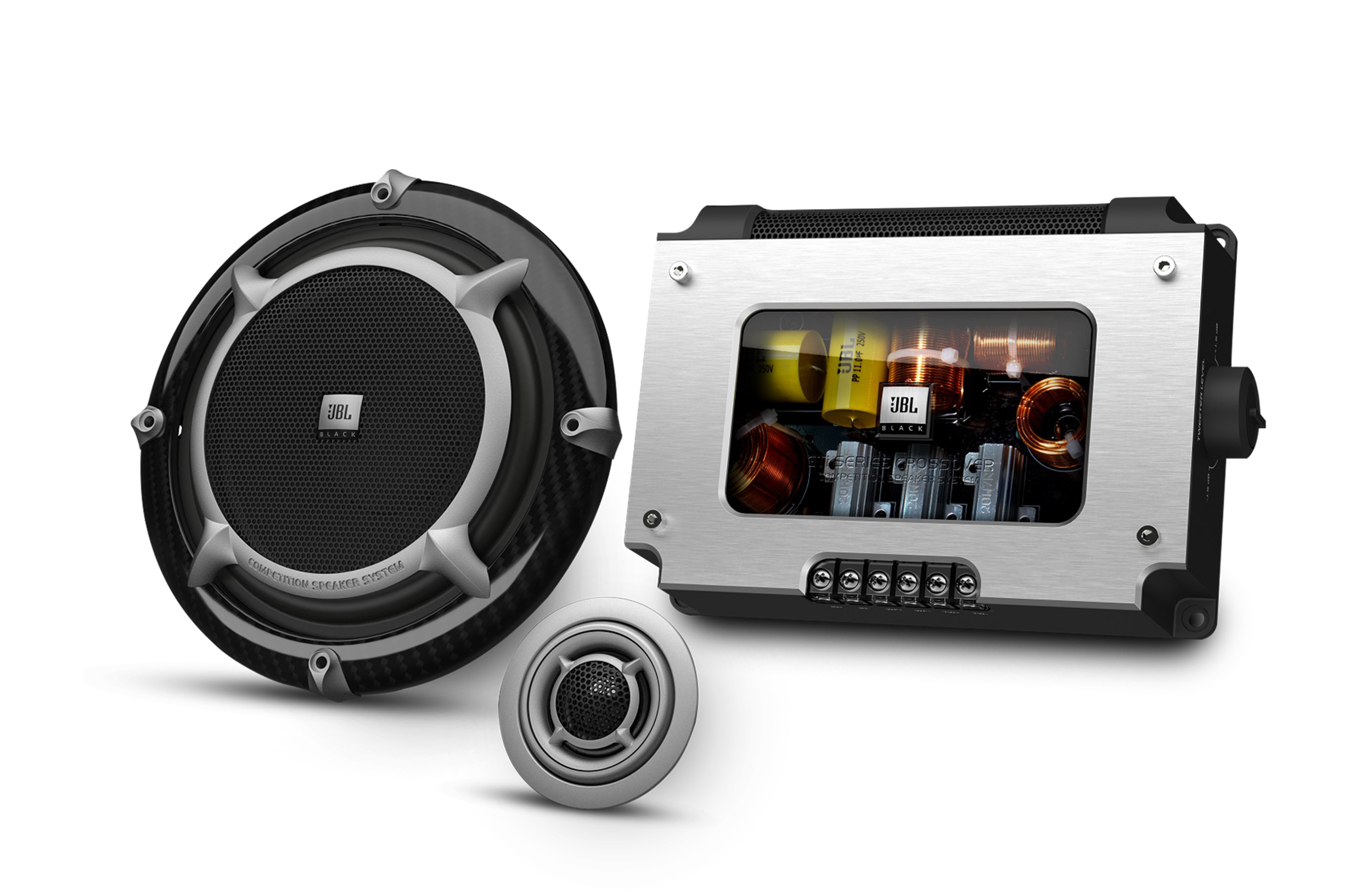

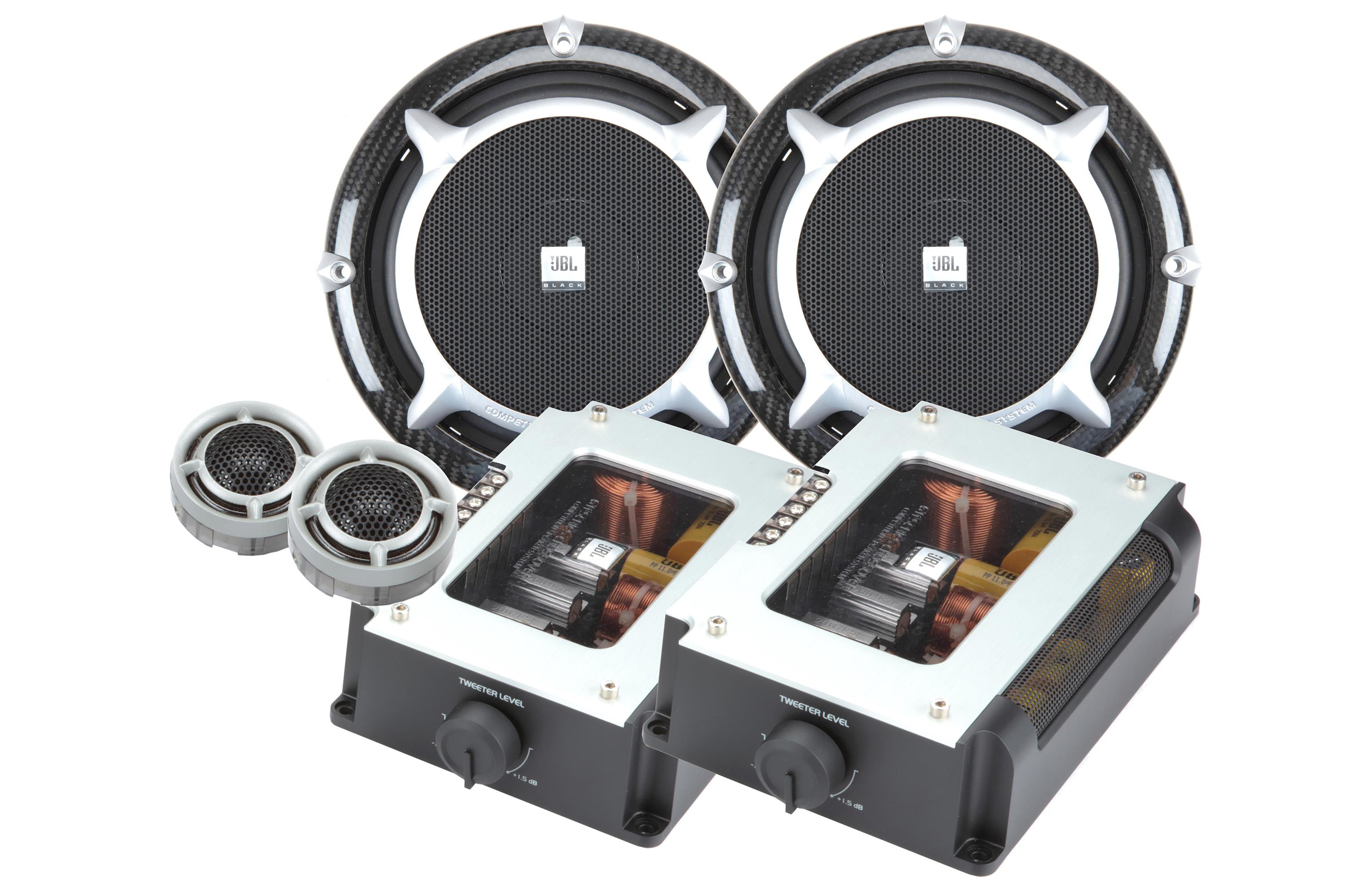

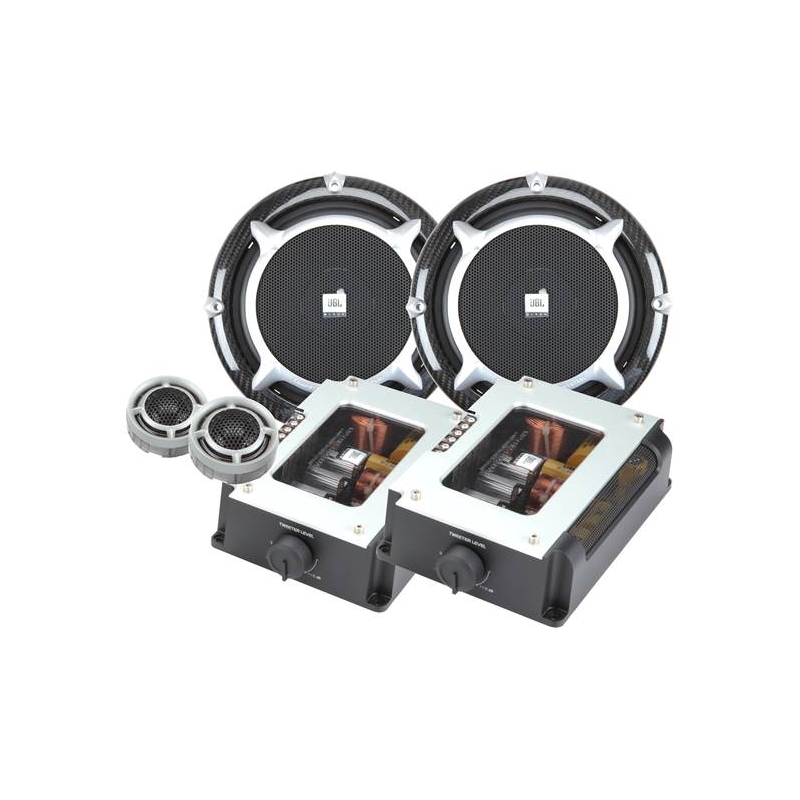

- component speaker system includes 2 woofers, 2 tweeters, 2 external crossovers, and installation gear
- 6-1/2" Kevlar® woofer cone with nitrile-butylene surround
- 1" edge-driven textile dome tweeter
- power range: 10-150 watts RMS (600 watts peak power)
- frequency response: 50-30,000 Hz
- sensitivity: 92 dB at 2.83 volts
- woofer top-mount depth: 2-3/4"
- woofer grilles, adapter rings and foam gaskets included
- tweeter mounting kits included
Specifications:
- Impedance (Ohms): 4
- Design: 2-way
- Woofer Surround: Nitrile-Butylene
- Peak Power Handling (Watts): 600
- Bottom-mount Depth (Inches): 3-1/8
- Tweeter Design: 1" Edge-driven dome
- Minimum RMS Wattage: 10
- Top-mount Depth (Inches): 2-13/16
- Sensitivity (1W at 1 meter): 89
- Speaker Size: 6-3/4
- Tweeter Composition: Textile
- Woofer Composition: Kevlar
- Sensitivity at 2.83 volts: 92
- Frequency Response: 50-30k Hz
- Maximum RMS Wattage: 150
- Cutout Diameter or Length (inches): 5-1/16
What's Included:
- 16 Speed clips
- Four 5/8" Flat head screws
- 2 Woofer grilles
- Eight 5/8" Self-tapping Allen head screws
- 2 Crossovers
- Eight M3 x 4mm flat head machine screws
- Eight 3/4" Self-tapping pan head screws
- 1mm Allen wrench
- Owner's guide (English/ French/ Spanish/ Russian/ Japanese/ Korean/ Chinese/ Taiwanese/ Indonesian)
- 2 Flush-mount tweeter housings
- 2 Tweeters
- Twelve 1-1/8" Self-tapping Allen head screws
- 2mm Allen wrench
- 2 Woofers
- 2 Threaded flush-mount housing retention nuts
- 2 Starfish tweeter mounts
- Eight M4 x 8mm Allen head machine screws
- 3mm Allen wrench
- 2 Adhesive backed foam gasket strips
- UPC: 050036325875
- Weight: 15
