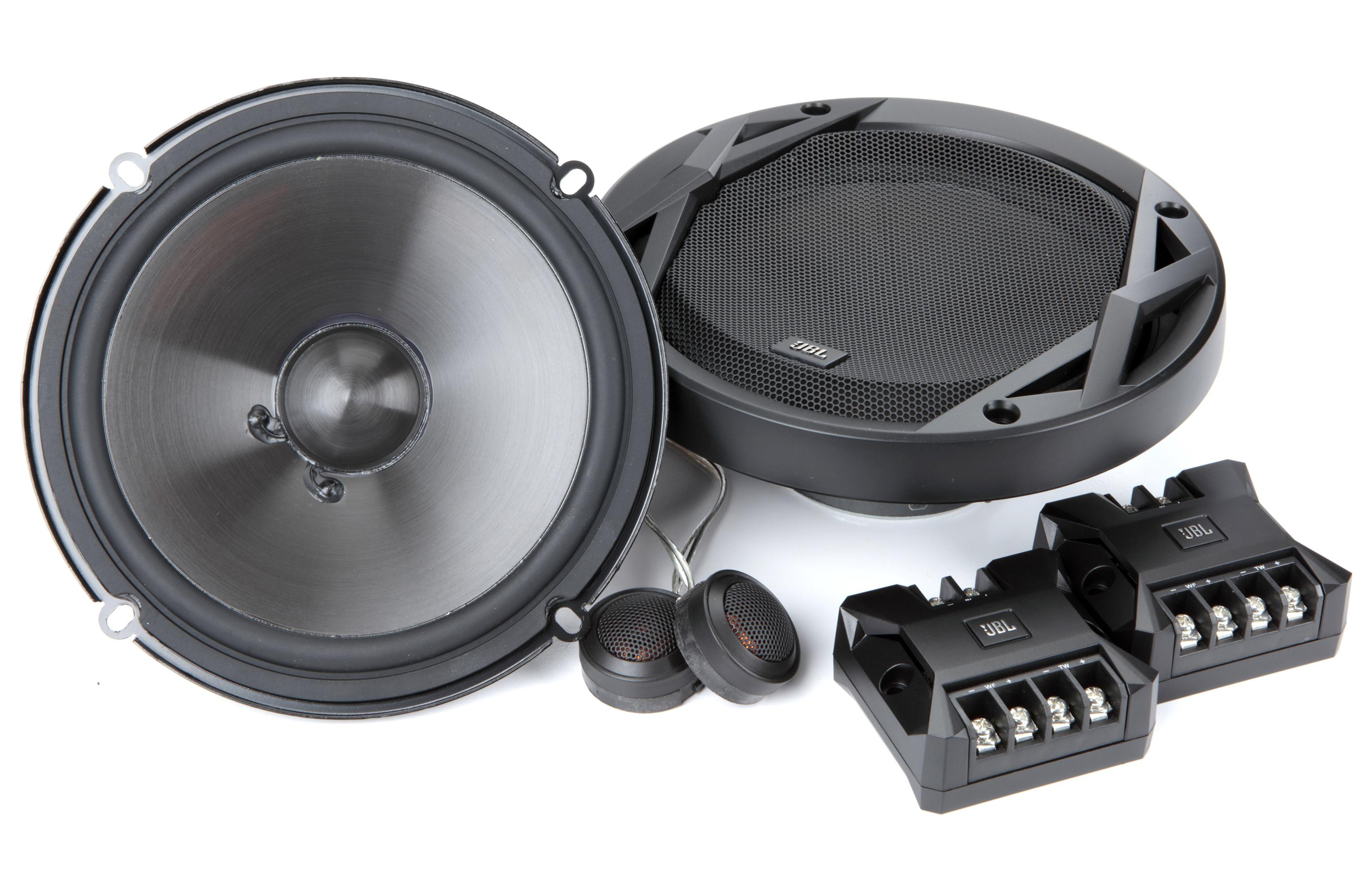

Reduced Critical Dimensions
Club Speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.

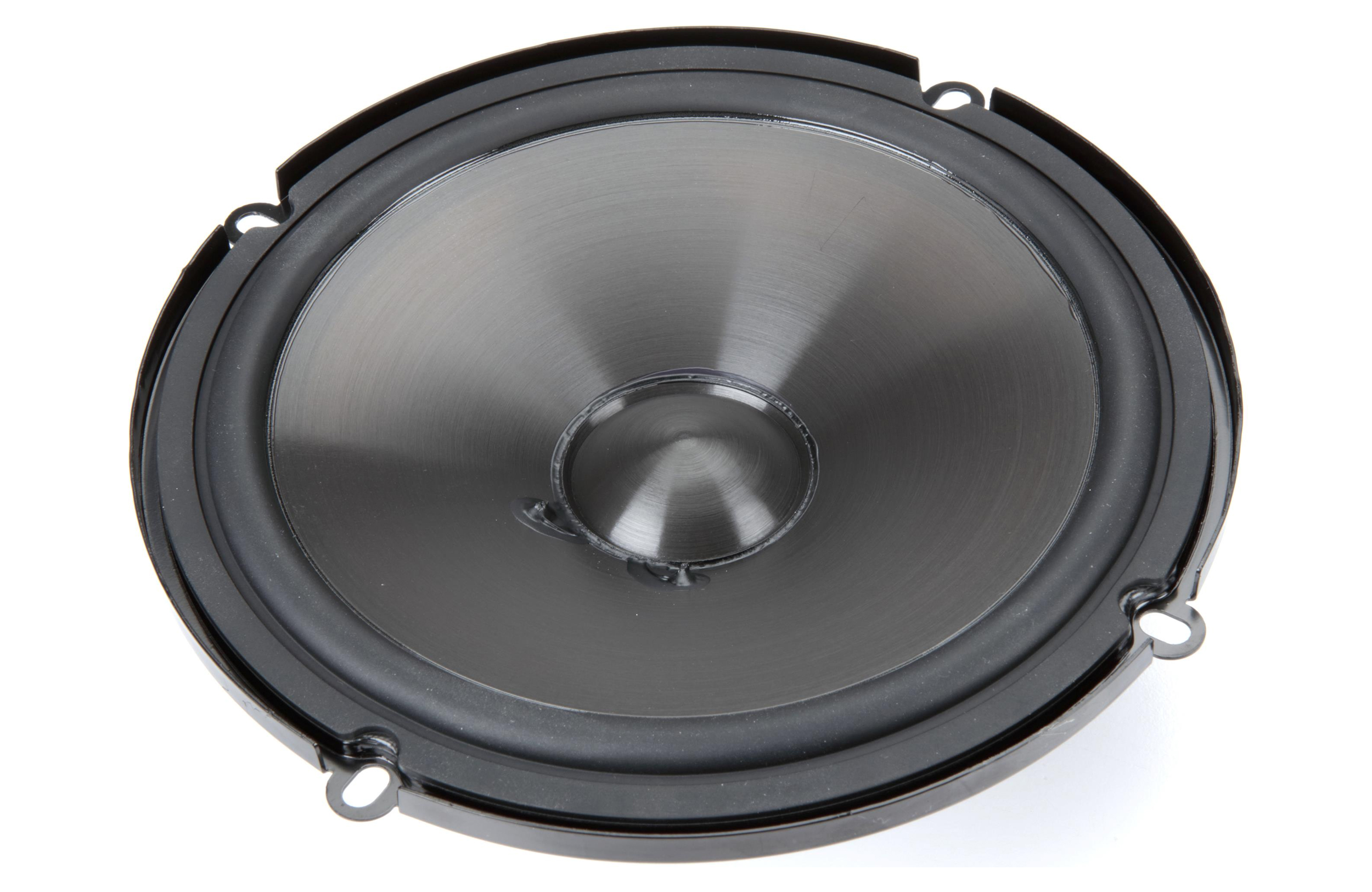

High Sensitivity Design
Club Speakers' efficiency produce plenty of sound from the power they're fed, making them ideal for any application, even when they're driven by relatively low-powered factory stereos.
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Frequency Response : 55-20000 Hz
- RMS Power Range : 60 Watts
- Peak Power Handling : 180 Watts
| Specifications |
| Woofer Composition |
Polypropylene |
| Maximum RMS Wattage |
60 |
| Sensitivity at 2.83 volts |
92 |
| Design |
2-way |
| Speaker Size |
6 3/4 |
| Peak Power Handling (Watts) |
180 |
| Tweeter Composition |
PEI |
| Top-mount Depth (Inches) |
1 13/16 |
| Minimum RMS Wattage |
--- |
| Woofer Surround |
Rubber |
| Tweeter Design |
3/4" Edge-Driven Dome |
| Sensitivity (1W at 1 meter) |
88 |
| Frequency Response |
55 - 20k Hz |
| Impedance (Ohms) |
3 |
| Bottom-mount Depth (Inches) |
N/A |
| Cutout Diameter or Length (inches) |
4 7/8 |
Product Highlights:
- impedance: 3 ohms

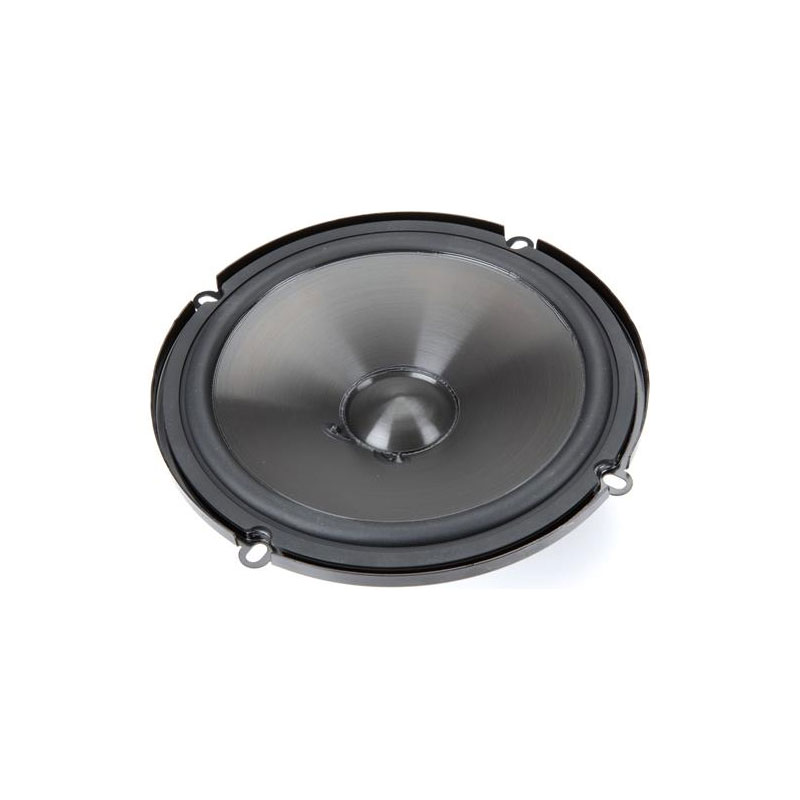

- 6-3/4" polypropylene Plus One™ woofer cone
- frequency response: 55-20,000 Hz

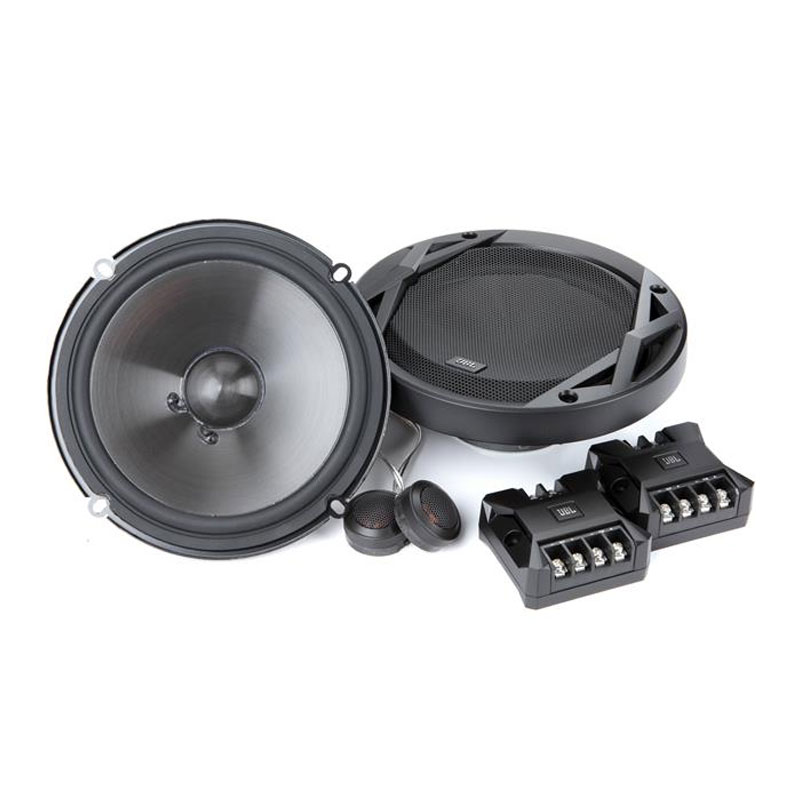

- Component speaker system includes two woofers, two tweeters, and two crossovers
- 3/4" edge-driven soft dome tweeter
- handles up to 60 watts RMS (180 watts peak power)
- sensitivity: 92 dB @ 2.83 volts
- woofer top-mount depth: 1-3/4"
- grilles included
What's Included:
- 2 Plastic locking nuts
- 2 Adhesive backed foam gaskets
- 2 Washers
- 2 Woofers
- 2 JBL window stickers

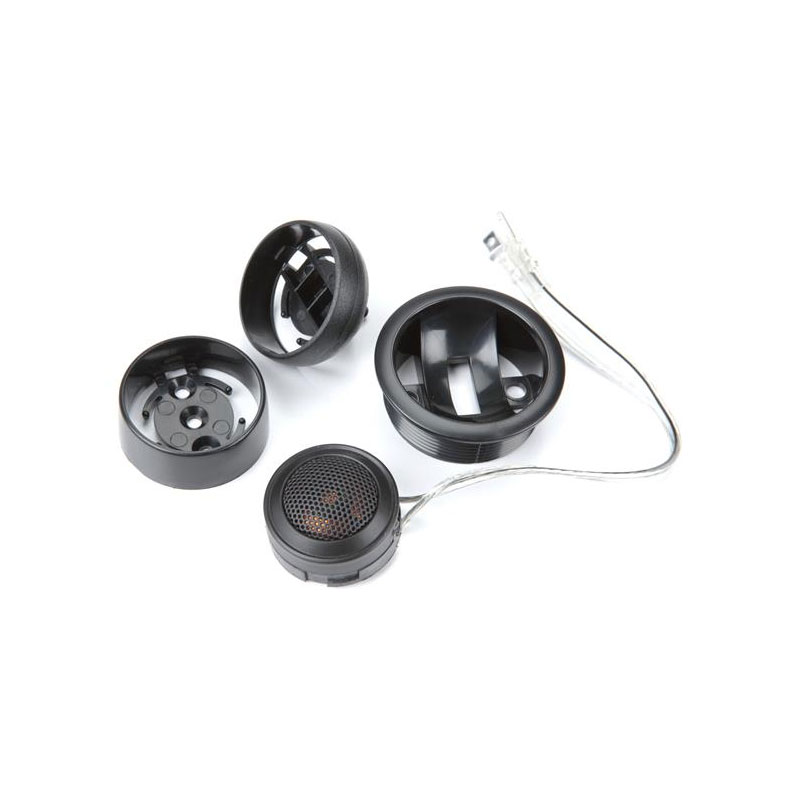

- 2 Tweeter surface-mount housings
- 2 Woofer grilles
- 2 Tweeters (each has attached 6" speaker leads)
- Six 5/8" Flat head screws
- 2 Starfish tweeter mounts
- Template on box

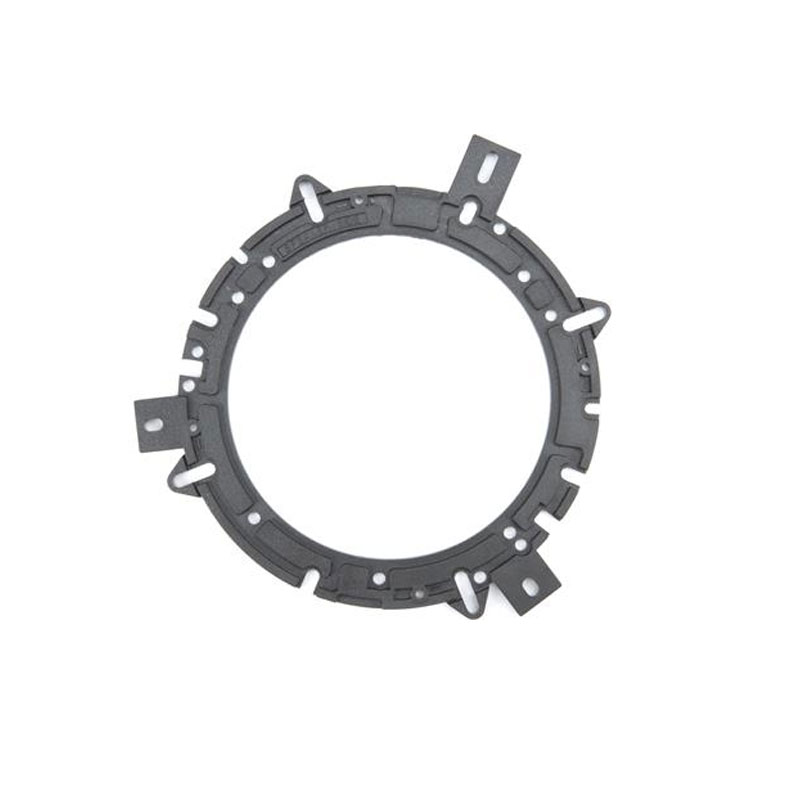

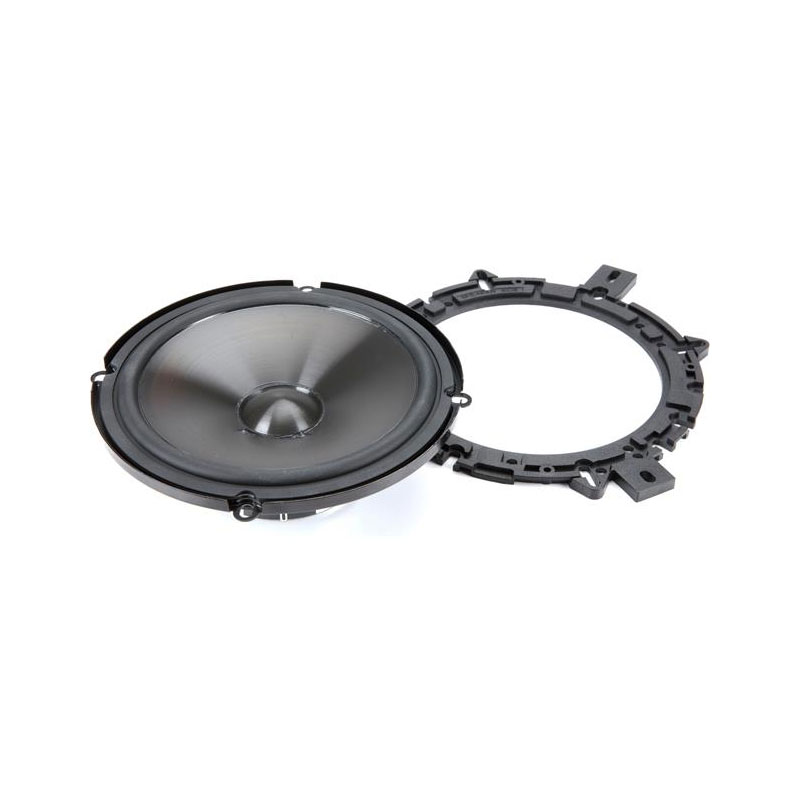

- 2 Woofer mounting brackets
- 8 Speed clips
- Instruction manual
- Eight 1" Screws
- 2 Crossovers
- 2 Tweeter flush-mount housings
- 2 Threaded flush-mount adapters
- Eight 1-3/8" Screws
- Eight 1/2" Screws
- 2 Nuts
- UPC: 050036328449
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
