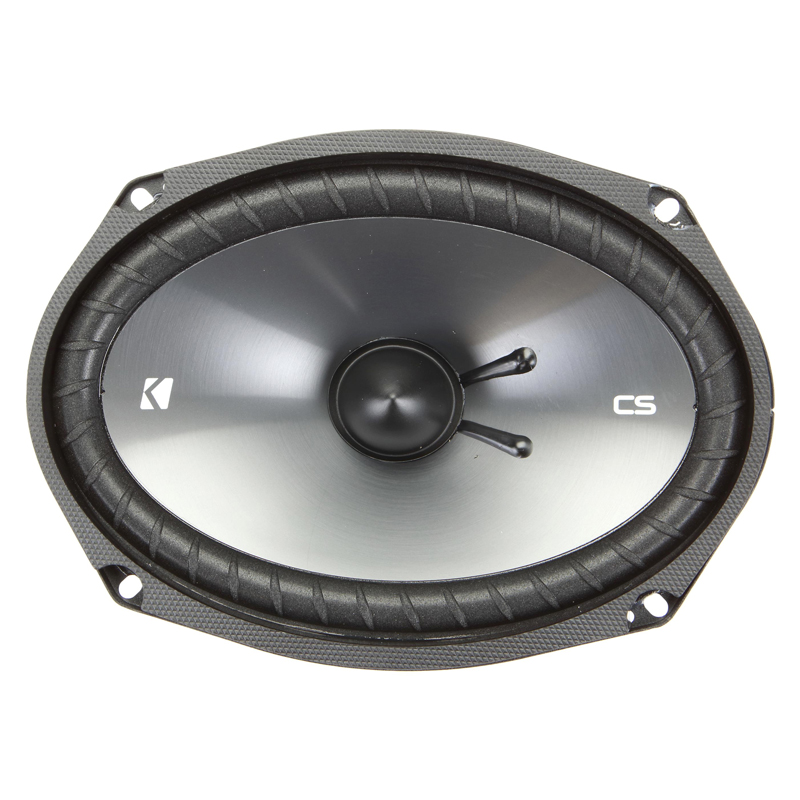

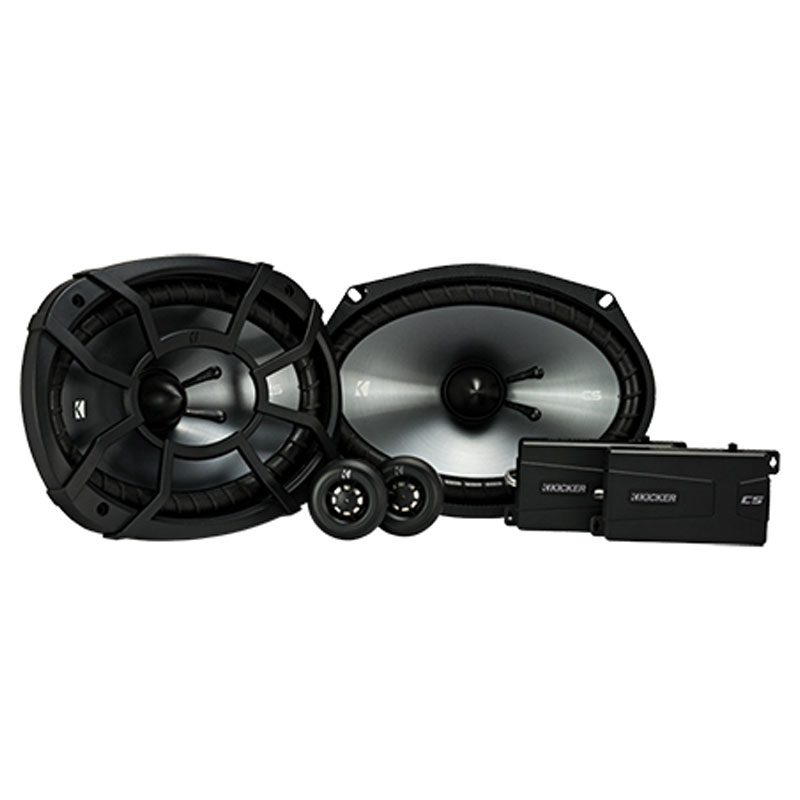

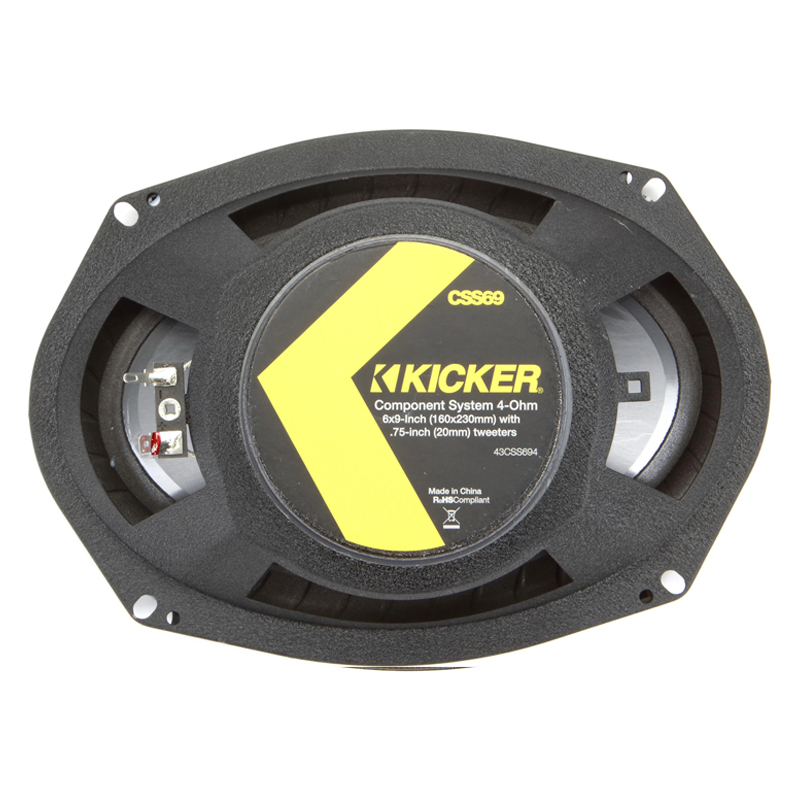

Kicker  43CSS694

6x9-Inch Component System with .75-inch (20mm) tweeters, 4-Ohm

Item #48028

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Kicker Banner

CS Speakers

The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.

CS Series Main

Component Speakers

Replace your factory speakers with CS components for a new level of volume and clarity. Titanium tweeters and a two-way crossover with tweeter level control lets you customize your sound for the best sonic quality.

CS Series Component Speakers


Coaxial Speakers

The CS-Series two- and three-way coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and zero-protrusion tweeters for excellent audio quality- without interfering with factory grilles.

CS Series Coaxial Speakers

Tweeters

CS Component Tweeters feature neodymium magnets and 20mm titanium domes that reveal every musical detail. The 6dB in-line crossover delivers control and accuracy, while three mounting choices let you create the perfect look in your ride.

CS Series Tweeters


SPECIFICATIONS


  • Diameter : .75 Inch
  • Frequency Response : 30-21000 Hz
  • RMS Power Range : 150 Watts
  • Peak Power Handling : 450 Watts

FEATURES


The CS 6x9-Inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

CS components include Titanium tweeters and two-way crossovers with tweeter level control let you customize your sound for the best sonic quality.

These KS speakers work best with 150 watts of recommended power. See below for more details.

Specifications

  • Woofer Size | in [mm] : 6x9 [160x230]
  • Tweeter Size | in [mm] : 3/4 [20]
  • Dome Material : Titanium
  • Peak Power | [watts] : 450
  • Continuous Power | [watts RMS] : 150
  • Effective Frequency Range | Hz : 30-21k
  • Woofer Mounting Hole Diameter | in [mm] : 5 5/8 x 8 7/16 [143x215]
  • Woofer Bottom Mount Depth | in [mm] : 3 3/16 [81]
  • Flush Mounting Tweeter Hole Diameter | in [mm] : 1 9/16 [40]
  • Flush Mount Tweeter Depth | in [mm] : 9/16 [14.5]
  • High Pass | dB, at Frequency | Hz 12, : 4000
  • Low Pass | dB, at Frequency | Hz 12, : 4000
  • High Frequency Output Attenuation | dB : 0, 3, & 6
  • Bolt-Thru Grilles : Yes

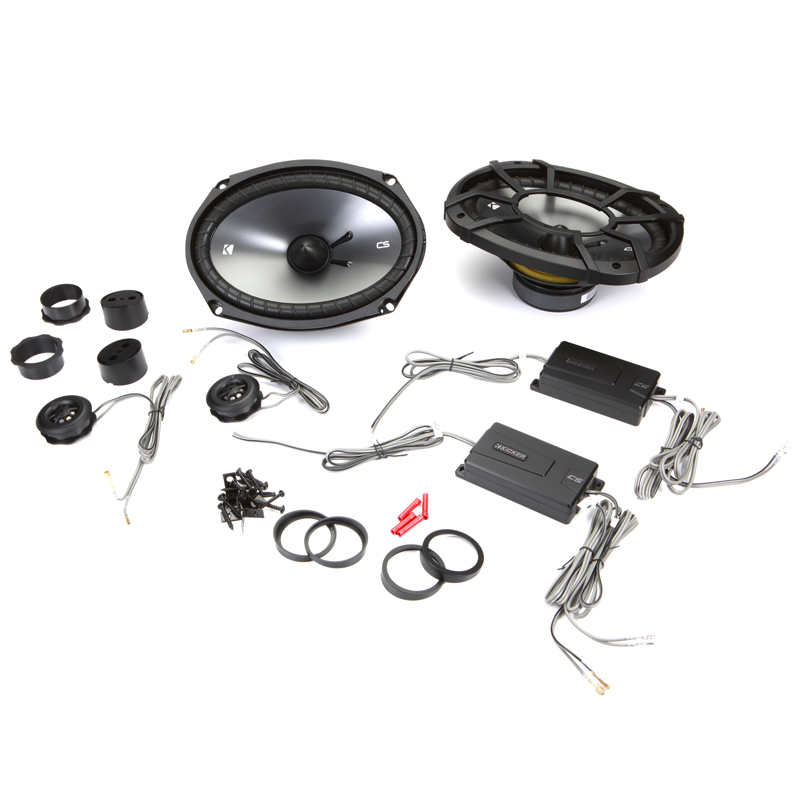

What's Included?

  • Two woofers
  • Two Woofer grilles
  • Two tweeters (each with 36" Wire attached)
  • Two Crossovers (each with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached)
  • Two Flush mount tweeter rings
  • Two Short tweeter mounting nuts
  • Two Long tweeter mounting nuts
  • Two Back angled tweeter rings
  • Two Front angled tweeter rings
  • Two Angled surface mount tweeter housings
  • Twelve 1" Screws
  • Two 5/8" Screws
  • Eight Speed clips
  • Four 7" Zip-ties
  • Four Red plastic wire caps
  • Kicker 43CSS694 Owner's Manual PDF Manual
  • UPC: 713034076117
  • Weight: 9
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
