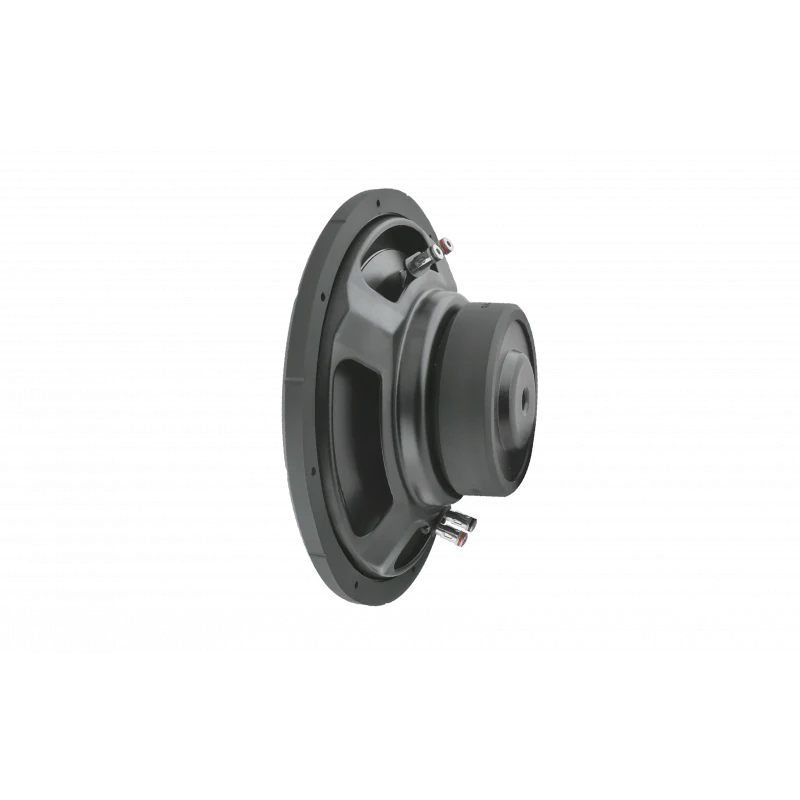

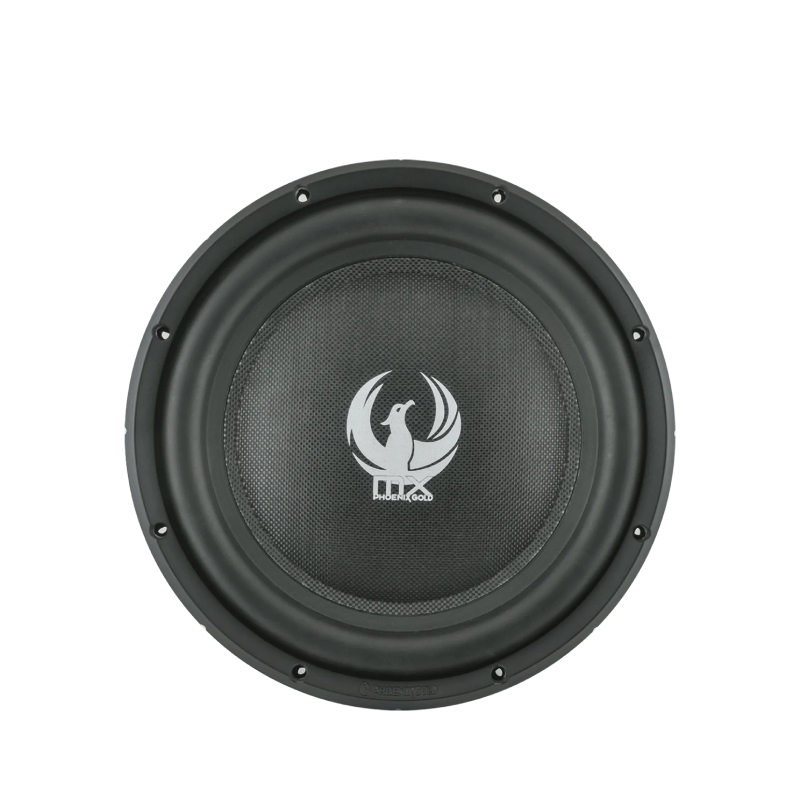

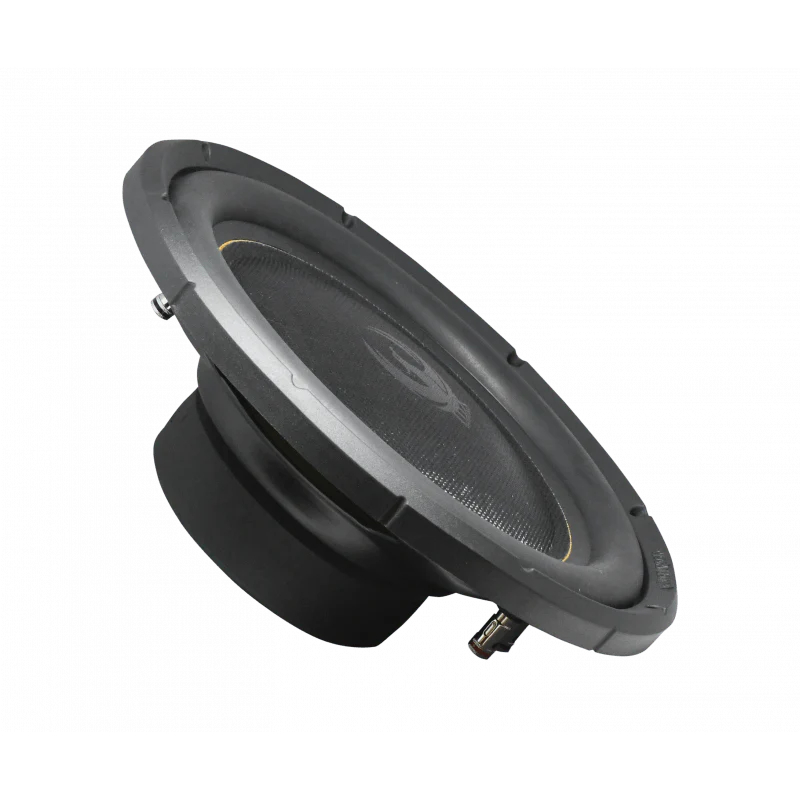

Phoenix Gold MX10D2 MX 10" Dual 2-Ohm 300Watts Voice Coil Slim Subwoofer
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Shallow Subwoofer
- • Dual 2-Ohm DVC KSV Voice Coil
- • RMS Wattage: 300W
- • Peak Wattage: 600W
- • 11mm of Linear Excursion
- • High Excursion CAE/CAD Motor Design
- • KlaraForm Vented Kapton Former
- • Glass Fiber Reinforced Cone
- • Phoeniroll Surround Technology
- • Torriform Voice Coil Technology
- • Nickel Plated 12 Gauge Speaker Terminal
- • Optimized for Sealed Enclosures
- • Powder Coated Anti-Resonant Steel Basket
Torriform Voice Coil Technology & KlaraForm Vented Kapton Former
It effectively dissipates heat and minimizes distortion.
- Diameter : 9.25 Inch
- High Frequency Response : 300 Hz
- Sensitivity : 84 dB
- Depth : 3.63 Inch
- Frequency Response : 20 Hz
- Peak Power Handling : 600 Watts
- Shallow Mount : Yes
- Number of Voice Coils : Dual
- RMS Power Handling : 300 Watts
Features:
- 10” shallow mount subwoofer
- Delivers powerful audio in vehicles with limited space such as trucks, compact vehicles and other applications with limited depth. Recommended enclosure volume 0.5 - 1.0 cubic feet.
- Dual 2-ohm voice coils
- Conducts power evenly to keep speakers working at optimal levels.
- Rigid glass fiber-reinforced cone
- For enhanced bass response.
- Handles up to 600W peak power (300W RMS)
- 84dB sensitivity
- Picks up the highs and lows for faithful sound reproduction.
- 20Hz - 300Hz frequency response
- For accurate sound reproduction.
- 9.25” mounting diameter; 3.63” mounting depth
- RMS Wattage: 300W
- Peak Wattage: 600W
- 11mm of Linear Excursion
- High Excursion CAE/CAD Motor Design
- KlaraForm Vented Kapton Former technology reduces distortion by reducing heat and resistance
- Glass Fiber Reinforced Cone for Increased Low End
- Phoeniroll Surround Technology promotes linear motion
- Torriform Voice Coil Technology: Effectively dissipates heat and minimizes distortion
- Nickel Plated 12 Gauge Speaker Terminal
- Optimized for Sealed Enclosures
- Powder Coated Anti-Resonant Steel Basket
Specifications:
Key Specs
- RMS Power: 300 watts
- Peak Power Handling: 600 watts
- Minimum Frequency Response: 20 hertz
- Maximum Frequency Response: 0.3 kilohertz
- Sensitivity: 84 decibels
- Dual Voice Coils: Yes
- Woofer Size: 10 inches
- Mount Depth: 3.63 inches
- Woofer Composition: Dual cone topology with polypropylene cone and glass fiber cone
- Woofer Surround Material: Butyl Rubber
General
- Product Name: MX 10" Dual-Voice-Coil 2-Ohm Slim Subwoofer
- Brand: Phoenix Gold
- Number of Subwoofers Included: 1
- Model Number: MX10D2
- Color: Black
- Color Category: Black
Audio Power
- RMS Power: 300 watts
- Peak Power Handling: 600 watts
- Integrated Amplifier: No
Audio
- Minimum Frequency Response: 20 hertz
- Maximum Frequency Response: 0.3 kilohertz
- Sensitivity: 84 decibels
Features
- Dual Voice Coils: Yes
- Grille Included; No
- Marine: No
Dimension
- Woofer Size: 10 inches
- Cutout Diameter: 9.25 inches
- Mount Depth: 3.63 inches
- Product Height: 10.35 inches
- Product Width: 10.35 inches
- Product Depth: 3.63 inches
- Product Weight: 8.7 pounds
Design
- Woofer Composition: Dual cone topology with polypropylene cone and glass fiber cone
- Woofer Surround Material: Butyl Rubber
- Frame Material(s): Steel
Enclosure
Warranty
- Manufacturer's Warranty - Parts: 1 year
- UPC: 609098829229
- Weight: 9
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
