Phoenix Gold MX10D4 MX 10" Dual 4-Ohm 300Watts Slim Subwoofer
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Shallow Subwoofer
- • Dual 4-Ohm DVC KSV Voice Coil
- • RMS Wattage: 300Watts
- • Peak Wattage: 600Watts
- • 11mm of Linear Excursion
- • High Excursion CAE/CAD Motor Design
- • KlaraForm Vented Kapton Former
- • Nickel Plated 12 Gauge Speaker Terminal
- • Phoeniroll Surround Technology
- • Optimized for Sealed Enclosures
- • Torriform Voice Coil Technology
- • Powder Coated Anti-Resonant Steel Basket
- • Glass Fiber Reinforced

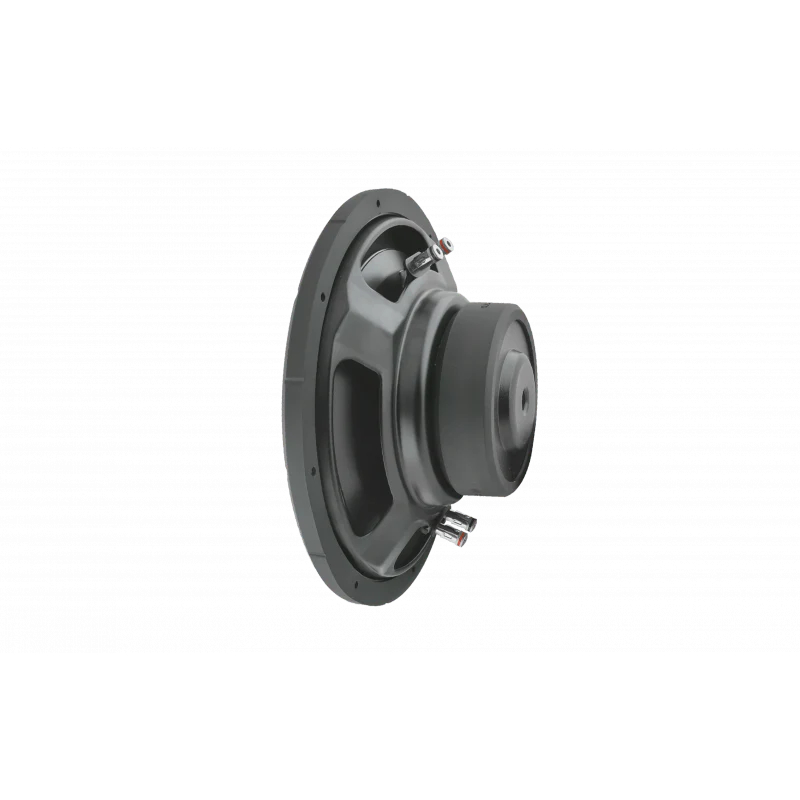

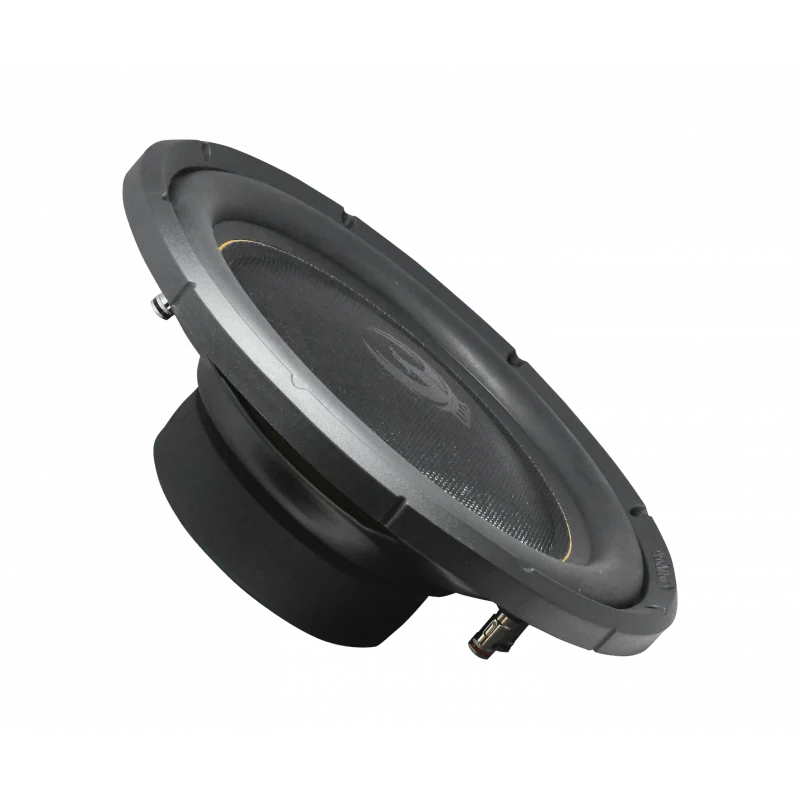

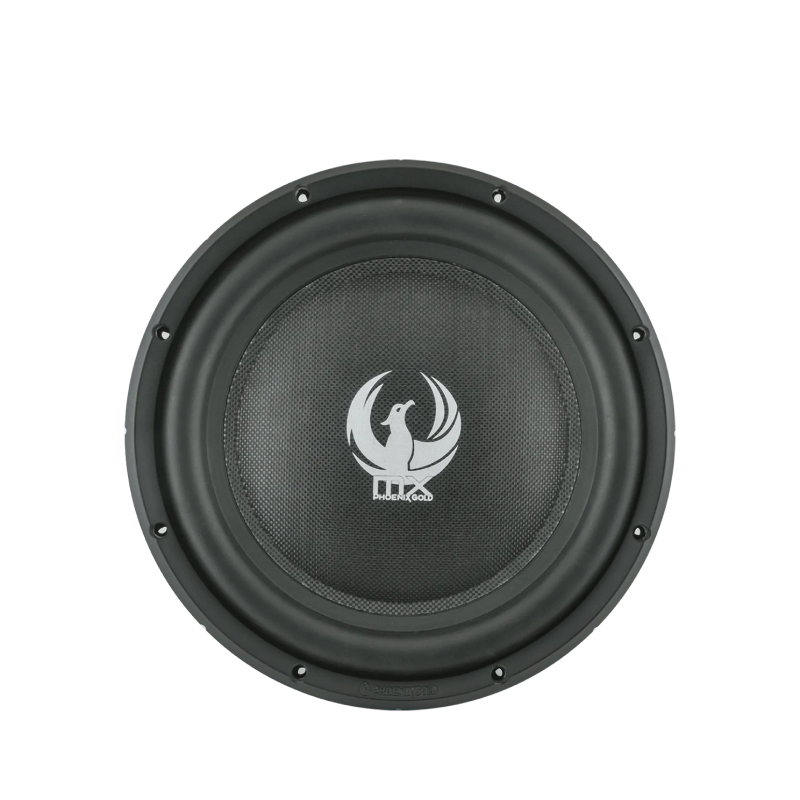

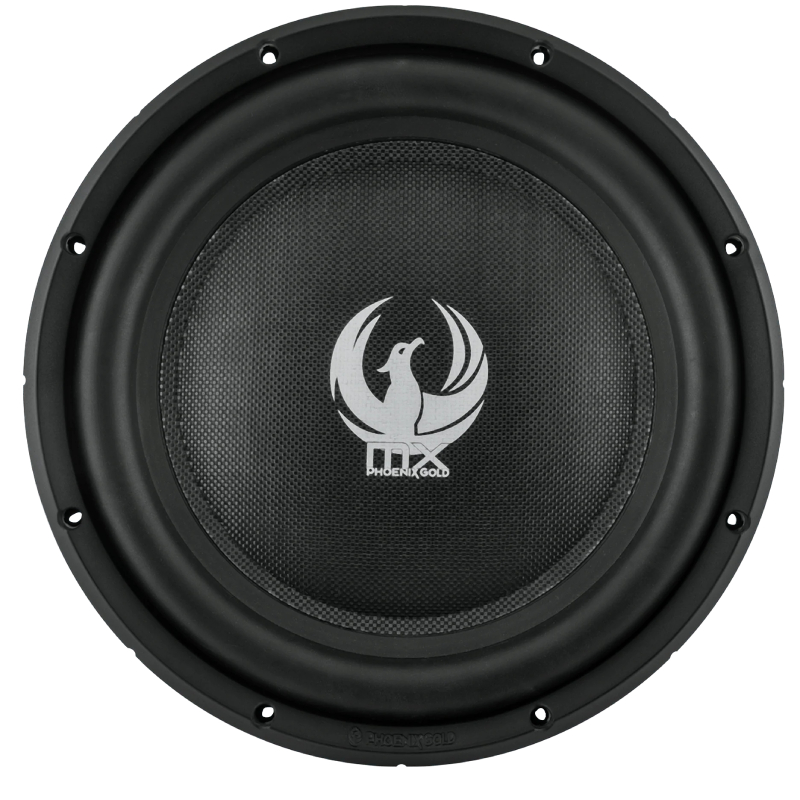

MX10D4 Subwoofer
This model features the High Excursion CAE/CAD Motor Design, KlaraForm Vented Kapton Former and Torriform Voice Coil Technology that reduces distortion by reducing heat and resistance. It also has the Glass Fiber Reinforced Cone, Nickel Plated 12 Gauge Speaker Terminal, Optimized for Sealed Enclosures, and Phoeniroll Surround Technology that promotes linear motion.
- Diameter : 9.25 Inch
- Maximum Power : 300 Watts
- Low Frequency Response : 20 Hz
- High Frequency Response : 300 Hz
- Sensitivity : 85 dB
- Depth : 3.63 Inch
- Frequency Response : 20-300 Hz
- Peak Power Handling : 600 Watts
- Shallow Mount : Yes
- Number of Voice Coils : Dual
- RMS Power Handling : 300 Watts
Featues:
- 10" Shallow Subwoofer
- 2" 4 Ohm DVC KSV Voice Coil
- RMS Wattage: 300W
- Peak Wattage: 600W
- 11mm of Linear Excursion
- High Excursion CAE/CAD Motor Design
- KlaraForm Vented Kapton Former technology reduces distortion by reducing heat and resistance
- Glass Fiber Reinforced Cone for Increased Low End
- Phoeniroll Surround Technology promotes linear motion
- Torriform Voice Coil Technology: Effectively dissipates heat and minimizes distortion
- Nickel Plated 12 Gauge Speaker Terminal
- Optimized for Sealed Enclosures
- Powder Coated Anti-Resonant Steel Basket
- Handles up to 600W peak power (300W RMS)
- Rigid glass fiber-reinforced cone
- For enhanced bass response.
- Dual 4 ohm voice coils
- Conducts power evenly to keep speakers working at optimal levels.
- 85dB sensitivity
- Picks up the highs and lows for faithful sound reproduction.
- 20Hz - 300Hz frequency response
- For accurate sound reproduction.
- 9.25” mounting diameter; 3.63” mounting depth
Specifications:
Key Specs
- RMS Power: 300 watts
- Peak Power Handling: 600 watts
- Minimum Frequency Response: 20 hertz
- Maximum Frequency Response: 0.3 kilohertz
- Sensitivity: 85 decibels
- Dual Voice Coils: Yes
- Woofer Size: 10 inches
- Mount Depth: 3.63 inches
- Woofer Composition: Dual cone topology with polypropylene cone and glass fiber cone
- Woofer Surround Material: Butyl Rubber
General
- Product Name: MX 10" 300W Dual-4-Ohm Voice-Coil Slim Subwoofer
- Brand: Phoenix Gold
- Number of Subwoofers Included: 1
- Model Number: MX10D4
- Color: Black
- Color Category: Black
Audio Power
- RMS Power: 300 watts
- Peak Power Handling: 600 watts
- Integrated Amplifier: No
Audio
- Minimum Frequency Response: 20 hertz
- Maximum Frequency Response: 0.3 kilohertz
- Sensitivity: 85 decibels
Features
- Dual Voice Coils: Yes
- Grille Included: No
- Marine: No
Dimension
- Woofer Size: 10 inches
- Cutout Diameter: 9.25 inches
- Mount Depth: 3.63 inches
- Product Height: 10.35 inches
- Product Width: 10.35 inches
- Product Depth: 3.63 inches
- Product Weight: 8.65 pounds
Design
- Woofer Composition: Dual cone topology with polypropylene cone and glass fiber cone
- Woofer Surround Material: Butyl Rubber
- Frame Material(s): Steel
Enclosure
Warranty
- Manufacturer's Warranty - Parts: 1 year
- UPC: 609098829236
- Weight: 9
