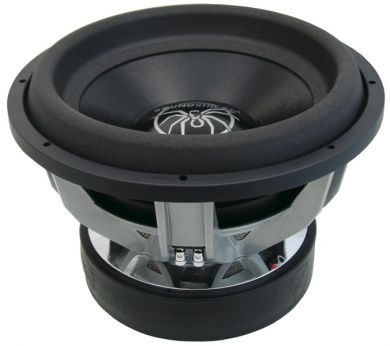

Soundstream XXX-18 Item# 21823
18" 10000W High Performance XXX-Series Competition Component Car Subwoofer Driver
Soundstream :: XXX-18 :: $1,049.00
MSRP: $1,359.00
Regular Price: $1,089.00
You Save: $310.00 (22%)
Our Price: $1,049.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)
Condition: Brand New Avg Rating: 4.5 Star Rating
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

  • Nickel Plated 8 ga. Compression Wire Terminal
  • Non-Pressed UV Coated Paper
  • Flared Machined Pole Piece
  • Chrome Top & Bottom Plates
  • Die-Cast Aluminum Basket
  • Aluminum Voice Coil Former
  • Copper Clad Aluminum Voice Coil
  • UV Coated Foam Surround
  • Dual NOMEX Spiders
  • Suspension Integrated Tinsel Leads
Measurements
  • Overall Diameter : 18.25
  • Overall Height: 12.125
  • Mounting Depth: 11
  • Cutout Diameter: 16.75
  • Motor Diameter: 11.5
  • Motor Height: 4
  • Flange Width: 0.75
  • Flange Height: 0.875
  • Weight (lb): 91
T/S Specs
  • Fs (hz): 22.29
  • Qms: 5.866
  • Vas (ft.3): 5.504
  • Cms (mm/n): 0.119
  • Mms (g): 430.2
  • Rms (kg/s): 10.23
  • Xmax (mm): 30.00
  • Xmech (mm): 40.00
  • Dia (in2): 13.77
  • Sd (in2): 149.10
  • Vd (ft.3): 0.136
  • Qes: 0.191
  • Re (Ohm): 1.20
  • Z (Ohm): 1.2
  • BL (Gauss): 19.47
  • Pe (watts): 10000
  • Qts: 0.185
  • NO: 0.875
  • 1w/1m SPL (dB): 91.40
  • 2.8v SPL (dB): 99.81
  • VC Dia. (in): 4.0
  • Impedance (Ohm): QVC 1.2
  • M-vd (ft.3): 0.6000
SPL Tuned Enclosure
  • Min. Vented (ft.3): 4.00
  • Port (dia. x length): (4) 4x15
  • Fb (Hz): 49.91
  • F3 (Hz): 43.54
  • Opt. Vented (ft.3): 6.00
  • Port (dia. x length): (3) 6x13.5
  • Fb (Hz): 50.00
  • F3 (Hz): 42.71
  • Max. Vented (ft.3): 8.00
  • Port (dia. x length): (4) 6x12
  • Fb (Hz): 49.84
  • F3 (Hz): 42.24
Low Tuned Enclosure
  • Low Tuned Enclosure : XXX-18
  • Min. Vented (ft.3): 4.00
  • Port (dia. x length): (3)4x18
  • Fb (Hz): 39.97
  • F3 (Hz): 36.81
  • Opt. Vented (ft.3): 6.00
  • Port (dia. x length): (2)6x22
  • Fb (Hz): 35.00
  • F3 (Hz): 32.18
  • Max. Vented (ft.3): 8.00
  • Port (dia. x length): (2)6x20.25
  • Fb (Hz): 30.02
  • F3 (Hz): 27.96
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
