Musway  M16 New

12-Channel 50W RMS + 13-16 Channel 120W RMS at 4 Ohm, Class-D Full-Range Amplifier with 24-Channel DSP - German Engineered

Item #100093

Condition:   Brand New

Product Highlights

  • 12-Channel: 50W RMS at 4 Ohm
  • 13-16 Channel: 120W RMS at 4 Ohm
  • Class-D Full-Range Amplifier
  • 24-Channel Digital Sound Processor Output
  • German Engineered

  Free 3-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$2,949.95

Add Extended Warranty
  Free 3-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logo. Learn More

Musway Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Musway Banner

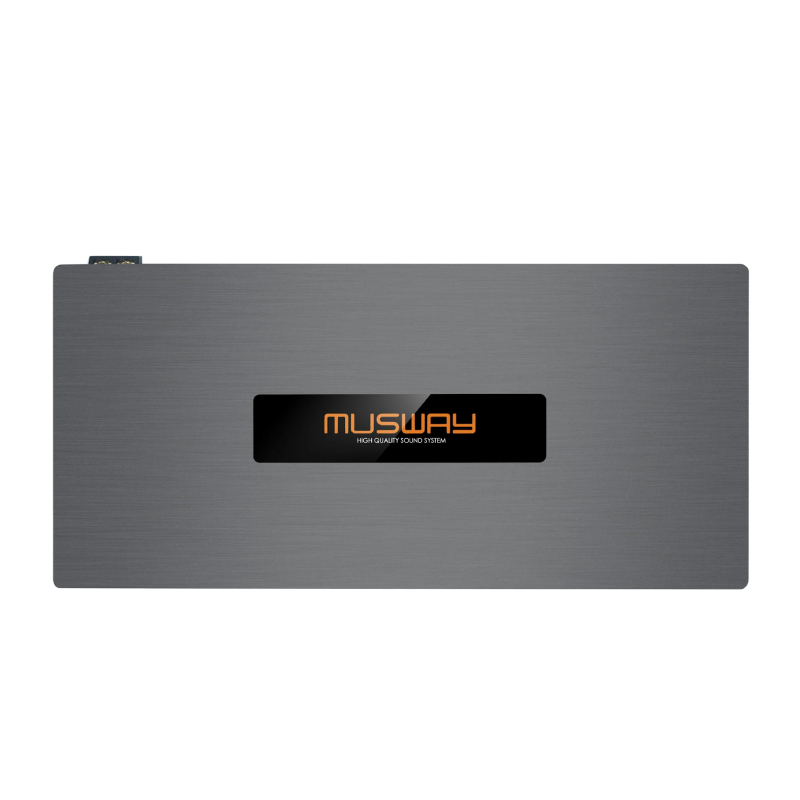

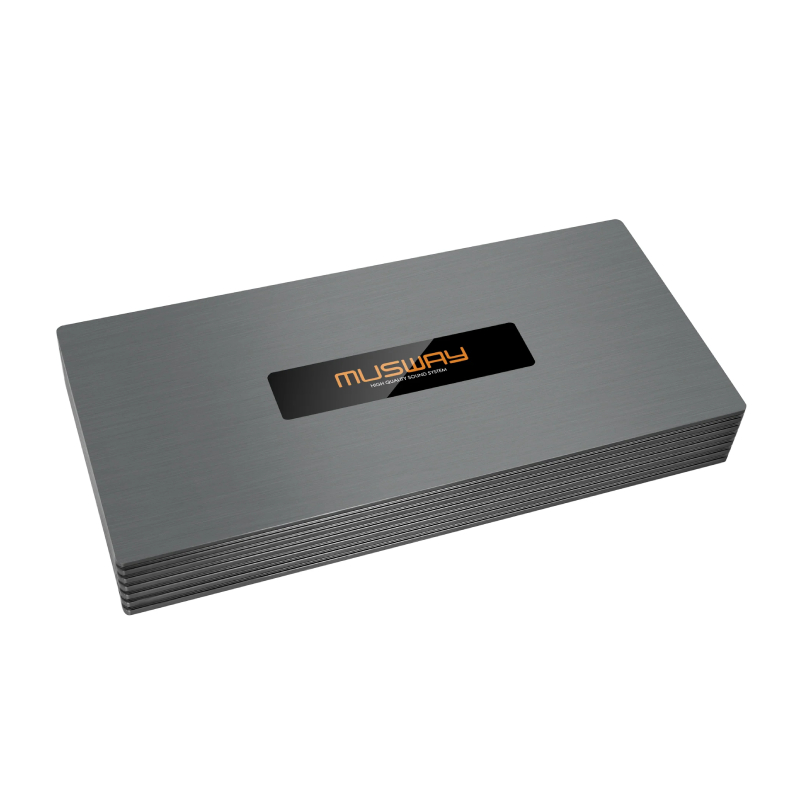

Musway M16 12-Channel 50W RMS x 12 + 13-16 Channel 120W RMS at 4 Ohm, Class-D Full-Range Amplifier with 24-Channel DSP - German Engineered


We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • M16 DSP Amplifier
  • • USB Cable - 1x 1.5 m
  • • 20-Pole Cable Adapter for High-Level Inputs
  • • 24-Pole Cable Adapter for High-Level Inputs and REM
  • • 24-Pole Cable Adapter for Speaker Outputs
  • • 8-Pole Cable Adapter for Speaker Outputs
  • • 12-Pole Cable Adapter for Low-Level Inputs
  • • Mounting Plate with Screws
  • • (4) 35 A Replacement Fuse
  • • 4 mm Hex Key
  • • Owner's Manual
16 Channels, One Powerful Solution

The Musway M16 16-Channel Amplifier with 24-Channel DSP packs serious power and processing into one compact chassis. With 12 channels at 50W RMS and four channels at 125W RMS at 4 ohms, it gives you the flexibility to run a fully active multi-speaker car audio system with fewer components.

Fine-Tune Every Detail

Its built-in 24-channel DSP puts detailed sound control at your fingertips, with a 31-band parametric EQ, adjustable crossovers, phase control, and precise time alignment. Tune each speaker individually to improve clarity, balance, staging, and overall system performance.

Compact Power for Custom Builds

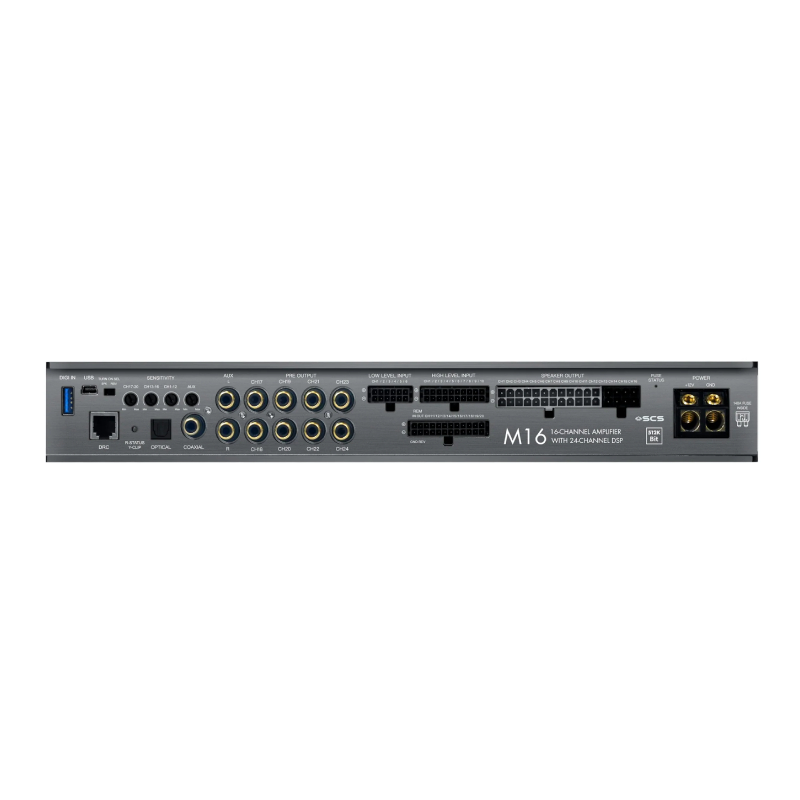

The M16 includes high-level and low-level inputs, eight DSP-controlled RCA outputs, and USB connectivity for convenient computer-based tuning. If you're building a serious car audio system and want powerful amplification plus advanced DSP in one unit, the Musway M16 is built to handle it.


SPECIFICATIONS



FEATURES


Features:

  • 16-Channel Powerhouse: 16-channel Class-D amplification with 12 channels delivering 50W RMS and 4 channels delivering 125W RMS at 4Ω.
  • 24-Channel DSP Control: Built-in 24-channel DSP gives you detailed control over every part of a complex car audio system.
  • Dynamic Power Reserve: MUSWAY DHR technology provides extra power when additional headroom is needed during demanding music passages.
  • 31-Band Sound Tuning: Fine-tune your system with a 31-band parametric EQ and up to ±15dB adjustment.
  • Advanced Crossover Control: Choose Fullrange, Highpass, Lowpass, or Bandpass filtering with multiple crossover slopes and filter types.
  • Precise Time Alignment: Adjust speaker delay from 0 to 17ms for better imaging, staging, and speaker synchronization.
  • Flexible System Expansion: Eight DSP-controlled RCA outputs make it easy to connect additional amplifiers or subwoofer systems.
  • Factory-Friendly Inputs: High-level and low-level inputs provide flexible connection options for factory and aftermarket head units.
  • USB DSP Tuning: Connect to a computer via USB for detailed sound adjustment and DSP configuration.
  • Compact Installation Design: Combines 16 amplifier channels and 24 DSP channels in a compact 350 x 46 x 166mm chassis.



Specifications:

  • Amplifier Type: Class-D Full-Range
  • Amplifier Channels: 16
  • DSP Channels: 24
  • CH1-CH12 Power: 50W RMS x 12 @ 4Ω / 85W RMS x 12 @ 2Ω
  • CH13-CH16 Power: 125W RMS x 4 @ 4Ω / 215W RMS x 4 @ 2Ω
  • Bridged Power CH1-CH12: 170W RMS x 6 @ 4Ω
  • Bridged Power CH13-CH16: 430W RMS x 2 @ 4Ω
  • DHR Power CH1-CH12: Up to 65W RMS @ 4Ω / 110W RMS @ 2Ω
  • DHR Power CH13-CH16: Up to 130W RMS @ 4Ω / 240W RMS @ 2Ω
  • Frequency Response: 10Hz - 22kHz @ -1dB
  • THD: 0.01% @ 1kHz, 4Ω, 5W
  • Signal-to-Noise Ratio: 100dB
  • Damping Factor: >75 @ 1kHz, 4Ω
  • Operating Voltage: 8 - 17V
  • Idle Current: 2.5A
  • Fuses: 4 x 35A
  • RCA Preamp Outputs: 8 channels, CH17-CH24, 5V RMS
  • DSP Crossover Types: Bessel / Butterworth / Linkwitz
  • DSP Filters: Fullrange / Highpass / Lowpass / Bandpass
  • Crossover Slopes: 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48dB
  • DSP Frequency Range: 20Hz - 20kHz
  • Equalizer: 31-Band Parametric, ±15dB
  • Phase: 0° / 180°
  • Time Alignment: 0 - 17ms / 0 - 602cm
  • Time Alignment Resolution: 0.08ms / 2.8cm
  • Fine Adjustment: 0.02ms / 0.7cm
  • DSP Presets: 6
  • Dimensions: 350 x 46 x 166mm
  • UPC:
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 3 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
