Boss Audio AVA1210
alternate product image 1alternate product image 2alternate product image 3alternate product image 4
Item# 14573 / Condition:  Brand New

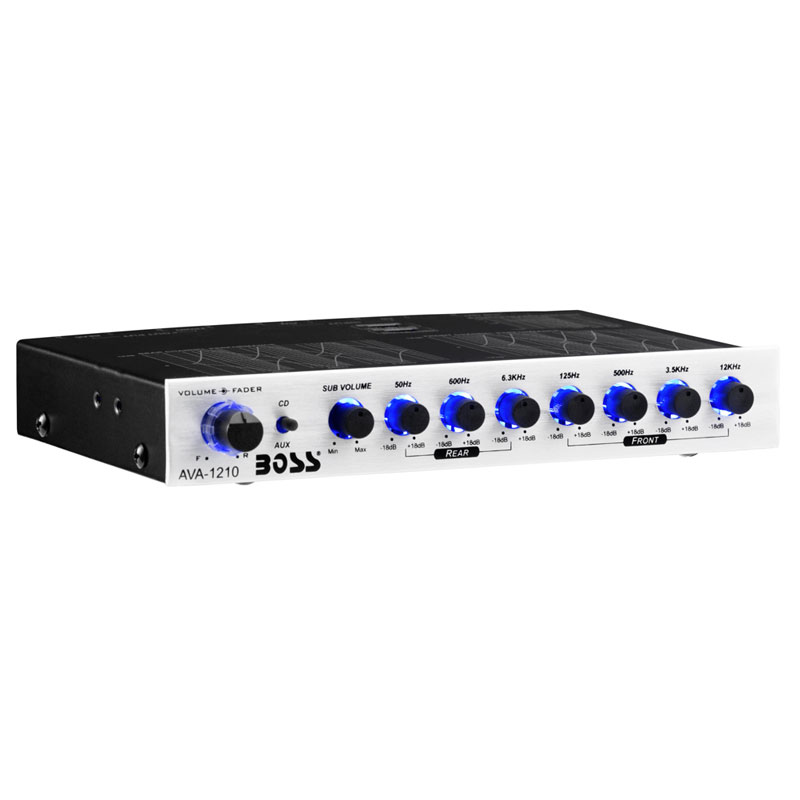

Boss Audio AVA1210

7 Band Pre-Amp Equalizer with Remote Subwoofer Level Control

FREE Shipping in US 48!

Save 2% | Reg. Price $39.99

Set your source volume at a position between 6 o’clock and 9 o’clock, and leave it at this setting. Always use the AVA1210 volume control as a master main volume control. It has better electronics, higher signal to noise ratio and is more linear than any source unit volume control available. If engine noise is audible, check the ground connection on all units and in the audio system.

Boss Audio audio electronics adhere to the highest standard of quality control and apply proprietary technology to ensure perfect sound in every model you are purchasing. This is the reason why throughout the years, Boss Audio has maintained it's place in the audiio industry as one of the best brands out there.

Onlinecarstereo has been along time authorized retailer of Boss Audio products. We source our inventory from accredited dealers that provide us with official warraties on every product. You can be sure that you are getting authentic and original items from the manufacturer's warehouse. We strive to achieve the highest customer satisfaction on every purchase and always make sure to deliver your items on-time.

Product Features

  • Volume control with up to 8 volts RMS of output
  • Seven band equalizer with 18 dB boost/Cut
  • Specific bandwidth for each band
  • Low noise BI-FET op-amp design yields minimum distortion
  • On-board 30 volt BI-Polar switching power supply
  • Subwoofer outputs and level controls
  • Subwoofer frequency selection switch (32Hz/64Hz/128Hz)
  • Input selector for AUX or CD
  • Universal half-DIN chassis for ease of installation

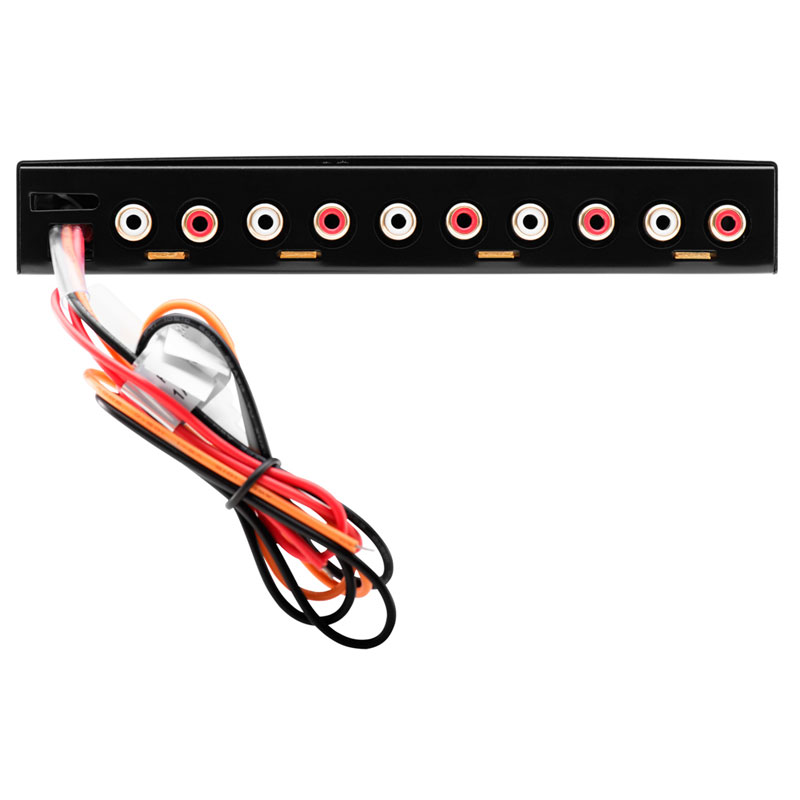

  • Gold plated RCA input/output connectors
  • 20 dB headroom eliminates signal overload
  • Blue light illumination

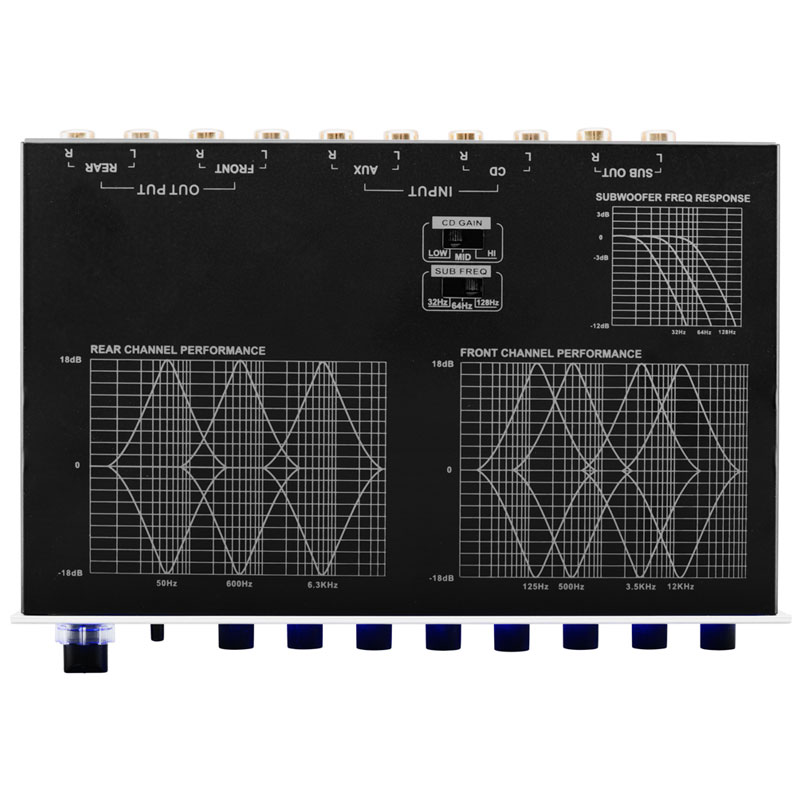

  • Frequency bands: Front channel – 125Hz, 500Hz, 3.5kHz, 12Khz / Rear channel – 50Hz, 600Hz, 6.3kHz
  • Boost/Cut: +/-18 dB
  • Signal to noise ratio: 110 dB ref 1 volt input
  • Frequency response: 1Hz – 15kHz, +/-1 dB
  • Maximum output voltage: 8 volts RMS
  • Total harmonic distortion: 0.05%
  • Input sensitivity: 150mV
  • Headroom: 20 dB
  • Input impedance: 10k Ohms
  • Stereo separation: 82 dB/1kHz
  • Operating voltage: 11-15 volts negative ground
  • Output impedance: 50k Ohms
  • Dimensions: 1” x 7” x 4-9/16” / 27.5mm x 178mm x 115mm
  • UPC: 791489150163
  • Weight: 1.7
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 1 year from the original date of purchase with proper return authorization.

Do you own this product?  Write a review

   becesaudio From davao city phil.
It balance the headunit befrore it will be process thru the crossover. Clarity is noticable when installing this unit
