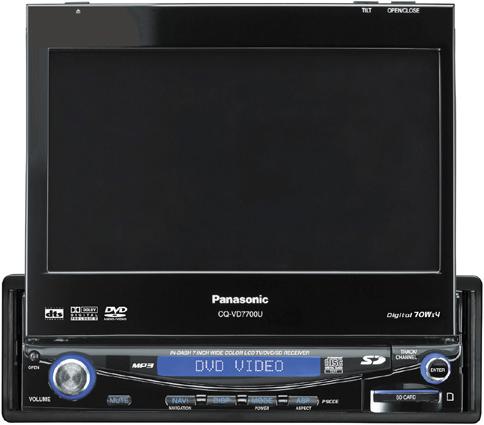

Panasonic  CQ-VD7700U

In-Dash LCD TV/DVD/SD Receiver

Item #14889

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 70 Watts
  • CD-R/CD-RW Compatible : Yes
  • CD Text : Yes
  • Satellite Radio Ready : No
  • Remote Control : Yes
  • Detachable Face : No
  • Subwoofer Preamp Outputs : Yes
  • Built-in EQ : Yes
  • Changer Control : Yes
  • DIN : 1

FEATURES


  • In-Dash LCD TV/DVD/SD Receiver with 5.1ch Dolby® Digital/DTS® and Dolby® Pro Logic® II
  • LCD Monitor Features:
    • Screen Size(diag.) & Aspect: 7 inch, 16:9.
    • Number of Pixels: 336,960 Pixels.
    • Touch Panel Operation.
    • LCD Drive Method: TFT Active Matrix.
    • Internal Light Source: L-shaped CFL.
    • Motorized Operation.
    • One-Touch Tilt.
    • Dimmer: Auto/Manual.
  • Disc Player Features:
    • DVD Audio Playback 5.1 channel.
    • DVD Video Playback 5.1 channel.
    • Video CD Playback.
    • Music CD Playback.
    • MP3 Playback (CD-R/RW).
    • Anti-Shock Memory.
  • Audio Features:
    • Max. Power Output 70W x 4 (digital).
    • Speaker Impedance: 4 ohms.
    • Center Channel Amp: 35W x 1.
    • Frequency Response (±1dB): DVD (192kHz sampling): 20Hz - 96kHz.
    • Frequency Response (±1dB): CD 20Hz - 20kHz.
    • S/N Ratio (IHF, A): 100dB.
    • Private Mode.
    • Equalizer: Parametric.
    • Bass/Treble: Equalizer.
    • Balance, Fader: 5.1 ch control.
    • CD Changer Control.
  • Surround Sound Features:
    • Dolby Digital Decoder: 5.1 channel.
    • DTS Decoder: 5.1 channel.
    • Dolby Pro Logic Decoder: Pro Logic II.
    • Built-In DSP.
  • Radio Features:
    • FM/AM Tuner.
    • Number of Presets: 18 FM, 6 AM.
    • AM Usable Sensitivity (S/N 20dB): 28dB/µV.
    • FM Usable Sensitivity, (75 ohms, S/N 30dB): 12dBf.
    • 50dB Quieting Sensitivity (75 ohms): 15.4dBf.
  • TV Features:
    • TV Tuner.
    • Diversity Antenna.
    • 18 Preset Station.
  • SD Features:
    • Still Picture (JPEG) Playback.
    • MPEG4 Movie Playback.
    • AAC/MP3 Decoder.
  • Connection Facilities:
    • VTR Input (RCA): 2 sets, 1.0Vp-p, 75 ohms.
    • VTR Output (RCA): 1 set, 1.0Vp-p, 75 ohms.
    • Audio Input: 2.0V rms.
    • Audio Output/Preamp Output (RCA): 5 channels, 5V rms, 60 ohms.
    • RGB Input (DIN).
    • Subwoofer Output: 1 channel.
    • Camera Input.
    • CD Changer Input (RCA): 1 set.
    • Speaker Connector: Front/Center/Surround.
  • Other Features:
    • Video Capture.
    • Graphical User Interface (GUI).
    • Rotary Volume Control.
    • Multi-Function Joystick.
    • Wireless Remote Control.
    • ID Code Security.
    • Dimensions: 1.93"x 7.0" x 6.31"
    • Weight: 6.6 lbs.
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • i think its one of the best items because it has great picture quality ,sound,and security.

    dimas guevara
    7/22/2005

  • look good and sounds good but no navigation system available so its not the best unit

    jon
    5/16/2006
