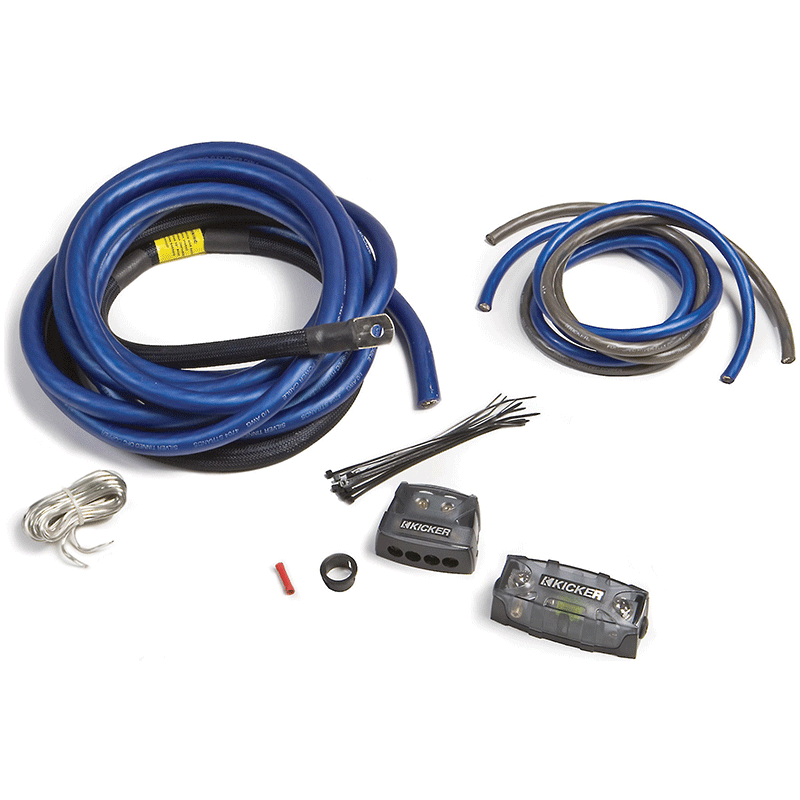

What's Included:
- 17' Length of 16-gauge remote turn-on wire (clear jacket)
- 2 Flat washers
- Two 7/8" Self-tapping screws (ground)
- 1 Plastic grommet
- Power distribution block
- 1 Red butt-connector
- 4' Length of 4-gauge power wire (blue jacket)

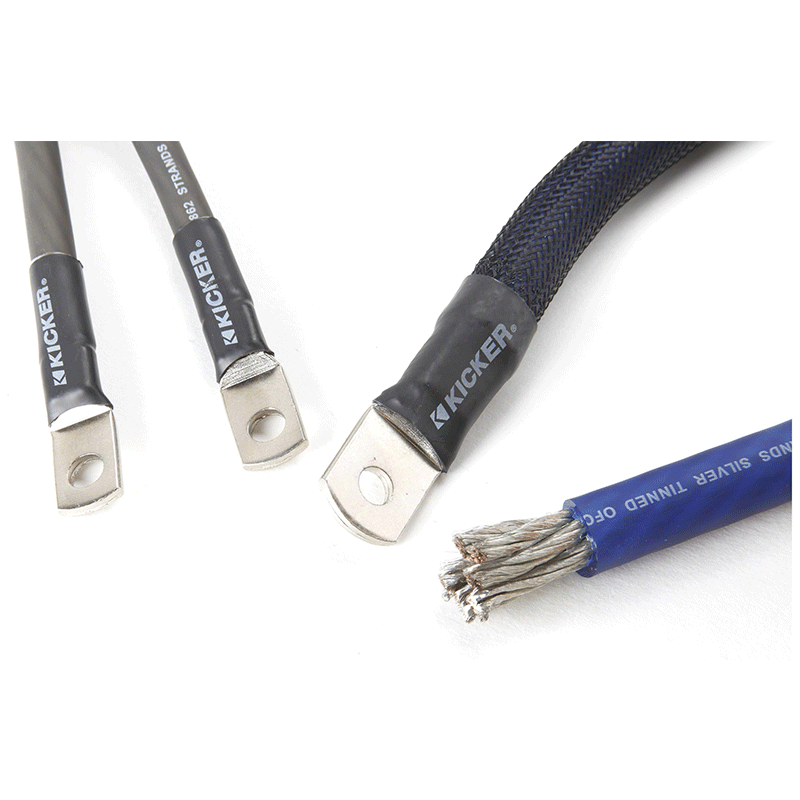

- 17' Length of 1/0-gauge power wire terminated with a 5/16" ring-terminal on one end (blue/black jacket)
- 4' Length of 4-gauge ground wire terminated on both ends with 5/16" ring-terminals (dark gray jacket)
- AFS fuse holder
- 200 amp AFS fuse (installed)
- Six 5" wire ties
- Product Information Inside Box
Product Highlights:
- multi-amplifier power wiring kit
- 17 feet of 1/0-gauge power cable with attached ring terminal and protective wire loom — blue
- 17 feet of 16-gauge turn-on lead wire — clear
- cables meet or exceed the American Wire Gauge specifications and requirements
- 4 feet of 4-gauge ground cable with attached ring terminals — gray
- 4 feet of 4-gauge power cable — blue

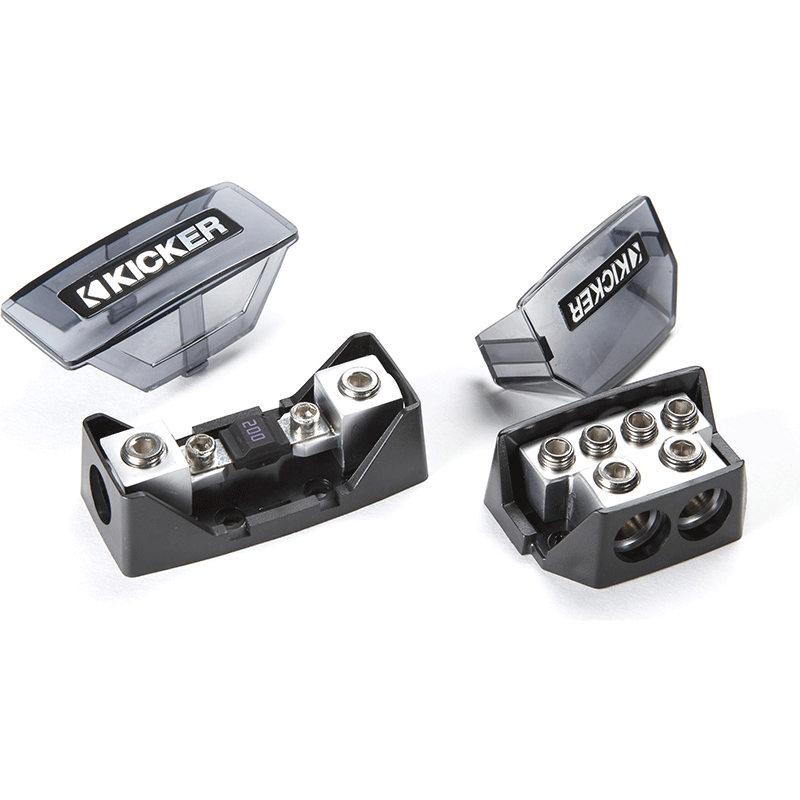

- Kicker DB4 distribution block — two 1/0- to 8-gauge inputs, four 4- to 8-gauge outputs
- AFS fuse holder and 200-amp fuse
- assortment of installation hardware and cable ties
- extends a Kicker amplifier's warranty by one year, if purchased along with the amp
This 1/0 Gauge Amp Kit comes complete with Full Spec wire, hardware, distribution block and fusing. With proper wire and distribution, you get every bit of current you need, and you get it there safely. Powerful Full Spec wire delivers current efficiently and safely, while brass hardware distributes it to both of your amplifiers. Get one additional year of amplifier warranty if this it is purchased with a KICKER amp.
| Specifications |
| One |
17' length of 1/0-gauge power wire (terminated on one end by a 7/8" wide, 5/16" diameter ring-terminal) |
| Width: |
2-3/4" |
| Two |
7/8" self-tapping ground screws with flat washers |
| One |
red butt-connector |
| One |
power distribution block with two ports for up to 1/0-gauge wire and four ports for up to 4-gauge wire; all six ports are shorted together, so any combination of them can be used |
| Height: |
1-1/4" |
| One |
4' length of 4-gauge power wire; this wire will be cut into two pieces to supply power wires for two amps (connected between the distribution block and the amps) |
| Depth: |
1-7/8" (without adding for the wires) |
| One |
plastic grommet |
| Six |
5" wire ties |
| One |
4' length of 4-gauge ground wire (terminated on both ends by a 5/8" wide, 5/16" diameter ring-terminal); this wire will be cut into two pieces, each with a ring terminal on one end, to supply ground wires for two amps |
| One |
17' length of 16-gauge remote turn-on lead |
| AFS |
fuse holder |
| 200A |
AFS fuse (installed) |
- UPC: 713034064985
- Weight: 10.65
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
