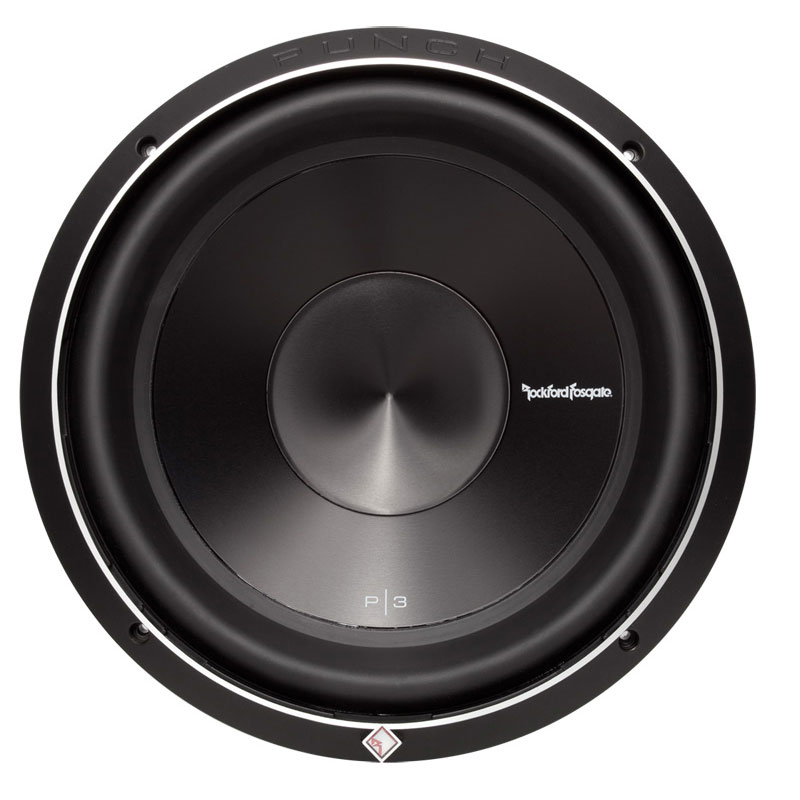

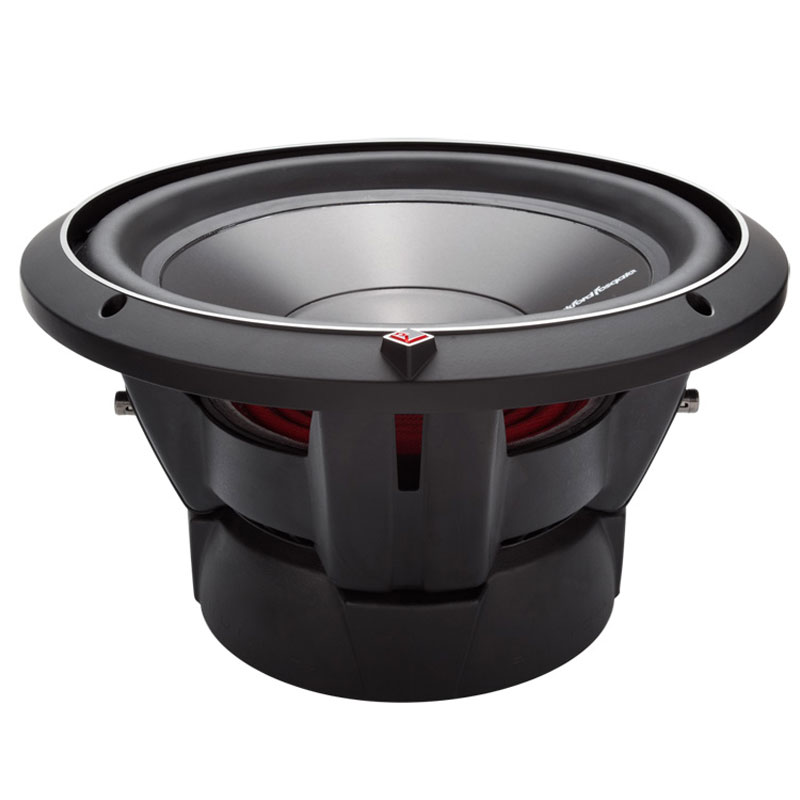

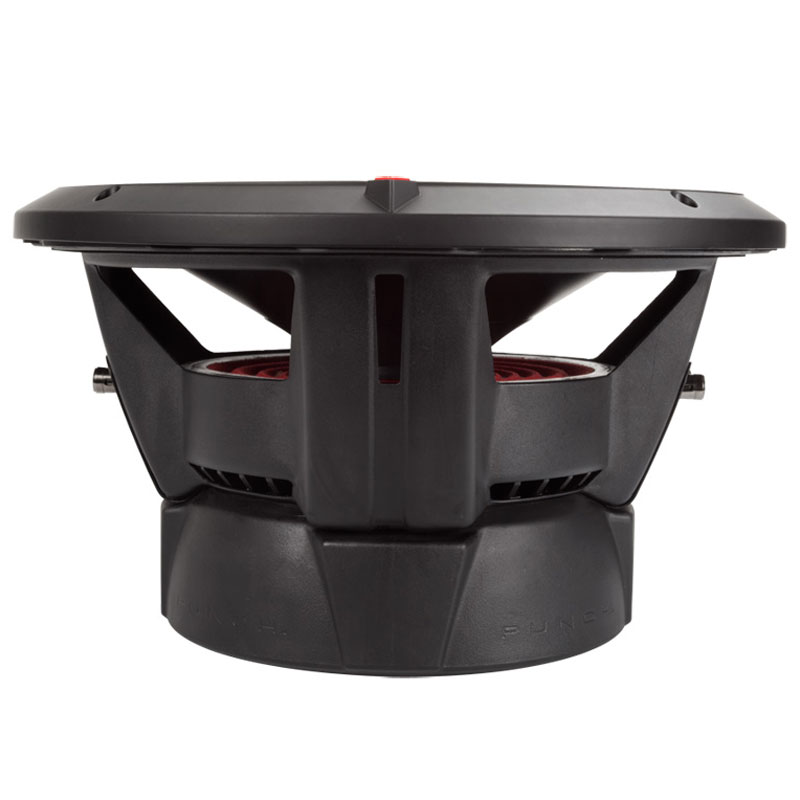

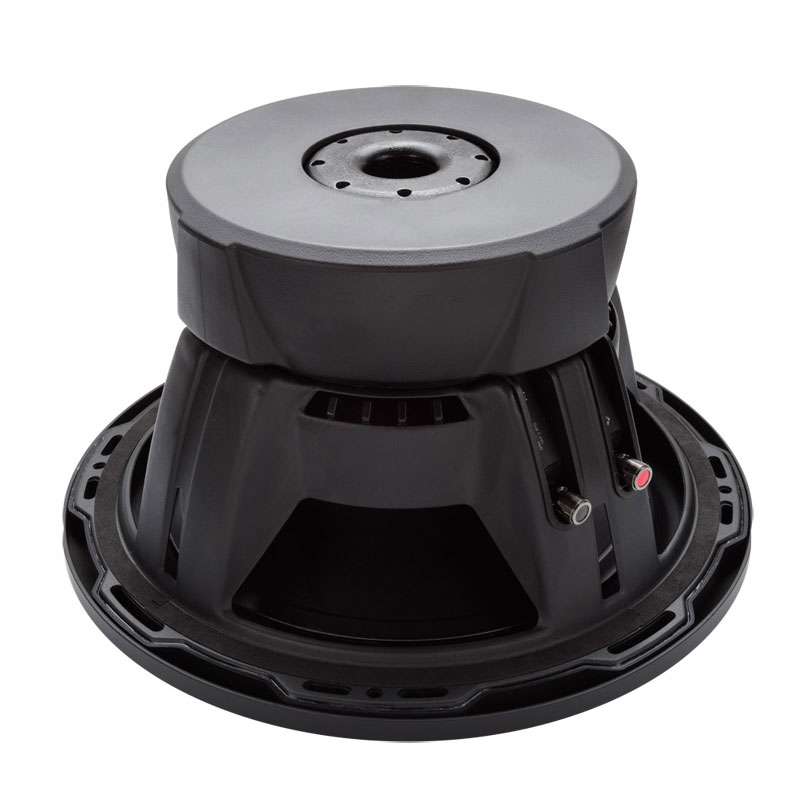

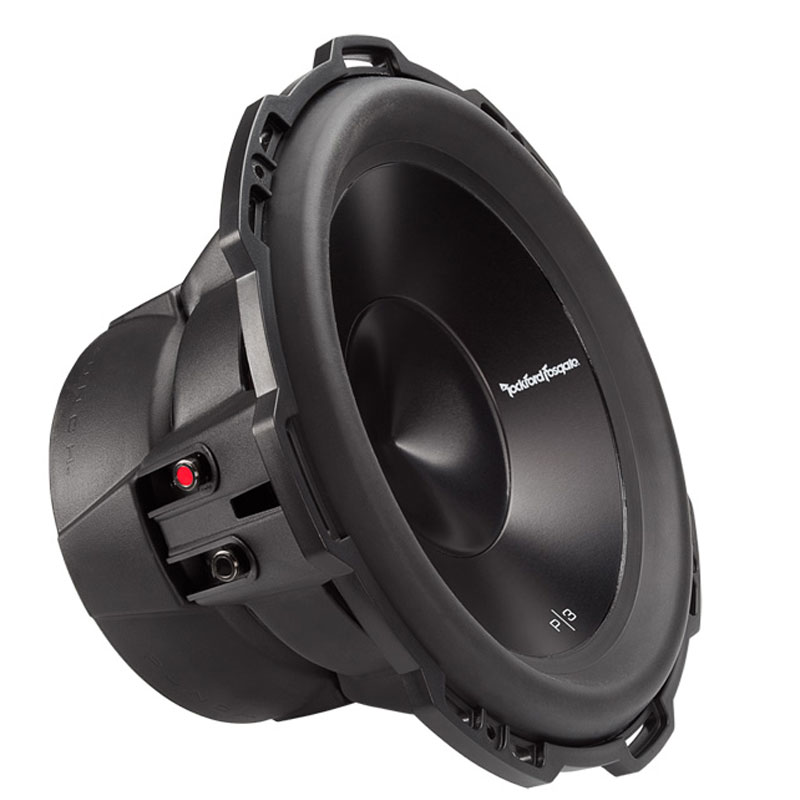

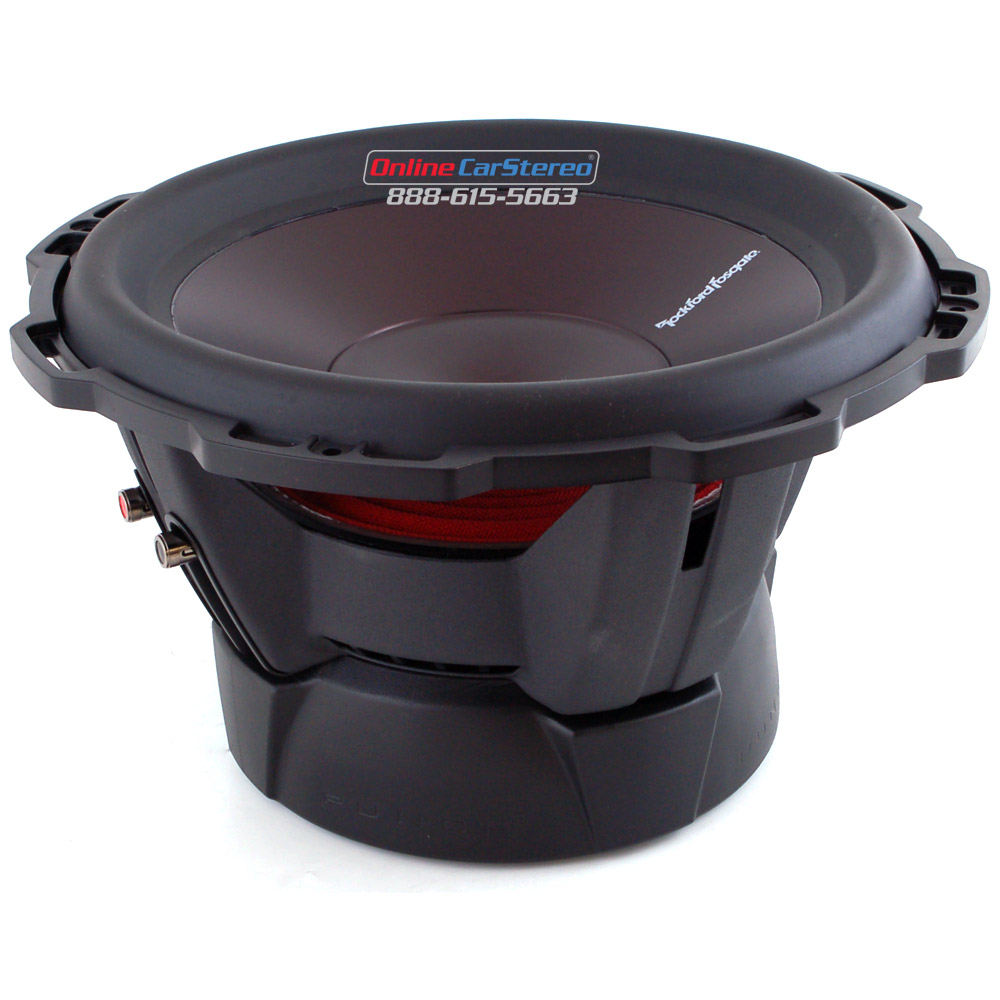

Rockford Fosgate P3D4-12 Punch P3 Series 12" 600W RMS (1200W Peak Power Handling) Dual 4 Ohms Voice Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 12" Dual 4-ohm voice coil subwoofer
- • (1) Trim ring
- • (12) 1-1/8" Allen head screws
- • (1) 4mm Allen head bit
- • Installation/Operation manual (English/ French/ Spanish/ German)
- • User's Manual
Rockford Fosgate Punch P3 Series Subwoofer
Powerful, reliable subwoofer designed for deep bass response. It features a 4-Ohms dual voice coil, an anodized aluminum cone, and a stamp-cast basket with integrated spider venting. The subwoofer also features an exclusive Spider Plateau Venting system, which helps to cool the voice coil and reduce distortion. The P3D4-12 offers a peak power rating of 1200 watts and a RMS power rating of 600 watts. With its high-performance design and advanced technology, the Rockford Fosgate P3D4-12 Punch P3 Series 12" Subwoofer is an excellent choice for anyone looking to upgrade their car audio system.
Standout Performance
Rockford Fosgate showcases their fanatical commitment to sonic excellence in the Punch Series of speakers, amps, and subs. If you like to listen to potent, powerful music — and feel it too — Punch components will give you impressive sound that'll stand out in a crowd.
Designed For Deeper & Louder Bass
Rockford Fosgate designed the P3D4-12 12" subwoofer to stay strong even when the bass gets hot. This Punch P3 sub features a rigid anodized aluminum cone that holds its shape through heavy play, while staying light and responsive. Rockford Fosgate uses a new technique to attach the oversized rubber surround to the cone that increases available cone area up to 25%, so this sub can push more air for even bigger bass.
Heat-sink cone
The aluminum cone acts as a giant heat sink, directing heat away from the copper-clad aluminum voice coils. Special venting keeps the voice coils cool, so you get incredibly consistent bass performance over time. This P3 sub features an extended pole piece and bumped backplate that leaves more room for heavy excursion, so it'll hit deeper lows without "bottoming out."
- Diameter : 12 Inch
- Sensitivity : 85 dB
- Impedance : 4 Ohm
- Frequency Response : 27-250 Hz
- Peak Power Handling : 1200 Watts
- Top Mount Depth : 6-11/16 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.02 Cubic ft.
- Suggested Ported Box Volume : 1.79 Cubic ft.
- RMS Power Handling : 600 Watts
Features:
- Anodized aluminum cone and dustcap
- Custom 10-AWG nickel plated push terminals

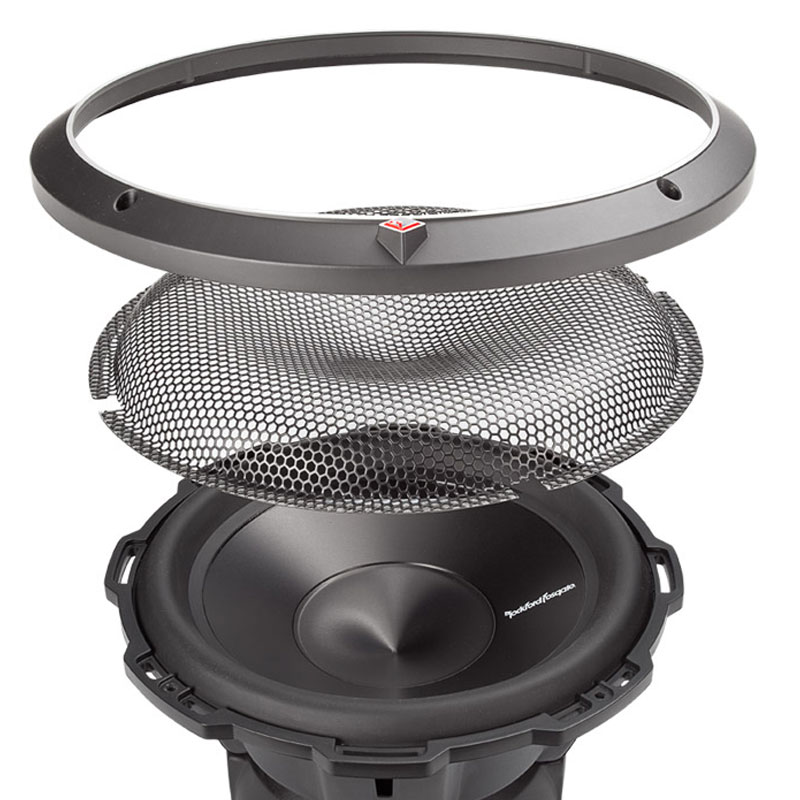

- Diamond cut cast aluminum trim ring with optional grille
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Protective PVC textured magnet cover
- Soft touch rubber over-mold for greater grip
- StampCast basket with integrated spider venting
- CEA-2031 compliant
Specifications
- Voice Coil Diameter: 2.5"
- Speaker Connector: Dual 10 AWG compression
- Fs (Hz): 27.7
- Qts: 0.49
- Vas (Liters): 57.7
- SPL (dB @ 1w/1m): 85.2
- Xmax (mm): 13.9
- Woofer Displacement: 0.094 cu.ft.
- Cutout Diameter: 11.25"
- Mounting Depth: 6.66"
-
- Vas (Liters): 57.7
- Re (Ohms): 6.40
- Woofer Displacement: 0.106 cu. ft. (3.0 Liters)
- Sd (cm2): 570
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
- UPC: 780687332761
- Weight: 21
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
I bought a pais of these P3s and ran the Prime 1000 amp. Sounded ok in a dual slot port box totaling 3.5 cu ft. Later added a RF-BLD (it's the 360.1) and BOOOOMMM!!!!! WOW! That's all I can say is WOW! T-Pain's "Booty Work" hits unbelievably hard (the kind of hit that you feel in your chest, not the ears but there too).
-
I installed 2 p3's today in a dual 12in. vented groundshaker box in a 2002 Mitsubishi Eclipse hatchback. They are running on a 2000 watt Hi Fonics Zeus series amplifier. I have a Kenetic 600 power cell running in series with the factory battery. I added a Hi Fonics crossover to add a 12db bass boost. WOW! Is all I have to say. I have been doing car audio comps. for the last 12 years, and I can honestly say this is one of the most impressive systems I have heard in a long time. I used to have 3 JL Audio w6 15"s in an 8 cubic foot vented box in a 99 Blazer. This system is comparible with that and I have MUCH less cone area to work with. I definately recommend Rockford subs and HI Fonics amps. On a side note, the Kenetic 600 does a great job of supplying power to the system. There is minimal light dimming at night.Anyone looking for a competition grade system... Look no further. These are great products at a great price.
-
I installed 2 p3's today in a dual 12in. vented groundshaker box in a 2002 Mitsubishi Eclipse hatchback. They are running on a 2000 watt Hi Fonics Zeus series amplifier. I have a Kenetic 600 power cell running in series with the factory battery. I added a Hi Fonics crossover to add a 12db bass boost. WOW! Is all I have to say. I have been doing car audio comps. for the last 12 years, and I can honestly say this is one of the most impressive systems I have heard in a long time. I used to have 3 JL Audio w6 15"s in an 8 cubic foot vented box in a 99 Blazer. This system is comparible with that and I have MUCH less cone area to work with. I definately recommend Rockford subs and HI Fonics amps. On a side note, the Kenetic 600 does a great job of supplying power to the system. There is minimal light dimming at night.Anyone looking for a competition grade system... Look no further. These are great products at a great price.
-
I have one on the backseat of my 2004 F-150 on a 500bd class amp, and I promise heads turn when they found out its only a single sub. This sub can take a beaten... I had the same sub since 2011 and still havent burned it up!
-
I brought these subs and two 15"p3's as well and I'm highly impressed with the sound and most of all the price. Online car stereo is the best place to go for all car audio needs and the shipping and arrival time is fast. I'd recommend online car stereo to anyone and especially these speakers. I ran the two 15's in a 1ohm load to my Brutus 2100.1d amp in a sealed enclosure. I ran the two 12's in single slot ported boxes with the same amp and the same load. All I can say is I'm waking the town up when I slide by and I owe it to online car stereo!!!
-
Running one of these with kenwood excelon 500.1. It's pretty nice. Sounds ok but it doesn't hit close to the alpine type r.
-
I've been a Fosgate fan for over thirty years .The p3's a are one of hardest hitting sub I ever own. And I would recommend these to anyone building a system .Also the price is an awesome deal.
-
Once again the team Fosgate has done it again with these P3's. If you in to trunk slappin',bass shakin' and mirrors fallin' look no further cause you found the right speakers for the job. At 1200 watts each with the right amp it's no way you can go wrong. But the biggest shout out goes to the good ol' boys and girls from online car stereo for always being helpful,professional and most definitely fast when it comes to placing you order all the way to the last step receiving you order.
-
Pretty cool. Hits really clean.
