JL Audio  6W3v3-4

W3v3 Series 6.5" 300W Peak Power Handling 4 Ohms, Single Voice Coil Component Car Subwoofer

Item #19275

Condition:   Brand New

Product Highlights

  • W3v3 Series
  • 6.5" Subwoofer
  • 300W Peak Power
  • 4 Ohms Impedance
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on Component Car Subwoofers!

Use Code: CYBW5

Ends in:

$319.99

Reg. Price $399.99  Save $80.00
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

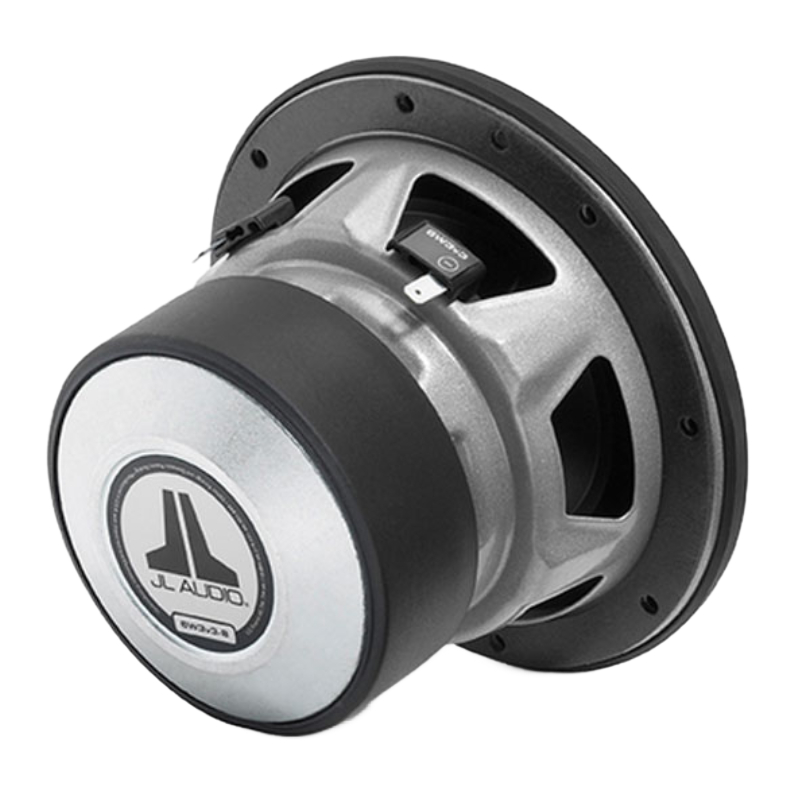

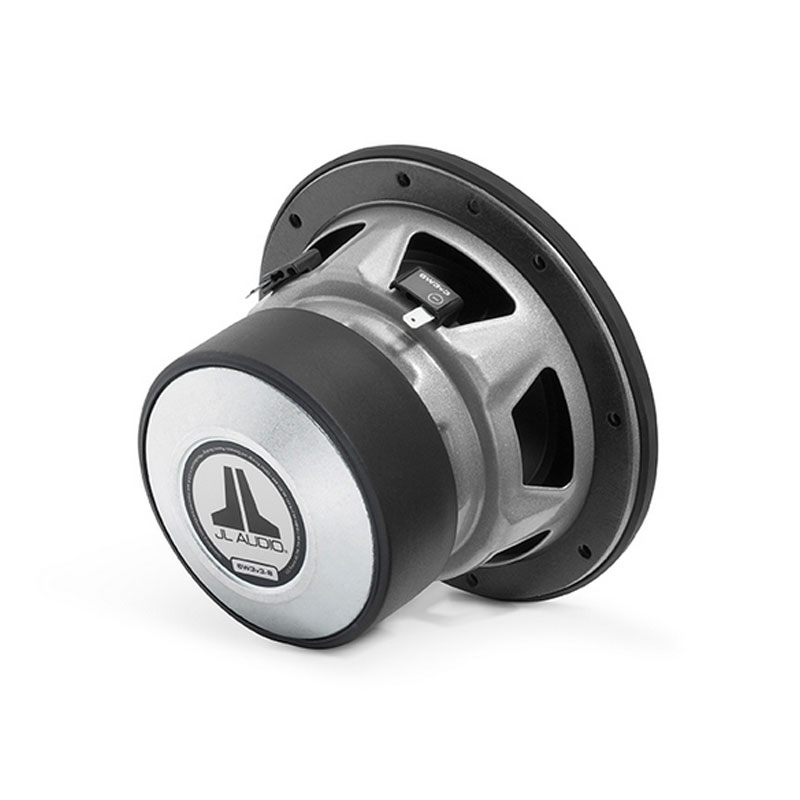

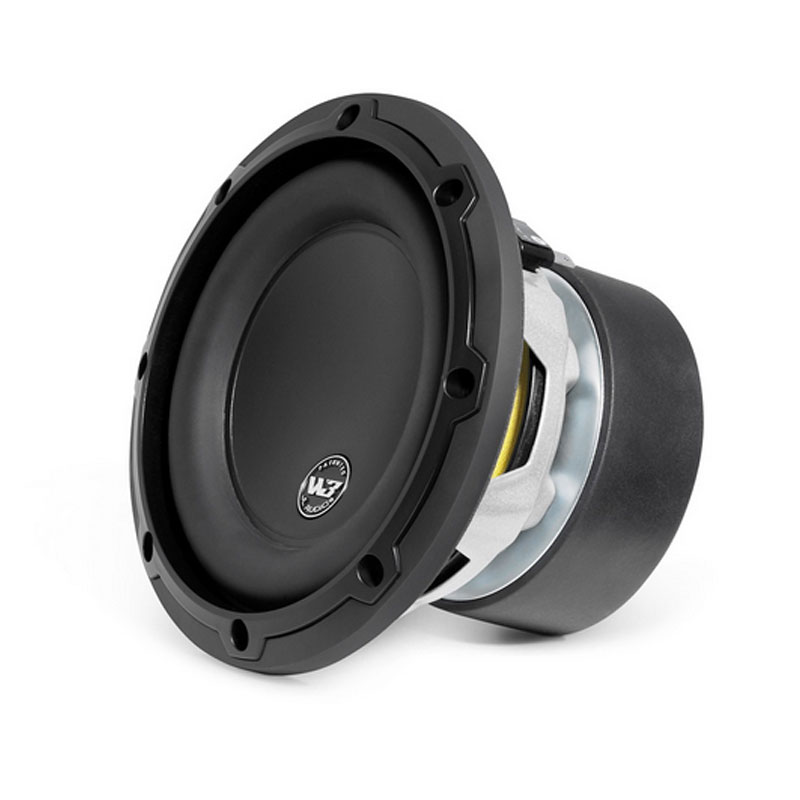

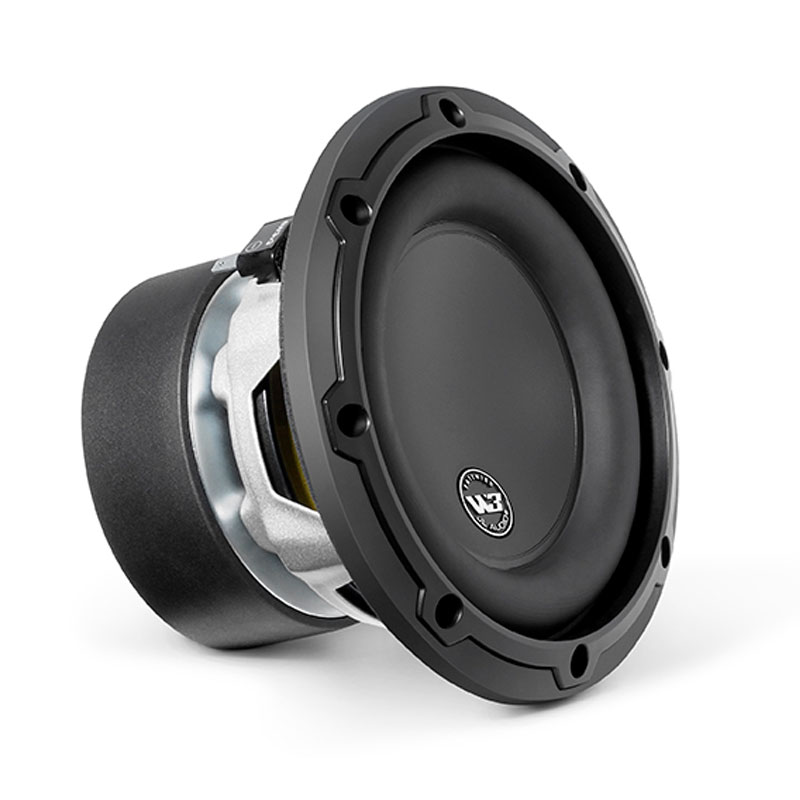

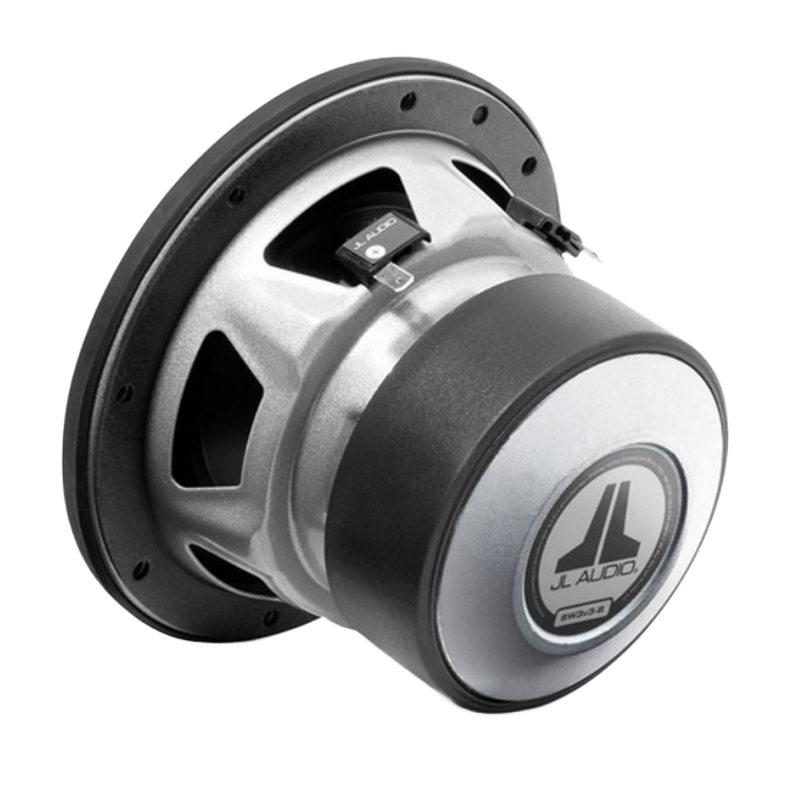

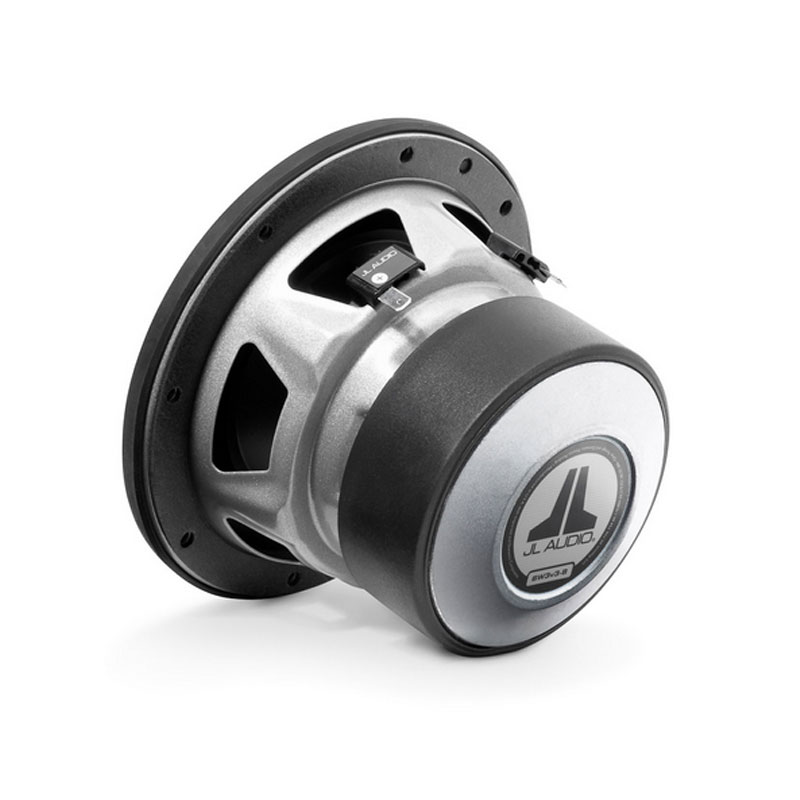

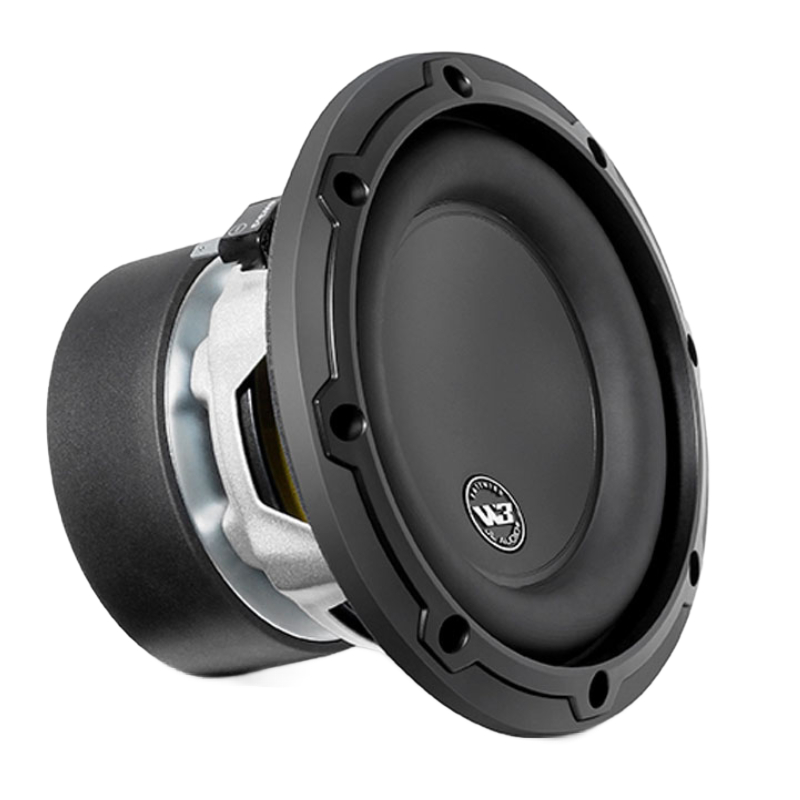

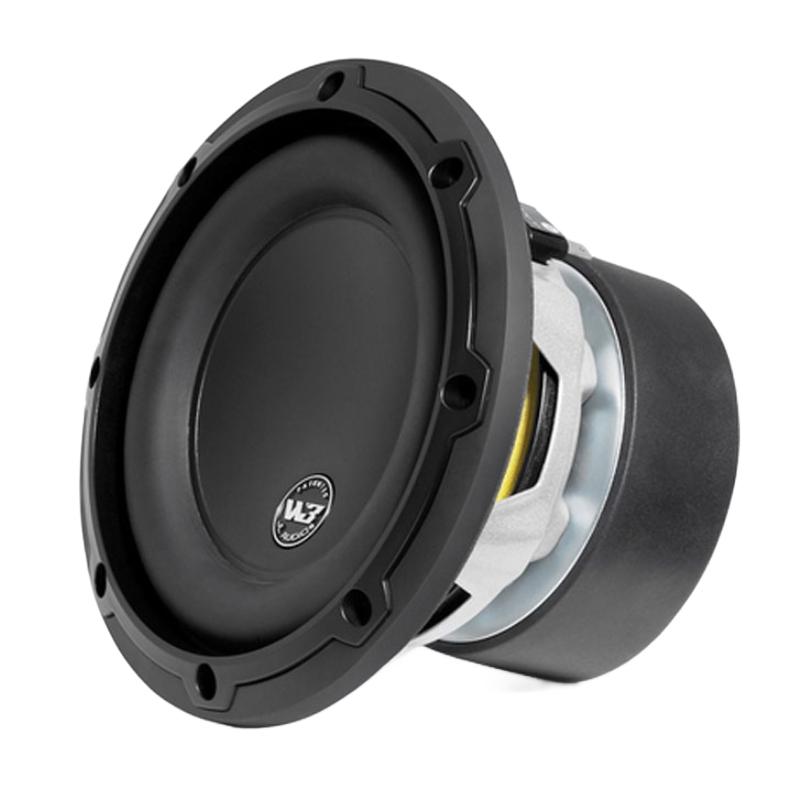

JL Audio 6W3v3-4 W3v3 Series 6.5" 150W RMS (300W Peak Power Handling) 4 Ohms, Single Voice Coil Component Car Subwoofer


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 6.5" W3v3 Series Single Voice Coil Component Car Subwoofer
  • • Black plastic trim ring
  • Owner's Manual





Excellent Linear Excursion Capability

A mid-tier 6.5-inch subwoofer that can bring you a powerful bass output and is a perfect match for your medium-powered amplifier, the JL Audio 6W3v3-4 is built with the help of advanced technologies from JL Audio's flagship W7 Series. Manufactured in the USA, the JL Audio 6W3v3-4 comes with build quality that can last for a long time at an affordable price.

Modified for Greater Strength

The JL Audio 6W3v3-4 has a polypropylene cone and a nitrile-butylene rubber surround, which improve its linear excursion for better airflow and more powerful and accurate bass output while still having the durability to be resilient from all the constant strong vibrations that come with the subwoofer continuously delivering a heart-pounding low-frequency performance.

DMA-optimized Motor Design

Equipped with JL Audio's DMA-optimized motor design, the 10W3v3-4 reduces distortion while producing a clean and punchy low-frequency performance. The JL Audio 6W3v3-4 also has JL Audio's famous Elevated Frame Cooling design, which significantly improves the 6.5-inch subwoofer's thermal management system, allowing the subwoofer to stay cool even after long periods of use.


SPECIFICATIONS


  • Diameter : 6.5 Inch
  • Sensitivity : 80.49 dB
  • Impedance : 4 Ohm
  • Frequency Response : 30-300 Hz
  • Peak Power Handling : 300 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Single
  • Suggested Sealed Box Volume : 0.15 Cubic ft.
  • Suggested Ported Box Volume : 0.25 Cubic ft.
  • Mounting Depth : 4.25 Inches
  • RMS Power Handling : 150 Watts

FEATURES


Features:

  • Engineered for Performance: Delivers impressive output, accuracy, and sound quality at moderate power levels; ideal for compact sealed or ported enclosures.
  • Dynamic Motor Analysis (DMA) Optimized Speakers: Ensures linear motor force over a wide range of cone excursions for tight, clean, and articulate bass with ultralow distortion.
  • Polypropylene Cone Technology: Injection-molded, mineral-filled polypropylene cone with rubber surround provides durable, strong, and precise bass.
  • Maximized Displacement: Efficient piston area for enhanced output relative to enclosure size.
  • Custom Accents: Removable and customizable mounting flange trim ring; optional steel-mesh grille inserts (sold separately).
  • Powerfully Adaptable: Works with a range of vehicles and amplifiers; 150 W RMS continuous power handling for compact 6.5" driver.



Specifications:

  • Size: 6.5-inch
  • Impedance: 4 Ohms
  • Cone Material: Mineral-filled polypropylene
  • Surround Material: Rubber
  • Basket Material: Steel
  • Grille: None included
  • Free-Air: No
  • Dual Voice Coil: No
  • Sensitivity: 80.49 dB at 1 watt
  • Frequency Response: 30 – 300 Hz
  • Max RMS Power Handling: 150 W
  • Peak Power Handling: 300 W
  • Top Mount Depth: 4 3/16 in
  • Bottom Mount Depth: N/A
  • Cutout Diameter: 5 3/8 in
  • Frame Width: 6.865 in
  • Frame Length: 6.865 in
  • Vas: 5.13 liters
  • Fs (Resonant Frequency): 41.8 Hz
  • Qts: 0.508
  • Xmax (Max Linear Excursion): 8.89 mm
  • Ideal Sealed Box Volume: 0.15 cu. ft
  • Ideal Ported Box Volume: 0.25 cu. ft
  • UPC: 699440921459
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • i replaced the sub with the stock one in my honda element. this thing rocks its hooked up to a 300 watt crunch ammp it's no 12. but for a 6.5 it does the trick. I olny have one. im happy. would buy again.

    Darkside817
    6/1/2010

  • Its smaller than the usual subs but I feel like it sounds better than many of those you can easily find the market today. bought it for my Tundra and they blend well with full ranges

    Perry L.
    6/12/2024
