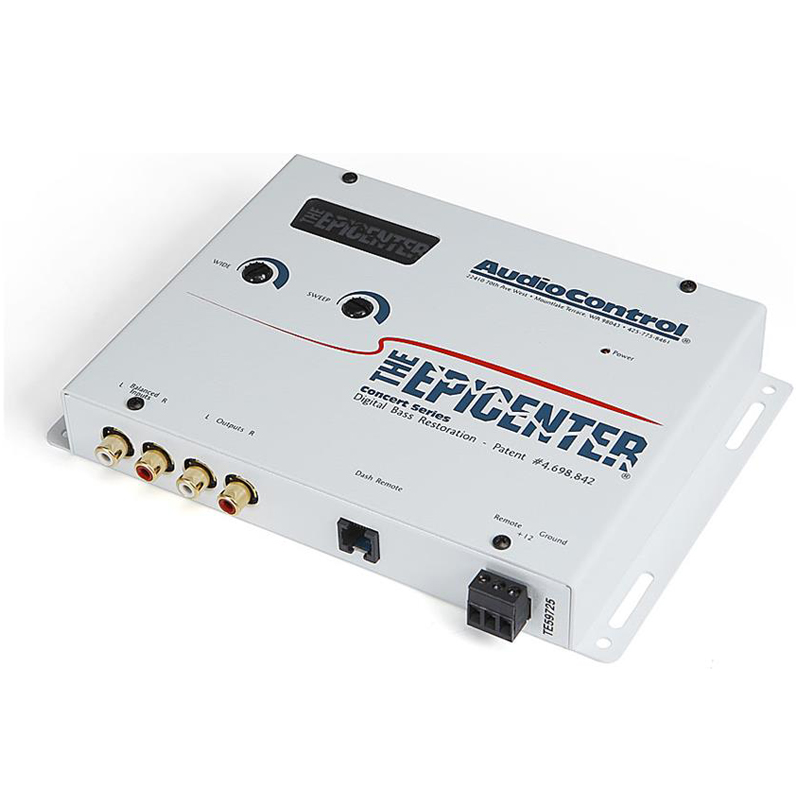

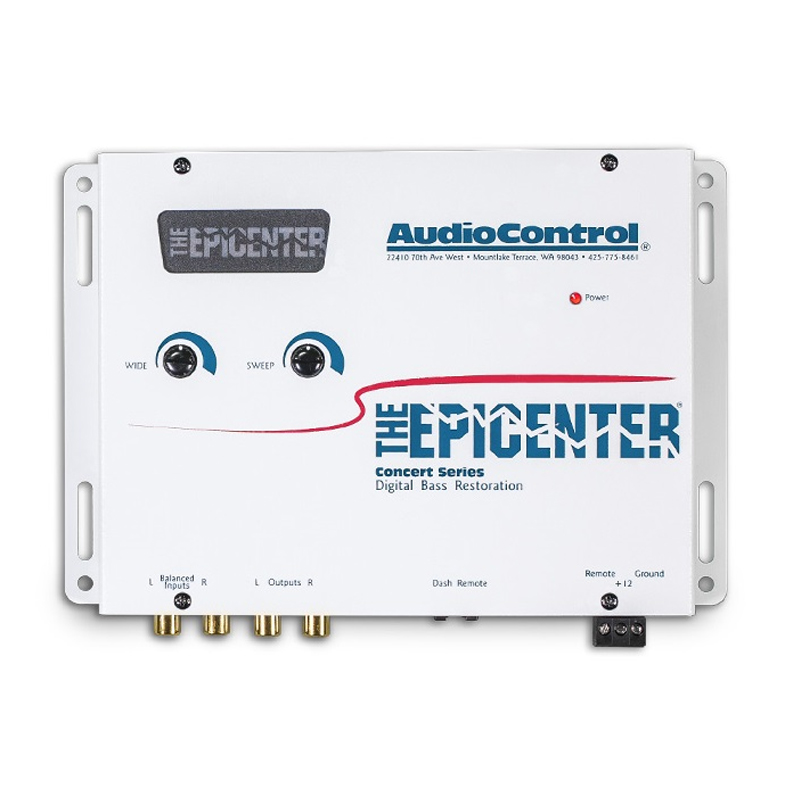

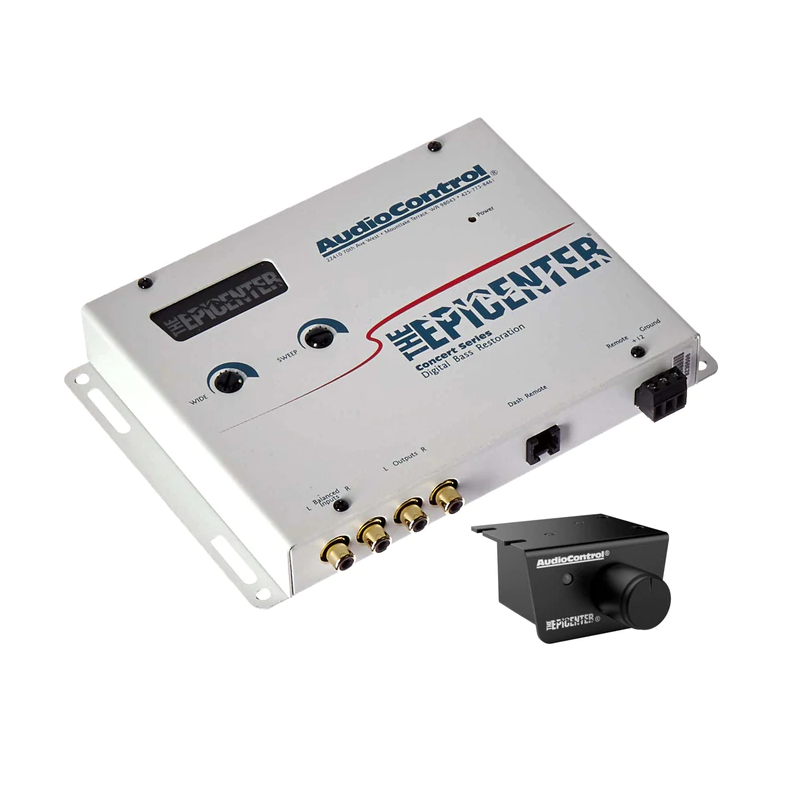

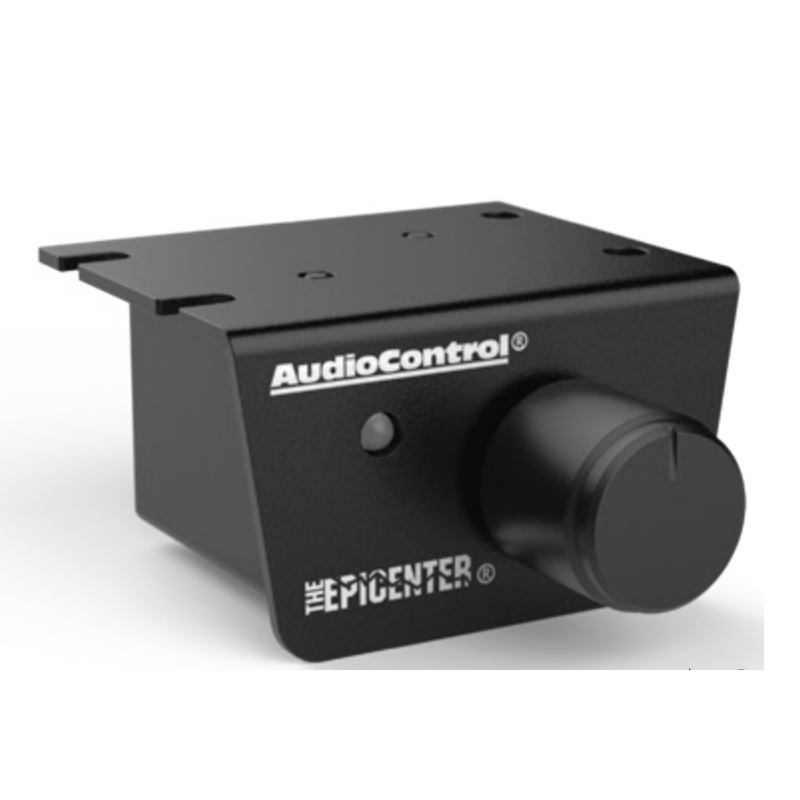

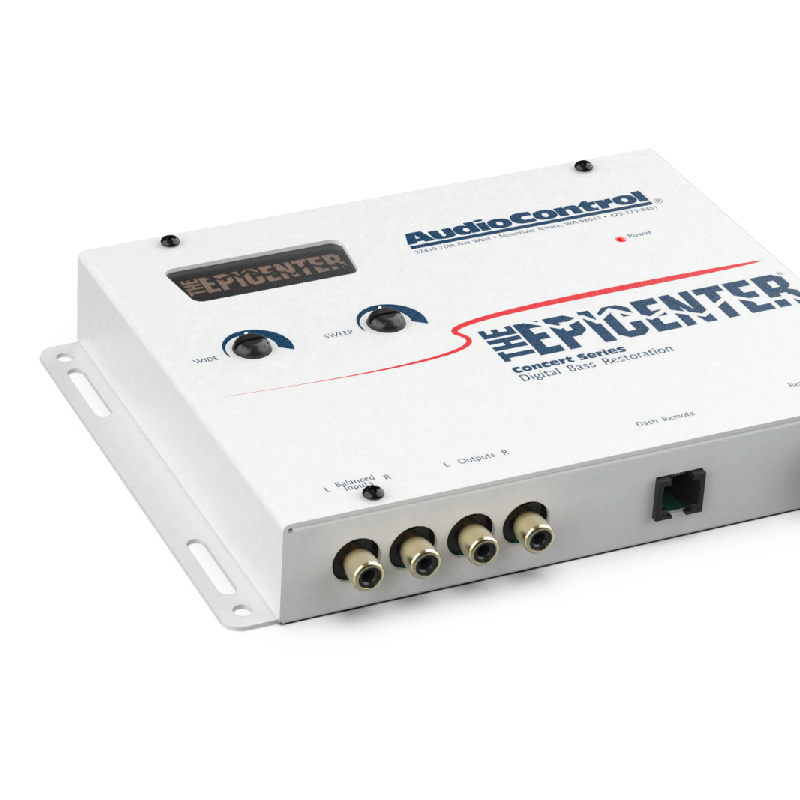

The EPICENTER features a Bass Restoration Processor. It is constructed with Intelligent logic circuits. The Bass Restoration Processor is fully Programmable and easy to use. The Processor comes standard with a Frequency Match (PFM) filter. Also included are Balanced inputs for maximum performance. The Processor has Para BASS controls for tuning the bass restoration effect. The Bass maximizing light display always keeps the user informed of system status. It also features a Bass Maximization Circuit. The Bass Restoration Processor also includes an adjustable Subsonic Filter. It is available in either Black or Sierra White. In addition, it has a Dash Mount ACR-1 for bass restoration included. The EPICENTER includes an ACR-1 Remote, Power connectors and Manual. There is 1 Preamp Input Channel built into the processor. It has a Maximum Input Level of 15 Vrms. The EPICENTER has an input impedance of 10k Ohms. The EPICENTER has 1 Preamp Output Channel. It has a Maximum Output Level of 13.5 Vrms. Also, the Output Impedance is 150 Ohms. The Total Harmonic Distortion is 0.003%. The Frequency Response registers 10 Hz - 100 kHz. It has a Signal to Noise ratio of 110dB. It has a Current Draw of 150mA. The recommended Fuse Rating is 2A.
Specifications | |
---|---|
Remote In | Power Supply: High Headroom PWM Switching |
Frequency Response: | 10Hz-100kHz |
Dimensions: | 8W x 5.5D x 1.2H |
Preamp Inputs: | 1 (2 channels) |
Maximum Input Level: | 15Vrms |
Current Draw: | 150mA |
Maximum Output Level: | 13.5Vrms |
Preamp Outputs: | 1 (2 channels) |
Input Impedance: | 10kOhm |
Output Impedance: | 150Ohm |
Total Harmonic Distortion: | 0.003% |
Signal to Noise: | 110dB |
Recommended Fuse Rating: | 1A |
Weight: | 1.8 lbs (0.8 kg) |
this is the best sound processor it get's out all the power of your sub w,i have one in a maxima 97 with one hifonics 600 rms and two hifonics sub woofers of 600 rms and it sounds like heil
I have this running on my rockford amplifier and a rockford P2 ... all i can say is daummm!!.. if you havent heard this sound processor yet and how it makes your bass sounds then you havent heard "bass" yet.. this gives the best low and streched out bass ever but make sure to have a good amplifier and sub to take soem serious work and stress... the best ting i have ever owned .... will always sell my audio but this is someting ill keep forever lol
this is the best sound procesor out there i use it for corridos this is the original brand that made the epicenter dont go wrong with the sound stream this is the best by Audio control
The Epicenter is the best Processor in the market, althought the only thing i would like to be improved is that, audio control should make the bass knob in a closed compartment to protect it even more..!!
I used to own one of these around 15 yrs ago. I have also owned a Phoenix Gold Bass Cube and a Carver/KLH unit and I like the Epicenter by far. Because it lowers the bass a bit. The Carver unit lowered it down way to much, so much that common rock music would make the subs flutter. The Bass Cube just acts like a bass boost and you can control the hz you want your boost at. I had an in dash cross over back in the day that pretty much did the same thing. Downside to that was those 6 sets of RCA's that went to the unit and back to the amps.
