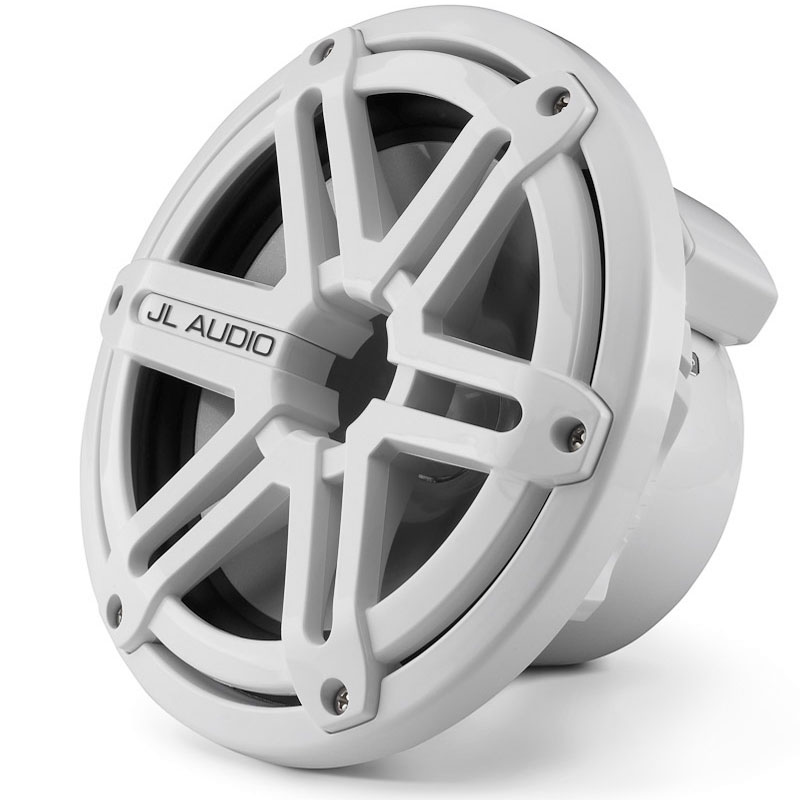

M-Series 7.7-inch Marine Cockpit Component Woofer for Infinite-Baffle Use (100 W, 4 Ω) - White Sport Grille
Purpose-engineered and built for real marine duty, the M-Series component speakers deliver maximum audio performance in any open-air boating environment.
The M770-CCW component woofer is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). If you need a 7.7-inch component woofer that operates in a small sealed enclosure, select our M770-TCW, instead.
Although M770-CCW component woofers can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.
Please note: this listing is for a single component woofer with an attached 2-way, passive crossover network and a grille. No tweeter is included.
Sold individually.
- Diameter : 7.7 Inch
- Sensitivity : 91 dB
- Frequency Response : 45-25000 Hz
- RMS Power Range : 100 Watts
- Peak Power Handling : 175 Watts
- Color : White
Features:
- RMS: 100 watts
- DMA-optimized, long excursion design
- Color: White Frame w/ White Sport Grille
- Frequency Response: 45 - 25,000 Hz
- Top-mount Depth: 3.15" (F)
- Polyswitch solid-state tweeter protection
- True 2-way networks with 1st order low-pass and 2nd order high-pass circuits
- Cutout Dimensions: 6.25" (E)
- 7.7" M-Series Marine Cockpit Component Woofer
- Synthetic rubber surround
- Injection-molded, mica-filled polypropylene cone with UV inhibitors
- 1.25" (32 mm) voice coil
- Recommended Power Range: 40 - 175 watts RMS each
- Low-profile/ progressive-roll spider
- Centrex® UVresistant polymer baskets and grilles
- 4 ohms impedance
- Sensitivity: 91.0 dB
- UPC: 699440917728
- Weight: 5.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
