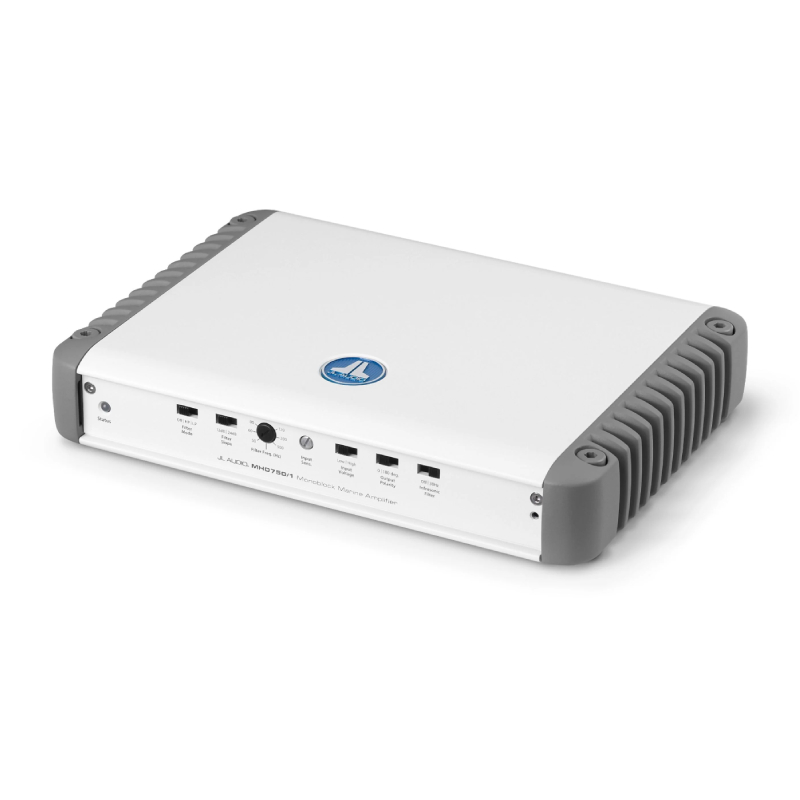

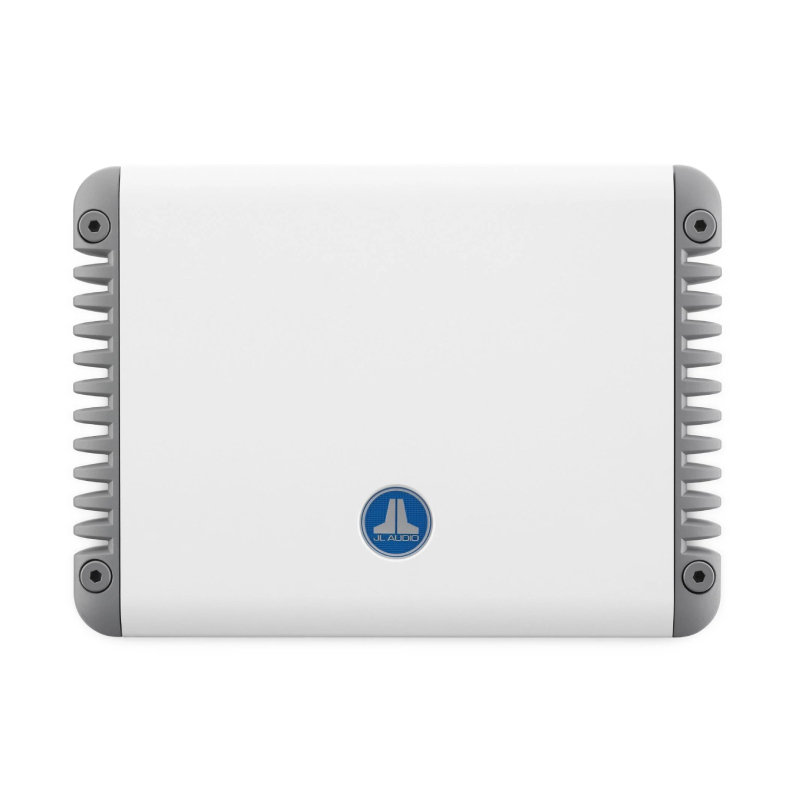

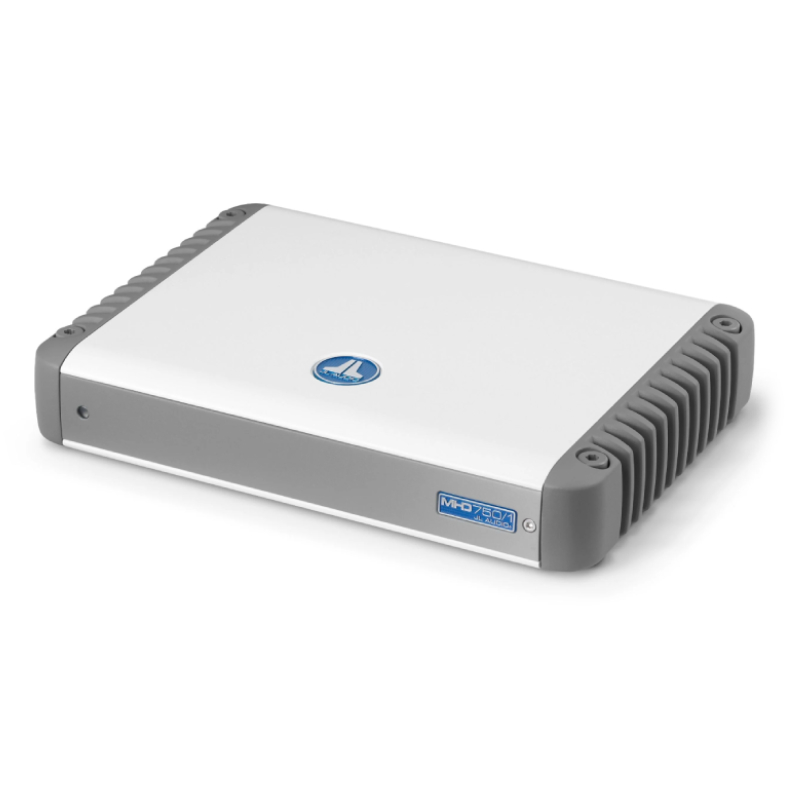

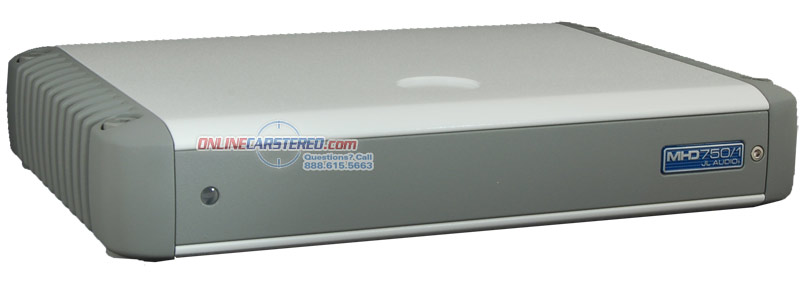

JL Audio MHD750/1 Class D Wide-Range Monoblock Marine Amplifier
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•Monoblock class-D amplifier
•Speaker connection plug
•4 Mounting feet
•four M4x40mm Flat head machine screws
•JL Audio badge

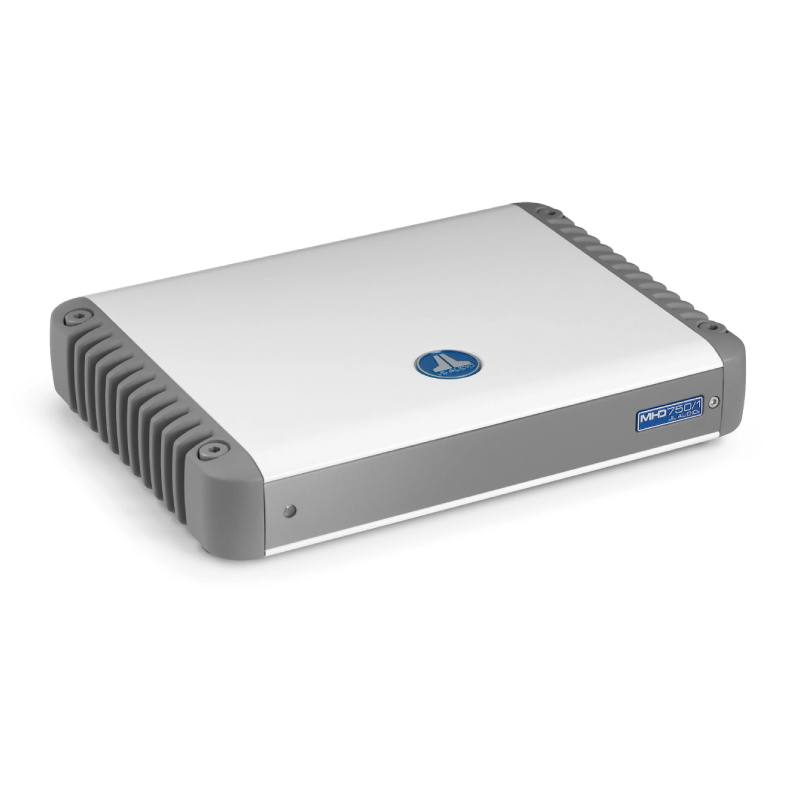

Ultra-compact Monoblock Amplifier
Monoblock Class D Marine Wide-Range Amplifier, 750 W x 1 @ 1.5-4 Ω This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system.
Power Supply Regulation

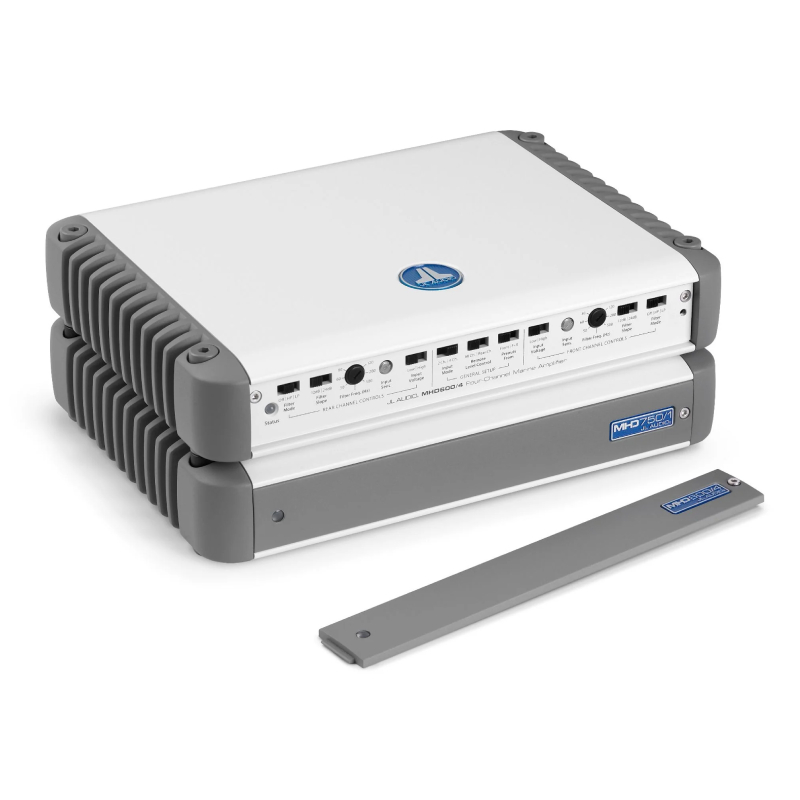

Tight power supply regulation keeps distortion ultra-low and maximizes your bass performance. While targeted primarily to subwoofer applications, the MHD750/1 is a full-range amplifier and can also be used to drive high-performance mid and high frequency speaker systems. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions: 10.74" x 8.29" x 1.93"

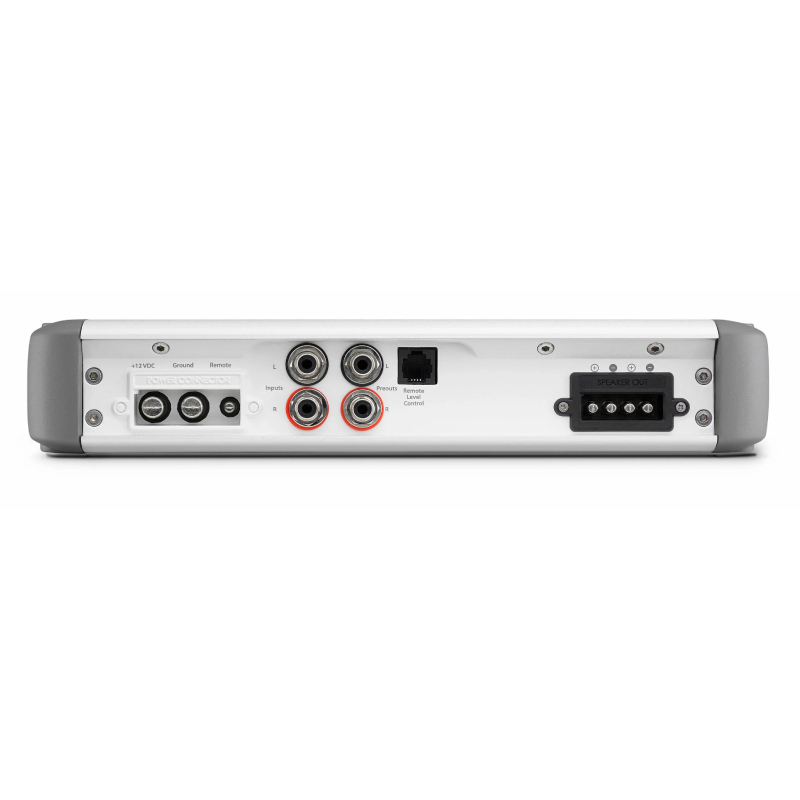

Differential-Balanced Input Topology: 1 pair of inputs

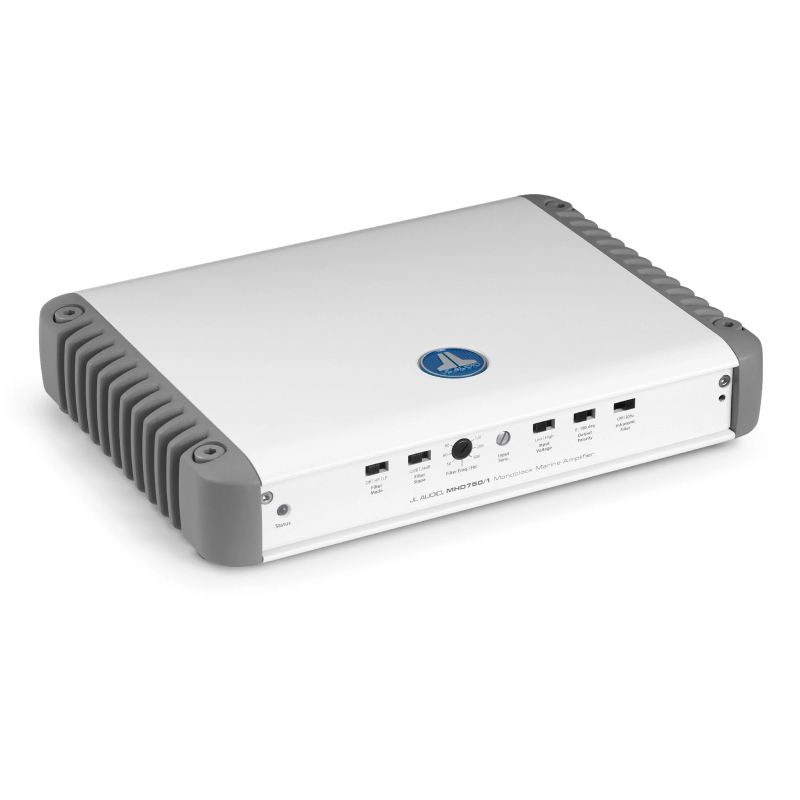

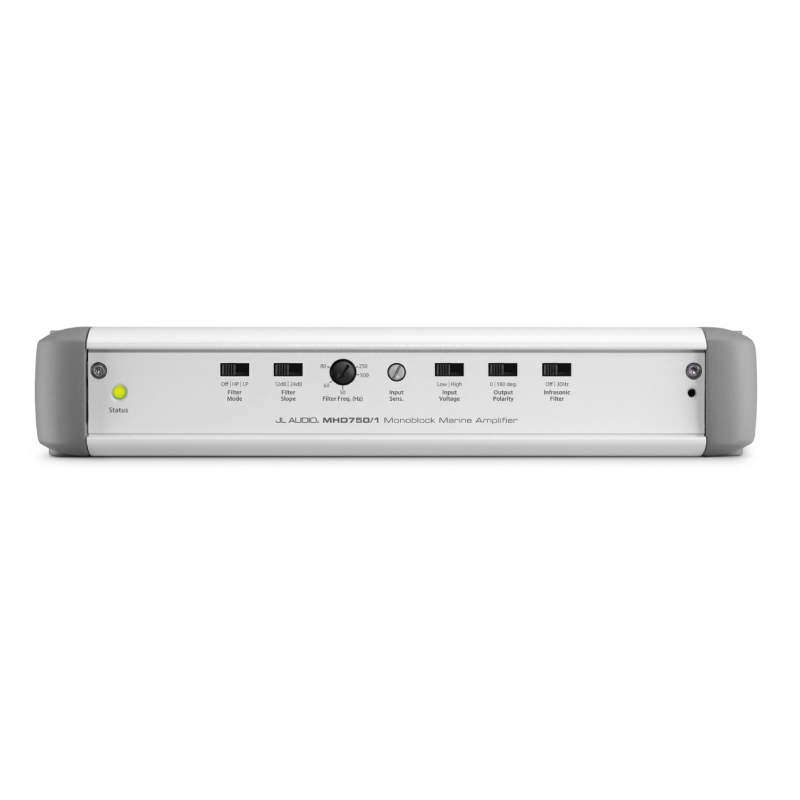

On-board Crossover: State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley, Low-Pass or High-Pass
Preamp Output: 2-channel, buffered pass-through type
Bass EQ: Remote Level Control (with optional HD-RLC)
Infrasonic Filter: 24dB/octave fixed cutoff of 30 Hz, defeatable
Output Polarity Reversal: Normal or Reversed, via switch
Speaker output connections: Accept up to 12 AWG wire
+12V and Ground connections: Accept up to 4 AWG wire
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
I had ordered the non marine version and they sent me this one so i went ahead and had it installed with the jl 13w6 and the head unit is a pioneer avh-p8400. Im really happy with the end result is a very good amp doesnt over heat it was a great buy. It way better than my old set up 2 12kenwood's and a 1800w kenwood amp.
this perfect little size monster is definitely worth it and worth the money tested it for a while didn't disappoint
