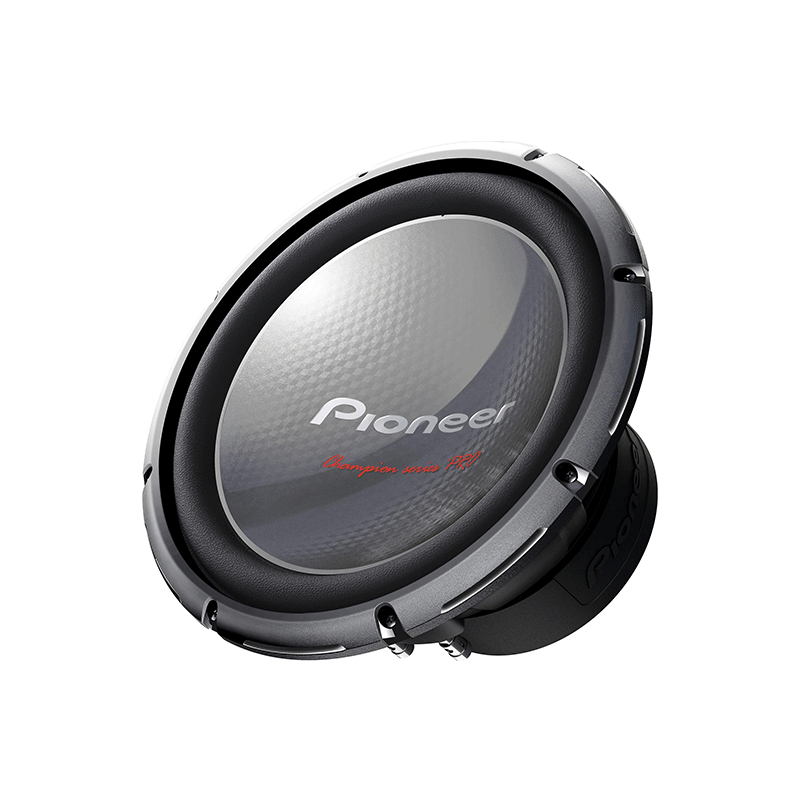

IMPP composite seamless woofer cone with dual-layer elastic polymer surround
sensitivity: 96 dB
ported box volume: 1.75 cu. ft.
power handling: 100-600 watts RMS
12" subwoofer with dual 4-ohm voice coils

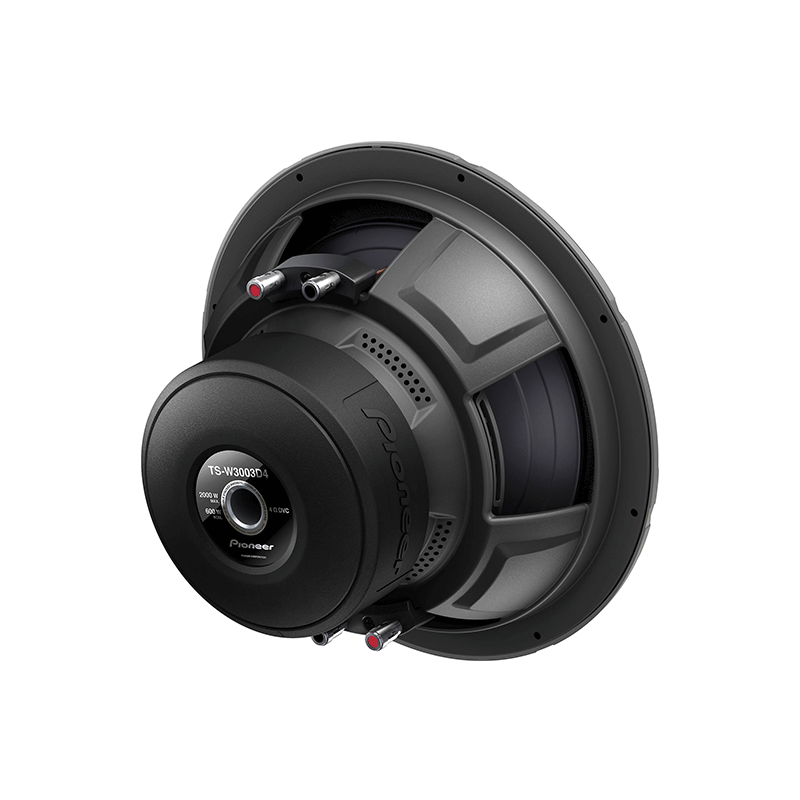

spring-loaded speaker terminal posts
frequency response: 20-80 Hz
peak power: 1200 watts
top-mount depth: 6-9/10"
Diameter : 12 Inch
Low Frequency Response : 20 Hz
High Frequency Response : 80 Hz
Sensitivity : 96 dB
Impedance : 4 Ohm
Frequency Response : 20-80 Hz
RMS Power Range : 600 Watts
Peak Power Handling : 2000 Watts
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 1.25 Cubic ft.
Suggested Ported Box Volume : 1.5 Cubic ft.
Improving on conventional designs, the TS-W3003D4 features a dual spider design for improved linearity, a larger pole with thicker wire for more accurate bass, a larger magnet for louder bass, and a reinforced basket for more durability. The newly designed Champion Series PRO subwoofers are built to produce loud and powerful bass capable of withstanding up to 2,000 watts of maximum power with 600 watts of continuous musical power.
Specifications
Top Mount Depth (inches)
6 15/16
Port diameter (inches)
3
Surround Material
Dual-layer elastic poly
Size
12 -inch
Peak Power Handling (Watts)
2000
Xmax (millimeters)
13.8
Ideal Sealed Box Volume (cubic feet)
1.25
Vas (liters)
34.6
Port length (inches)
6
Fs (Hz)
35
Impedance
4 ohms
Dual Voice Coil
Yes
RMS Power Range (Watts)
100-600
Qts
0.59
Cone Material
IMPP composite
Ideal Ported Box Volume (cubic feet)
1.5
Free-Air
No
Sensitivity
96 dB at 1 watt
Frequency Response
---
Bottom Mount Depth (inches)
N/A
Cutout Diameter or Length (inches)
11 1/16
UPC: 884928234610
Weight: 38.6
Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties. What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
I needed to replace a borrowed Stereo Integrity Mag D2 subwoofer and needed to go cheap. I found a real good deal on this Pioneer driver brand new. It shared similar mounting specs as the D2, depth, screw holes, and using the same sealed enclosure of about 1.25 cubic feet. All I can say is wow!! I was not expecting that at all. The D2 is an excellent hard hitter and quality sub and this Pioneer was hitting just as hard and solid. The drivers sound quality is very good. It blended very well with the main speakers. Bass is well defined and not one noted or boomy.. Even though It still needs some run in time to loosen up, I'm very impressed with it. Build quality is very good and looks to last a long time. The only con that I personally have is the fact that the woofers surround is made of foam. I would've preferred to see a rubber surround instead... Rubber lasts much longer and is much more durable. That's why it didn't get a 10 for features. But, for just under $60, I really can't complain.. Used with the right amount of power and the right enclosure, this sub is a true sleeper..
Well this little sub suprised me. I had 2 15's with a rockford amp, killed my 15's and sold my rockford amp. Got a Lanzar Vibe286 amp in a trade, and got one of these little pioneer subs from wal mart, and wow. I am pushing probably 350 RMS to the sub and it is booming like a big boy. I need to tune it back down a little bit to give it a proper break in, but after that, I plan on seeing what it can really do. All I can say is, I plan on buying one more of these and a dually sealed box. I listen to rock, and I like to hear the double kick, but I don't like to overload the treble with bass. But I still want enough boom to throw on some good beats and kick it up a notch. These subs, for 45 each, fit the bill pretty well. Can't beat em for the money. Beware, they are overpriced at wal mart, about $13 more than on this site.
these are def the best subs for the money ive had kicker comps infinity subs boss most of the cheap brands, and ill tell ya for 45 dollars these mofos straight knock, im pushhing about 500-600w though these and i shake my house when i pull in the garage, they love my bandpass box and pioneer is the best for the money!! running a boss 2500w amp at 2 ohms barely turned in a sonix electronics bandpass bos, all for around 230, and it will keep up with my friends kicker cvxs! get a right amp and know what your doing and they will blow you away!!
Dont let the price of theese subs luer you away ive had mine for going on 2 years still work perfectly fine. They hit harder then alot of alpines and even my friends fosgate. Ive got just 1 of theese hooked up in a 04 chevy colorado ported box with a sound storm 1600 watt amp and you can hear it from a football field away. If your looking for the same quality and sound as 200+ dollar subs get theese. But i wouldnt advise anything sound storm.
