Rockford Fosgate  T1D210 On Sale

Power T1 Series 10" 1200W Peak Power Handling at 2 Ohms, Dual Voice Coil Car Subwoofer

Item #23610

Condition:   Brand New

Product Highlights

  • Power T1 Series
  • 10" Subwoofer
  • 1200W Peak Power
  • 2 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$407.99

Discount Already Applied!
Reg. Price $580.00  Save $172.01
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate T1D210 Power T1 Series 10" 1200W Peak Power Handling at 2 Ohms, Dual Voice Coil Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" Dual 2-ohm voice coil subwoofer

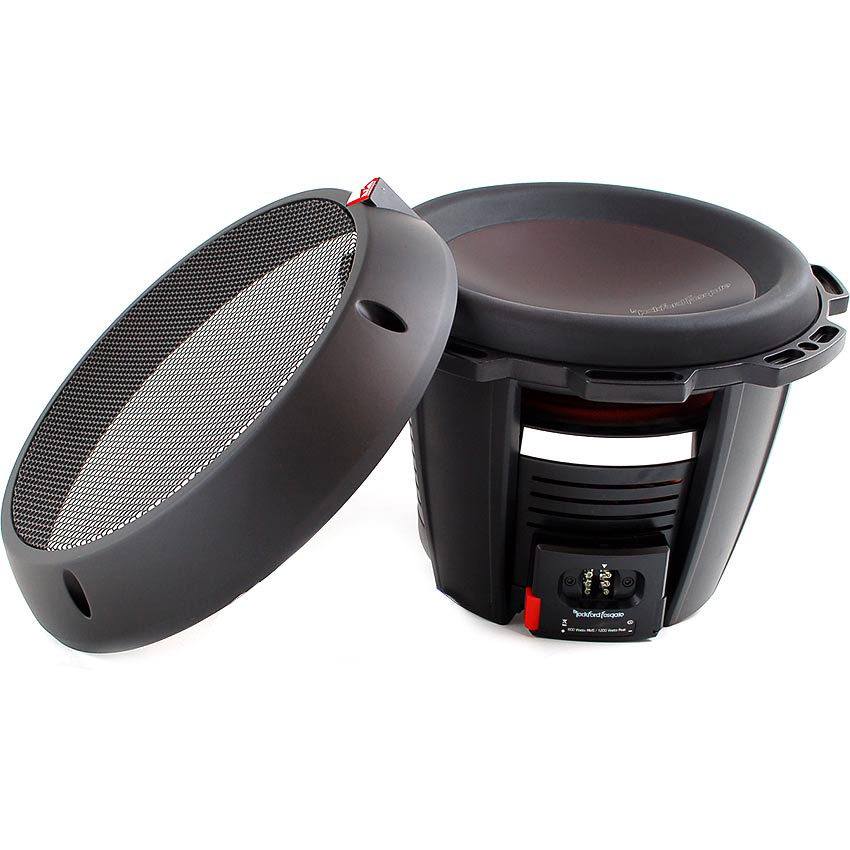

  • • Grille
  • • Fused 1-ohm/4-ohm SWIFT jumper (installed)
  • • Non-fused 1-ohm/4-ohm SWIFT jumper (not installed)
  • • (12) 1-5/8" Allen head screws
  • • 4mm Allen head bit
  • • Installation/Operation manual (English/ French/ Spanish/ German)
  • Owner's Manual




Why Choose Rockford Fosgate T1D210 Component Car Subwoofer?


Rockford Fosgate T1D210 Component Car Subwoofer
Rockford Fosgate Power T1 Series Subwoofer

Powerful, 10-inch subwoofer that delivers deep, booming bass sound. The T1D210 is designed with a cast aluminum frame, treated paper cone, and a unique Waveguide technology, which helps disperse the bass sound evenly throughout the listening area. Its dual 2-ohm voice coils offer a wide range of wiring options and its powerful motor structure provides impressive levels of power handling. The T1D210 subwoofer is perfect for use in car audio systems and is sure to provide a powerful and dynamic bass response.

Rigid Die-Cast Aluminum Basket

It is designed to deliver deep, powerful bass with minimal distortion. The design of the die-cast aluminum basket ensures that the subwoofer is highly durable, providing long-lasting performance. The subwoofer features a 2-inch voice coil, and a frequency response of 28 Hz to 250 Hz. The subwoofer is also equipped with a ventilated motor structure which helps to keep the subwoofer cool during long periods of playing. In addition, the subwoofer is compatible with both sealed and ported enclosures.

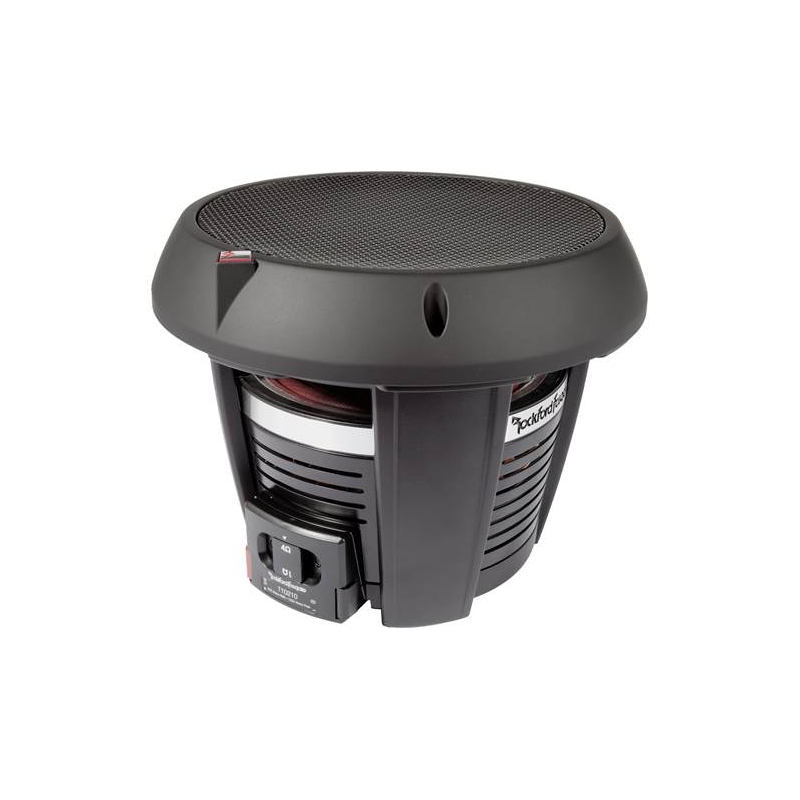

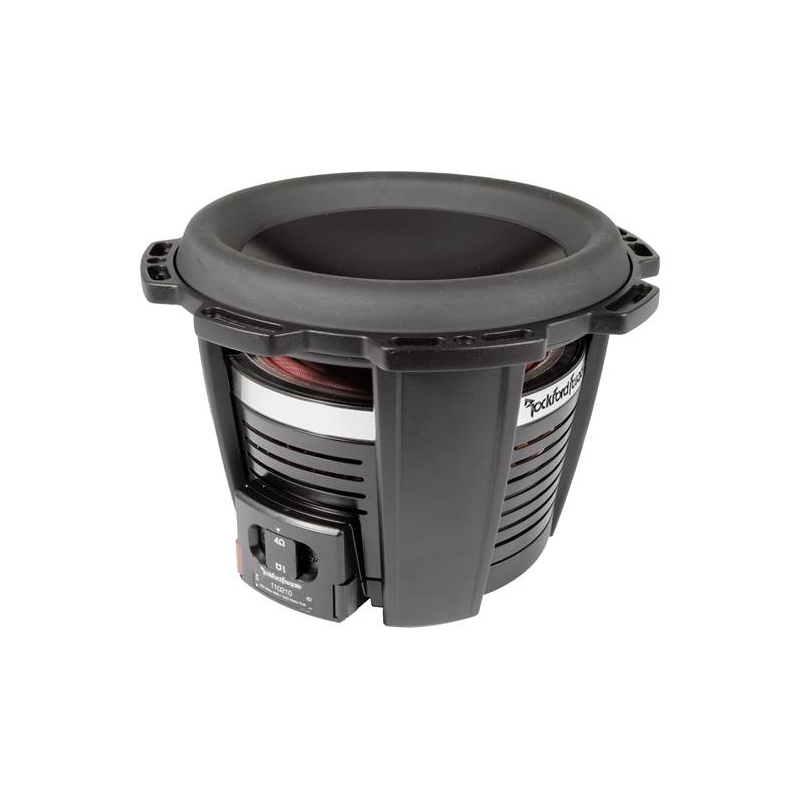

Rockford Fosgate T1D210 Component Car Subwoofer Side Profile View

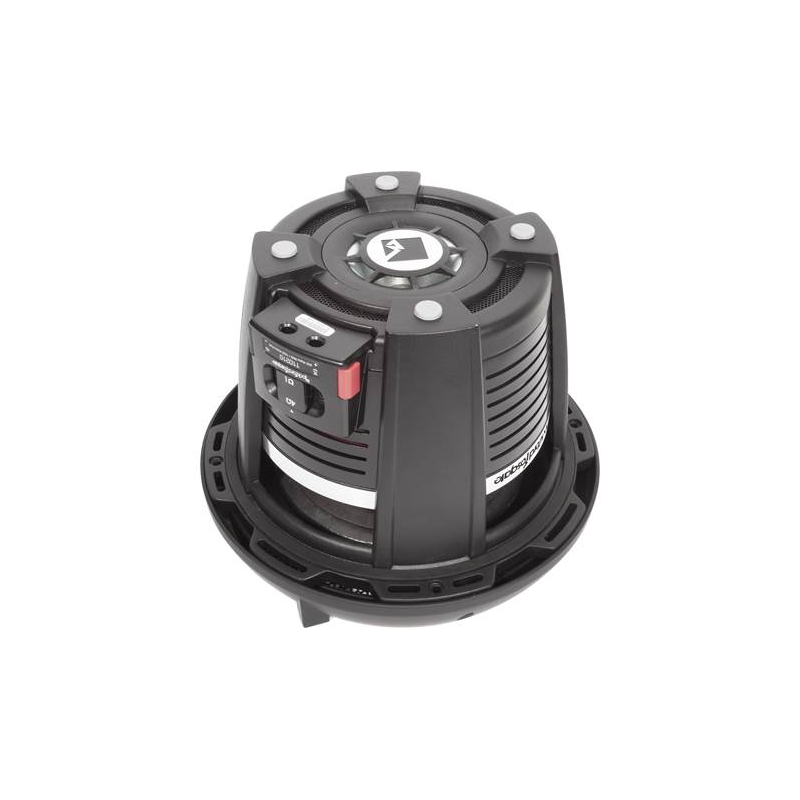

Rockford Fosgate T1D210 Component Car Subwoofer Bottom View
Ventilated Motor Structure

This is designed to provide maximum airflow to the voice coil while maintaining a rigid structure, allowing for improved power handling and thermal efficiency. The vented motor structure utilizes a unique, symmetrical layout that increases the size of the motor structure, allowing for more power handling. Additionally, the vented design helps to keep the voice coil cool, which increases the speaker's power-handling capabilities, as well as its overall lifespan. The T1D210 is a high-performance subwoofer, and its ventilated motor structure is designed to help it deliver superior audio performance with reduced distortion.

Has Aluminum Voice Coil Former

It is designed to provide powerful, low-end bass response in an efficient, lightweight design. It features a high-temp polyimide former and a high-temp Nomex spider for increased power handling. The T1D210 also utilizes a large motor structure with a vented pole piece and a high-temp fiber reinforced paper cone for improved sound quality. The subwoofer is capable of handling up to 1,200 watts of power and has a frequency response range of 25-500 Hz.

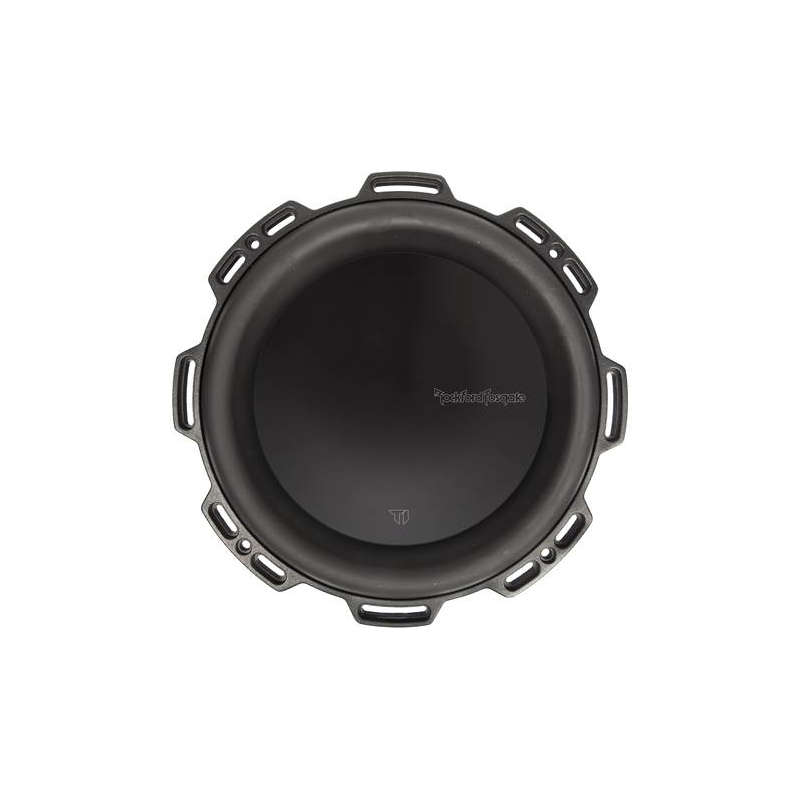

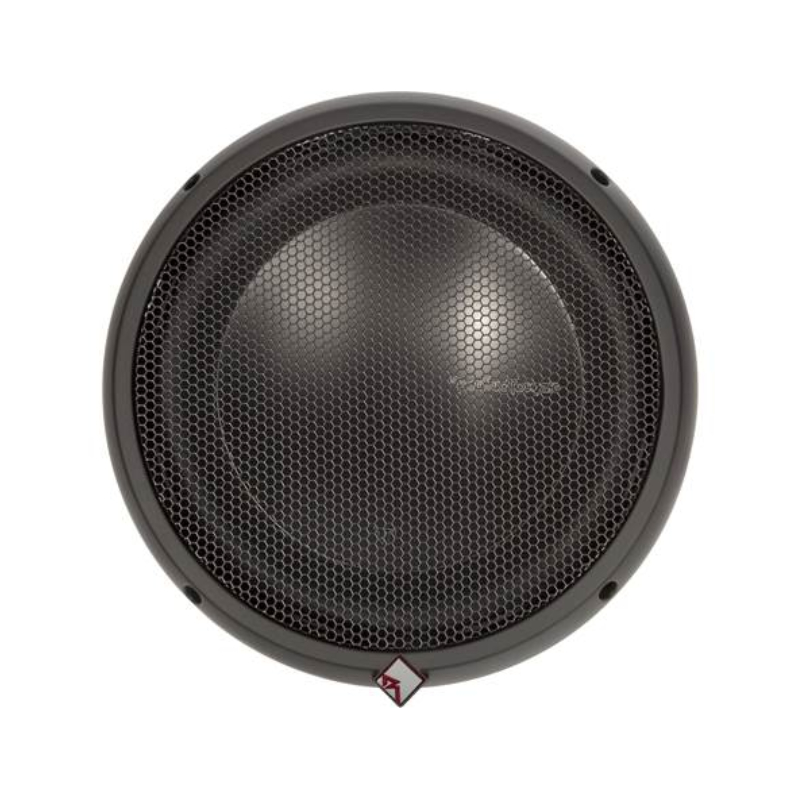

Rockford Fosgate T1D210 Component Car Subwoofer Front View




Frequently Asked Questions (FAQ)


  • • Why isn't the subwoofer producing the deep bass I expected?
    Check the enclosure volume, amplifier gain, crossover settings, and speaker polarity. An improperly designed box or reversed polarity can significantly reduce low-frequency output and make the system sound weak.
  • • What enclosure should I use for the best performance?
    Use a properly constructed sealed or ported enclosure that follows the manufacturer's recommended specifications. Correct internal volume and tuning help deliver powerful, controlled bass without unnecessary mechanical stress.
  • • How should I wire the dual voice coils?
    The dual voice coils can be wired in different configurations to achieve the desired final impedance. Choose a wiring configuration that matches your amplifier's supported load before applying power.
  • • Why does the amplifier go into protect mode when the bass gets loud?
    Check the final impedance, speaker wiring, power connections, and amplifier temperature. An incorrect load, short circuit, voltage drop, or overheating can trigger protection during heavy bass passages.
  • • Why does the bass become distorted at higher volume?
    Distortion can occur when the amplifier clips, gain is excessive, or the woofer is pushed beyond its limits. Lower the gain and verify the crossover and amplifier settings are properly adjusted.
  • • Why am I hearing rattling or buzzing from the enclosure?
    Inspect the enclosure joints, mounting screws, speaker terminals, and nearby vehicle panels. Loose hardware or air leaks can vibrate during heavy bass and create noises that may resemble speaker damage.
  • • Does it need a break-in period before reaching full performance?
    A gradual break-in period allows the suspension and moving components to loosen naturally. Start at moderate volume levels and avoid prolonged maximum output during the first several hours of use.
  • • Can I use this with a factory head unit?
    Yes, but an appropriate external amplifier is generally required to provide sufficient power. Depending on the vehicle, a line output converter or factory integration interface may also be necessary.
  • • Why does the bass become weaker when I increase the volume?
    Check for amplifier clipping, voltage drop, protection mode, or an incorrect impedance load. These issues can cause the amplifier to reduce output or shut down when bass demand increases.
  • • What amplifier should I pair with this subwoofer?
    Choose an amplifier that provides clean RMS power appropriate for the subwoofer's power handling at the final wired impedance. Proper matching helps maximize bass while minimizing clipping and potential damage.

SPECIFICATIONS


  • Diameter : 10 Inch
  • Maximum Power : 1200 Watts
  • Sensitivity : 83 dB
  • Impedance : 2 Ohm
  • Frequency Response : 25-500 Hz
  • Peak Power Handling : 1200 Watts
  • Top Mount Depth : 6-3/8 Inches
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : .75 Cubic ft.
  • Suggested Ported Box Volume : 1.5 Cubic ft.
  • Mounting Depth : 6.375 Inches
  • RMS Power Handling : 600 Watts

FEATURES


Features:

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • Optimized and matched magnetic and complicance geometry
  • Periodic-stitched fatigue resistant tinsel lead wire
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty



Specifications:

  • Power Handling (Watts RMS)
    • 600 Watts RMS
    • 1200 Watts Peak
  • Size: 10"
  • Speaker Connector: Compression Terminal
  • Nominal Impedance: Dual 2-Ohms
  • Voice Coil Diameter: 3" (75.5 mm)
  • Mounting Depth: 6.375 in. (161.9 mm)
  • Shipping Weight: 25.7 Lbs. (11.65 Kg.)
  • SPL (dB @ 1w/1m): 83
  • Vas (Liters): 15.4
  • Re (Ohms): 3.25
  • Le (mH): 1.8
  • Fs (Hz): 34.5
  • Magnet Weight: 100 oz. (2.84 kg)
  • Qts: 0.54
  • Qes: 0.59
  • Qms: 6.00
  • Xmax (mm): 16
  • Cutout Diameter: 9.0625 in. (230 mm)
  • Woofer Displacement: 0.078 cu. ft. (2.2 Liters)
  • Sd (cm2): 345
  • CEA-2031 Compliant: CEA-2031 Guidelines
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 0.75 cu. ft. (21.2 Liters)
  • Vented Box Volume (Vb): 1.5 cu. ft. (42.4 Liters)
  • UPC: 780687328917
  • Weight: 26.19
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
