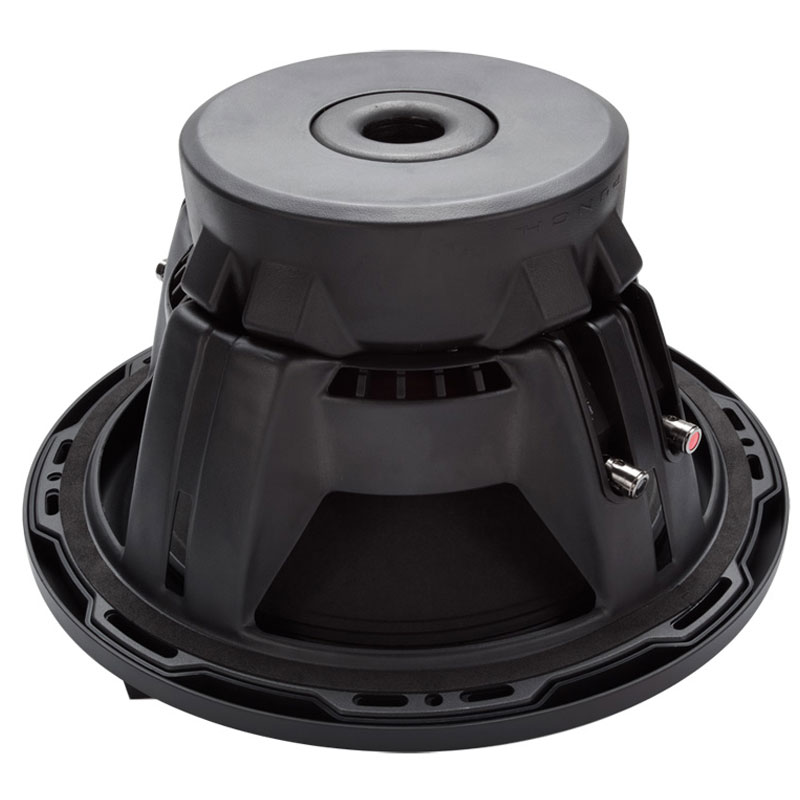

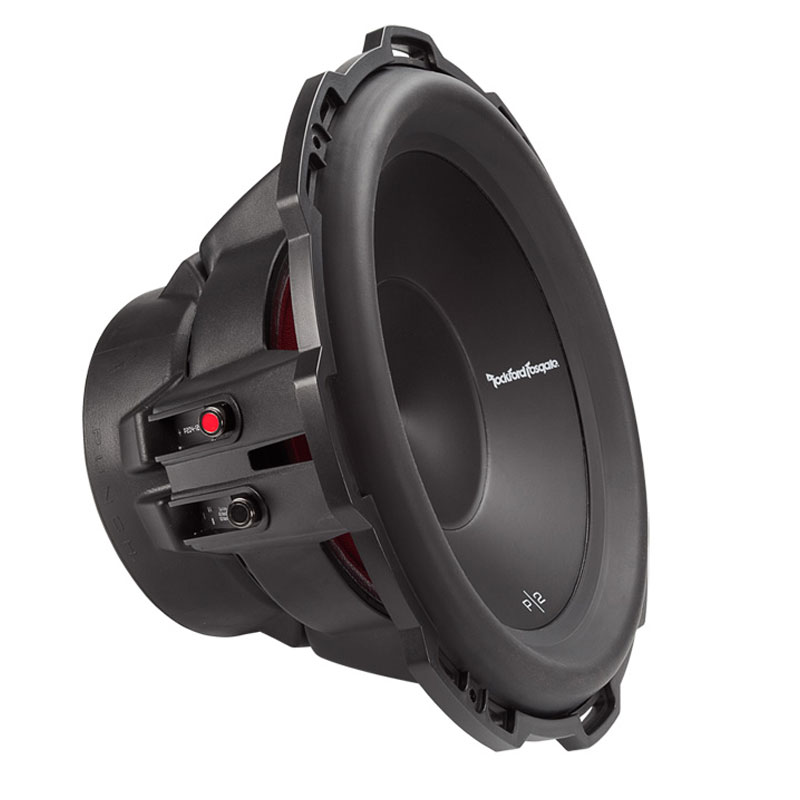

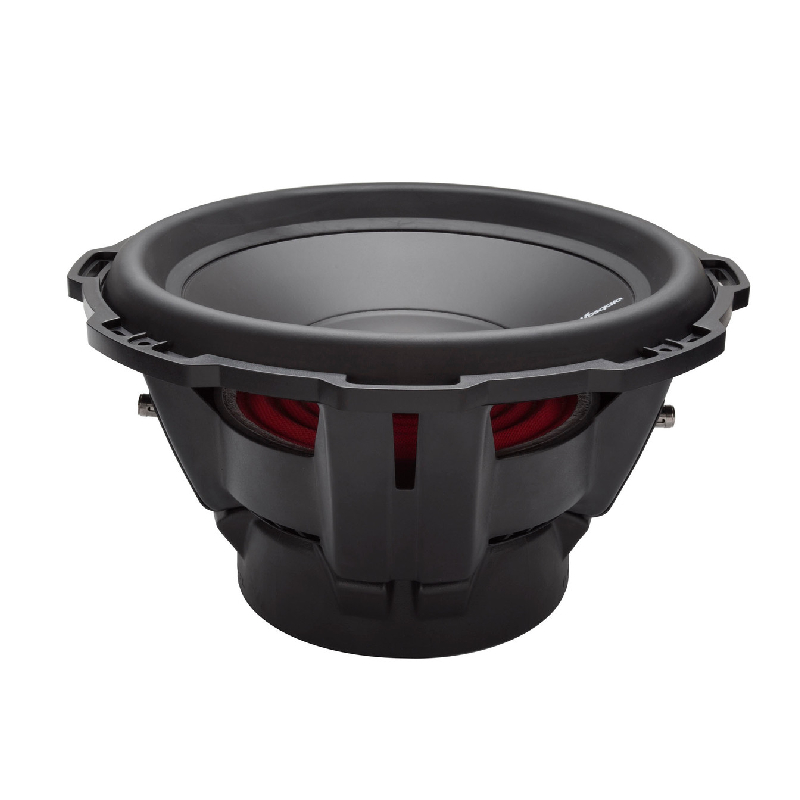

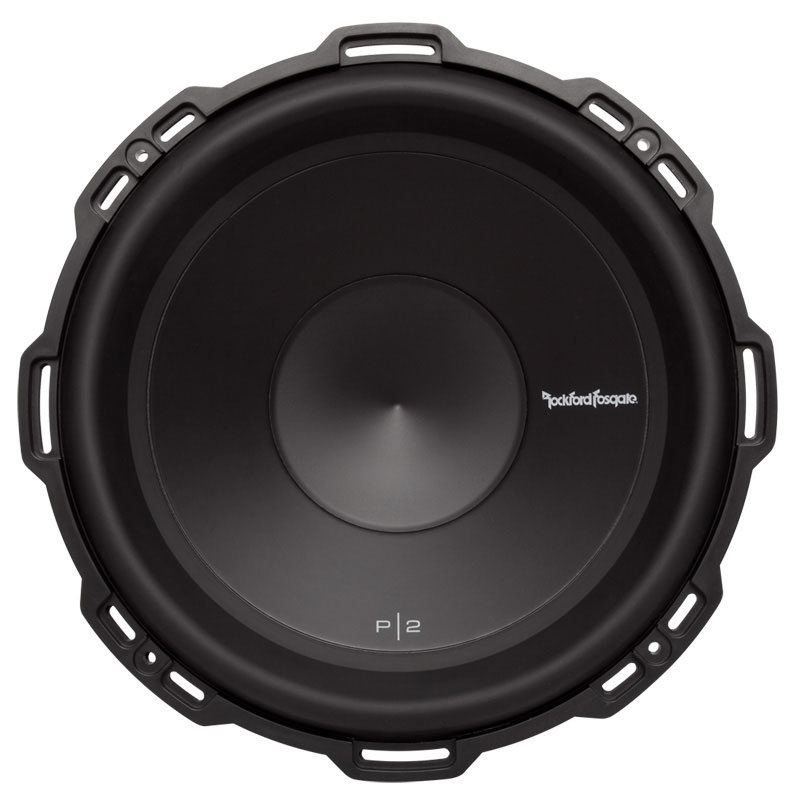

Rockford Fosgate P2D4-12 Punch Series 12" 400W RMS Dual 4 Ohms Voice Stage 2 Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(1) 12" Dual 4-ohm voice coil subwoofer
•(8) 1-1/8" Allen head screws
•4mm Allen head bit
Designed With Precision and Durability in Mind
The Rockford Fosgate P2D4-12 is a powerful 12-inch subwoofer with deep, punchy bass and exceptional performance. Designed with precision and durability in mind, this subwoofer is a popular choice among car audio enthusiasts looking to enhance their sound system.
Compatibility With Various Amplifiers
The P2D4-12 features a dual 4-ohm voice coil configuration, allowing for versatile wiring options and compatibility with various amplifiers. Its cone is constructed from anodized aluminum, which is lightweight yet rigid, enabling it to reproduce low frequencies accurately and efficiently.
Handle High Power Levels
With a peak power handling of 800 watts and an RMS power rating of 400 watts, the P2D4-12 can handle high power levels, resulting in an impactful bass response. It utilizes Rockford Fosgate's proprietary Vertical Attach Surround Technique (VAST) to increase cone area, improving overall sound output.
Easy Installation and Compatibility
The subwoofer incorporates an innovative Flex Fit basket design, which ensures easy installation and compatibility with a wide range of vehicles. Additionally, its stitched tinsel leads enhance reliability and provide increased durability.
Diameter : 12 Inch
Sensitivity : 86 dB
Impedance : 4 Ohm
Frequency Response : 27-250 Hz
Peak Power Handling : 800 Watts
Top Mount Depth : 6-3/8 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 1.02 Cubic ft.
Suggested Ported Box Volume : 1.79 Cubic ft.
RMS Power Handling : 400 Watts
Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 1.02 cubic feet (from 0.7 to 1.8 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box: Rockford recommends a ported enclosure with an internal volume of 1.79 cubic feet using one 4" diameter x 10" long port; this yields a tuning frequency of 40 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 34 Hz).
Overview: The Rockford Fosgate Punch P2D4-12 is a 12-inch subwoofer with dual 4Ω voice coils. The sub features a StampCast steel frame, quick-release compression terminals, a Kevlar fiber reinforced paper cone, and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
Dual 4Ω Voice Coils: The dual 4Ω voice coils offer wiring flexibility; when wired in parallel the woofer presents a 2Ω load, when wired in series the woofer presents an 8Ω mono load.
Steel Basket: The P2D4-12 subwoofer features a StampCast steel basket for added rigidity.
Compression Terminals: The P2D4-12 features spring post terminals which accommodate speaker wire up to 10 gauge.
CEA-2031 Compliant: Power handling on the P2D4-12 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.
FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.
Trim Ring: To improve the cosmetic look, a decorative trim ring is included that mounts over the flange of the woofer. When using the cast aluminum trim ring the woofer is first mounted with four screws, then the ring is placed on top of the woofer, aligning the final four holes of the woofer with ring. The other four screws are used for these holes to mount the ring and woofer to the enclosure. Without the trim ring the mounting height of the woofer is just over 7/8 of an inch, with the trim ring it's approximately 1-1/16 inches. The diameter of the trim ring is 13-5/16 inches.
Size: 12 -inch
Impedance (Ohms): 2, 8
Cone Material: Kevlar reinforced paper
Surround Material: Santoprene
Ideal Sealed Box Volume (cubic feet): 1.02
Ideal Ported Box Volume (cubic feet): 1.79
Port diameter (inches): 4
Port length (inches): 10
Dual Voice Coil: Yes
Sensitivity: 86 dB at 1 watt
Frequency Response: 27 - 250 Hz
Max RMS Power Handling: 400
Peak Power Handling (Watts): 800
Top Mount Depth (inches): 6 3/8
Bottom Mount Depth (inches): N/A
Cutout Diameter or Length (inches): 11 1/16
Vas (liters): 81.5
Fs (Hz): 27.2
Xmax (millimeters): 10
Parts Warranty: 1 Year
Labor Warranty: 1 Year
