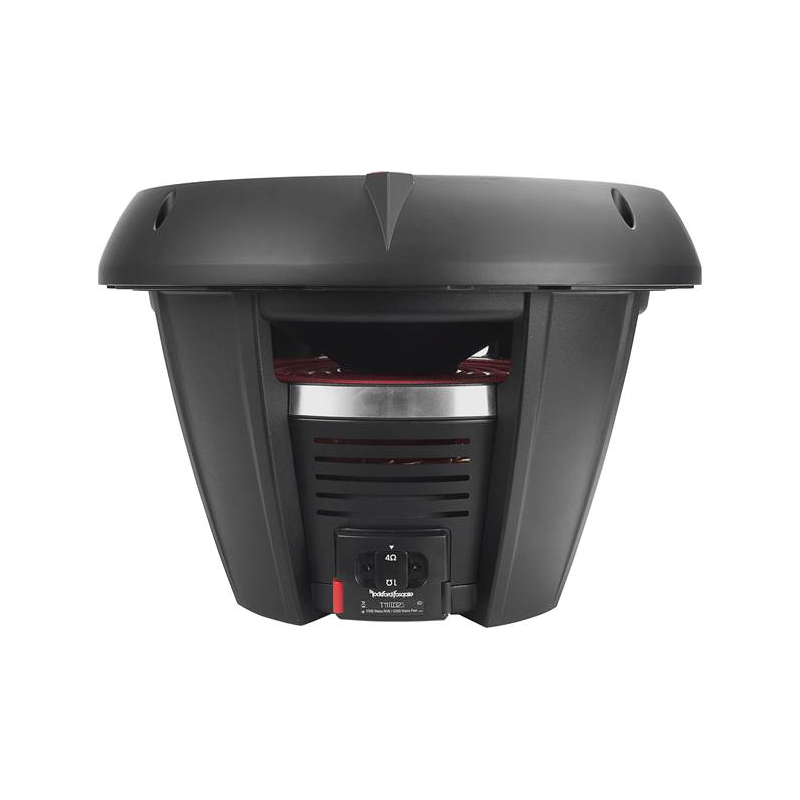

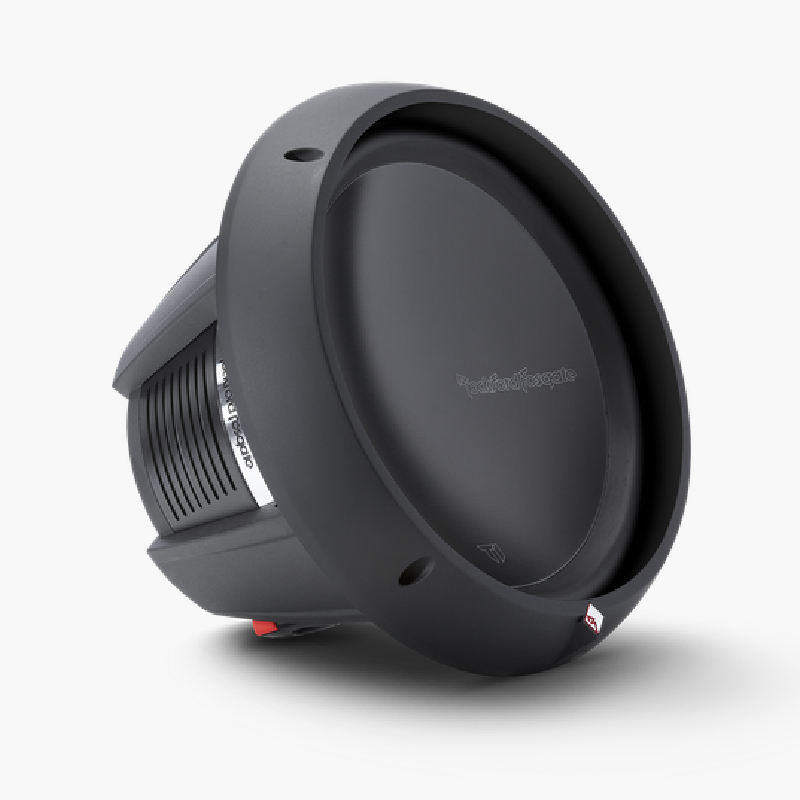

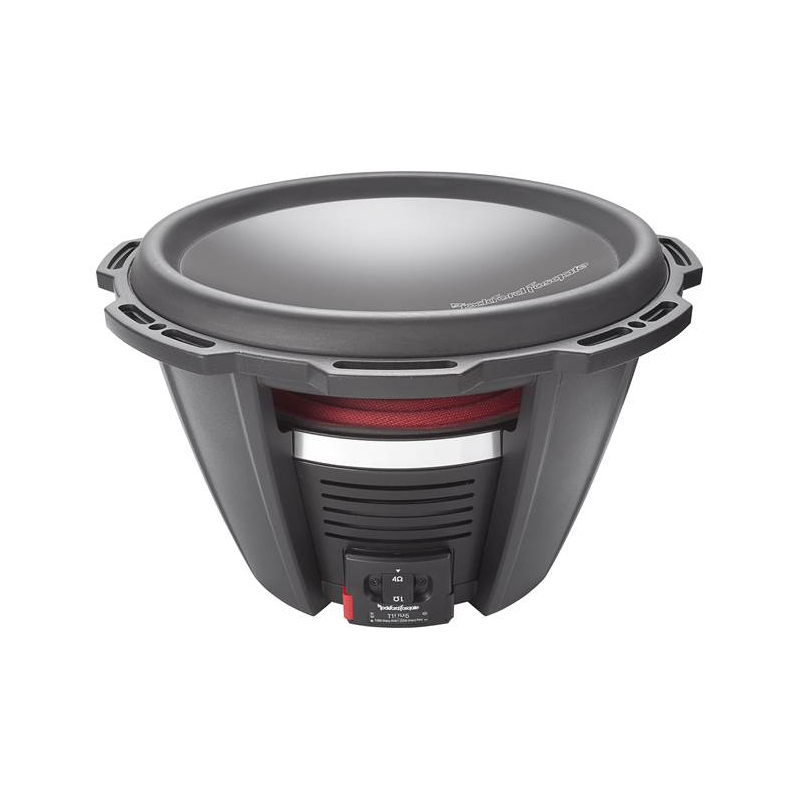

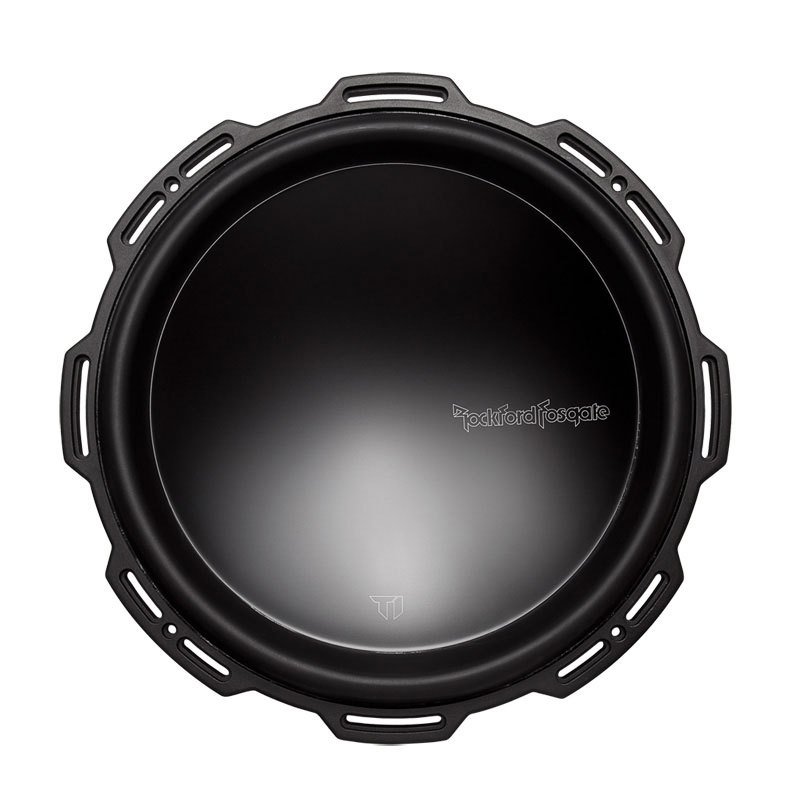

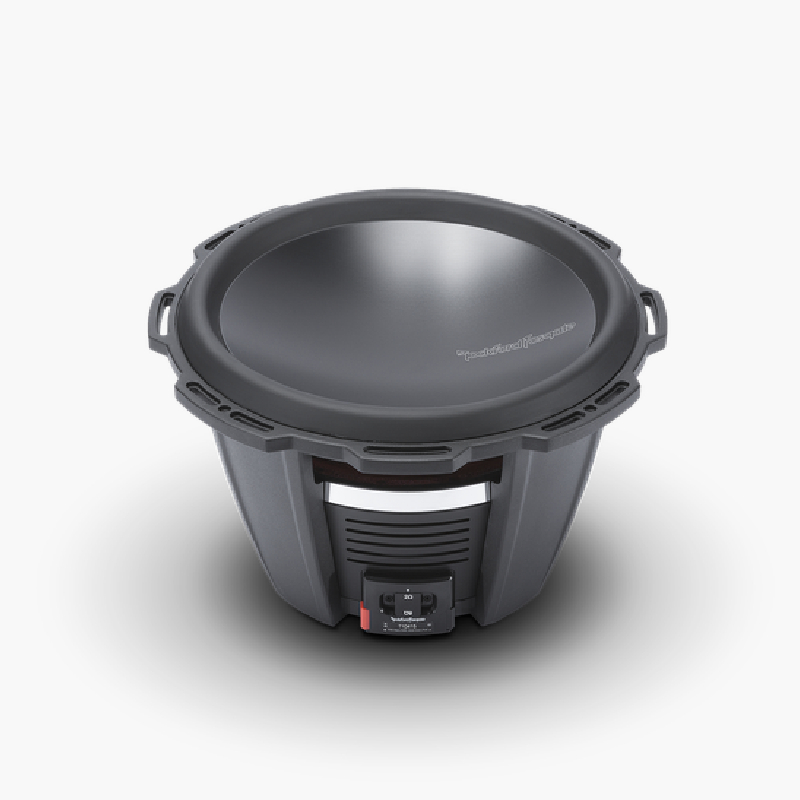

Rockford Fosgate T1D415 Power T1 Series 15" 1000W RMS 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" Dual 4-ohm voice coil subwoofer

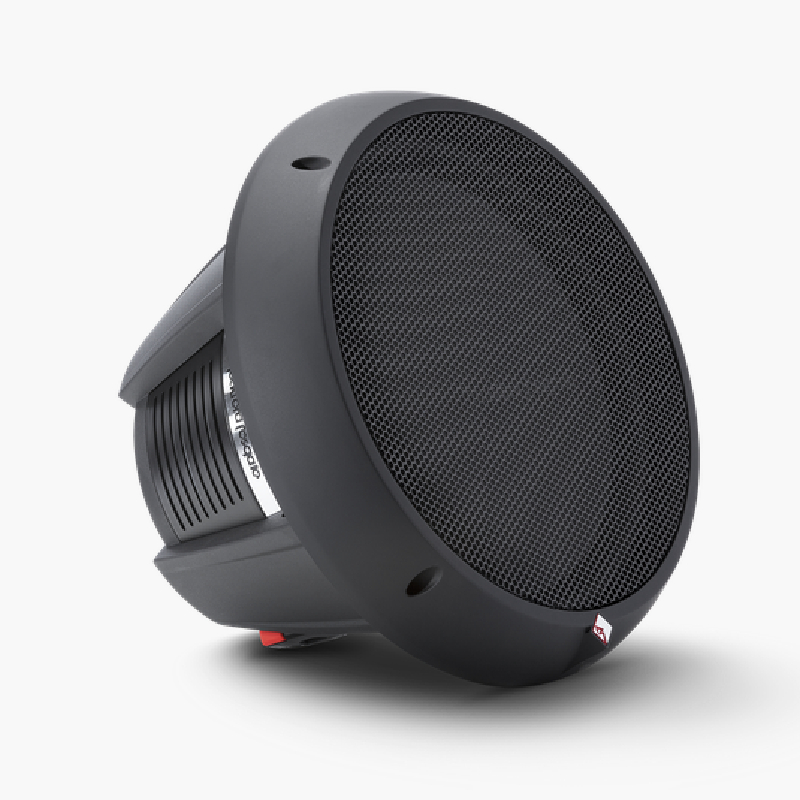

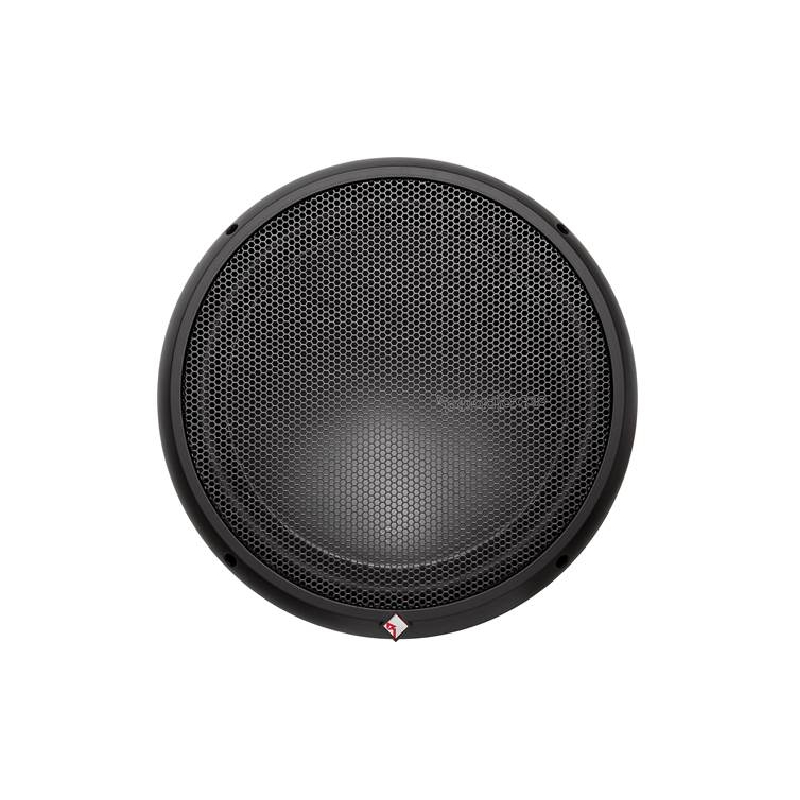

- • Grille
- • Fused 2-ohm/8-ohm SWIFT jumper (installed)
- • Non-Fused 2-ohm/8-ohm jumper
- • (12) 1-5/8" Allen head screws
- • 4mm Allen head bit
- • Installation/Operation manual (English/ French/ Spanish/ German)
- • Owner's Manual
Why Choose Rockford Fosgate T1D415 Component Car Subwoofer?
Rockford Fosgate Power T1 Series
A high-performance woofer that provides deep, powerful bass to a car's audio system. It features a large, cast aluminum frame and a high-strength motor structure that ensures excellent sound quality and power handling. The subwoofer's dual 2 ohm voice coils and 2.5” diameter high-temp voice coils provide a high-efficiency design with incredible power handling and low distortion. The paper-cone material used in the speaker provides durability and a controlled sound.
High-Strength Motor Structure
It features an extended-length, high-temperature voice coil for increased power handling, a copper shorting ring for improved high-frequency response, and an anodized aluminum former for added rigidity. The magnet structure is designed to minimize distortion and reduce power compression. Additionally, the motor is designed with a flex fit basket for easy installation. All of these features combine to provide an impressive power-handling capability of up to 1000 watts RMS.
Cast Aluminum Frame
The cast aluminum frame subwoofer is designed to deliver powerful bass and exceptional sound quality. It features a 2.15" voice coil, a 4-layer aluminum voice coil former, and a large motor structure for increased power handling. The cast aluminum frame provides superior rigidity and heat dissipation for maximum durability.
High-Temp Voice Coil
The subwoofer features a high-temp voice coil that is designed to provide maximum power handling, a large-roll surround for improved linearity, and a stiff, non-resonant stamped steel basket to ensure minimal distortion and maximum bass response. The T1D215 also features a cast aluminum frame that is designed to dissipate heat quickly, ensuring consistent performance over time.
Frequently Asked Questions (FAQ)
- • Why isn't the bass as strong as expected?
Check the enclosure volume, amplifier output, polarity, and gain settings. The wrong box can noticeably reduce bass performance and overall output.
- • What amplifier power should I use?
Around 1,000 watts RMS is a suitable target. Match the amplifier to the selected impedance and use clean power with proper gain settings.
- • How do I set the dual voice-coil impedance?
Use the selectable impedance feature to choose the appropriate load. Make sure the setting matches what your amplifier can safely handle.
- • Why does it sound better in a ported box?
A properly designed ported enclosure can produce stronger SPL and deeper output. Make sure the box volume and port tuning are correctly calculated.
- • Can I use a sealed enclosure instead?
Yes. A sealed enclosure can provide tighter and more controlled bass. Choose the recommended internal volume for the best results.
- • Why is my vehicle rattling after installation?
The high output can make trunk panels, trim, and spoilers vibrate. Tighten loose hardware and add sound-deadening material where needed.
- • Why does the bass distort at high volume?
Clipping, excessive gain, or dirty amplifier power can cause distortion. Lower the gain and make sure the amplifier is properly matched.
- • Why does it seem underpowered with my amplifier?
A lower-powered amplifier may still work, but it may not reach its full potential. Check the amplifier's RMS output and the selected impedance.
- • Why does the enclosure seem too large for my vehicle?
This is a large 15-inch subwoofer requiring substantial enclosure space. Measure the available area before building or purchasing a box.
- • What should I check if the bass suddenly stops?
Check the amplifier, fuse, wiring, terminals, impedance setting, and audio signal. Test each connection before assuming the subwoofer has failed.
- Diameter : 15 Inch
- Maximum Power : 2000 Watts
- Impedance : 4 Ohm
- Peak Power Handling : 2000 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 2.25 Cubic ft.
- Suggested Ported Box Volume : 2.66 Cubic ft.
- Mounting Depth : 8.39 Inches
- RMS Power Handling : 1000 Watts
Features:
- Symmetrical dual progressive roll tear resistant poly-cotton spiders
- Proprietary 8 AWG insulated allmetal input spring terminal connection
- Optimized and matched magnetic and complicance geometry
- Periodic-stitched fatigue resistant tinsel lead wire
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Anodized aluminum heat sinking dust cap
- Kevlar fiber reinforced paper cone
- Rigid die-cast aluminum basket
- Optimized pole piece and spider venting
- Anodized aluminum voice coil former / copper clad aluminum wire
- 1 Year Warranty
Specifications:
- Power Handling (Watts RMS)
- 1000 Watts RMS
- 2000 Watts Peak
- Magnet Weight: 229 oz. (6.49 kg)
- Voice Coil Diameter: 3.0" (75.5 mm)
- Size: 15"
- Nominal Impedance: Dual 4-Ohms
- Mounting Depth: 8.39 in. (213 mm)
- Qts: 0.51
- Qms: 6.00
- Fs (Hz): 27
- Woofer Displacement: 0.191 cu. ft. (5.4 Liters)
- Le (mH): 3.6
- Cutout Diameter: 13.9375 in. (354 mm)
- Speaker Connector: Compression Terminal
- SPL (dB @ 1w/1m): 87.5
- Shipping Weight: 53.75 Lbs. (24.4 Kg.)
- Qes: 0.55
- Vas (Liters): 102.0
- Xmax (mm): 16.4
- Re (Ohms): 6.50
- Sd (cm2): 845
- CEA-2031 Compliant: CEA-2031 Guidelines
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 2.25 cu. ft. (63.7 Liters)
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
- UPC: 780687328962
- Weight: 54
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
