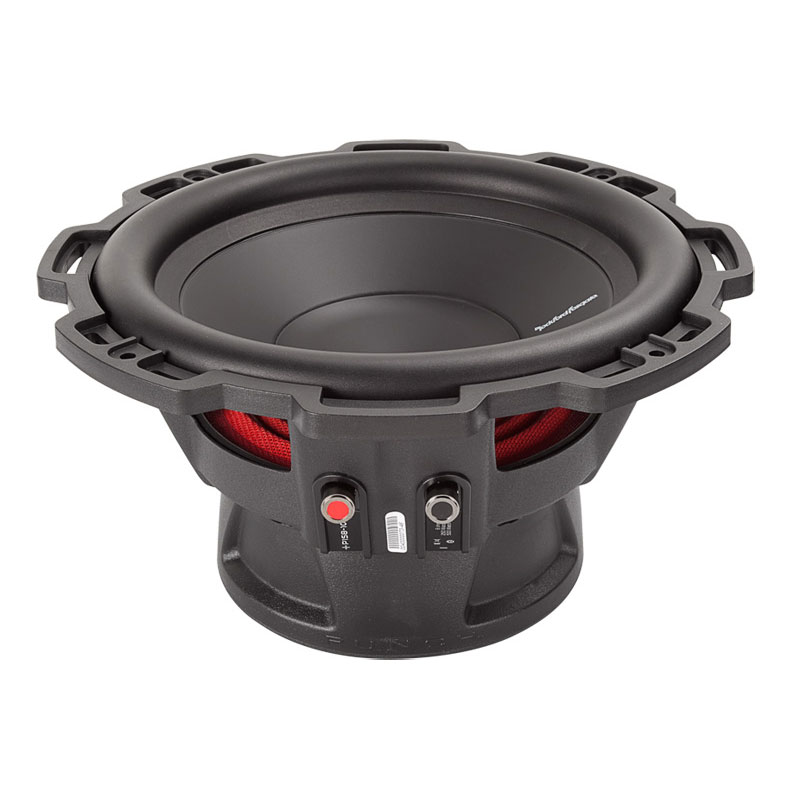

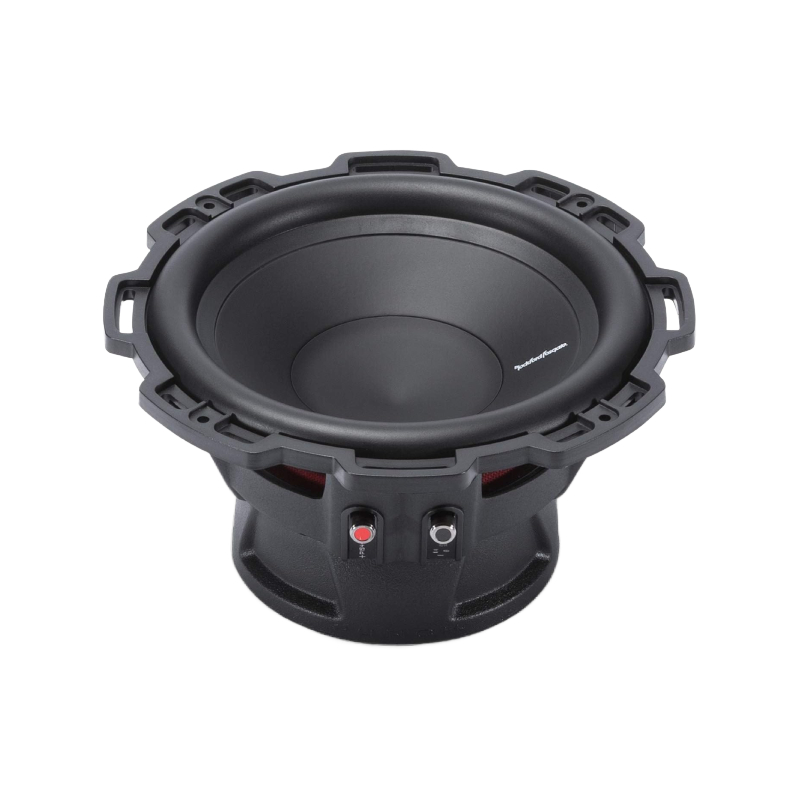

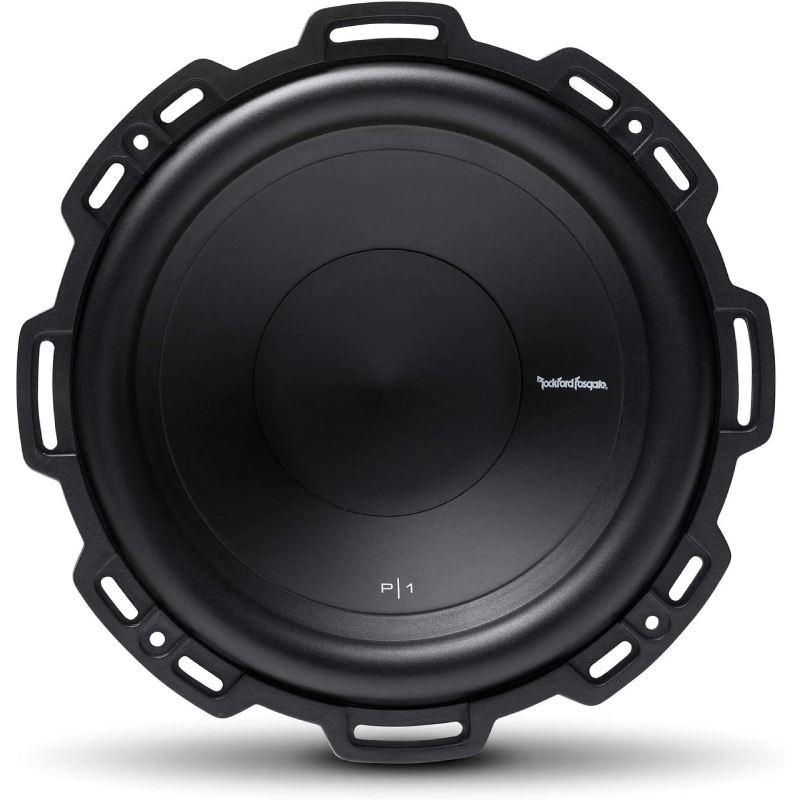

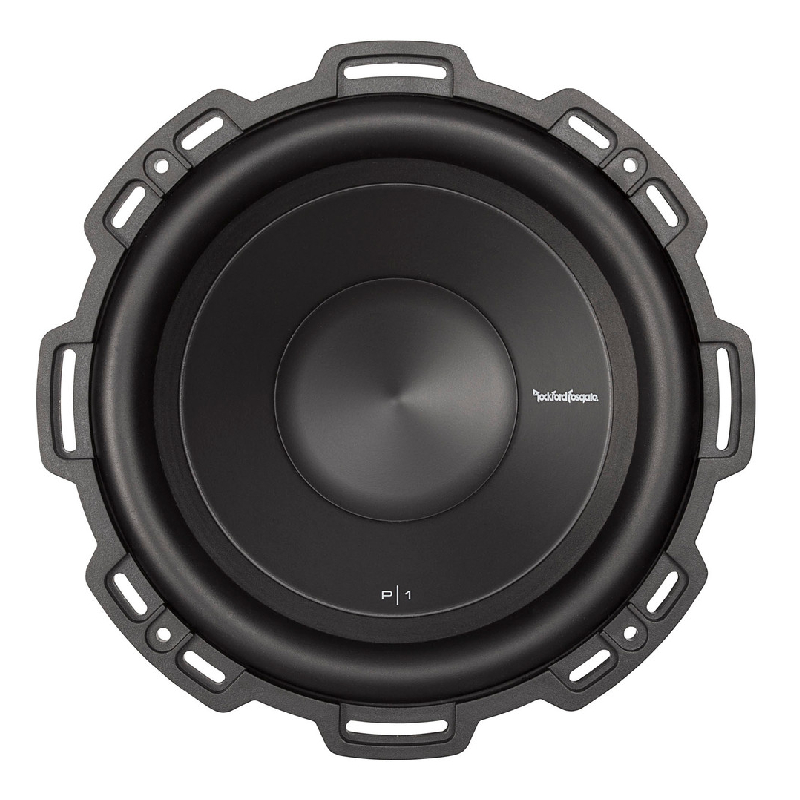

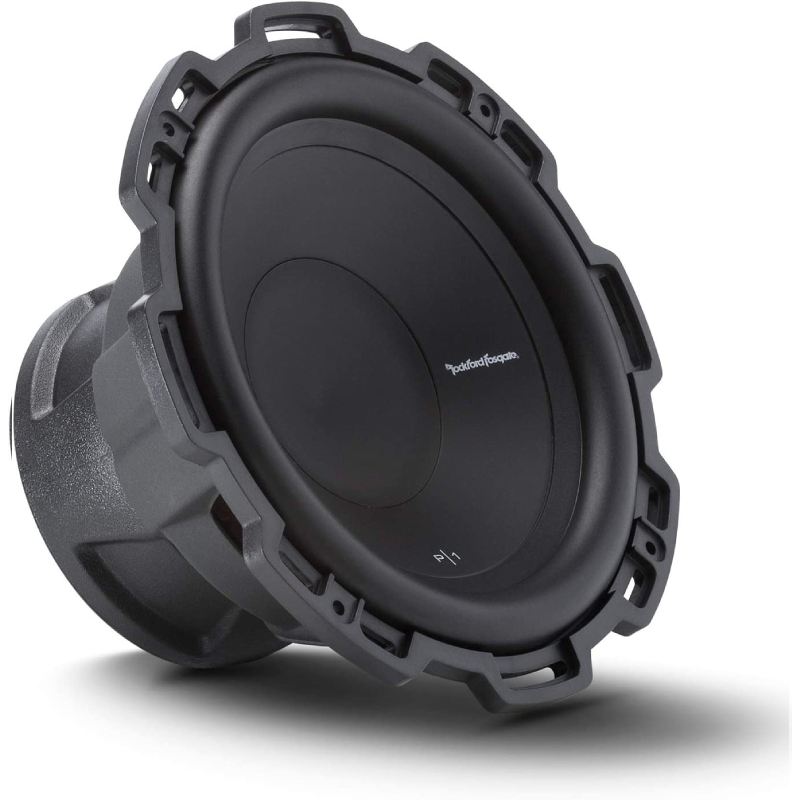

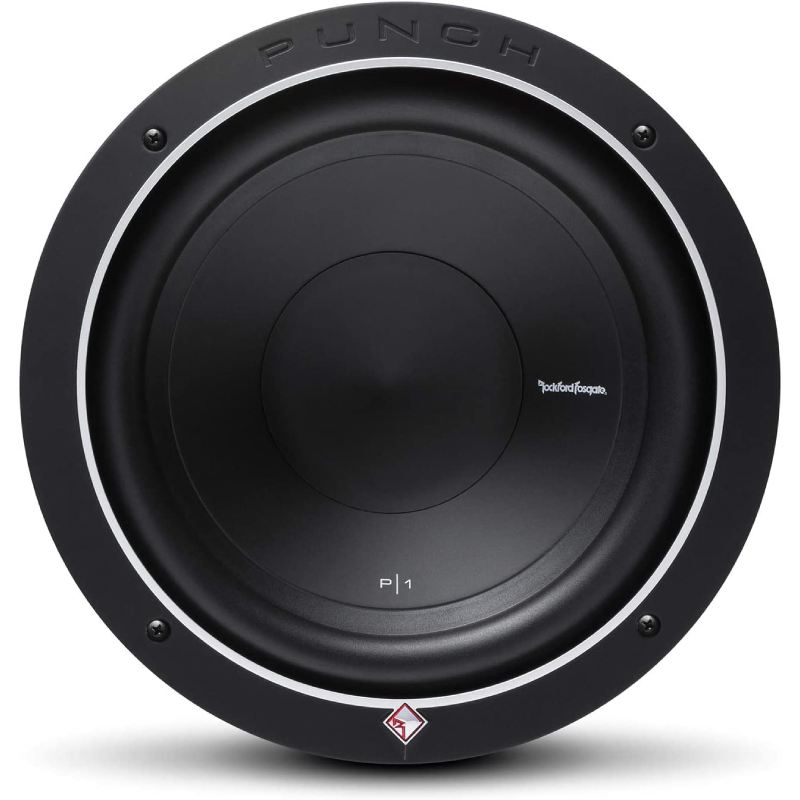

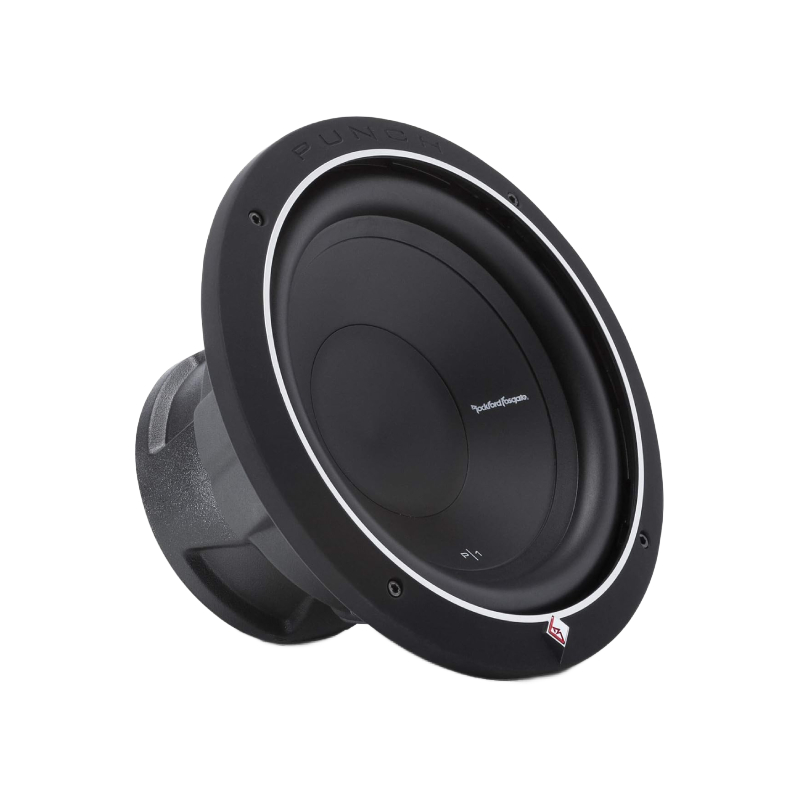

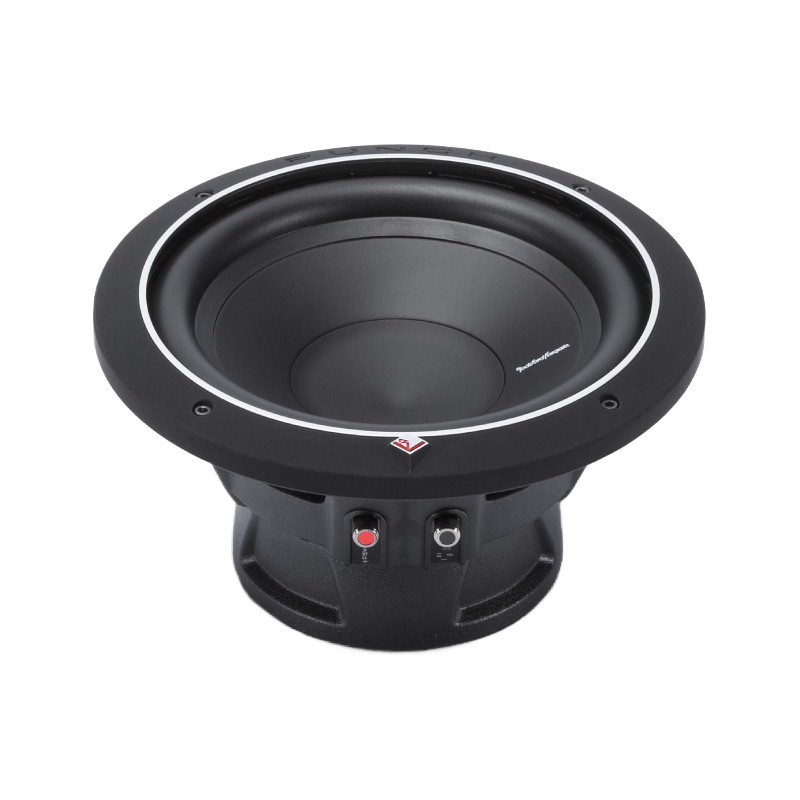

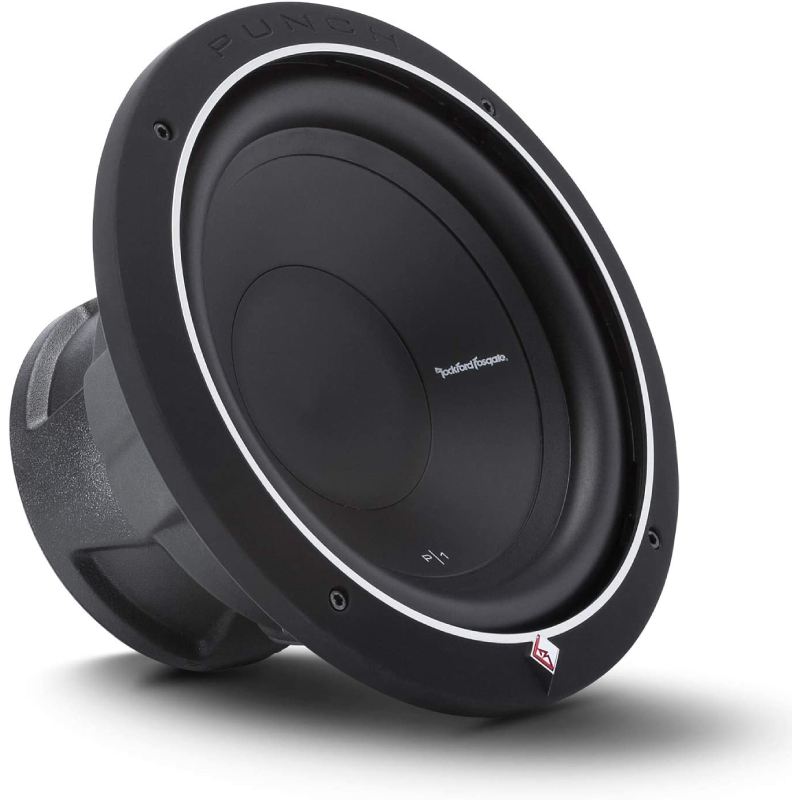

Rockford Fosgate P1S4-10 10" Single 4 Ohms Voice Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (1) 10" SVC 4-ohm subwoofer
• Trim ring
• (8) 1-1/8" Allen head screws
•4mm Allen head bit
The Woofer of Choice
Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
Powerful Low End You Crave in Your Ride
Engineers at Rockford Fosgate designed the P1S4-10 10" 10" subwoofer to dish out the kind of powerful low end you crave in your ride. Its responsive paper cone is reinforced with the same Kevlar® fibers used in bulletproof vests so you get the best of both worlds — warm bass that's exceptionally hard-hitting. Rockford Fosgate uses a new technique to attach the oversized rubber surround to the cone that increases available cone area up to 25%, so this sub can push more air for even bigger bass.
Diameter : 10 Inch
Sensitivity : 84 dB
Impedance : 4 Ohm
Frequency Response : 30-250 Hz
Peak Power Handling : 500 Watts
Top Mount Depth : 5-5/16 Inches
Shallow Mount : No
Number of Voice Coils : Single
Suggested Sealed Box Volume : .59 Cubic ft.
Suggested Ported Box Volume : 1.40 Cubic ft.
RMS Power Handling : 250 Watts

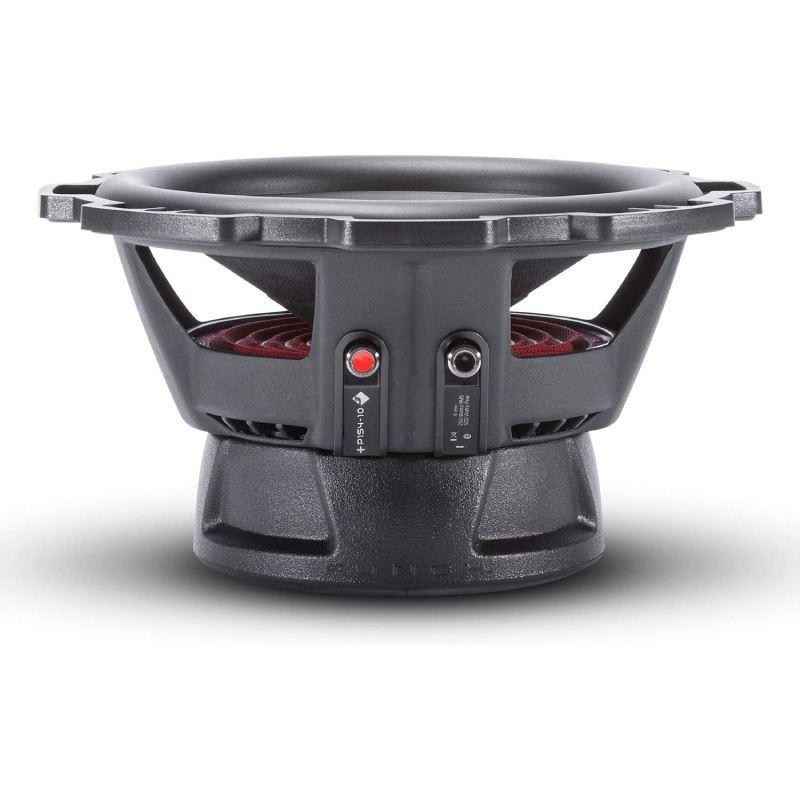

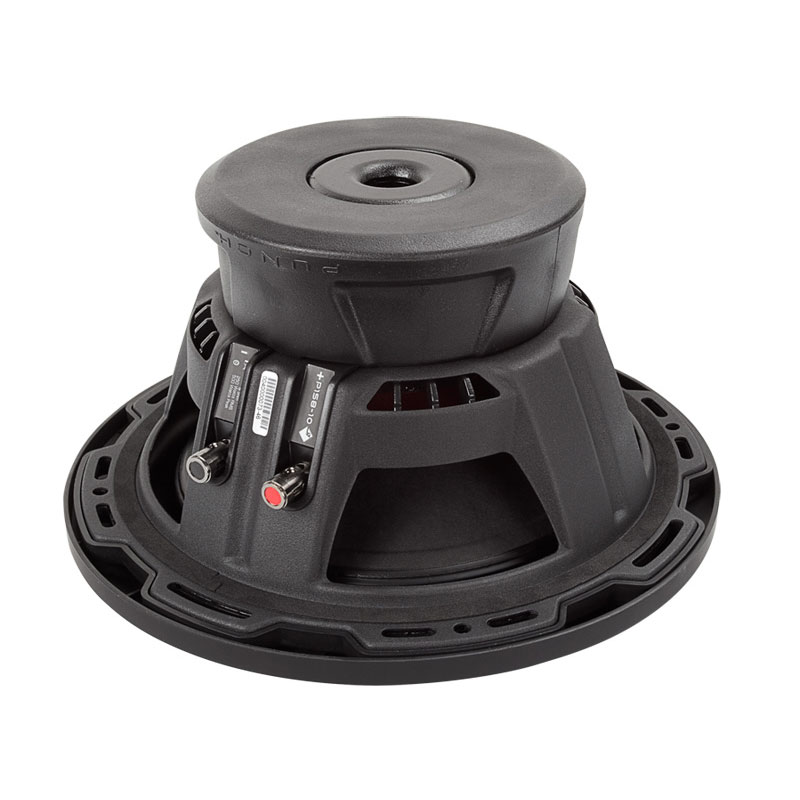

Custom 10-AWG nickel plated push terminals
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Kevlar fiber reinforced paper cone
Linear spider with embedded 16 AWG tinsel leads

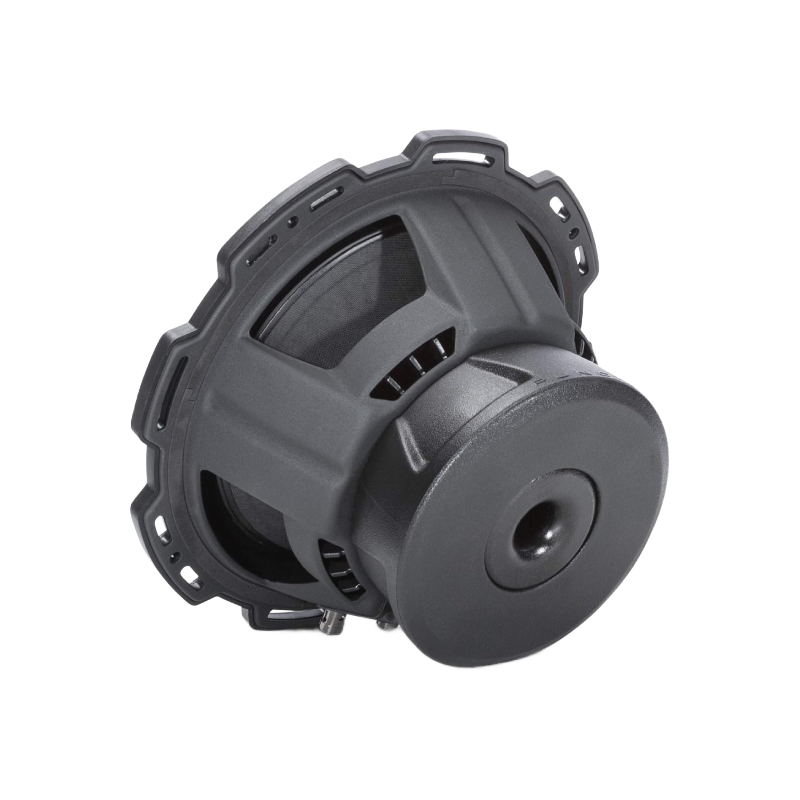

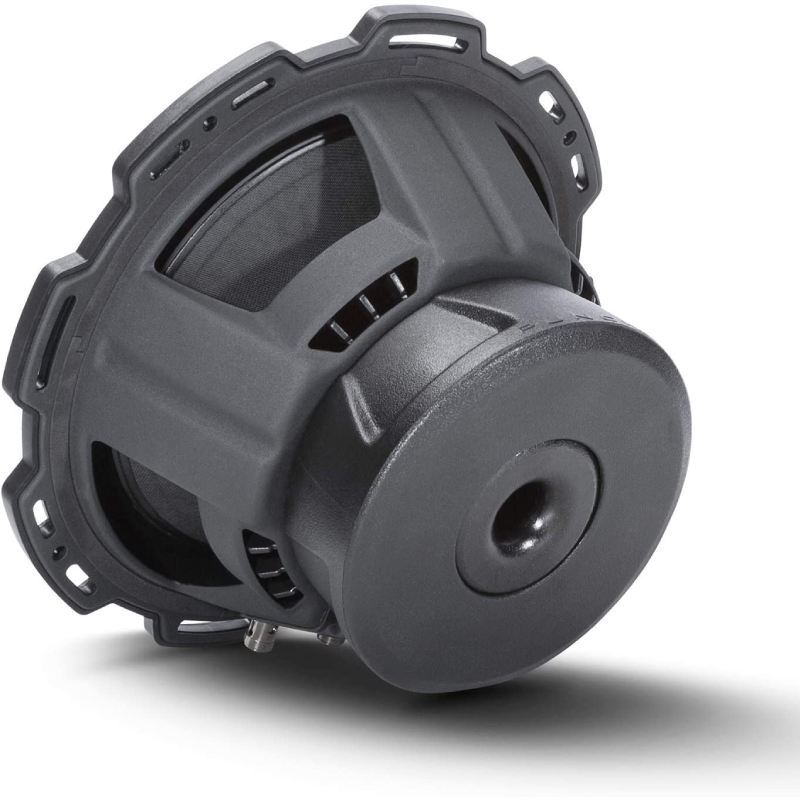

Protective PVC textured magnet cover

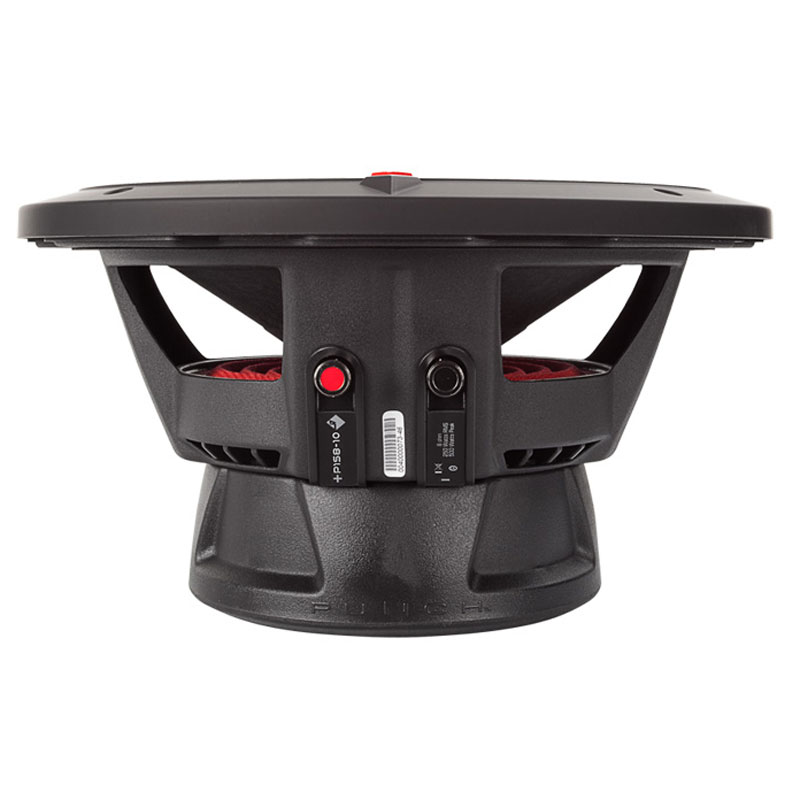

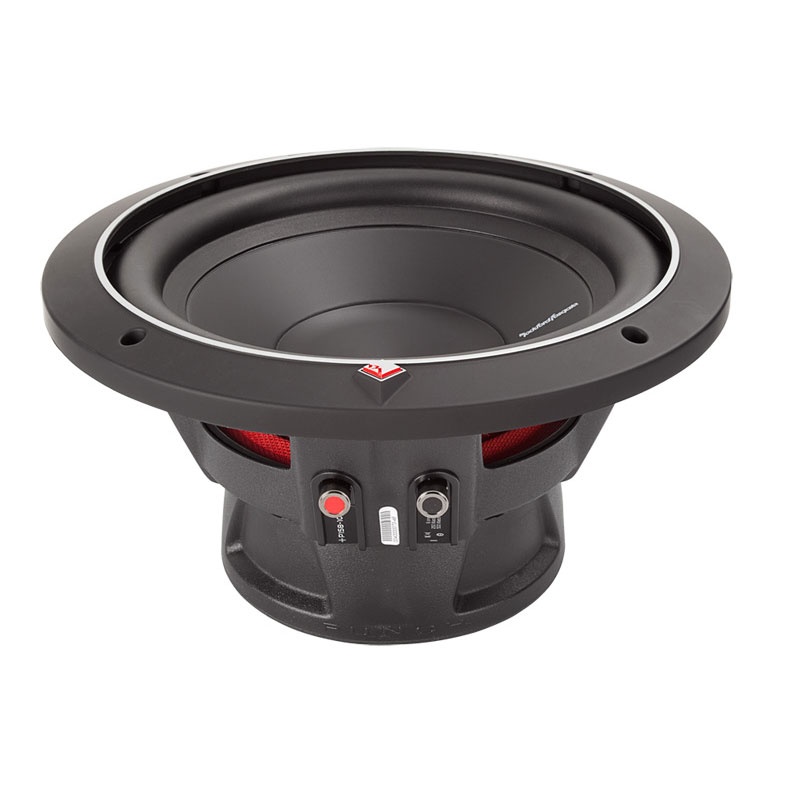

Soft touch ABS trim ring with optional grille
StampCast basket with integrated spider venting
Voice Coil Diameter: 2.0" (51.6mm)
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 30
Vas (Liters): 40
SPL (dB @ 1w/1m): 84.4
Xmax (mm): 7
Woofer Displacement: 0.043 cu.ft.
Cutout Diameter: 9.125"
Mounting Depth: 5.33"
Size: 10 -inch
Impedance (Ohms): 4
Cone Material: Kevlar reinforced paper
Surround Material: NBR
Ideal Sealed Box Volume (cubic feet): 0.59
Ideal Ported Box Volume (cubic feet): 1.4
Port diameter (inches): 3
Port length (inches): 8
Dual Voice Coil: No
Sensitivity: 85 dB at 1 watt
Frequency Response: 30 - 250 Hz
Max RMS Power Handling: 250
Peak Power Handling (Watts): 500
Top Mount Depth (inches): 5 5/16
Bottom Mount Depth (inches): N/A
Cutout Diameter or Length (inches): 8 15/16
Vas (liters): 40
Fs (Hz): 30
Xmax (millimeters): 7
Parts Warranty: 1 Year
Labor Warranty: 1 Year
