Rockford Fosgate  P3D4-15

Punch P3 Series 15" 1200W Peak Power Handling at 4 Ohms, Dual Voice Coil Component Car Subwoofer

Item #28491

Condition:   Brand New

Product Highlights

  • Punch P3 Series
  • 15" Subwoofer
  • 1200W Peak Power
  • 4 Ohms
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$339.99

Reg. Price $454.99  Save $115.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate P3D4-15 Punch P3 Series 15" 1200W Peak Power Handling at 4 Ohms, Dual Voice Coil Component Car Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (1) 15" Dual 4-ohm voice coil subwoofer
  • • (1) Trim ring
  • • (12) 1-1/8" Allen head screws
  • • (1) 4mm Allen head bit
  • • Installation/Operation manual (English/ French/ Spanish/ German)
  • Owner's Manual




Why Choose Rockford Fosgate P3D4-15 Component Car Subwoofer?

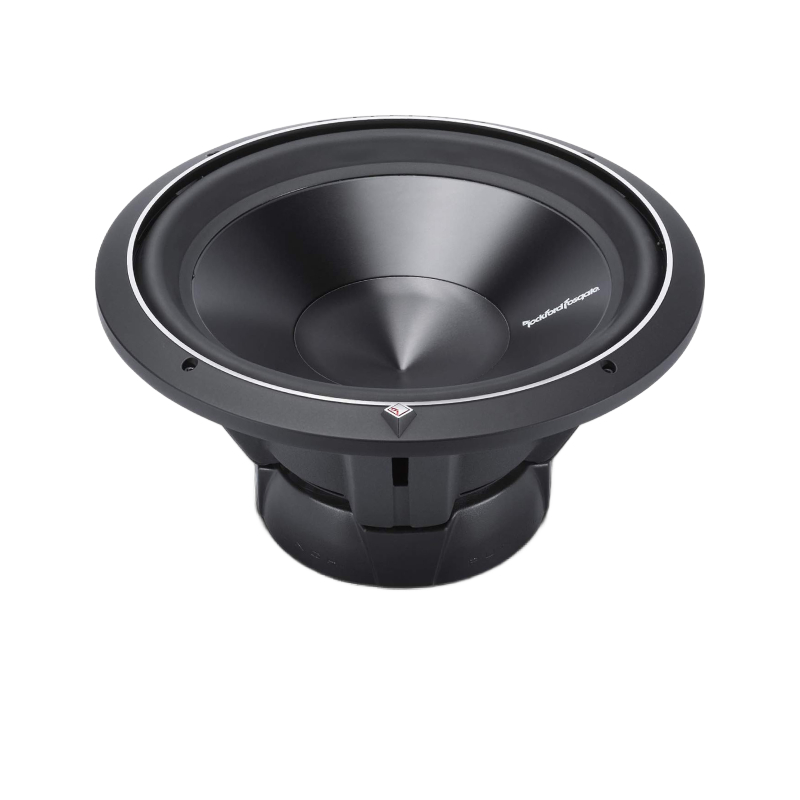

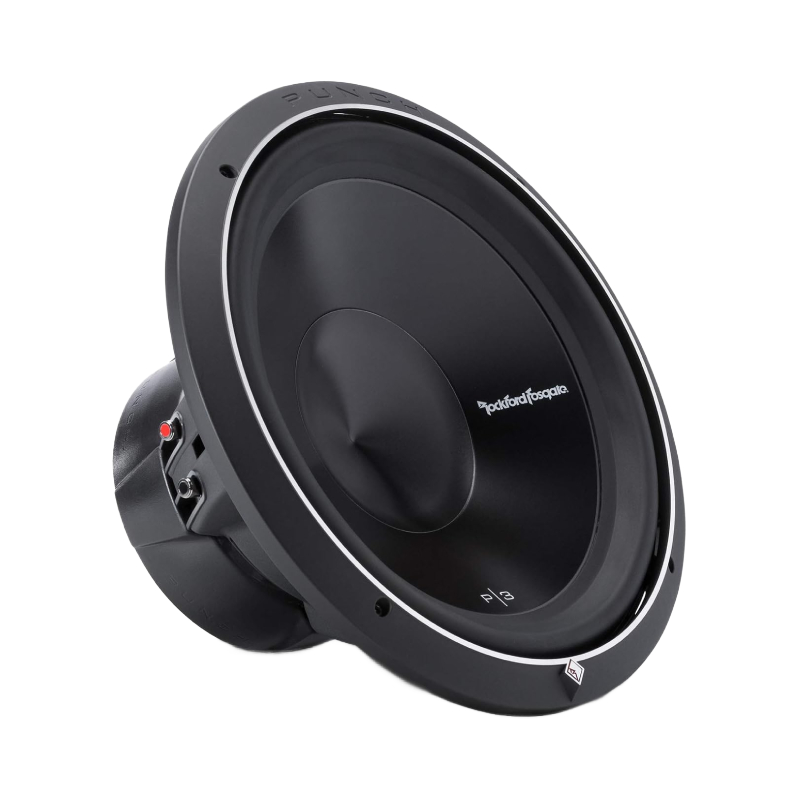

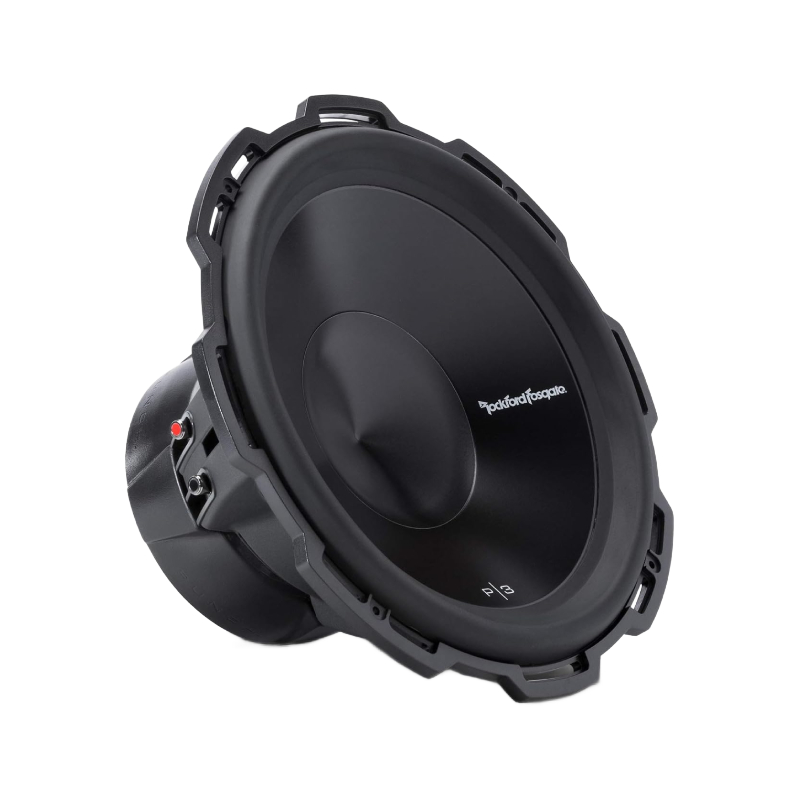

Rockford Fosgate P3D4-15 Component Car Subwoofer Left Angle View
Big Bass Energy You Can Feel Every Time You Hit Play

The Rockford Fosgate P3D4-15 is built for car audio enthusiasts who want serious low-end power that does not just play music but fills the entire vehicle with impact. Its massive 15-inch motor system is engineered to deliver deep and powerful bass that stays clean even at high volume. Whether you are into hip hop, EDM, or bass-heavy tracks, it brings that strong and controlled low-frequency punch that transforms every drive.

Built Smart for Power, Wiring, and Heat Control

This subwoofer gives you flexible setup options with dual 4 ohm voice coils that allow wiring for either a 2 ohm or 8 ohm load depending on your system needs. It helps you match different amplifiers and fine-tune your setup for better performance. The anodized aluminum voice coil former and spider venting system help manage heat during long sessions so the bass stays strong and stable. The spring post terminals also support up to 10-gauge wire for quick and secure installation.

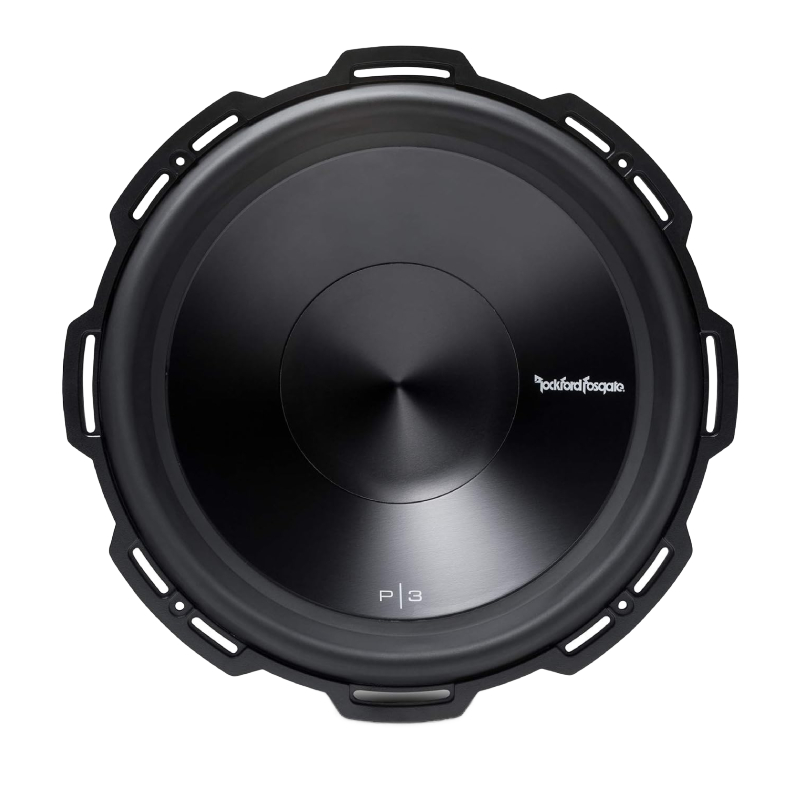

Rockford Fosgate P3D4-15 Component Car Subwoofer Front View

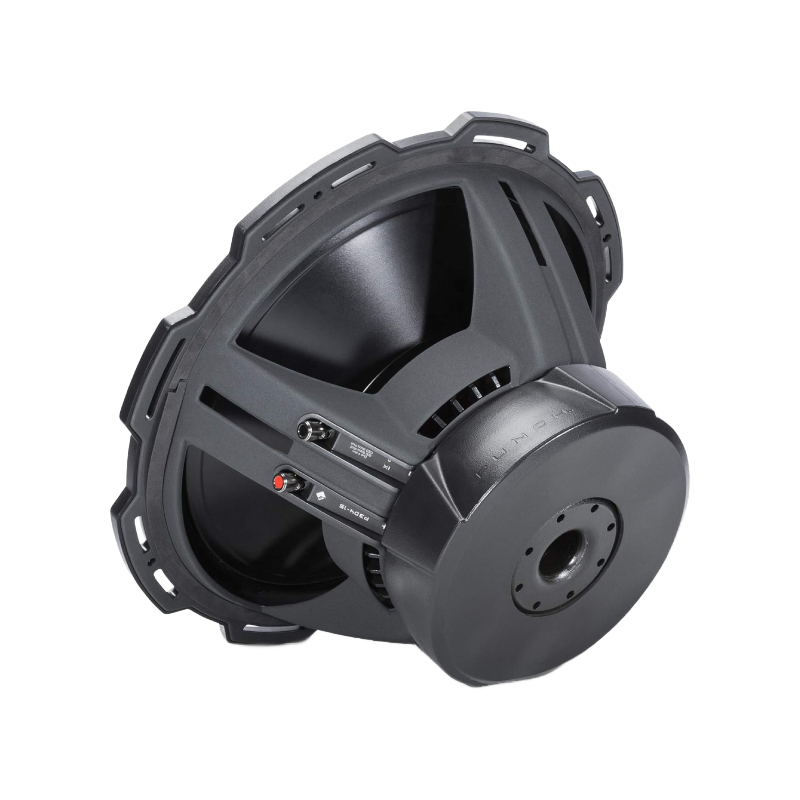

Rockford Fosgate P3D4-15 Component Car Subwoofer Rear Angle View
Rugged Design Made for Long Term Performance

The P3D4-15 is built with durability in mind using an anodized aluminum cone and Santoprene surround that keeps movement controlled even under heavy bass output. It meets CEA 2031 power handling standards, which means it is tested for real continuous performance under demanding conditions. The FlexFit basket design makes installation easier and more precise, while support for sealed or ported enclosures gives you the choice between tight, accurate bass or louder more aggressive output depending on your build.




Frequently Asked Questions (FAQ)


  • • Why is the bass weaker than expected?
    Check the enclosure, amplifier settings, polarity, and wiring. An incorrect box or weak signal can reduce the overall bass response.
  • • What amplifier power should I use?
    Use an amplifier matched to the subwoofer's RMS rating and final impedance. Set the gain properly for clean and reliable output.
  • • How should the dual voice coils be wired?
    Wire both coils for the correct final impedance. Parallel wiring lowers impedance, while series wiring increases it.
  • • Why does the bass distort at higher volume?
    Clipping, excessive gain, or insufficient amplifier power can cause distortion. Lower the gain and check the system settings.
  • • Why does it sound weak on deep bass?
    Enclosure volume and tuning strongly affect low frequencies. Make sure the box is designed around the subwoofer's specifications.
  • • Why does the cone move but produce little bass?
    Check polarity, enclosure sealing, and crossover settings. Incorrect phase or air leaks can reduce low-frequency output.
  • • Why does it make a buzzing or rattling noise?
    Inspect the enclosure, mounting hardware, terminals, and nearby panels. Loose components can vibrate during heavy bass.
  • • Why does it get hot when played loudly?
    Some warmth is normal, but excessive heat may indicate overdriving. Reduce the gain and volume if it becomes unusually hot.
  • • Can I use a different enclosure?
    Yes, provided its internal volume and design match the recommended specifications. The wrong box can affect bass response.
  • • What should I check if it suddenly stops working?
    Check the amplifier, fuse, wiring, terminals, and audio signal. Test each connection before assuming the subwoofer has failed.

SPECIFICATIONS


  • Diameter : 15 Inch
  • Sensitivity : 86 dB
  • Impedance : 4 Ohm
  • Frequency Response : 23-250 Hz
  • Peak Power Handling : 1200 Watts
  • Top Mount Depth : 7-5/8 Inches
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 1.58 Cubic ft.
  • Suggested Ported Box Volume : 2.66 Cubic ft.
  • RMS Power Handling : 600 Watts

FEATURES


Features:

  • High-Performance 15-Inch Motor System: Delivers deep, impactful bass through a large 15-inch driver engineered for powerful low-frequency output and consistent sound reproduction under heavy use.
  • Dual 4Ω Voice Coil Flex Wiring: Provides flexible system configuration options, allowing wiring in parallel for a 2Ω load or in series for an 8Ω load to match different amplifier setups.
  • Efficient Thermal Management Design: Integrates an anodized aluminum voice coil former and spider venting system to help dissipate heat and maintain stable performance during extended listening sessions.
  • Secure Spring Post Connection Terminals: Features compression-style terminals that support up to 10-gauge speaker wire for fast installation and reliable, low-resistance signal transfer.
  • CEA-2031 Power Handling Certification: Engineered to meet industry-standard continuous power testing, ensuring reliable output performance under real-world operating conditions rather than peak bursts.
  • Adjustable Mounting FlexFit Basket: Utilizes an innovative slotted frame design that allows easier alignment and more flexible installation positioning for a precise enclosure fit.
  • Enhanced Build with Premium Cone Materials: Combines an anodized aluminum cone and Santoprene surround for improved rigidity, durability, and controlled cone movement at high excursion levels.
  • Dual Enclosure Tuning Versatility: Performs efficiently in both sealed and ported box designs, offering accurate bass response in sealed setups or increased output and efficiency in ported configurations.



Specifications:

  • Power Handling
  • 600W RMS
  • 1200W Peak
  • Voice Coil Diameter: 2.5"
  • Speaker Connector: Dual 10 AWG compression
  • Fs (Hz): 21.7
  • Qts: 0.54
  • Vas (Liters): 155.8
  • SPL (dB @ 1w/1m): 86.2
  • Xmax (mm): 13.3
  • Woofer Displacement: 0.107 cu.ft.
  • Cutout Diameter: 13.94"
  • Mounting Depth: 7.58
  • Qts: 0.57
  • Qes: 0.64
  • Qms: 4.90
  • Vas (Liters): 155.8
  • Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
  • Re (Ohms): 6.40
  • Le (mH): 6.45
  • CEA-2031 Compliant: CEA-2031 Guidelines
  • Xmax (mm): 15.9
  • Sd (cm2): 894
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
  • Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
  • UPC: 780687332785
  • Weight: 29
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • i got one of these in my buick skylark on a old punch 550 two channal in my cheap ported box it gets very loud for one sub ive had many rockford subs and this is the best thay have had in years it reminds me of the old HE and HX subs.

    cole
    12/2/2013

  • These woofers are BRUTAL. i am pushing 1200w RMS into each of 2 woofers (600w per voice coil) and they can handle it like a champ. i am running a Hifonics Brutus 2400w RMS at 1 ohm with 2 backup batteries and a 350A HO alternator.

    Bryan
    11/17/2014

  • Hits truly hard but its still clean sounding bass. I’m not sure if it can really go down to 23Hz but it really delivers some amazing lows

    Mac
    4/16/2024
