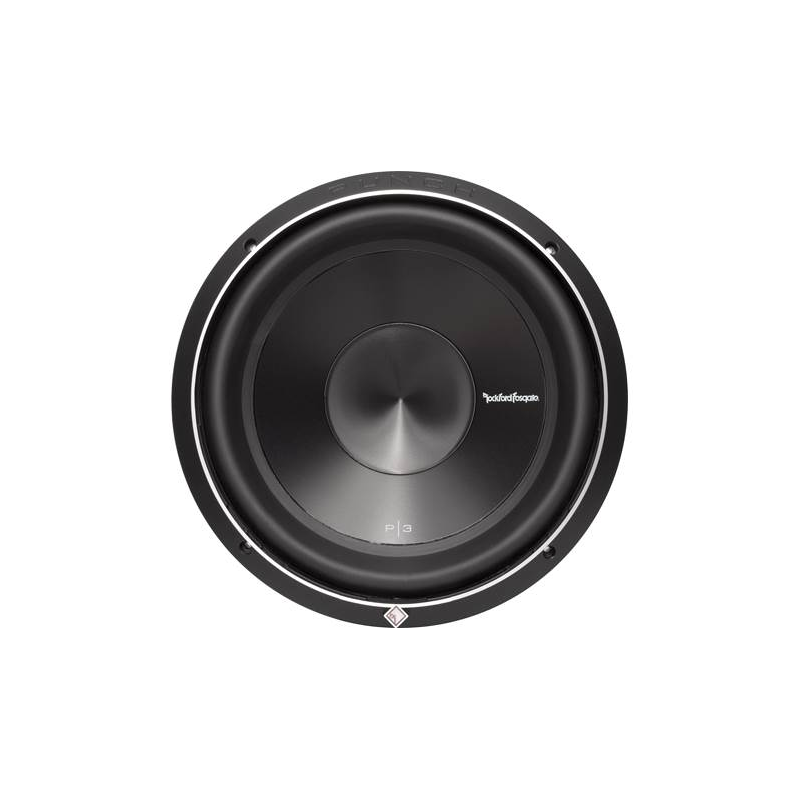

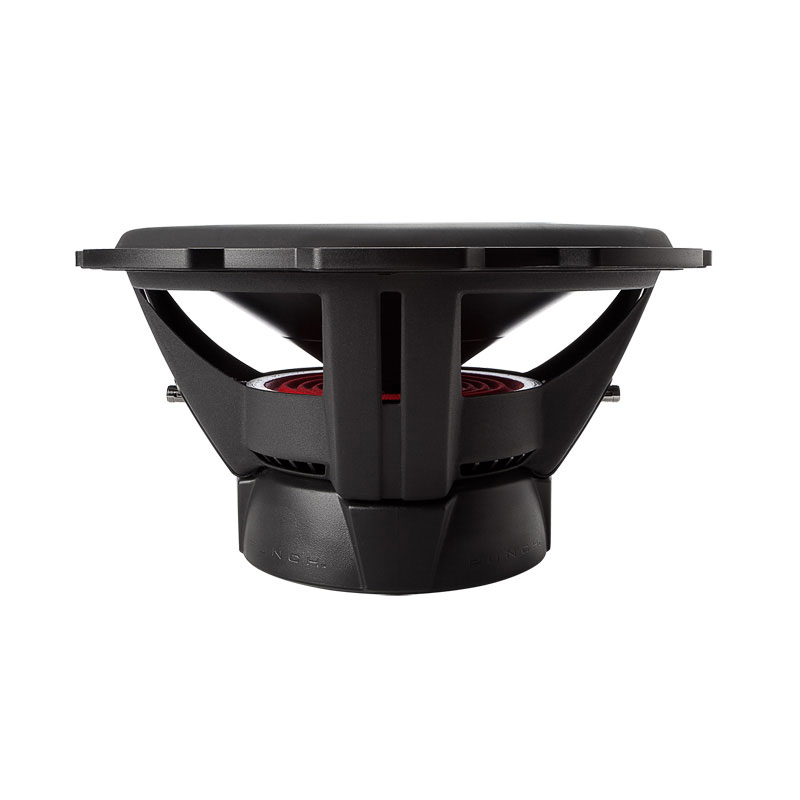

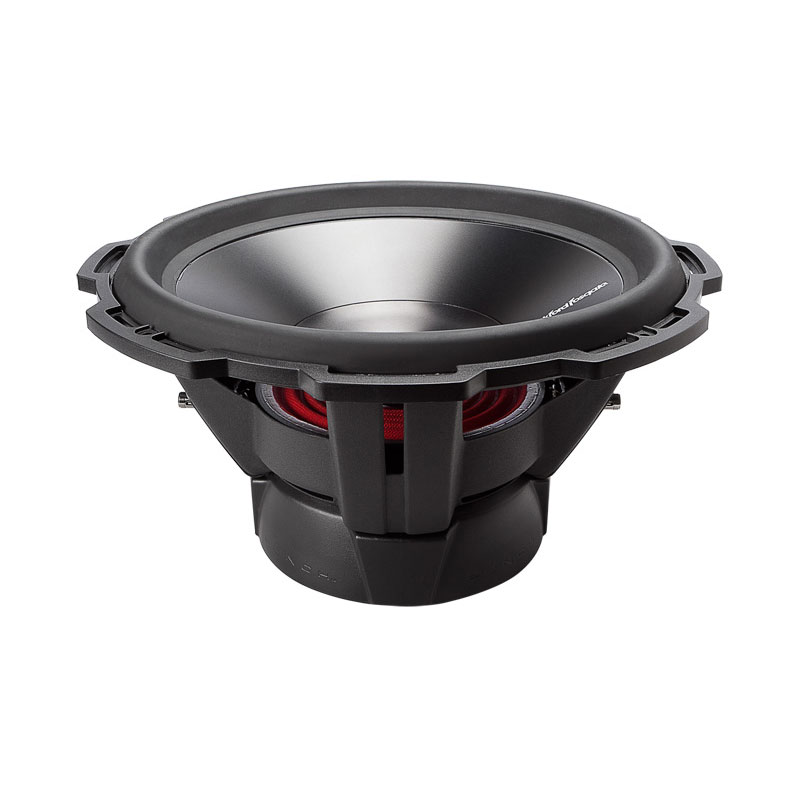

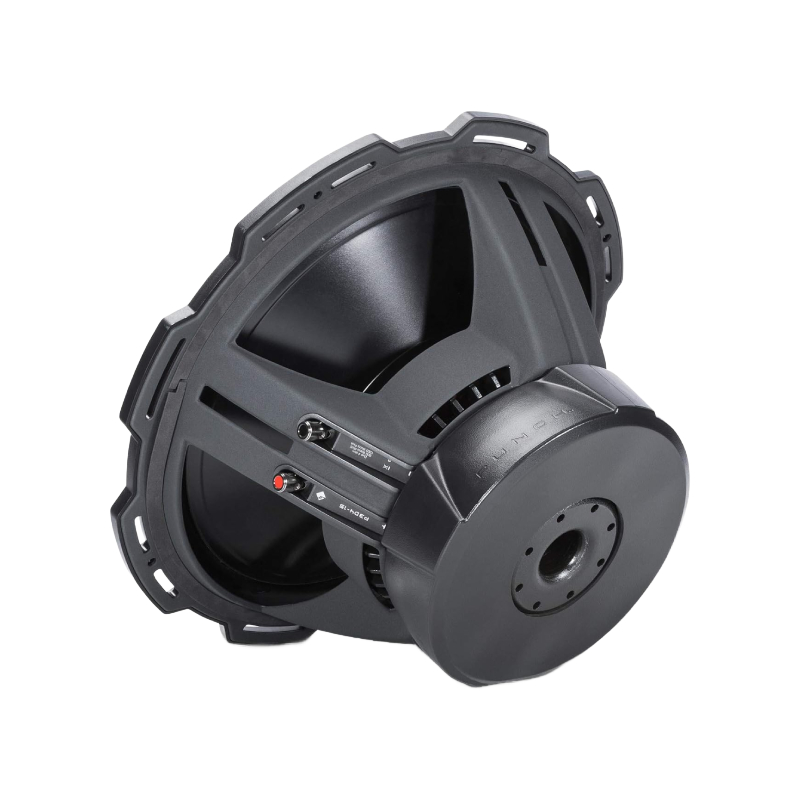

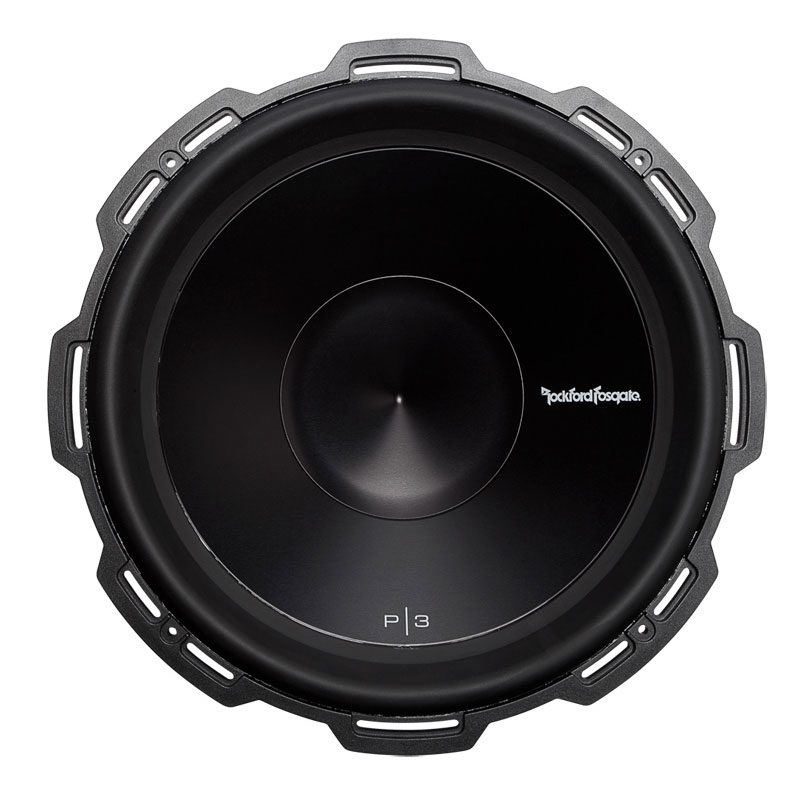

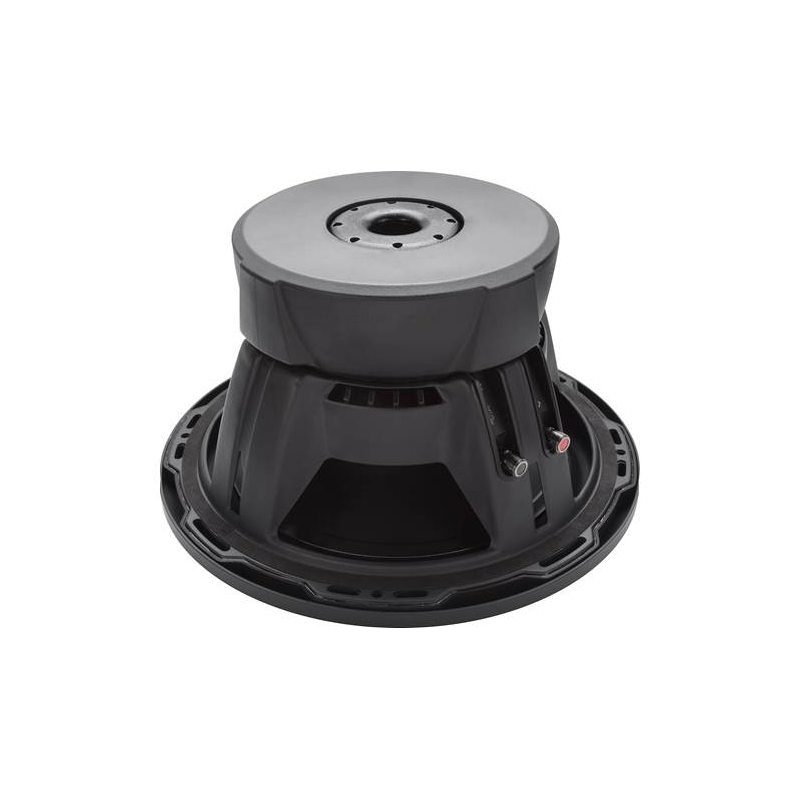

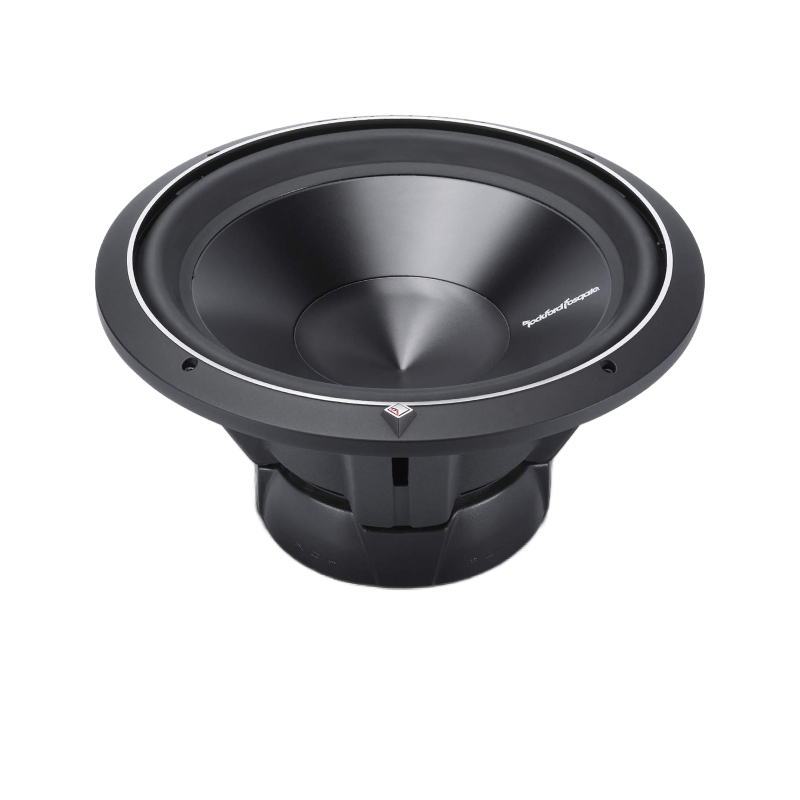

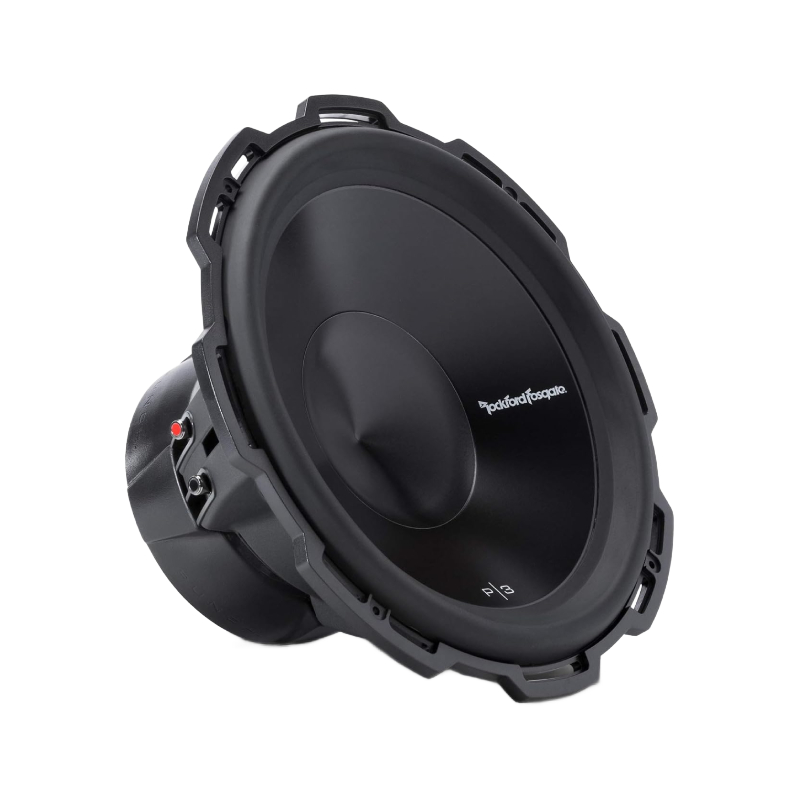

The Rockford Fosgate P3D4-15 is a 15-inch subwoofer designed to deliver powerful and impactful bass in-car audio systems. It belongs to the renowned Punch P3 series by Rockford Fosgate, known for its exceptional performance and durability.
With its dual 4-ohm voice coil configuration, the P3D4-15 offers flexible wiring options, allowing you to match the subwoofer's impedance to your amplifier's requirements. This versatility ensures optimal power handling and maximizes the subwoofer's output.
Designed for deeper, louder bass
Constructed with a high-quality anodized aluminum cone, the P3D4-15 provides rigidity and low distortion, resulting in accurate and deep bass reproduction. Its FlexFit basket design facilitates easy installation while maintaining stability and alignment.
Equipped with a VAST (Vertical Attach Surround Technique) rubber surround, the P3D4-15 maximizes cone area and excursion, delivering increased output and improved low-frequency response. The subwoofer's dual linear spider design and stitched tinsel leads enhance cone control and long-lasting performance.
If you're a bass enthusiast or looking to upgrade your car audio system, the Rockford Fosgate P3D4-15 offers impressive low-end performance, durable construction, and versatile installation options. It's reliable for those seeking powerful, booming bass in their vehicle's sound system
Diameter : 15 Inch
Sensitivity : 85 dB
Impedance : 4 Ohm
Frequency Response : 23-250 Hz
Peak Power Handling : 1200 Watts
Top Mount Depth : 7-11/16 Inches
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 1.58 Cubic ft.
Suggested Ported Box Volume : 2.66 Cubic ft.
RMS Power Handling : 600 Watts
Anodized aluminum cone and dustcap
Custom 10-AWG nickel plated push terminals
Diamond cut cast aluminum trim ring with optional grille
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Protective PVC textured magnet cover
Soft touch rubber over-mold for greater grip
StampCast basket with integrated spider venting
Voice Coil Diameter: 2.5"
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 21.7
Vas (Liters): 155.8
SPL (dB @ 1w/1m): 86.2
Xmax (mm): 13.3
Woofer Displacement: 0.107 cu.ft.
Cutout Diameter: 13.94"
Mounting Depth: 7.58
Vas (Liters): 155.8
Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
Re (Ohms): 6.40
Le (mH): 6.45
CEA-2031 Compliant: CEA-2031 Guidelines
Xmax (mm): 15.9
Sd (cm2): 894
Subwoofer Type: Standard
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
i got one of these in my buick skylark on a old punch 550 two channal in my cheap ported box it gets very loud for one sub ive had many rockford subs and this is the best thay have had in years it reminds me of the old HE and HX subs.
These woofers are BRUTAL. i am pushing 1200w RMS into each of 2 woofers (600w per voice coil) and they can handle it like a champ. i am running a Hifonics Brutus 2400w RMS at 1 ohm with 2 backup batteries and a 350A HO alternator.
