Pioneer :: GM-D8601 :: $121.95

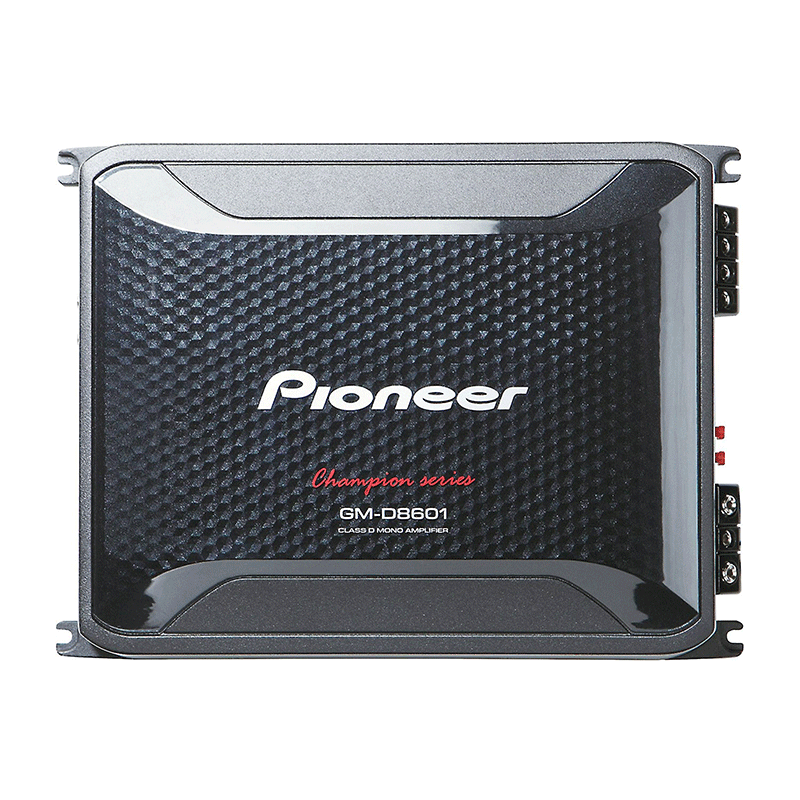

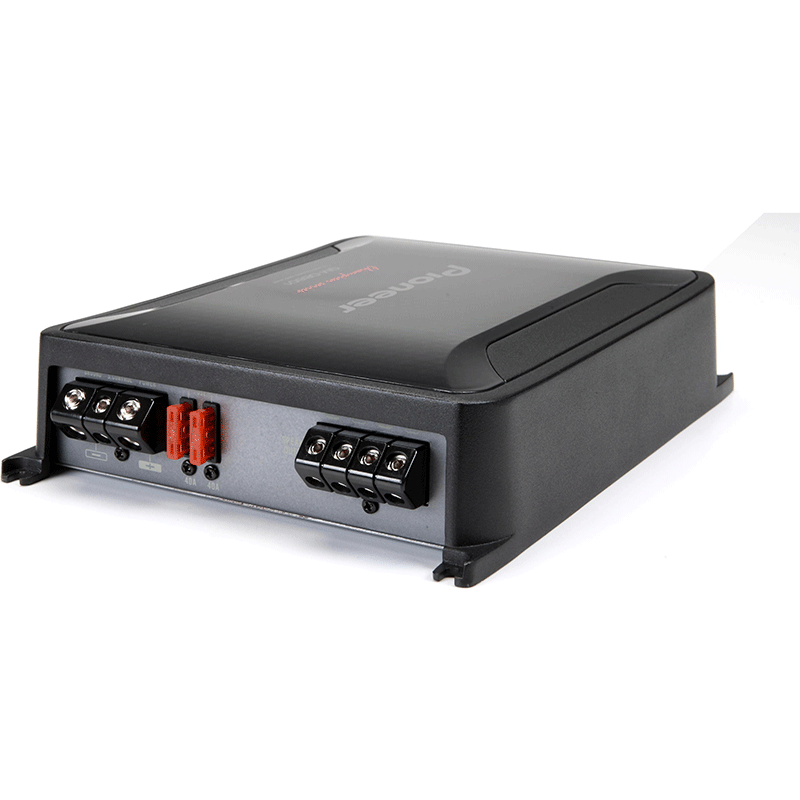

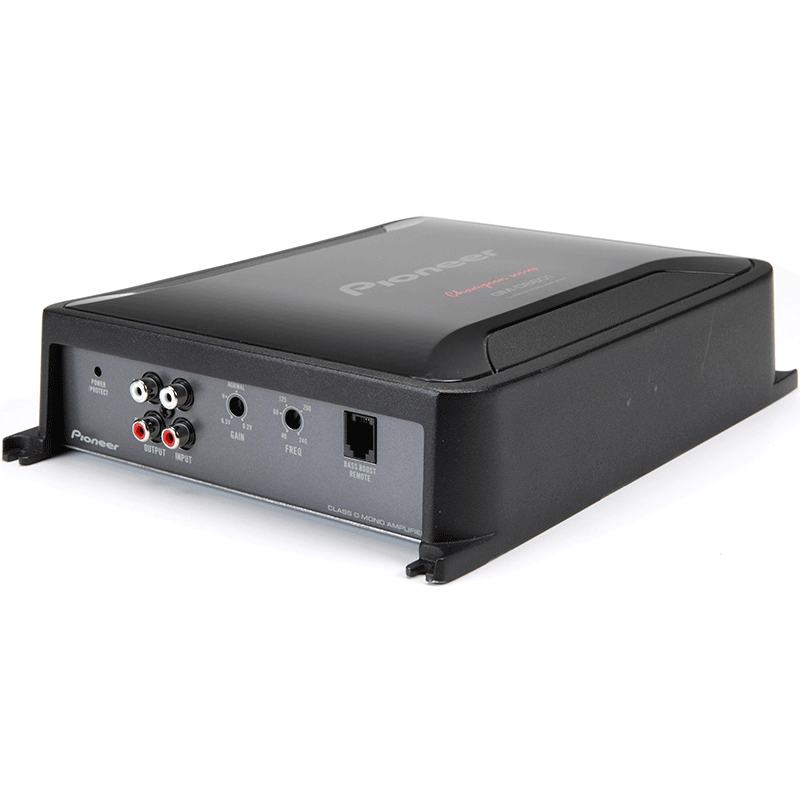

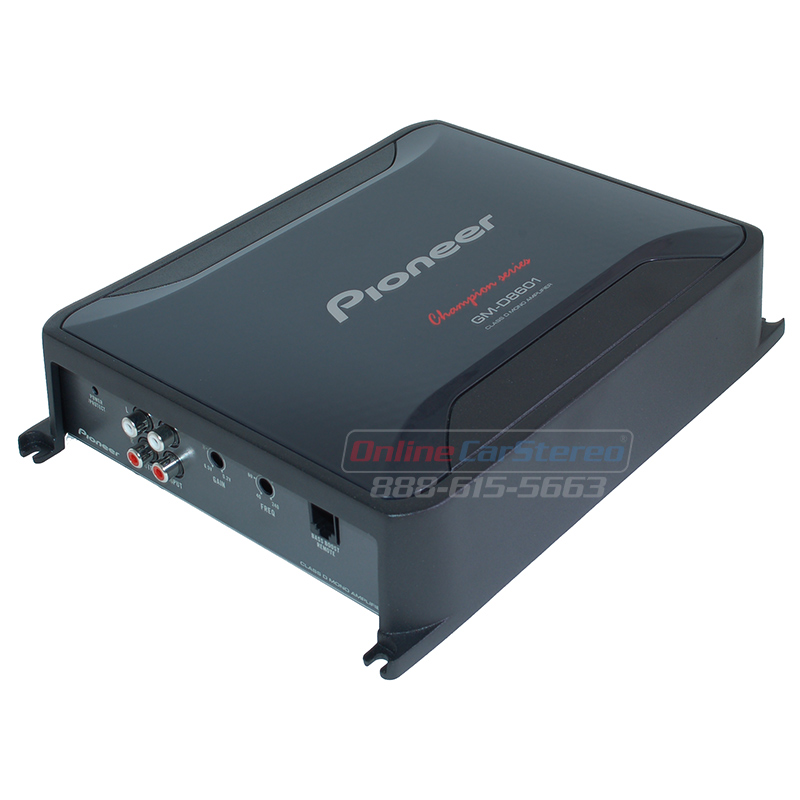

Pioneer GM-D8601

Item# 34583

1600W Class D Monoblock Car Audio Amplifier with Wired Bass Boost Remote

Sorry, this product is no longer available.

What other people bought after viewing this product.

affirm financing small logo
affirm financing extra small logo

What's Included:

  • Four 5/8" Self-tapping screws
  • Mono subwoofer amplifier
  • Remote bass boost control
  • Two 3/8" Self-tapping screws
  • Owner's manual (English/ French/ Spanish)
  • 19' Remote cable (RJ-25 plug on both ends)
  • Two 40 amp ATO fuses (installed)
  • 8" Speaker-level input adapters
  • 3mm Allen wrench

Product Highlights:

  • Wired Bass Boost Remote and Variable Bass Control
  • Speaker Level Inputs
  • Dimensions: 10-3/8" x 2-3/8" x 7-7/8"
  • 1500W Max Power
  • 300W RMS x 1 @ 4 Ohms
  • 500W RMS x 1 @ 2 Ohms
  • 800W RMS x 1 @ 1 Ohm
  • Compact Design for Versatile Installation Options
  • 1 O Stable
  • Improved Circuit Design
  • Variable Low Pass Filter
  • Frequency Response: 10Hz-240Hz
  • Sensitivity: 100 dB

Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to connect multiple subwoofers to a system.


Minimum Impedance Unbridged 1
Input Voltage 14.4v
Bass Boost Frequency 50 Hz
Peak Power Output (Watts x Channels) 1600 x 1
Amplifier Class D
Fan Cooled No
Minimum Impedance Bridged N/A
Low-Pass Crossover Frequency 40 -240 Hz
THD at Rated RMS Power 1%
Bass Boost 0-18 dB
Signal to Noise Ratio 75 dB
Preamp Outputs 1 pair
Depth (inches) 7-7/8
RMS Power Output (Watts x Channels) 300 x 1
Fuse Rating 80
Power at 2 Ohms (Watts x Channels) 500 x 1
Bridged Power (Watts x Channels) N/A
Best Frequency Response 10-240 Hz
Low-Pass Slope (dB/octave) 12 dB/octave
High-Pass Crossover Frequency N/A
High-Pass Slope (dB/octave) N/A
Speaker Level Inputs RCA
Width (inches) 11
Height (inches) 2-3/8
  • UPC: 767887439803
  • Weight: 8
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
