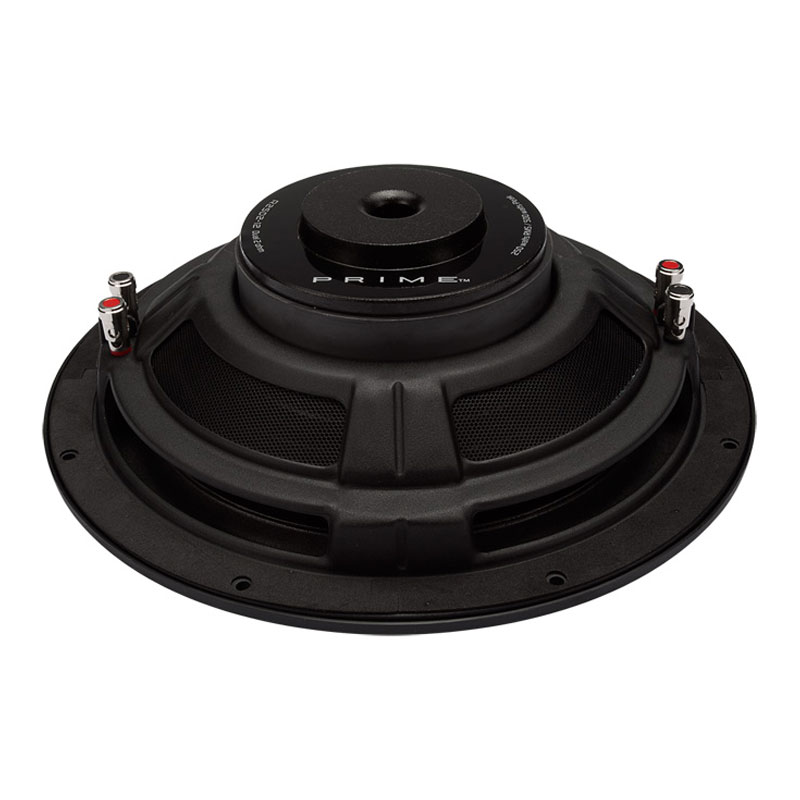

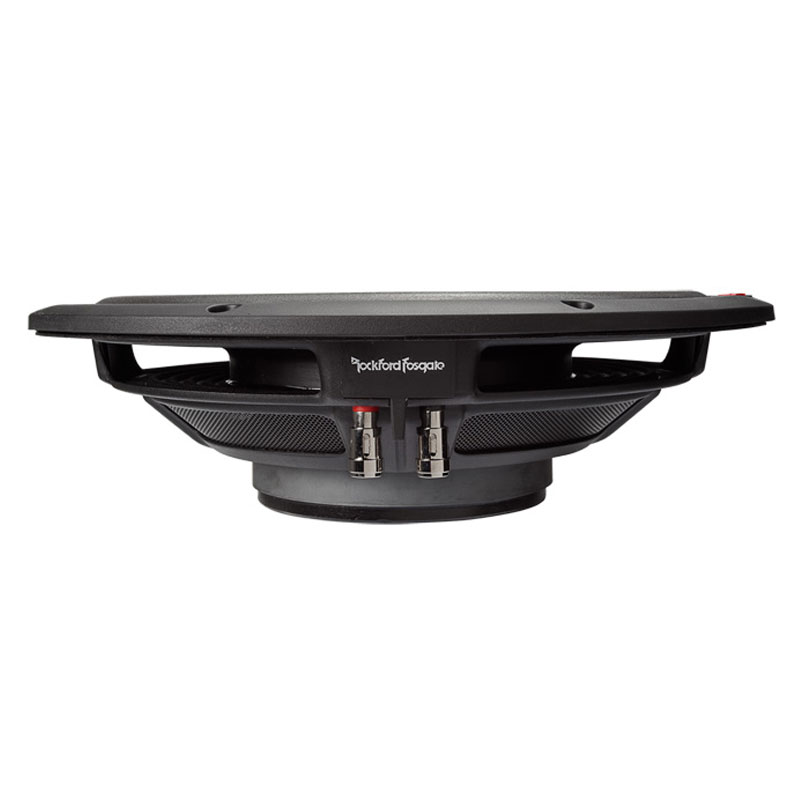

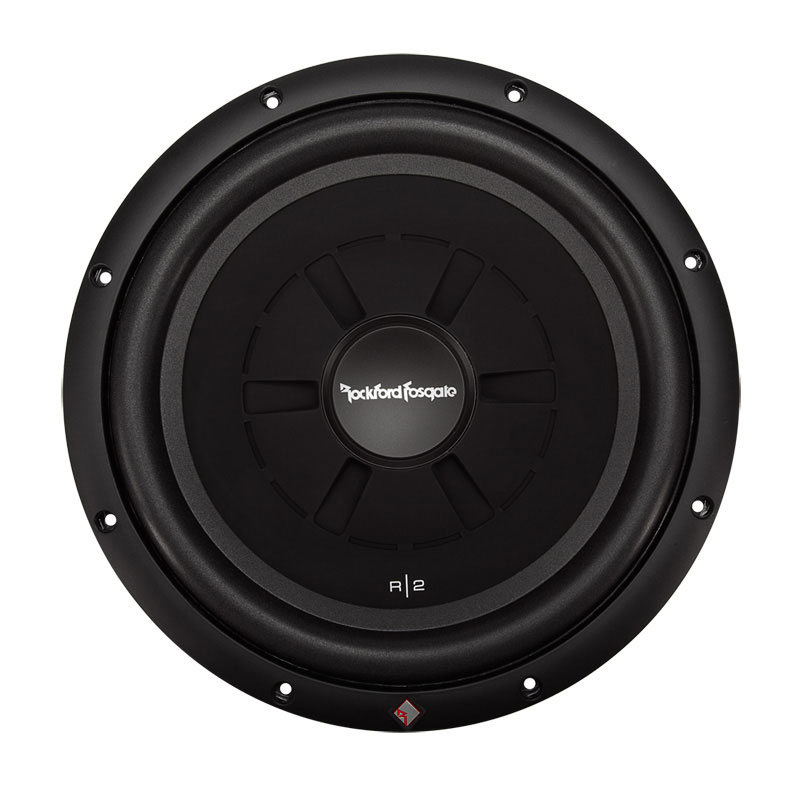

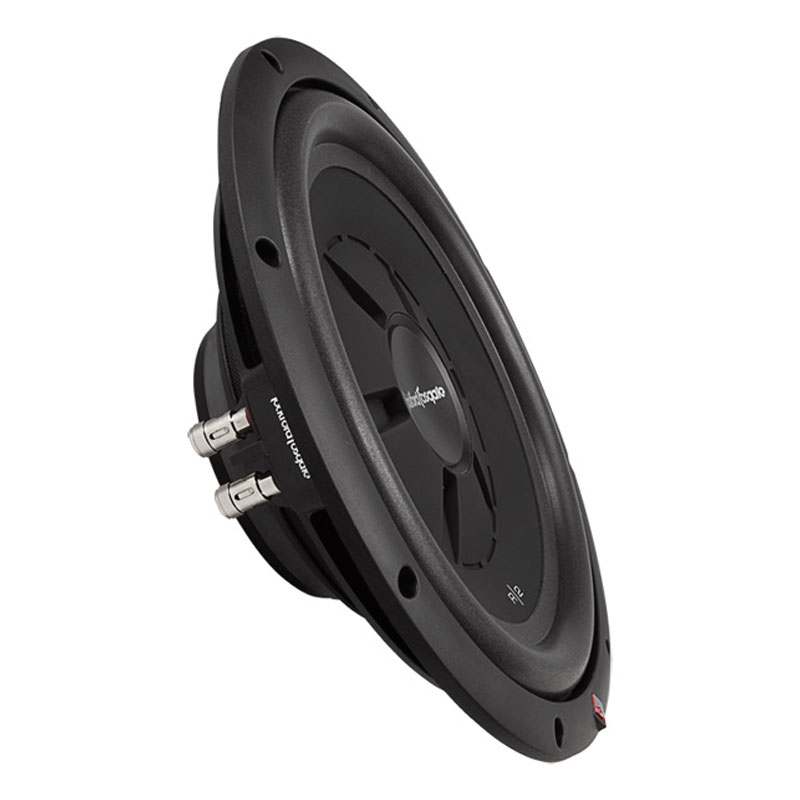

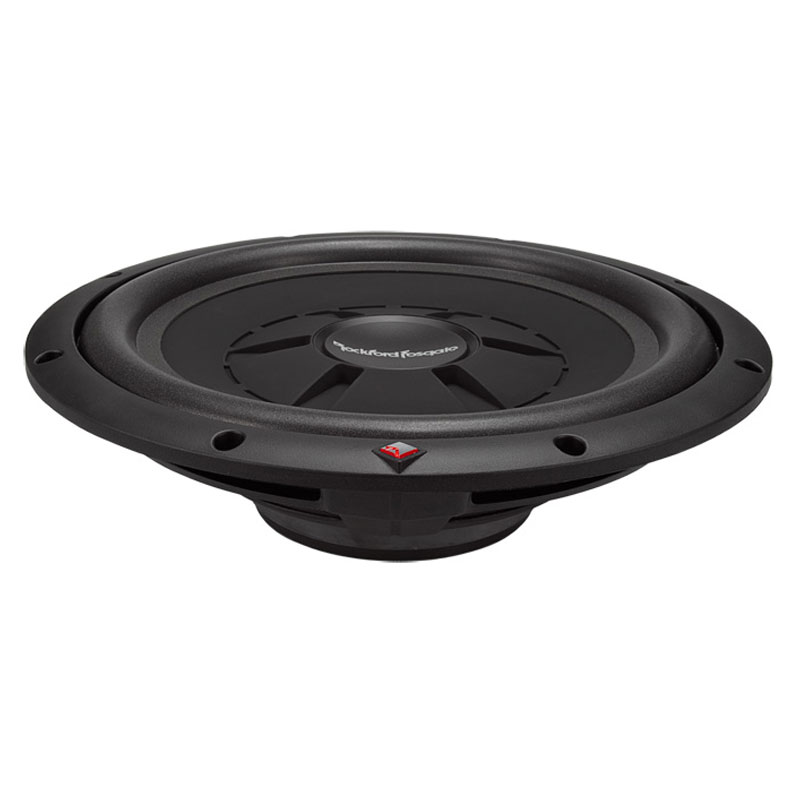

Introducing the Rockford Fosgate R2SD2-12, a powerhouse subwoofer that will revolutionize your car's audio system. Designed with precision and power in mind, this 12-inch subwoofer is built to deliver earth-shaking bass and exceptional sound quality.
Durable and Lightweight Cone
The R2SD2-12 features a durable and lightweight cone made from mica-injected polypropylene, ensuring impressive rigidity and minimal distortion even at high volumes. Its dual 2-ohm voice coils allow flexible wiring options and efficient power handling.
Deliver Strong Bass Output While Staying Cool After Long Hours of Usage
It is equipped with Rockford Fosgate's signature technologies, such as the Linear Spider with stitched tinsel leads and the anodized aluminum voice coil former, which allows the subwoofer to deliver strong bass output while staying cool after long hours of usage.
Thrilling and Immersive Experience
With a peak power handling of 500 watts and RMS power handling of 250 watts, the R2SD2-12 packs a punch that will transform your music into a thrilling and immersive experience. Its shallow mounting depth ensures installation versatility, making it compatible with a wide range of vehicles.
Diameter : 12 Inch
Sensitivity : 85 dB
Impedance : 2 Ohm
Frequency Response : 29-250 Hz
Peak Power Handling : 500 Watts
Top Mount Depth : 3-5/8 Inches
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.9 Cubic ft.
Suggested Ported Box Volume : 1.79 Cubic ft.
RMS Power Handling : 250 Watts
Shallow Mount Design: The Rockford Fosgate Prime R2 Shallow Subwoofer is designed and engineered with a much smaller motor assembly which reduces the overall depth of the woofer allowing it to fit in shallower enclosures and tighter locations of your vehicle.
Dual 2-ohm Voice Coils: This woofer features dual 2-ohm voice coils to offer wiring flexibility. When the voice coils are wired in parallel the woofer presents a 1-ohm mono load, when wired in series it presents a 4-ohm mono load.
Spring Post Assembly: The woofer features compression input terminals with attached 16-gauge stitched tinsel lead wires. The nickel plated spring posts will accept pin connectors, single banana plugs, and bare wire up to 12-gauge.
Sealed Box Volume: Rockford Fosgate recommends a sealed enclosure with an optimum internal volume of 0.9 cubic feet (from 0.75 to 1.25 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Vented Box Volume: Rockford Fosgate recommends a vented enclosure with an internal volume of 1.79 cubic feet using a 4" diameter x 11.8" long port tube; this yields a tuning frequency of 40 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 35 Hz).
Size: 12 -inch
Impedance (Ohms): 1, 4
Cone Material: Mica injected Poly
Surround Material: Poly-Foam
Ideal Sealed Box Volume (cubic feet): 0.9
Ideal Ported Box Volume (cubic feet): 1.79
Port diameter (inches): 4
Port length (inches): 11.8
Dual Voice Coil: Yes
Sensitivity: 85 dB at 1 watt
Frequency Response: 29 - 250 Hz
Max RMS Power Handling: 250
Peak Power Handling (Watts): 500
Top Mount Depth (inches): 3 5/8
Bottom Mount Depth (inches): N/A
Cutout Diameter or Length (inches): 11 1/8
Vas (liters): 65.4
Fs (Hz): 29.7
Xmax (millimeters): 10
Parts Warranty: 1 Year
Labor Warranty: 1 Year
