Rockford Fosgate P3S-1X10 Punch Series 10" 300W RMS 1 Ohm, Single P3 Shallow Sealed Loaded Enclosed Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Single 10" Punch Stage-3 shallow enclosure
- • (2) Metal mounting brackets
- • (4) 5/8" Self-tapping mounting screws
- • Owner's Manual
Why Choose Rockford Fosgate P3S-1X10 Enclosed Car Subwoofer?
Small but It Plays Loud
Nothing fits behind your truck seat? Rockford Fosgate has the solution to your problem with the Punch P3S-1X10 shallow 10” loaded enclosure. This loaded enclosure may look small, but it plays loud, and thanks to its 300 Watt RMS power handing and 1-Ohm load wired impedance, you can actually use an amplifier with some balls. Features a sealed slim-line wedge design for optimum mechanical power handling, durable carpet with stitched Diamond-R logo and quick-release input terminals.
Computer-optimized Design
Regular cab truck owners — Rockford Fosgate feels your pain. They've designed their Punch Stage 3 shallow enclosures so you don't have to suffer without good bass. And they build these boxes for strength and durability, with a computer-optimized design that uses medium-density fiberboard and thick carpeting.
Frequently Asked Questions (FAQ)
- • Why isn't the enclosure producing enough bass?
Check the amplifier gain, low-pass crossover, speaker polarity, and signal connections. Also verify the enclosure is securely mounted and positioned properly, since vehicle acoustics can significantly affect perceived bass output.
- • What amplifier should I use to power the subwoofer?
Choose an amplifier that provides clean RMS power appropriate for the subwoofer's power handling and impedance. Proper matching helps deliver strong bass while reducing clipping, overheating, and possible speaker damage.
- • Why does the amplifier go into protect mode during heavy bass?
Check the speaker wiring, final impedance, power and ground connections, and amplifier temperature. A short circuit, incorrect load, voltage drop, or excessive heat can activate the protection circuit.
- • Why does the bass sound distorted at higher volume?
Distortion may result from excessive gain, amplifier clipping, or a distorted source signal. Lower the gain, verify the source is clean, and avoid pushing the system beyond its recommended output levels.
- • Why am I hearing rattling or buzzing around the enclosure?
Inspect the enclosure mounting points, speaker terminals, vehicle trim, and nearby panels. Loose hardware or interior components can vibrate with strong bass and create noises that sound like speaker problems.
- • Why does the bass sound weak inside my vehicle?
Vehicle acoustics, enclosure placement, phase, and crossover settings can affect perceived output. Verify polarity and try repositioning the enclosure to find a location that provides stronger cabin response.
- • Can I use this with a factory radio?
Yes, but an appropriate amplifier and signal interface may be necessary. If the factory radio lacks RCA outputs, a compatible line output converter can provide a suitable signal for the amplifier.
- • Why does the bass disappear at certain frequencies?
Phase cancellation, vehicle acoustics, and crossover settings can create frequency dips. Check polarity and experiment with placement and phase adjustments to improve integration with the vehicle's main speakers.
- • Why does the amplifier shut down when playing bass-heavy music?
Sudden shutdowns can indicate voltage drop, overheating, excessive current demand, or an unsuitable impedance load. Inspect the power and ground wiring and confirm the amplifier is compatible with the enclosure.
- • How should I set the amplifier for clean bass?
Start with the head unit at a clean listening level and keep the amplifier gain low. Gradually increase the gain while listening for distortion, then adjust the low-pass crossover for smooth integration.
- Diameter : 10 Inch
- Sensitivity : 83 dB
- Impedance : 1 Ohm
- Frequency Response : 40-250 Hz
- Peak Power Handling : 600 Watts
- Number Of Subwoofers : 1
- Enclosure Type : Sealed
- RMS Power Handling : 300 Watts
Features:
- Impedance: 1 Ohm Internally wired to create a 1 Ohm amplifier load
- 5/8" MDF (Medium Density Fiberboard) Enclosure Material
- Sealed truck box style enclosure

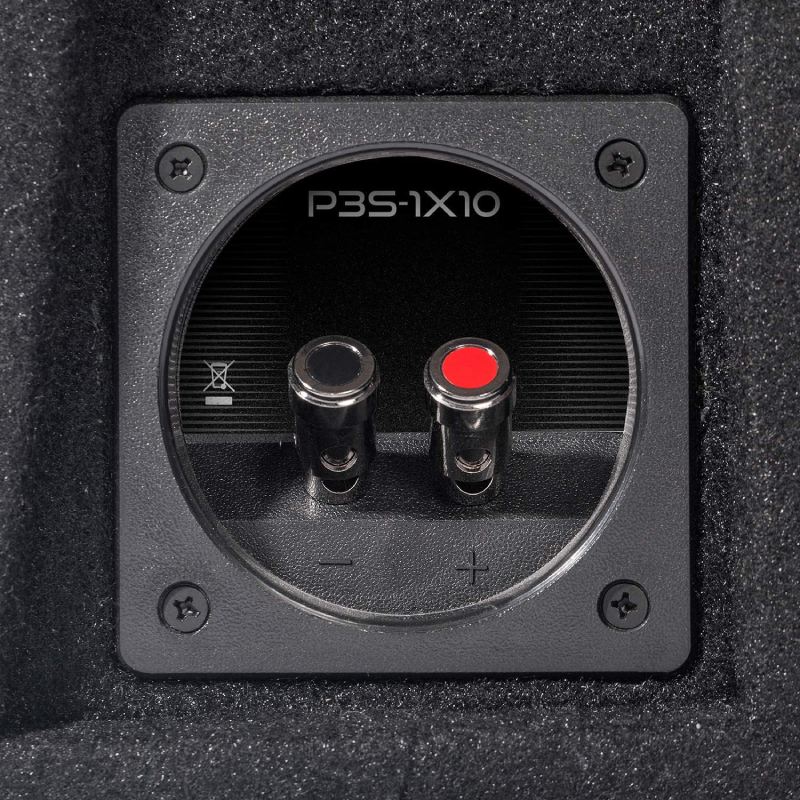

- 10 AWG input terminals
- 1-Ohm wired impedance
- Computer optimized design
- Covered with high density carpet
- Wired exclusively with Rockford Fosgate speaker cable
- Included trim ring ready to accept optional stamped mesh grille insert
- sealed truck-style enclosure with one 10" Punch Stage 3 shallow dual voice coil subwoofer
- 1/2" medium density fiberboard construction covered with heavy-duty carpet
- 1-ohm total impedance
- power handling: 100-300 watts RMS (600 watts peak power)
- frequency response: 40-250 Hz
- sensitivity: 83 dB
- 19-1/8"W x 13-5/8"H x 6-1/4"D1 x 3-3/8"D2
- warranty: 1 year
Specifications:
- Woofer Size (inches):10
- Speakers Per Box: 1
- Woofer Material: Anodized Aluminum
- Enclosure Type: Sealed
- Color: Black
- Pieces in System: 1
- Width (inches): 19-1/8
- Height (inches): 13-5/8
- Depth (inches): 6-1/4
- Connector Type: Spring posts
- Frequency Response: 40-250 Hz
- Power Range (Watts RMS): 300
- Maximum Wattage: 600
- Sensitivity: 83 dB
- Impedance: 1 ohms
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- UPC: 780687333010
- Weight: 22
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
