Rockford Fosgate  PP8-X On Sale

Punch Pro 8-Ohm Passive Crossover

Item #35139

Condition:   Brand New

Product Highlights

  • Punch Pro Passive Crossover
  • 8-Ohm Impedance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$84.99

Discount Already Applied!
Reg. Price $109.99  Save $25.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logo. Learn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate PP8-X Punch Pro 8-Ohm Passive Crossover


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Passive Crossover
  • • (4) 1-3/4" Self-tapping Allen head screws
  • • 3mm Allen head bit
  • • Owner's Manual
Perfectly Blended Frequencies

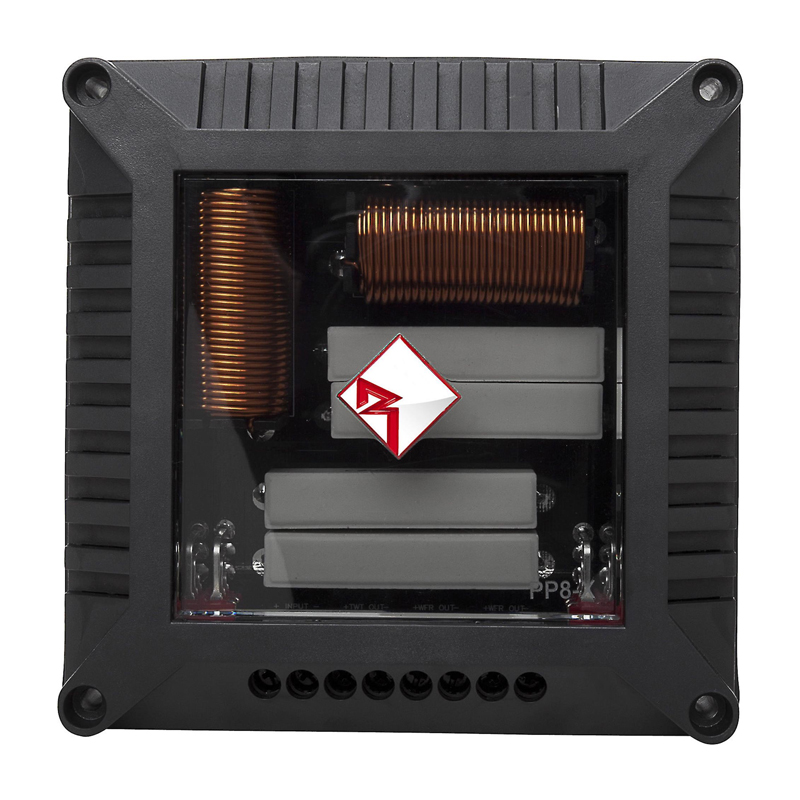

The PP8-X crossover, skillfully engineered by Rockford Fosgate, is specifically crafted to complement the performance of a Punch Pro Series midrange speaker and tweeter. When paired with an 8-ohm Punch Pro woofer, the PP8-X provides efficient low-pass filtering at 3,000 Hz with a gentle 6dB per octave slope. Additionally, the Punch Pro Series tweeters come equipped with their own integrated high-pass crossover set at 4.5K Hz with a 6 dB/octave slope. The beauty of this design lies in the seamless overlap of these frequency ranges, as the mild 6dB/octave slope ensures a harmoniously blended and smooth overall response, eliminating any concerns about frequency "gaps."


SPECIFICATIONS



FEATURES


Features:

  • Purpose-Built Punch Pro Compatibility: Get the right crossover performance for your Rockford Fosgate Punch Pro 8-ohm midrange drivers and tweeters with a crossover designed specifically for this speaker lineup.
  • Powerful Audio Handling: Support high-output audio systems with 125 watts RMS and 250 watts maximum power handling for demanding listening setups.
  • Dual Midrange Speaker Outputs: Connect two Punch Pro midrange drivers through dedicated woofer outputs for a flexible and efficient speaker configuration.
  • Precise Frequency Control: Enjoy a dedicated 3 kHz low-pass filter with a 6 dB/octave slope to direct the appropriate frequencies to your midrange drivers.

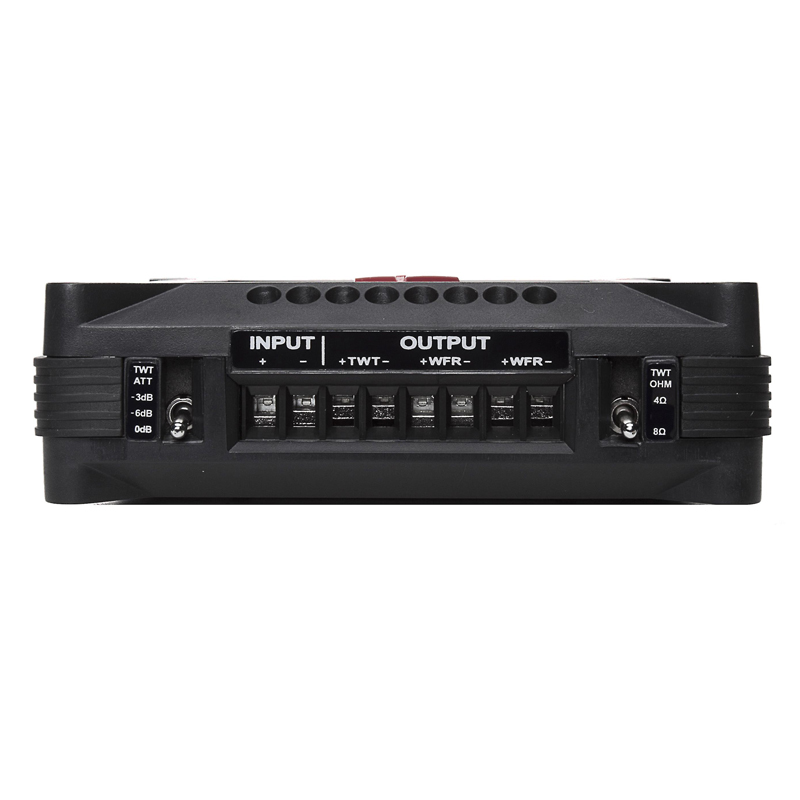

  • Customizable Tweeter Settings: Fine-tune your system with selectable 4-ohm or 8-ohm tweeter impedance and 0 dB, -3 dB, or -6 dB attenuation settings.



Specifications:

  • Product Type: Punch Pro Passive Crossover
  • Compatibility: Rockford Fosgate Punch Pro 8-ohm midrange drivers and tweeters only
  • Power Handling: 125 Watts RMS
  • Maximum Power Handling: 250 Watts
  • Woofer Output Load: Must use an 8-ohm load
  • Woofer Outputs: Dual outputs for two Punch Pro midrange drivers
  • Woofer Low-Pass Filter: 3 kHz
  • Filter Slope: 6 dB/Octave
  • Tweeter Crossover Compatibility: Works with the built-in 6 dB/octave Punch Pro tweeter crossover
  • Selectable Tweeter Impedance: 4 Ohms or 8 Ohms
  • Selectable Tweeter Attenuation: 0 dB, -3 dB, or -6 dB
  • Mounting Hardware: Included
  • Quantity: Sold individually, not as a pair
  • Compatibility Note: Not designed as a standalone passive crossover for other pro audio brands.
  • UPC: 780687342463
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Great product! For its price, I can’t complain. Installation was easy and straightforward.

    Brian A.
    6/17/2021

  • Item arrived on time,And was nicely packaged. I havent had time to install these crossovers, for the price though i can't complain

    Shawn
    2/23/2023
