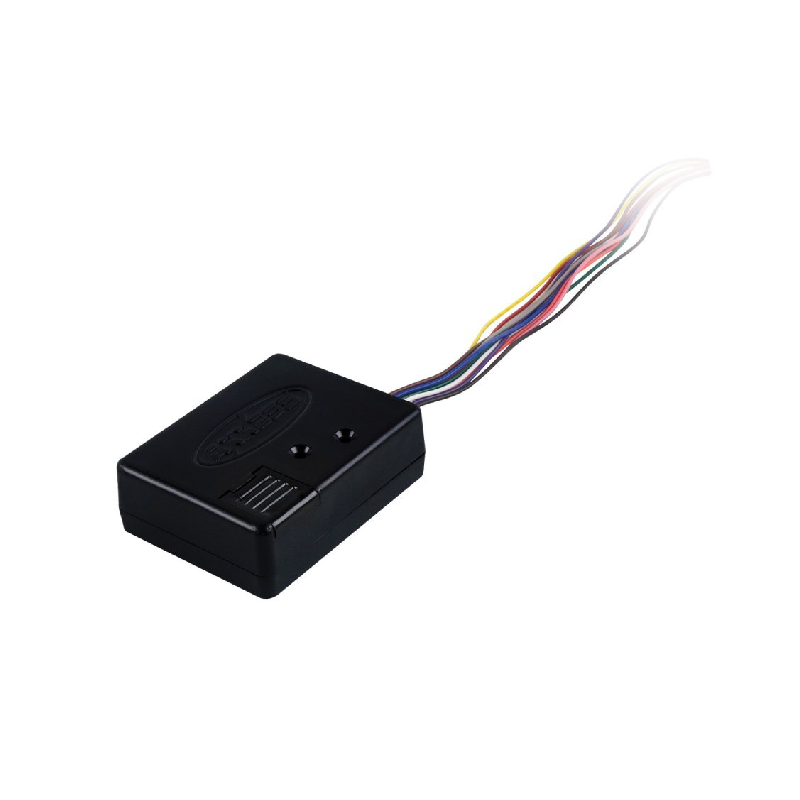

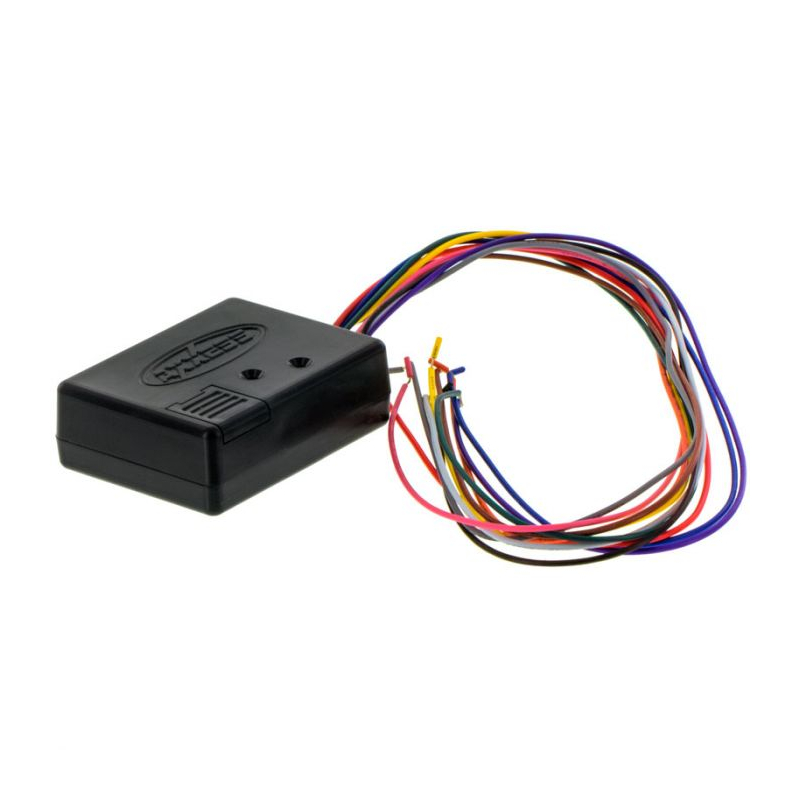

Axxess  TRIGGER

Custom Trigger Interface

Item #35974

Condition:   Brand New

Product Highlights

  • Custom trigger design
  • Interface compatibility
  • Flexible functionality
  • Easy installation
  • Reliable performance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$43.60

Reg. Price $84.16  Save $40.56
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Axxess Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Axxess Banner

Axxess TRIGGER AXXESS Custom Trigger Interface


We are an Axxess authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Universal Trigger Module
  • • Provides 15 different functions activated from a positive or negative trigger
  • • E-Brake Emulator emulates an E-Brake signal for use in RV’s, off road vehicles, and exhibition vehicles
  • • Retained Accessory power will turn on when accessory turns on, and will not turn off until door opens or 10 minutes passes, whichever comes first
  • • Delayed Turn-On allows a 2 second delay before an amp turn on output is sent to the amplifier
  • • Low Voltage Turn-On provides 12 volts turn on from a low voltage source
  • • Latched Outputs allow the capability of making a pulsed signal a latched signal
  • • GMLAN Aftermarket Amp Turn-On provides an amp turn on LAN vehicles for adding an aftermarket amp
  • • Active Edge Pulse Generator allows the capability of making an input signal a pulse signal
  • • Turn-Off Delay allows the amp turn-off to be delayed by two seconds
  • • Double Pulse Latch creates a latched signal from a double pulse signal
  • • Double Pulse to One Second Output converts a double pulse output to a single pulse output
  • • Theft Detection/ Closed Loop Trigger when connected, if item loses ground the Trigger will send out a 12 volt constant signal which can be hooked to an audible device
  • • Channel Expander gives the ability to add additional channels to an alarm
  • • Simple Data Detector produces a positive or negative signal out when data is detected
  • • Long Delayed Turn-Off will keep headlights on for 1 minute after ignition is turned off
  • • Dome Light Delay keeps dome light on for 30 seconds after ignition is turned off
  • • Ability to custom program the Trigger using the Trigger program
  • • Authorized Internet Dealer
  • • 1-year Manufacturer's warranty
Trigger Interface

The Trigger is a universal module that provides 15 different preset functions that are activated from a positive or negative trigger. In addition to the preset features the Trigger has 8 custom modes with customizable settings that allows the installer to utilize their imagination.


SPECIFICATIONS



FEATURES


Features:

  • Universal Trigger Module
  • Provides 15 different functions activated from a positive or negative trigger
  • E-Brake Emulator emulates an E-Brake signal for use in RV’s, off road vehicles, and exhibition vehicles
  • Retained Accessory power will turn on when accessory turns on, and will not turn off until door opens or 10 minutes passes, whichever comes first
  • Delayed Turn-On allows a 2 second delay before an amp turn on output is sent to the amplifier
  • Low Voltage Turn-On provides 12 volts turn on from a low voltage source
  • Latched Outputs allow the capability of making a pulsed signal a latched signal
  • GMLAN Aftermarket Amp Turn-On provides an amp turn on LAN vehicles for adding an aftermarket amp
  • Active Edge Pulse Generator allows the capability of making an input signal a pulse signal
  • Turn-Off Delay allows the amp turn-off to be delayed by two seconds
  • Double Pulse Latch creates a latched signal from a double pulse signal
  • Double Pulse to One Second Output converts a double pulse output to a single pulse output
  • Theft Detection/ Closed Loop Trigger when connected, if item loses ground the Trigger will send out a 12 volt constant signal which can be hooked to an audible device
  • Channel Expander gives the ability to add additional channels to an alarm
  • Simple Data Detector produces a positive or negative signal out when data is detected
  • Long Delayed Turn-Off will keep headlights on for 1 minute after ignition is turned off
  • Dome Light Delay keeps dome light on for 30 seconds after ignition is turned off
  • Ability to custom program the Trigger using the Trigger program
  • Custom Program Modes:
    •  Channel Expander (Latched) measures pulses that occur during 5 second interval
    • Channel Expander (Pulsed) measures pulses that occur during 5 second interval
    • Delayed Turn-Off connects active high input to pin 9, or active low input to pin 10
    • Delayed Turn-On connects active high input to pin 9, or active low input to pin 10
    • Generic three output delay/pulse width, edge driven
    • Generic three output delay/pulse width, level driven
    • Square Wave Generator (honks horns and blinks lights)
    • Multiple Pulse Generator will produce multiple pulses on all outputs
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
  • UPC: 086429250370
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
