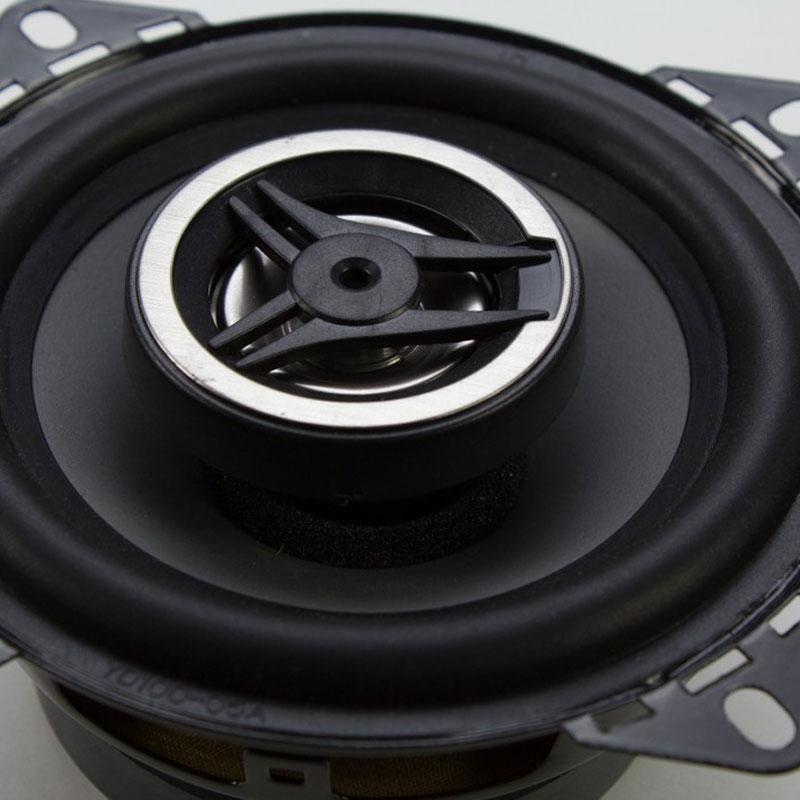

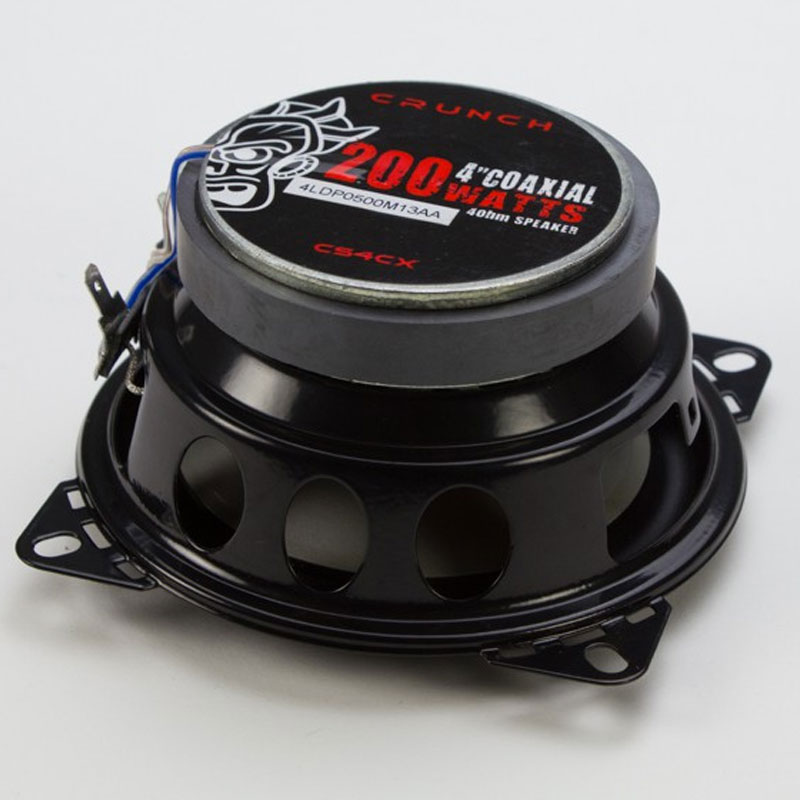

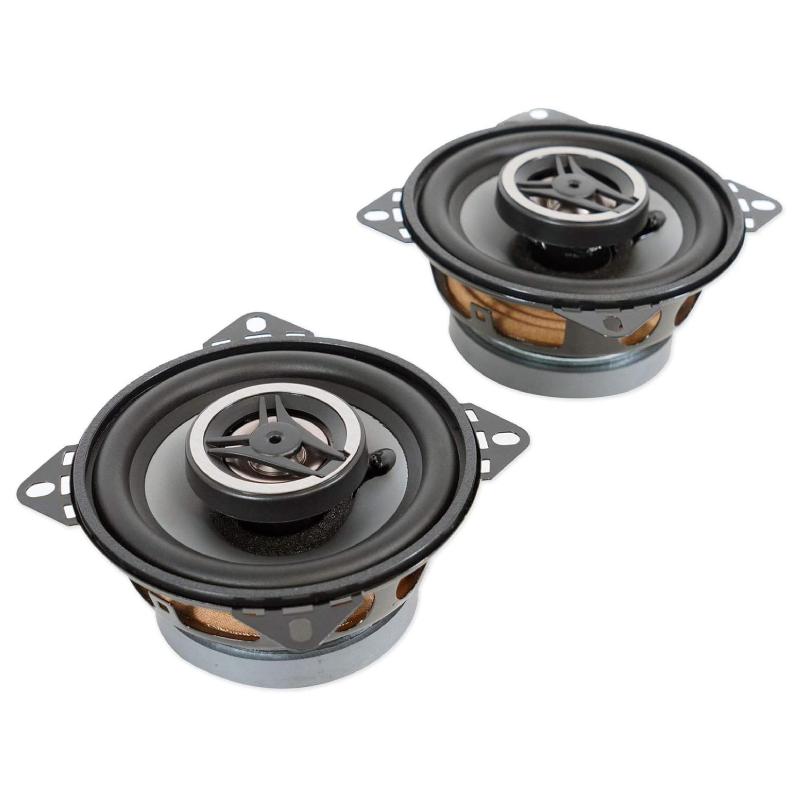

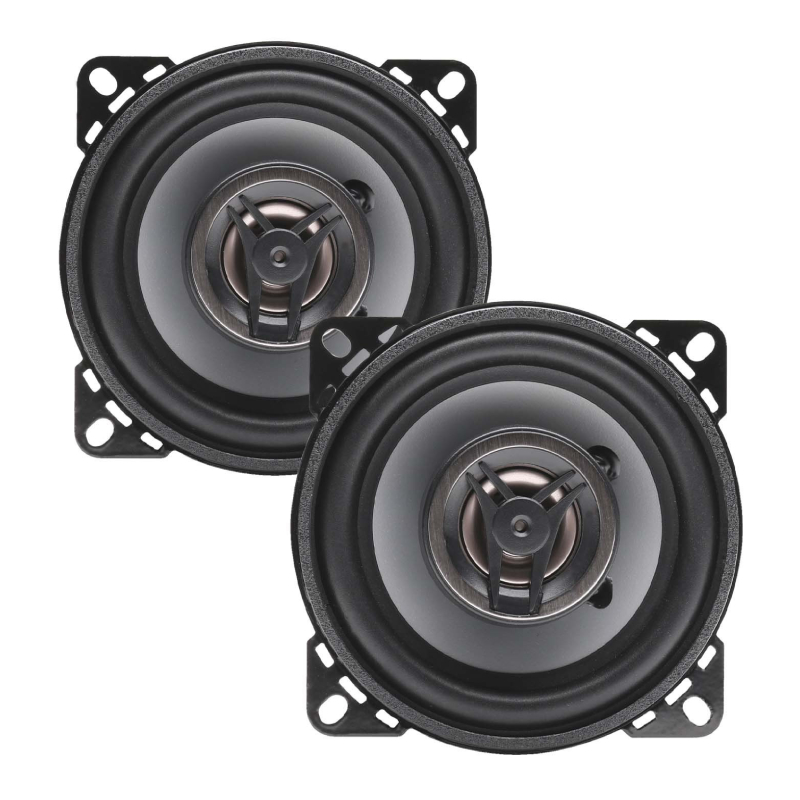

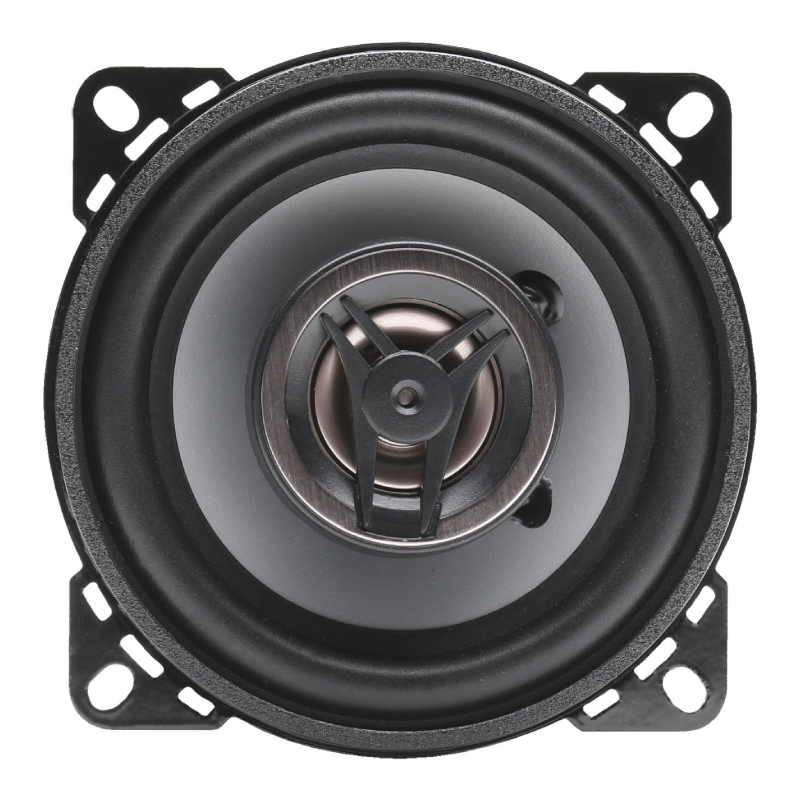

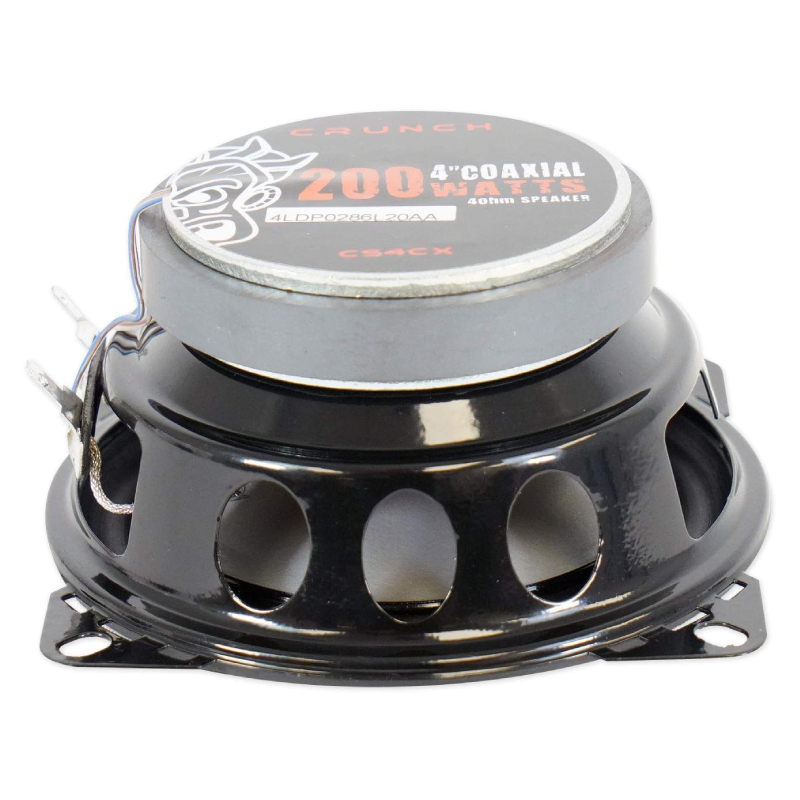

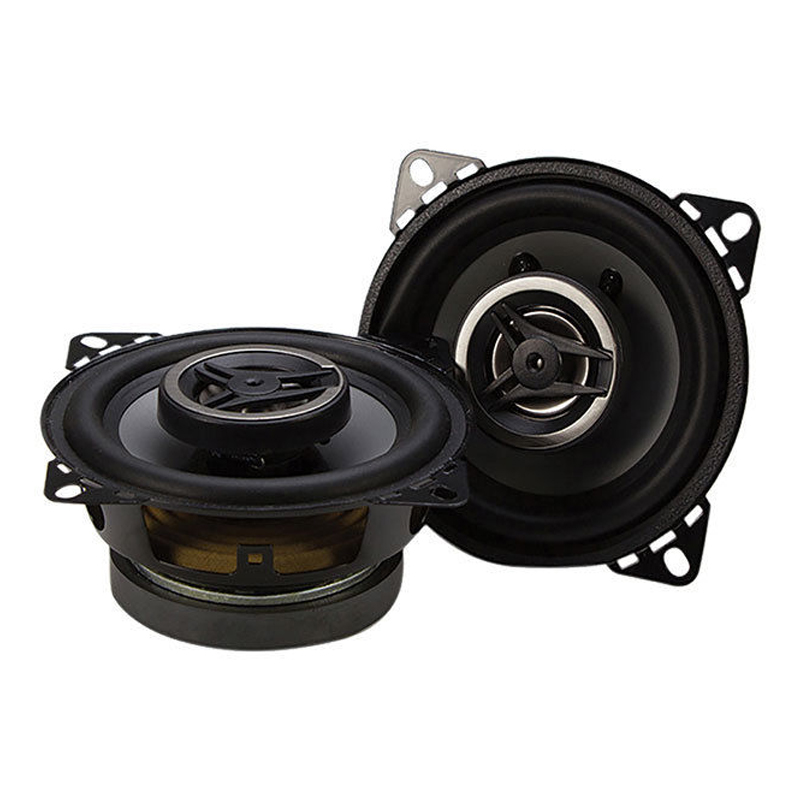

Crunch 4 Inch 2 way 200 watt speaker utilizing Neo Mylar Soft Dome Tweeters and Silver Alpha-Cellulose Poly Cones
TYPE: 4" Coaxial Full Range Speaker
CATEGORY: Coaxial Speakers
PEAK POWER HANDLING (CEA426B): 200 watts
SENSITIVITY (1 WATT/1 METER): 88dB
IMPEDANCE: 4 ?
RMS POWER HANDLING(CEA426B): 100 watts
Diameter : 4 Inch
Sensitivity : 88 dB
Impedance : 4 Ohm
Frequency Response : 55-19000 Hz
Peak Power Handling : 200 Watts
Design : 2 Way
RMS Power Handling : 100 Watts
RMS POWER HANDLING(CEA426B) 100 watts
PEAK POWER HANDLING (CEA426B) 200 watts
SPEAKER IMPEDANCE 4 ?
FREQUENCY RESPONSE +/- 10DB
FREQUENCY RESPONSE +/- 3DB 55 Hz - 19 kHz
SENSITIVITY (1 WATT/1 METER) 88dB
CROSSOVER POINT 6K Hz
CROSSOVER SLOPE 12dB
MOUNTING DIAMETER/CUT OUT 3.69
OUTSIDE DIAMETER 5.39
MOUNTING DEPTH/CHASSIS DEPTH 3
PRODUCT DIMENSIONS 12.06 x 6.19 x 3.13 in 30.6 x 15.7 x 7.95 cm
PRODUCT WEIGHT 2.2 lbs (1 kg)
Features & Benefits
TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
SURROUND: UV Resistant Rubber Surround Moisture Resistant Rubber Surround with high Mid-Bass Impact
CONE: Silver Alpha-Cellulose Poly Cones Produces musical midrange and bass tones while remaining light weight
SURROUND / CONE COUPLING: High Temperature Adhesive The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather
GASKET: Textured ABS Assures a ridged linear seal to the mounting surface
TINSEL LEADS: Braided Highly conductive while remain flexible during high power applications
VOICE COIL: Pure Copper Creates strong magnetic field with a very thin extrusion
VOICE COIL FORMER: Kapton Lightweight and efficiently dissipates heat
SPIDER: Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
COOLING SYSTEM: Over-Coil Air is exchanged over the voice coil through the spider
CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
CROSSOVER SPECIAL: 6dB Internal Integrated into the design to assure smooth midrange to tweeter frequency transitions
FRAME: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application

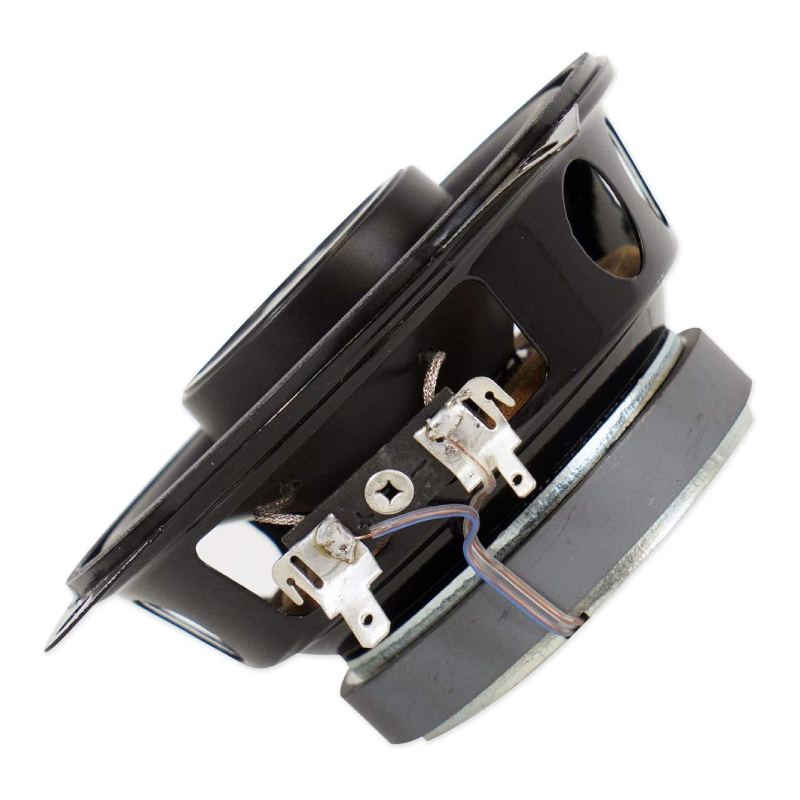

CONNECTORS: Spade Use spade connectors or solder direct for the best connection
GRILLS: No. These speakers are typically installed behind an OEM panel
TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
