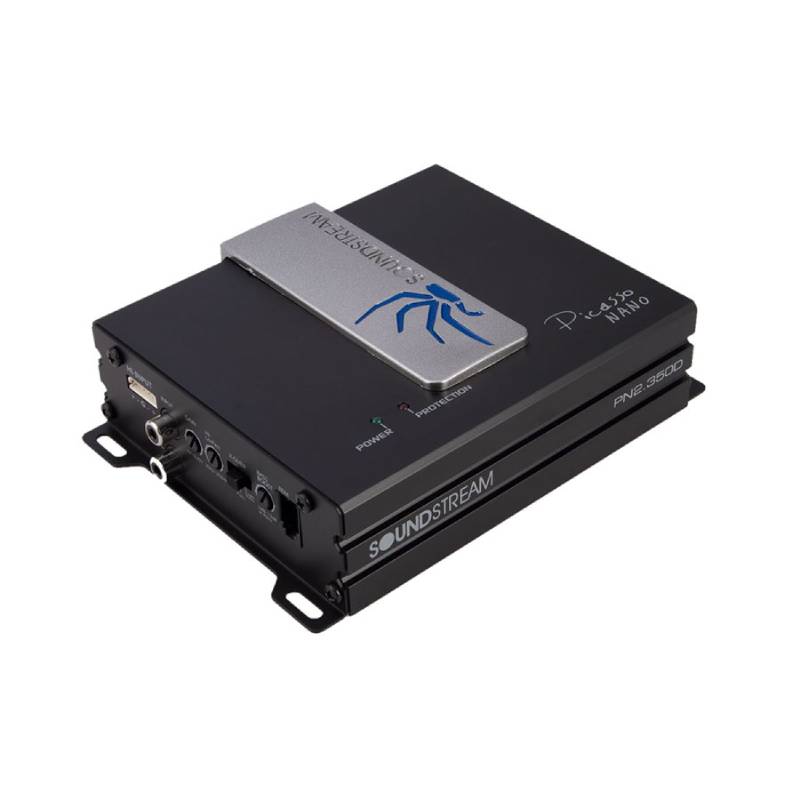

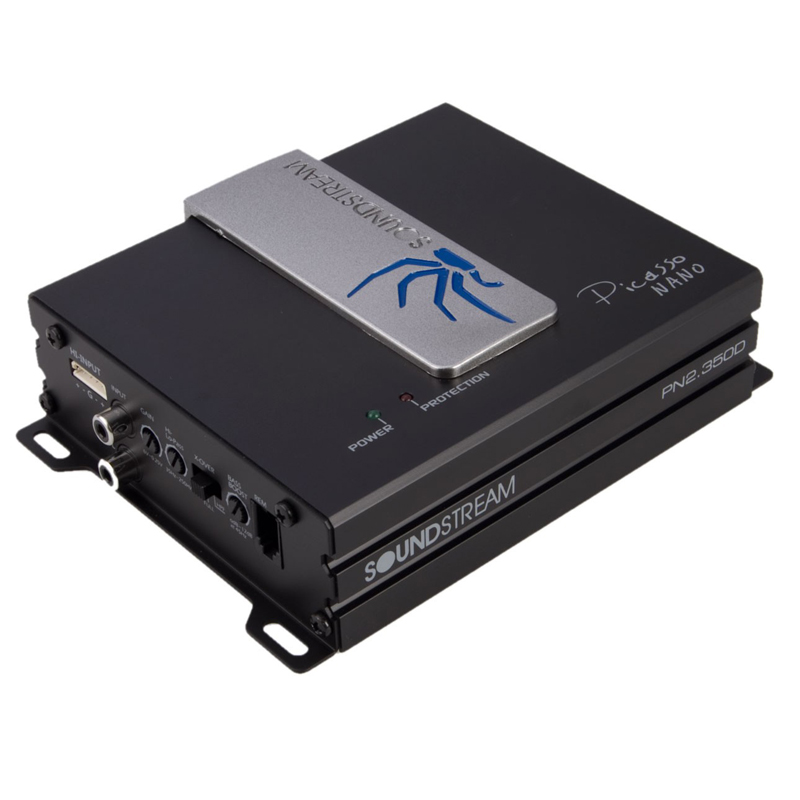

Soundstream PN2.350D 350W 2-Channel Class D Picasso Nano Series Amplifier
We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•Picasso Nano Series 2Ch Amplifier
Snugly Fits Into the Biggest or Smallest of Cars
When you get your first look at Picasso Nano Amplifiers, you will realize that size really does not matter too much at all. It is amazing and quite unbelievable that such a small piece of music amplifying equipment can have such an amazing output.
What’s more, is in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears.
Does Not Get Heated Up
You can install the amplifier under the front seat or the back seat, and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more, is the amplifier does not get heated up after a half-hour of continuous music playing at high volume.
Thanks to the full range crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. Other sport compact amplifiers use bizarre technologies with pseudo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.)
Automatically Detect the Sound Signal
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Maximum Power : 700 Watts
Low Frequency Response : 35-250 Hz
High Frequency Response : 35-250 Hz
Number of Channels : 2
Frequency Response : 10-300 Hz
Built In Crossovers : Yes
RMS Power Output : 175x2 Watts
Channel Separation : Yes
Amplifier Class : D
Cars come in all different shapes, most in the same size; compact. So, we've engineered these mini Picassos to fit in virtually any location in your ride. Other sport compact amplifiers use bizarre technologies with psuedo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.
Max Power 700 Watts
RMS Power @ 4Ω 115W x 2
RMS Power @ 2Ω 175W x 2
RMS Bridged @ 4Ω 350W x 1

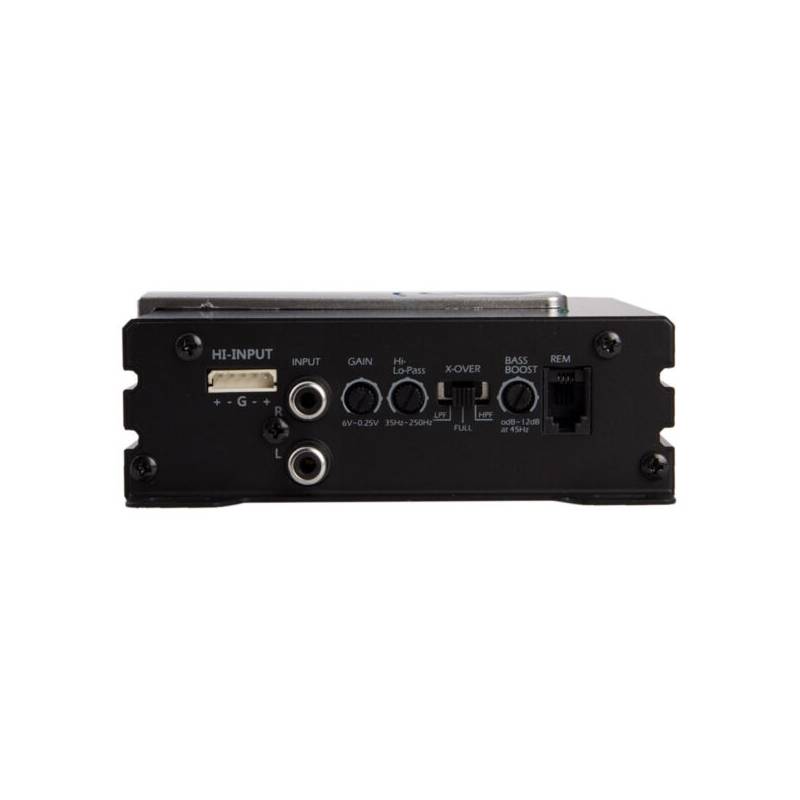

Remote Gain Control Included
Low Pass Filter 35Hz-250Hz
High Pass Filter 35Hz-250Hz
Bass Boost 0-12dB
Bass Boost Frequency45Hz
Subsonic Filter 10Hz-50Hz
Frequency Response 10-300Hz
Input Sensitivity 200Mv-6V
Operation Voltage 9V-16V DC
(8.25″W x 2.75″H) 5.5″ L
115W x2 @ 4-ohm
175W x2 @ 2-ohm
350W x1 @ 4-ohm [Bridged]
Small Compact 4.75" Wide Chassis
4-ohm Bridged/2-ohm Stereo Class D Full Range
2-Ohm Stable Class D Monoblocks
MOSFET PWM Power Supply
80Hz 12dB HP or LP Crossover
200mv-6V Low Level Input Sensitivity
High Level Input
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Beast of an amp. I have it installed on my harley.
Great product small and powerful fit inside my fairing and sounds great !!!!
Good solid little amp. I used this product to drive a set of 4" JL Audio coax's. Which it does with ease.
Solid amp - especially for the price. I've got one mounted inside my Road Glide. Fits perfect, and gives more than enough power. Top notch equipment.
