Orion XTR69.3 XTR Series 6"x9" 100W RMS (400W Peak Power Handling) 4 Ohm, 3 Way Coaxial Car Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
3-Way Coaxial Speakers
Experience crystal-clear, detailed, and balanced sound with the ORION XTR69.3 6x9" 3-Way Coaxial Speakers. Engineered for immersive performance, these speakers deliver an engaging, lifelike soundstage that transforms every drive into a captivating audio experience.
Powerful 3-Way Coaxial Speakers for Superior Sound
Experience every beat in perfect balance with the ORION XTR69.3 6x9" 3-Way Coaxial Speakers. Designed for precision and power, these speakers deliver rich, full-range audio with crystal-clear highs, detailed mids, and deep, dynamic lows. Featuring a dedicated woofer, midrange, and tweeter, the XTR69.3 ensures exceptional clarity and separation—transforming your drive into an immersive sound experience. Compact yet powerful, it’s the ultimate upgrade for true audiophiles.
Easy Installation, Long-Lasting Performance
Enjoy a hassle-free upgrade with speakers designed for quick installation and a universal fit. Built with high-quality materials, these speakers deliver reliable, consistent performance that lasts through every drive.
Frequently Asked Questions (FAQ)
- • Why Does the XTR69.3 Need More Mounting Space Than My Original 6x9?
Although the XTR69.3 uses the common 6×9 format, its listed mounting depth is about 3.31 inches. Some customer feedback specifically mentions that the speaker is deeper or larger than expected for certain vehicles, so measuring the available depth before installation is important.
- • Why Is the Speaker Grille Touching the XTR69.3 Cone?
Some reported fitment experiences mention the woofer cone sitting close enough to the vehicle's cover or grille to create clearance concerns. Check the grille and surrounding trim before tightening the speaker completely, particularly when using factory covers.
- • Does the XTR69.3 Really Need an Amplifier to Sound Its Best?
The XTR69.3 is rated at 100W RMS and has 93 dB sensitivity, so it can produce useful output from moderate power, but some buyers report that an additional amplifier is needed to get the most from the speakers. One customer specifically noted needing a stronger source to fully exploit their potential.
- • Why Do My XTR69.3 Speakers Sound Clear but Lack the Bass I Expected?
The XTR69.3 is specified down to 55 Hz, but actual low-end performance depends heavily on the door enclosure, installation, polarity, and available amplifier power. A large 6×9 frame does not automatically guarantee subwoofer-level bass.
- • Why Do the XTR69.3 High Frequencies Seem Too Prominent?
The speaker combines a neodymium midrange and neodymium silk-dome tweeter in a 3-way design. If the treble sounds overly forward in your vehicle, reducing high-frequency EQ or adjusting the system's crossover and balance can help integrate the speaker more naturally.
- • Why Does One XTR69.3 Sound Different From the Other?
Differences between left and right speakers can come from wiring polarity, amplifier channels, mounting conditions, or the acoustics of each side of the vehicle. Swapping the speaker connections from side to side can help determine whether the difference follows the speaker or remains with the vehicle channel.
- • Why Does the XTR69.3 Sound Better After Being Used for a While?
Some owners describe the speakers as sounding particularly good after installation and continued use, while others judge their sound differently depending on the system. One verified Orion customer reported strong bass and highs when using the XTR69.3 in a custom Bluetooth speaker build.
- • Why Does the XTR69.3 Sound Less Clear When I Turn It Up?
If clarity decreases as volume rises, check the amplifier gain and available power before blaming the speaker. Clipping from an underpowered or incorrectly adjusted amplifier can make a speaker sound harsh or compressed even when its rated power handling has not been exceeded.
- • Can the XTR69.3 Be Installed Without Modifying My Vehicle?
Not necessarily. Although Orion describes the speaker as designed for straightforward installation, third-party customer feedback reports that some vehicles require modification because of the speaker's dimensions and mounting depth. The listed cutout is approximately 5.87 × 8.39 inches.
- • Why Does the XTR69.3 Sound Different in a Door Than on a Test Bench?
A vehicle door creates a very different acoustic environment from an open-air test. Door-panel resonance, mounting seals, interior reflections, and the available air space behind the cone can all change the amount of bass and overall tonal balance you hear.
- Diameter : 6x9 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 55-22000 Hz
- Peak Power Handling : 400 Watts
- Design : 3 Way
- RMS Power Handling : 100 Watts
Features:
- Premium Audio Excellence: Experience high-fidelity sound with the ORION XTR69.3 6x9" 3-Way Coaxial Speakers, engineered for clear, detailed, and balanced audio performance.
- Immersive Sound: Enjoy an engaging, lifelike soundstage that transforms every drive into a captivating listening experience.
- Precise Reproduction: Delivers accurate sound across all frequencies for a rich and balanced tonal range.
- Three-Way Design: Features a dedicated woofer, midrange, and tweeter for enhanced clarity, depth, and separation.
- Powerful Performance: Compact yet powerful, offering impactful sound that elevates your car’s audio system.
- Effortless Installation: Designed for easy, universal fit and quick setup for a smooth audio upgrade.
- Durable and Reliable: Built with premium materials for long-lasting, consistent performance on every journey.
Speicifications:
- Speaker Size: 6x9 Inches
- Voice Coil Configuration: 4 Ohm
- Power Handling (Peak): 400 Watts
- Power Handling (RMS): 100 Watts
- Sensitivity: 93 dB
- Frequency Response: 55 Hz – 22 kHz
- Voice Coil: 1.25" High Temperature Voice Coil
- Midrange: 25mm Neodymium Silk Dome Midrange
- Tweeter: 20mm Neodymium Silk Dome Tweeter
- Speaker Quantity: 2 Speakers
- Material: Heavy-Gauged Stamped Steel
- Cone Material: Polypropylene Coated Paper Cone
- Surround Material: Butyl Rubber
- Magnet Information: 82 Oz. Ferrite
- Dimensions (L x W x H): 5.25" x 5.25" x 3" (133.35 x 133.35 x 76.2mm)

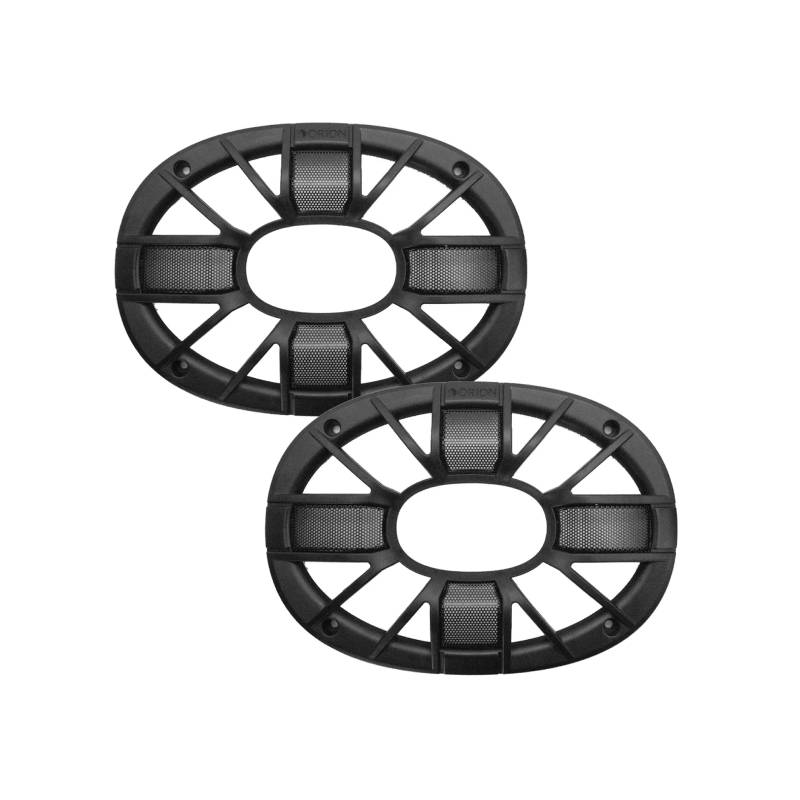

- Grilles Included: Yes
- Mounting Depth: 84mm / 3.31 Inches
- Cutout Diameter: 149 x 213mm / 5.87 x 8.39 Inches
- Overall Diameter: 172 x 243mm / 6.77 x 9.57 Inches
- UPC: 818550010840
- Weight: 5
