Boss Audio  PV3700

Phantom 3700-Watt Full Range, Class A/B 2 to 8 Ohm Stable 5 Channel Amplifier with Remote Subwoofer Level Control

Item #41588

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:


What's Included:


  • Owner's Manual
  • Phantom Series 5 Channel Full Range Class AB Amplifier

Product Highlights:


  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Speaker-level (high-level) inputs
  • RMS Power Rating: 4 ohms: 225 watts x 4 chan. + 750w x 1 chan.
  • Phantom Series 5 Channel Full Range Class AB Amplifier
  • Bridged, 4 ohms: 1100 watts x 2 chan.
  • High level: 100mV - 2V
  • Peak Power Rating: 2 ohms: 500 watts x 4 chan. + 1500 watts x 1 chan.
  • Variable low-pass filter: 50 - 250 Hz
  • Frequency Response: 9 - 50,000 Hz
  • Variable Bass Boost: 0 to +18dB
  • Total Harmonic Distortion (THD): 0.01%
  • Gold-plated RCA low level and high level inputs

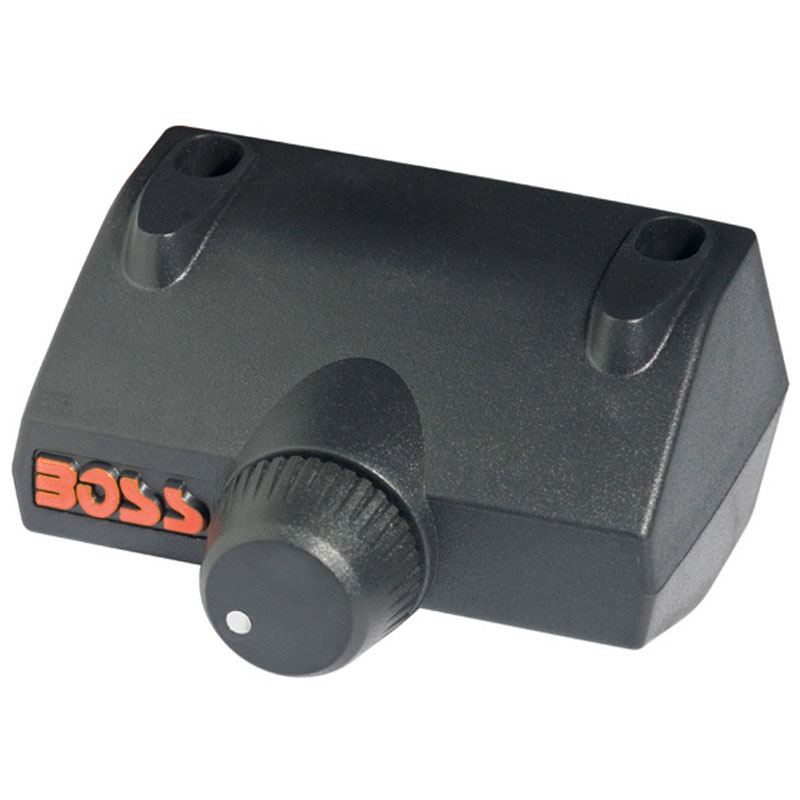

  • Wired remote bass level control included
  • Channel Separation: 90 dB
  • Pulse Width Modulated MOSFET power supply
  • Soft start turn-on
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty black anodized heat-sink
  • Input sensitivity: Low level: 2V - 8V
  • Signal to Noise Ration: 103 dB
  • Damping Factor: 125+
  • Variable high-pass filter: 50 - 250 Hz
  • Fuse Rating: 40A x 2
  • 4 gauge power and ground wiring is recommended for installation

SPECIFICATIONS


  • Maximum Power : 3700 Watts
  • Number of Channels : 4
  • Frequency Response : 9-50000 Hz
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • RMS Power Range : 1125 Watts
  • Amplifier Class : A/B

FEATURES




Other Specifications
Speaker Level Inputs Yes
Low-Pass Crossover Frequency 50 - 250 Hz
Number of Channels 5
Preamp Outputs No
Built-in Crossover Low-Pass (LP), High-Pass (HP), Full (AP)
Channel Separation 90 dB
Strappable No
Fuse Rating 40A x 2
High-Pass Crossover Frequency 50 - 250 Hz
Bass/Gain Remote Yes
Signal-to-Noise Ratio 103 dB
Bass Boost 0 - 18 dB
Minimum Impedance Unbridged 2 ohms
Amplifier Series Phantom (Boss)
Amplifier Class AB
Total Peak Power Output 3700 watts
Maximum Input Gauge Size 4 AWG
Minimum Impedance Bridged 4 ohms
THD at Rated RMS Power 0.01%
CEA-2006 Compliant No
Certified Amplifier Not Tested
  • UPC: 791489122733
  • Weight: 13.2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
