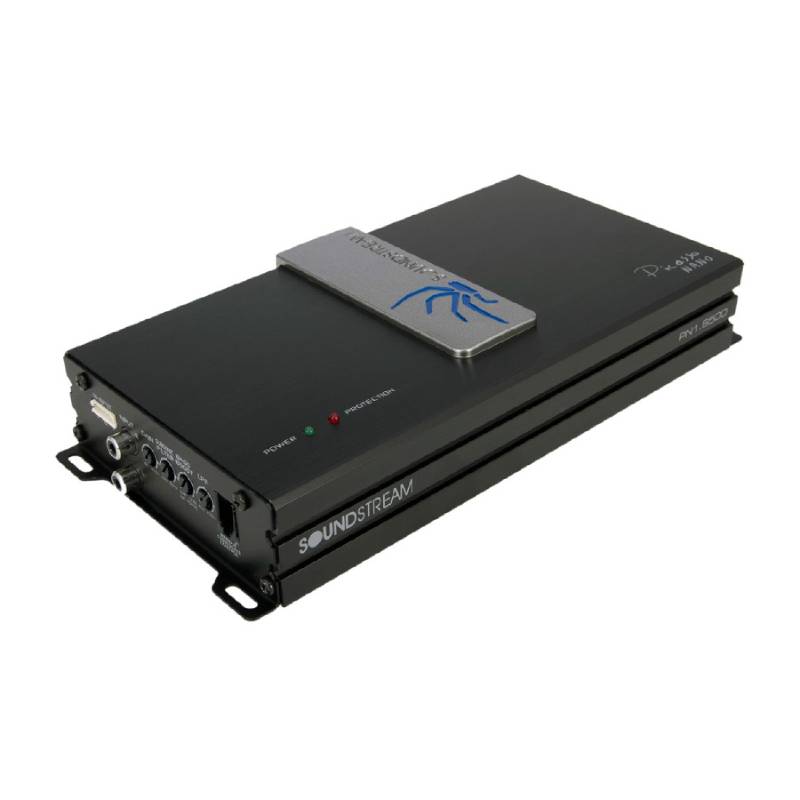

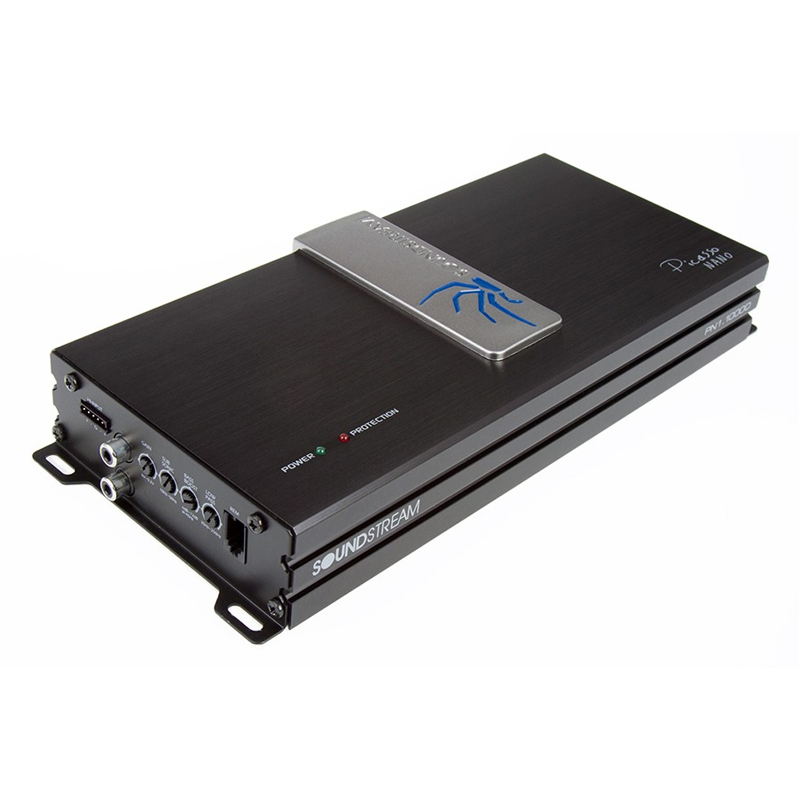

Soundstream PN1.1000D 1000W Monoblock Picasso Nano Series Class D Amplifier
We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•Picasso Nano Series Subwoofer Amplifier
Does Not Get Heated Up
When you get your first look at Picasso Nano Amplifiers, you will realize that size really does not matter too much at all. It is amazing and quite unbelievable that such a small piece of music amplifying equipment can have such an amazing output.
What’s more, is in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears.
Full range crossovers the amplifier
You can install the amplifier under the front seat or the back seat, and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more, is the amplifier does not get heated up after a half-hour of continuous music playing at high volume.
Thanks to the full range crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. Other sport compact amplifiers use bizarre technologies with pseudo power supplies. Picasso Nanos use tried and tested MOSFET power supplies & tenacious Class D circuitry.)
Automatically Detect the Sound Signal
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Maximum Power : 2000 Watts
Low Frequency Response : 50-250 Hz
Number of Channels : 1
Built In Crossovers : Yes
RMS Power Output : 600x1 Watts
Channel Separation : No
Amplifier Class : D
Fuse Rating : 40x2 A
Max Power 2,000 Watts
RMS Power @ 4Ω 700W x 1
RMS Power @ 2Ω 1,300W x 1
RMS Power @ 1Ω 2000W x 1

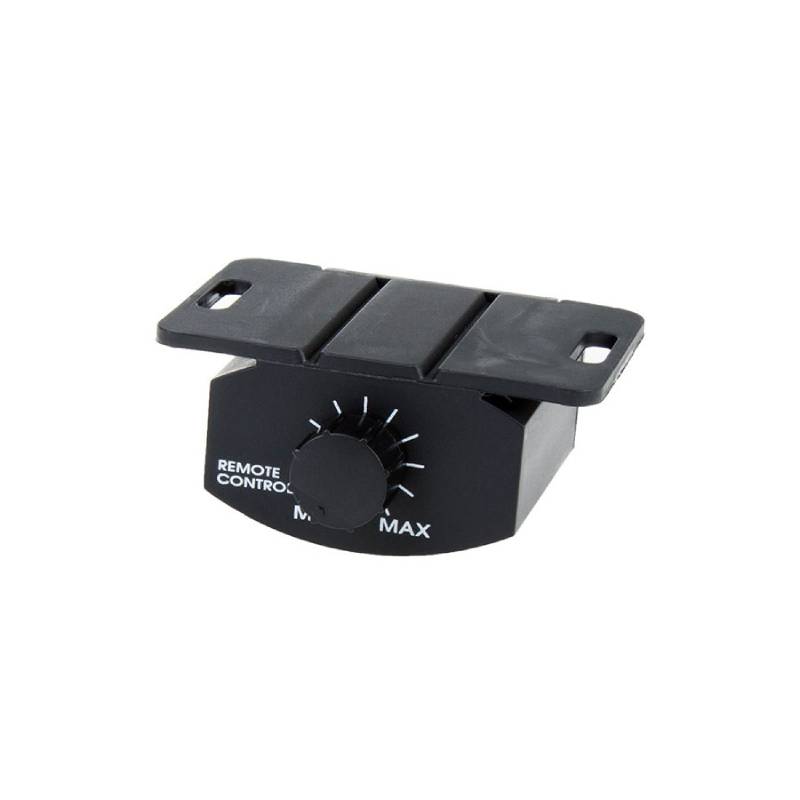

Remote Gain Control Included

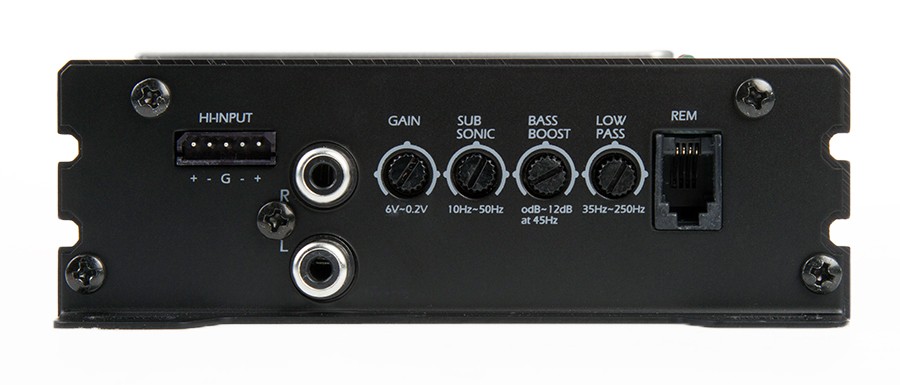

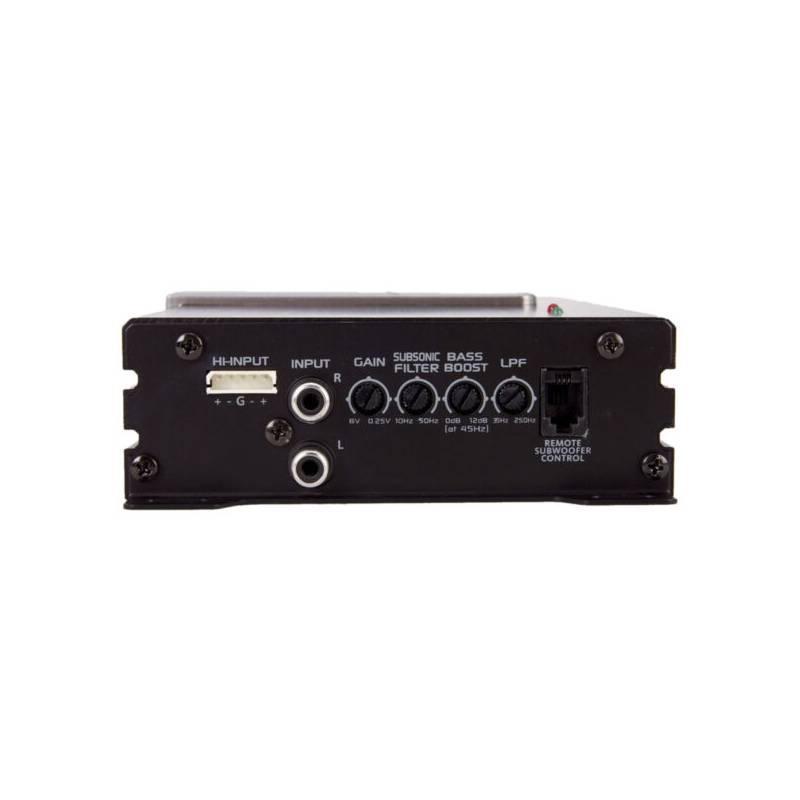

Low Pass Filter 35Hz-250Hz
High Pass Filter N/A
Bass Boost 0-12dB
Bass Boost Frequency45Hz
Subsonic Filter 10Hz-50Hz
Frequency Response 10-300Hz
Input Sensitivity 200Mv-6V
Operation Voltage 9V-16V DC

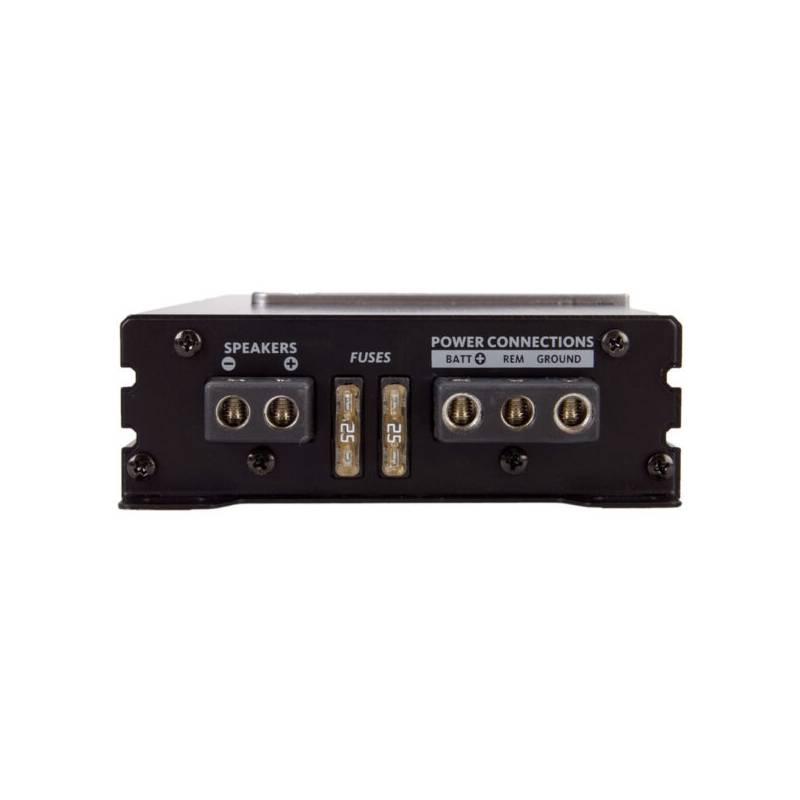

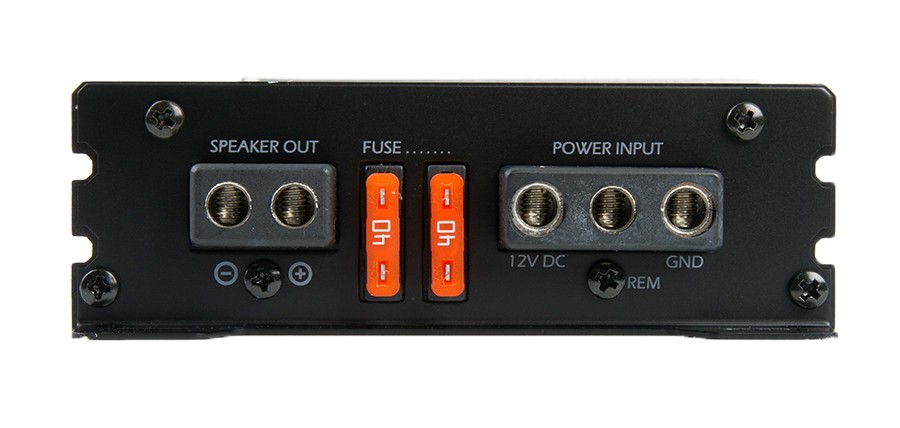

Fuse Rating 40A x 2
Dimensions (8.25″W x 2.75″H) 10.25″ L
RMS Power 2Ω 600 x 1
RMS Power 1Ω 1000 x 1
Remote Gain Control Included
Dimensions (4.75”w x 1.5”h) 10.25”
Pulse Width Modulated MOSFET power supply
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
