Soundstream RN4.1400D Rubicon Nano Series Class-D 4-Channel Full-Range Amplifier
We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• Rubicon Nano Class D 4Ch Amplifier
Optimum Class D Performance

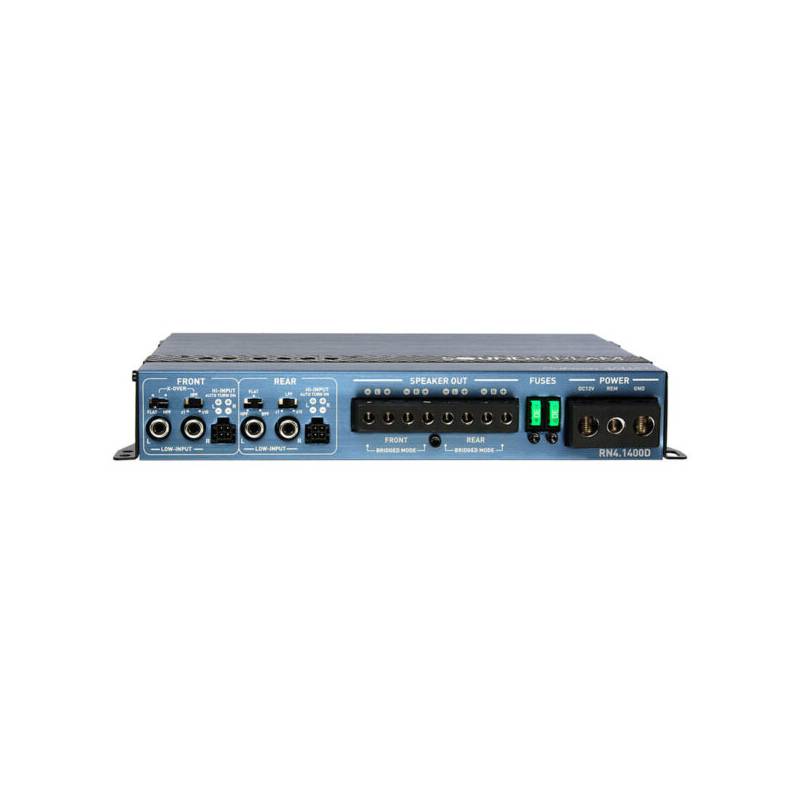

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install.
Monoblock Bridging Capability
All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Maximum Power : 1400 Watts
Low Frequency Response : 50-500 Hz
High Frequency Response : 50-500 Hz
Number of Channels : 4
Frequency Response : 10-50000 Hz
Built In Crossovers : Yes
RMS Power Output : 175x4 Watts
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 30x2 A
Max Power1,400 Watts
RMS Power @ 4Ω125W x 4
RMS Power @ 2Ω175W x 4
RMS Bridged @ 4Ω350W x 2
Remote Gain ControlN/A
Low Pass Filter50Hz-500Hz / (x10) 500Hz-5KHz
High Pass Filter50Hz-500Hz / (x10) 500Hz-5KHz
Bass Boost0-6-18dB (Rear)
Bass Boost Frequency45Hz (Rear)
Operation Voltage9V-16V DC
Fuse Rating30A x 2
(8.25″W x 2.75″H)9″ L
High Efficiency Class D Full Range Amplifiers
Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
2-ohm Stereo & 4-ohm Bridged Class D Full Range
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
Direct Short, Thermal, & Overload Circuits Protect Ampllifier
200mV-6V Low Level RCA or High Level Signal Input
Quick Disconnect High Level Wire Harness Included
Easy DIY Install Single Sided Terminals & Controls
4g Power Inout Terminals & 12g Speaker Output Terminals
Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
12dB Bass Boost Increases Low Octave Harmonics
