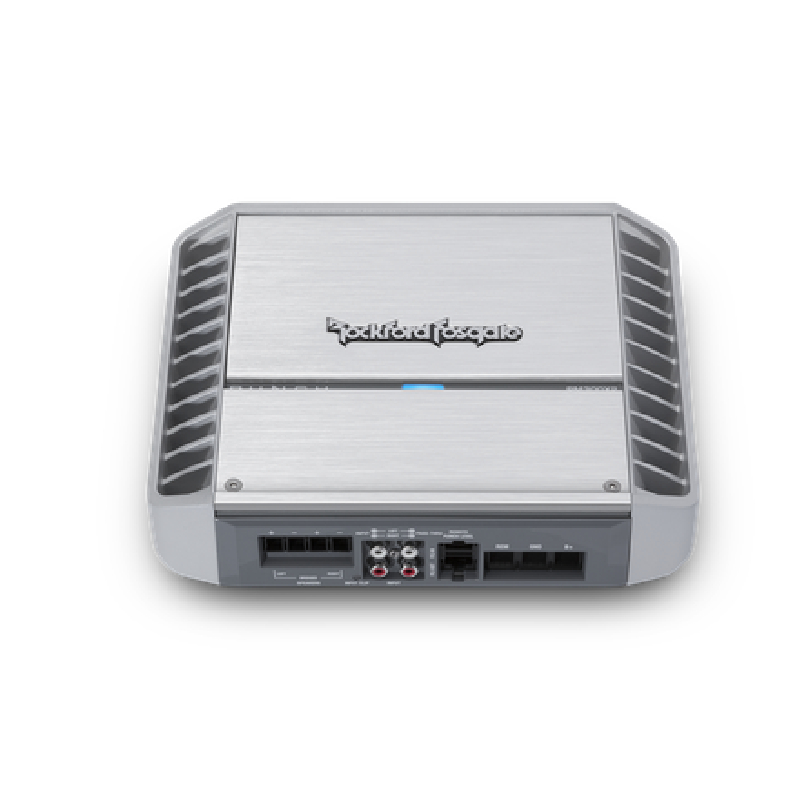

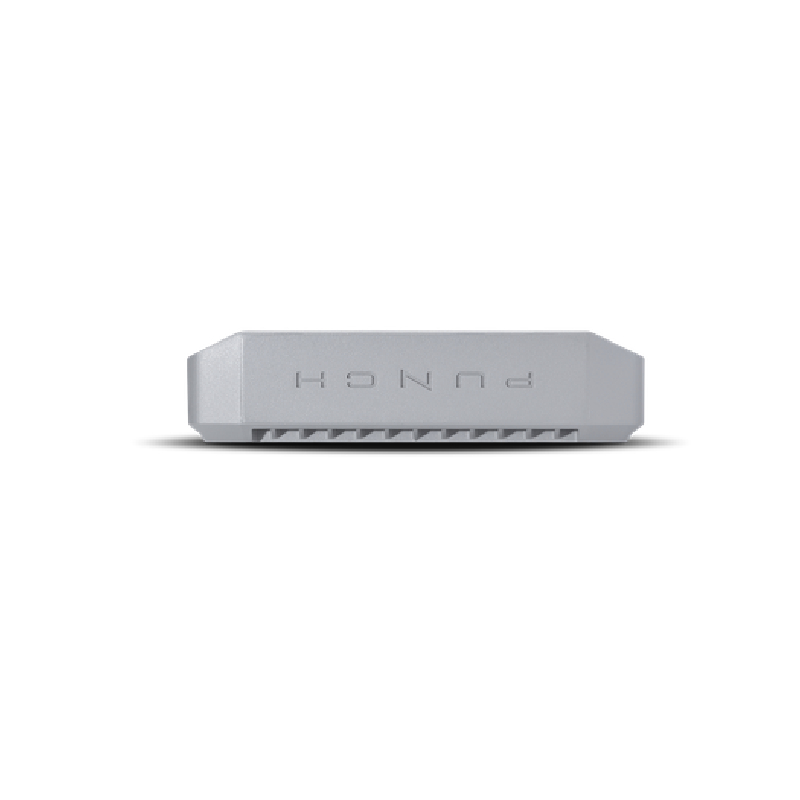

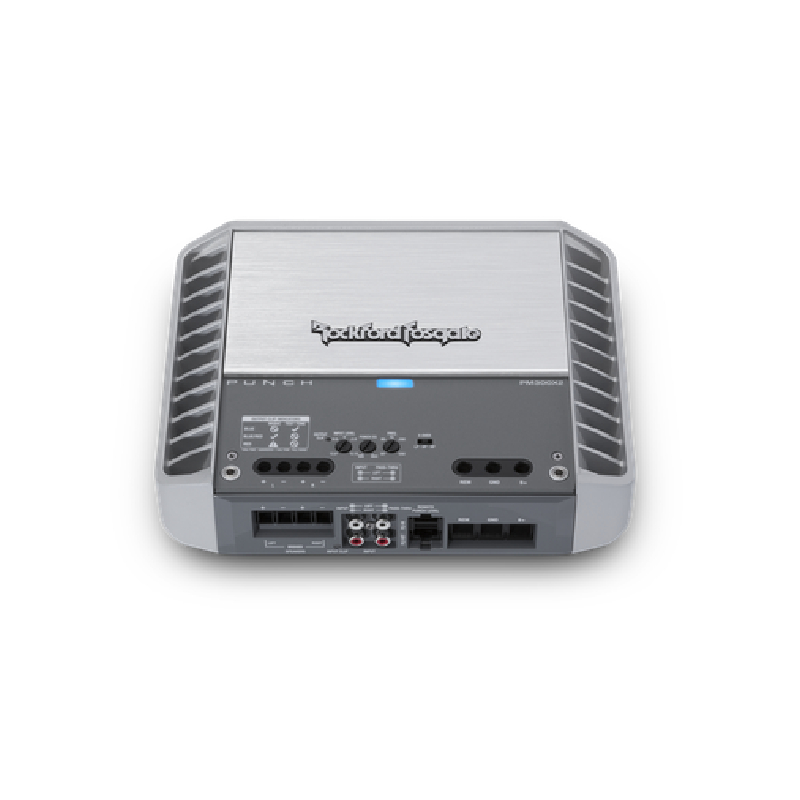

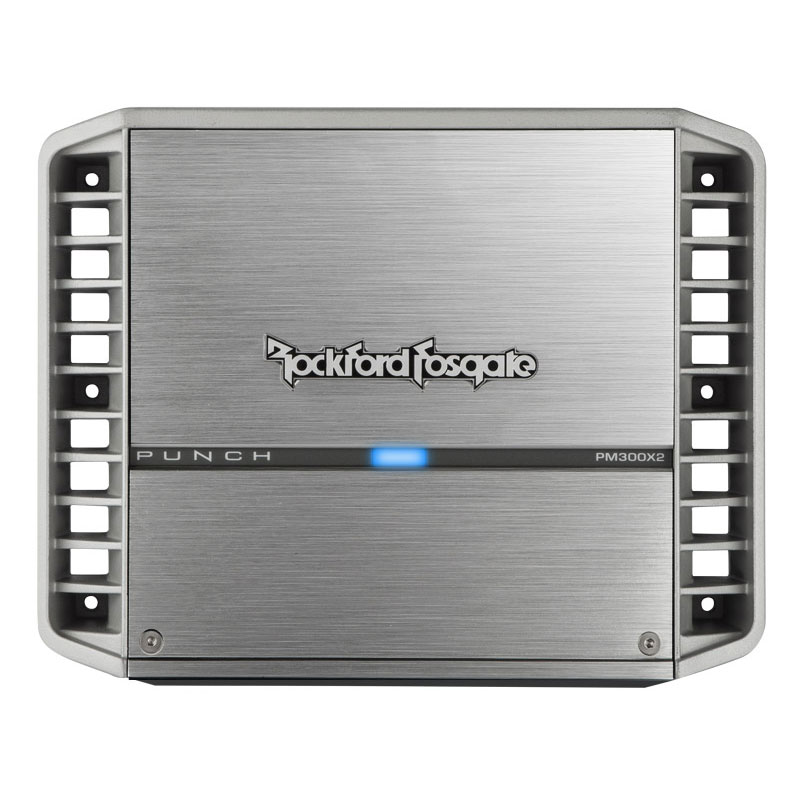

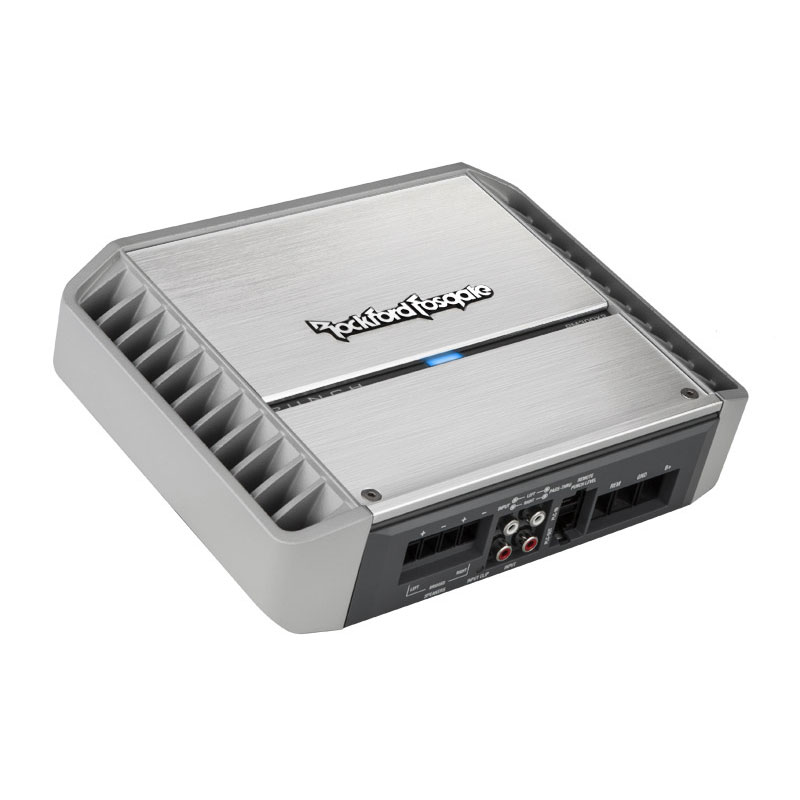

Rockford Fosgate PM300X2 PM Series 150W x 2 RMS @2Ohms, 300W Max Power Handling Class A/B 2-Channel Element Ready Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 2-Channel marine amplifier
• 2.5mm Allen wrench
• (4) 1-1/2" Self-tapping screws
• Certificate of Performance Verification
• Setup guide
• User's Manual
They designed their PM300X2 2-channel amplifier for marine, motorcycle and powersport applications. This rugged, versatile amp can drive a pair of coaxial speakers, a set of component speakers, or a subwoofer.
Class A/B Amplifier

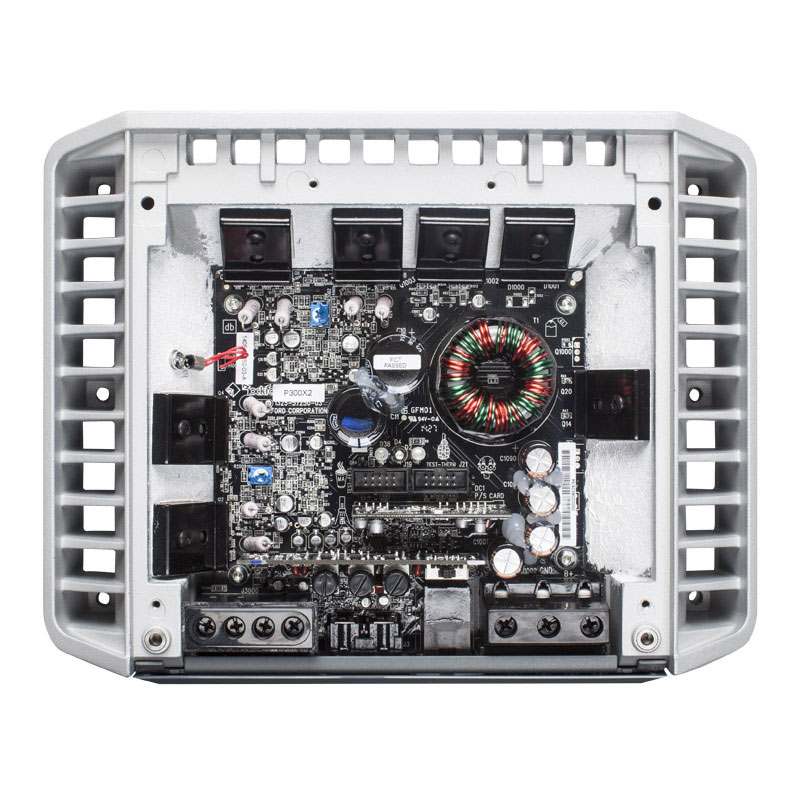

Using a Class AB design, the PM300X2 delivers outstanding performance from a compact package. It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion. Rockford also uses the innovative Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space.
It uses the CLEAN level setting technology, so there's no more guesswork while setting your gain levels. Easy-to-see LED indicators identify clipping so you can set your amp up for maximum performance while eliminating distortion.
Maximum Power : 300 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 2
Frequency Response : 20-20000 Hz
RMS Power Output : 2x150 Watts
Amplifier Class : A/B
Fuse Rating : 50 A
High level input capable with Auto Turn-On circuit
Marine grade two part epoxy coating on circuit boards
Marine grade stainless steel hardware
Number of Channels: 2
Total Power (Sum of Rated Power): 300 Watts
Rated Power (RMS Continuous Power):
100 Watts x 2 @ 4-Ohm
150 Watts x 2 @ 2-Ohm
300 Watts x 1 @ 4-Ohm Bridged
Dynamic Power (PVC/PowerCube®)
120 Watts x 2 @ 4-Ohms 0° Res
203 Watts x 2 @ 2-Ohms 0° Res
Frequency Response: 20Hz-20kHz
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency (average): 69% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)

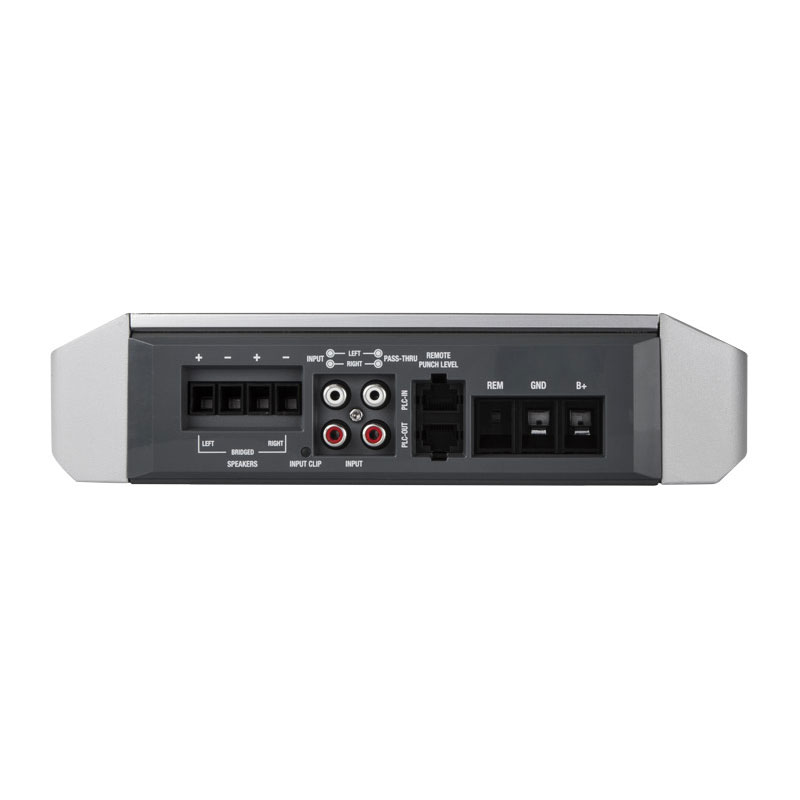

Signal Input: Hi/Low Level: 1 RCA Pair
Signal Output: Low Level: 1 RCA Pair
0dB to +14dB @ 12.5kHz
0dB to +18dB @ 45Hz
High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Remote Controls: Optional Punch Level Control (PLC2) Ready

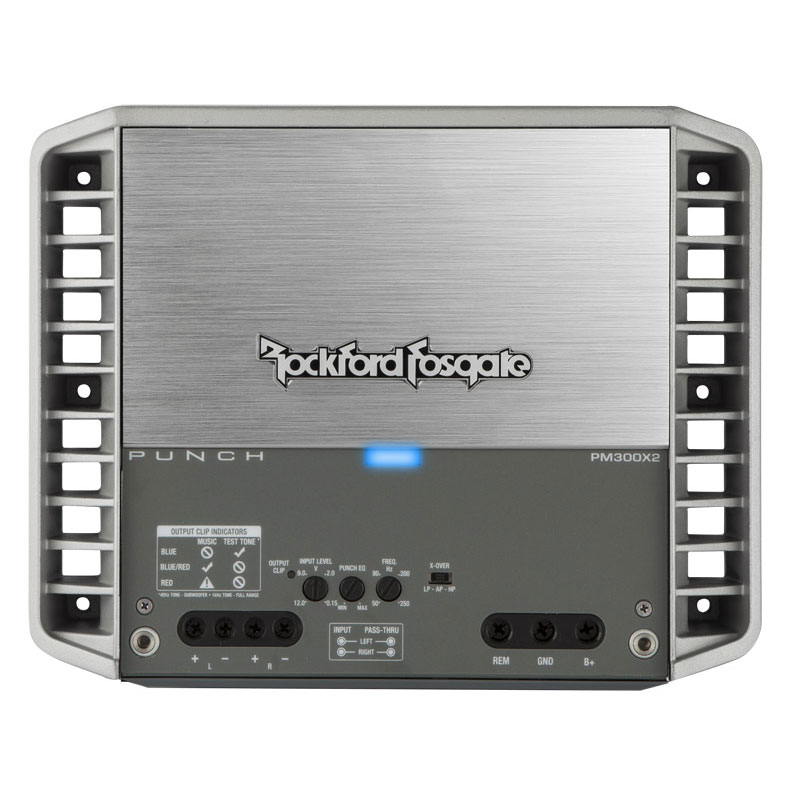

Input Clip LED: 3
Output Clip LED: 1,2,3
LED Color Legend:
1 BLUE: <0.5% THD
2 VIOLET: 1% THD
3 RED: 10%+ THD
Power Wire Gauge: 8 AWG to 4 AWG
Power Input Connector: Captive C-Clamp
Speaker Wire Gauge: 8 AWG to 18 AWG
Speaker Output Connector: Captive C-Clamp
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 50 A
Average Current Draw (13.8V Music): 23 A
Max. Current Draw (13.8V Sinewave): 45 A
Suggested Alternator: 75 A
Dimensions (H x W x D):
2.38 x 7.76 x 9.86 (in)
6.05 x 19.71 x 25.04 (cm)
Shipping Weight: 9.5 Lbs. (4.3 Kg.)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Estimated Shipping Time for Special Order items is 7-10 days.
You may call our Customer Service Department at 310-526-8635 for a more accurate shipping estimate.
Special Order Product
Reserve Now. Risk Free!
This product is temporarily out of stock and estimated date of arrival is unknown but you may order this item today to reserve it.
Order for this item is processed on a first come first served basis
You can cancel the order anytime, risk free
Or, call us for alternatives at 310-526-8635
Low Price Guarantee
Seen a better price? Drop us a line and we will do our best to match prices of our online competitors.
Call us : 1-310-526-8635
Guidelines and Limitations:
1. Competitor must have the exact same item in stock and the time of Price Match.
2. Price of the actual product price must be verifiable and valid at the time of Price Match.
3. Price matching is only applicable in new orders.
4. Limit one price match per identical item per customer.
Free Lifetime Tech Support
All your purchase from our store comes with Free Lifetime Technical Support. Please call our certified technicians at 310-874-3313 for any questions about your product.
