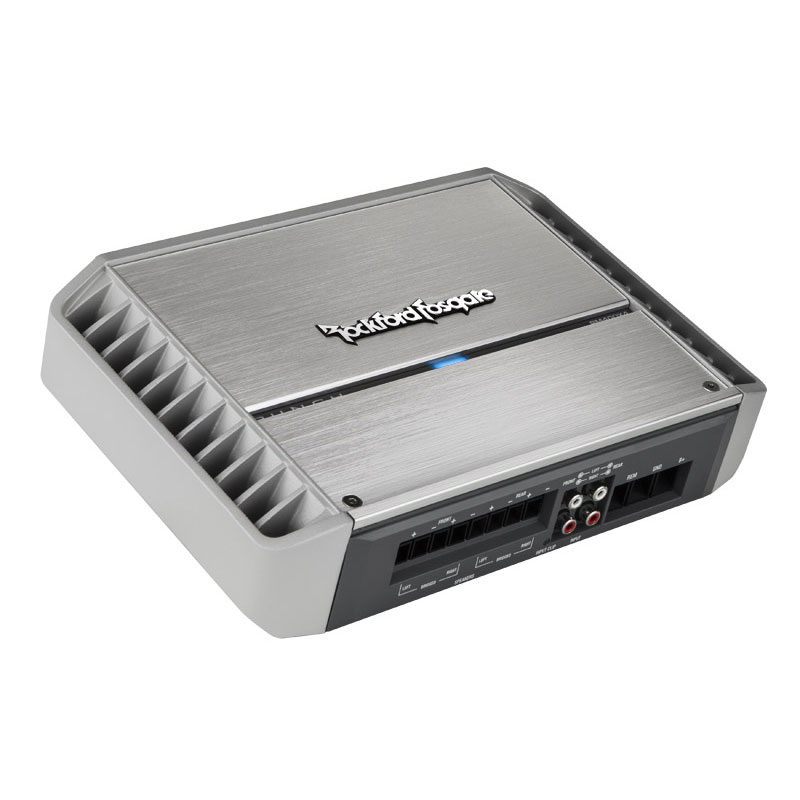

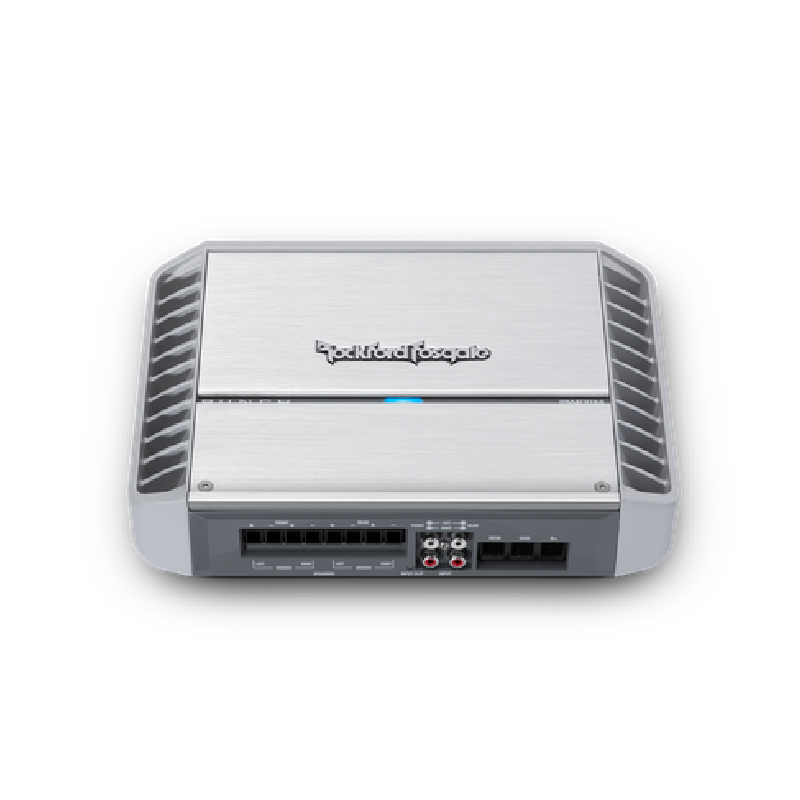

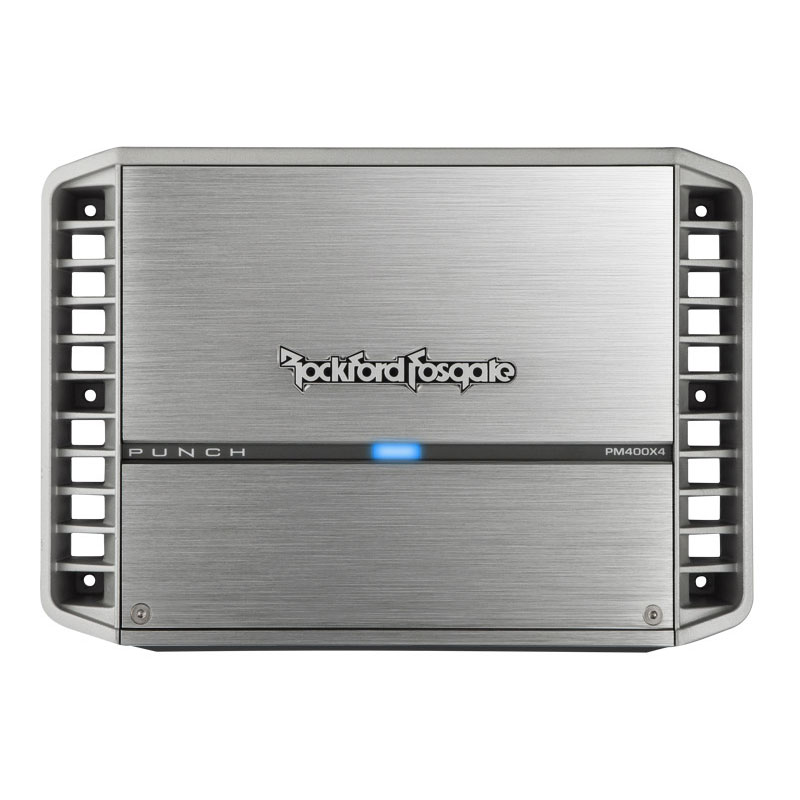

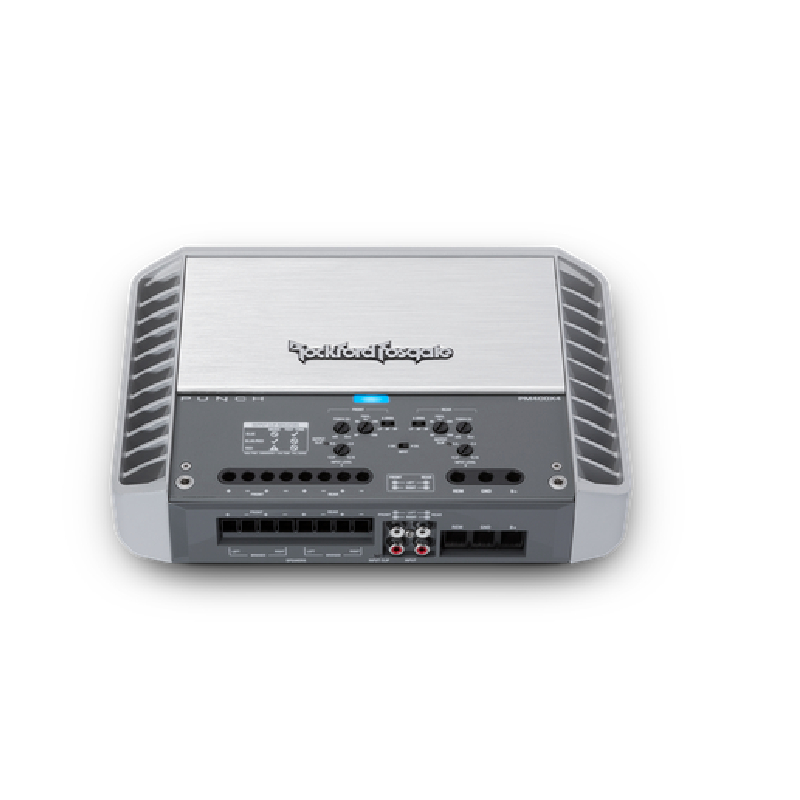

Rockford Fosgate PM400X4 PM Series 100W x 4 RMS @2Ohms, 400W Max Power 4-Channel Class A/B Marine Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 4-Channel marine amplifier
• 2.5mm Allen wrench
• (4) 1-1/2" Self-tapping screws
• Certificate of Performance Verification
• Setup guide
• User's Manual
Rockford Fosgate designed their PM400X4 4-channel amplifier for marine and powersports applications. It'll power systems with front and rear speakers, it'll drive a couple of subs in 2-channel mode, or you can switch the amp to 3-channel mode to power a set of speakers and a subwoofer.
The PM400X4 uses Rockford Fosgate's CLEAN level setting technology, so there's no more guesswork while setting your gain levels. Easy-to-see LED indicators identify clipping so you can set your amp up for maximum performance while eliminating distortion.
Class A/B Amplifier
Using a Class AB design, the PM400X4 delivers outstanding performance from a compact package. It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion.
Uses Maximum Efficiency Heat Sink Application
Rockford Fosgate also uses the innovative Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a tight space.
Maximum Power : 400 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 4
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
RMS Power Output : 4x100 Watts
Channel Separation : Yes
Amplifier Class : A/B
Fuse Rating : 60 A
High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on
Cast aluminum heatsink

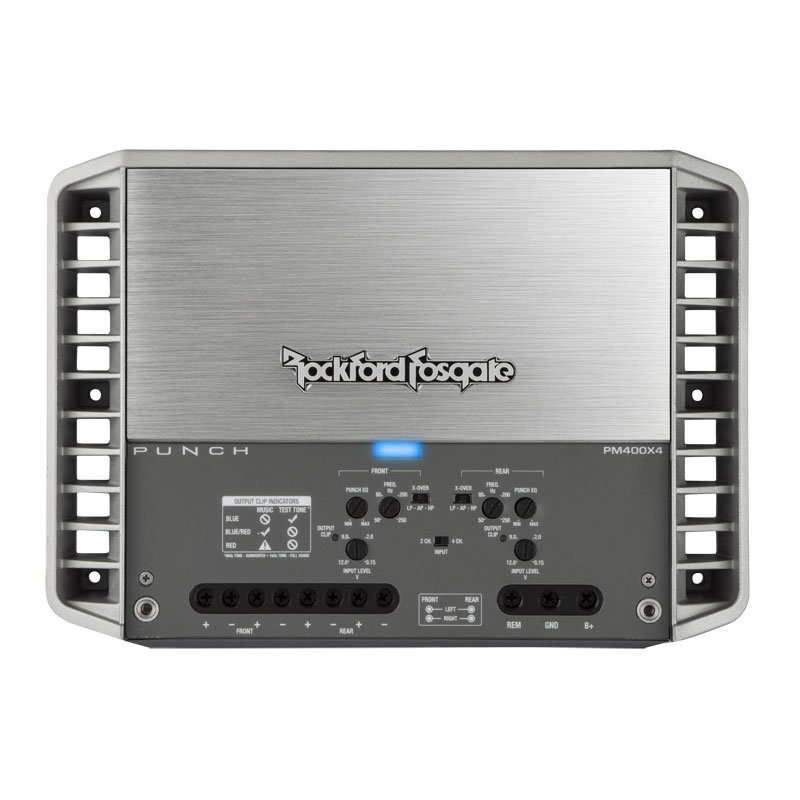

Stealth top mounted control panel
Short circuit protection
Over current protection
Marine grade stainless steel hardware

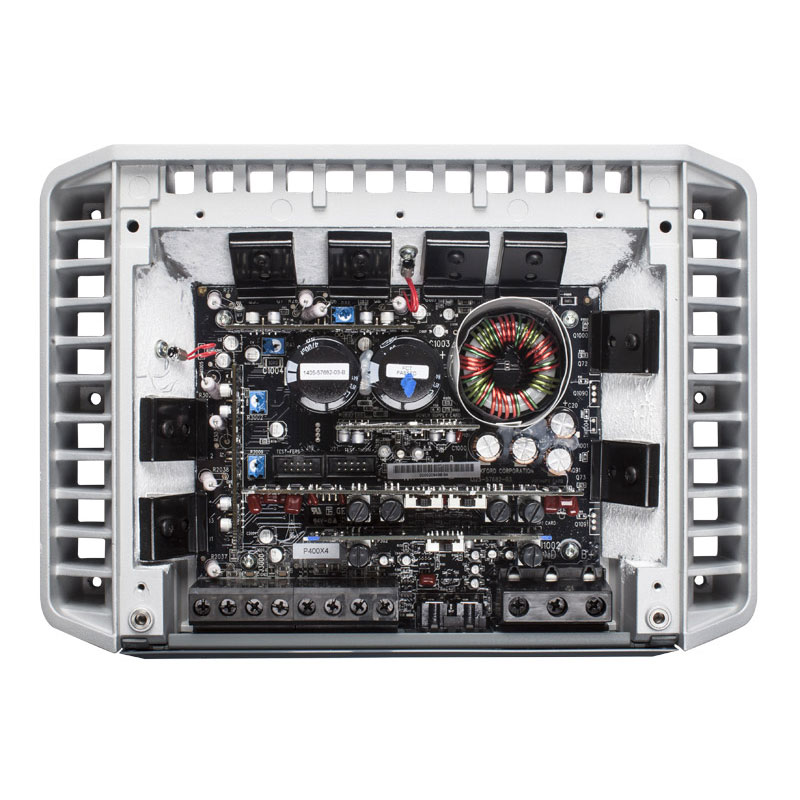

Marine grade two part epoxy coating on circuit boards
Number of Channels: 4
Total Power (Sum of Rated Power): 400 Watts
Rated Power (RMS Continuous Power)
50 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power (PVC/PowerCube®)
82 Watts x 4 @ 4-Ohm
137 Watts x 4 @ 2-Ohm
266 Watts x 2 @ 4-Ohm Bridged
Frequency Response: 20Hz to 20kHz +/- 1.0dB
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency (average): 67% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)

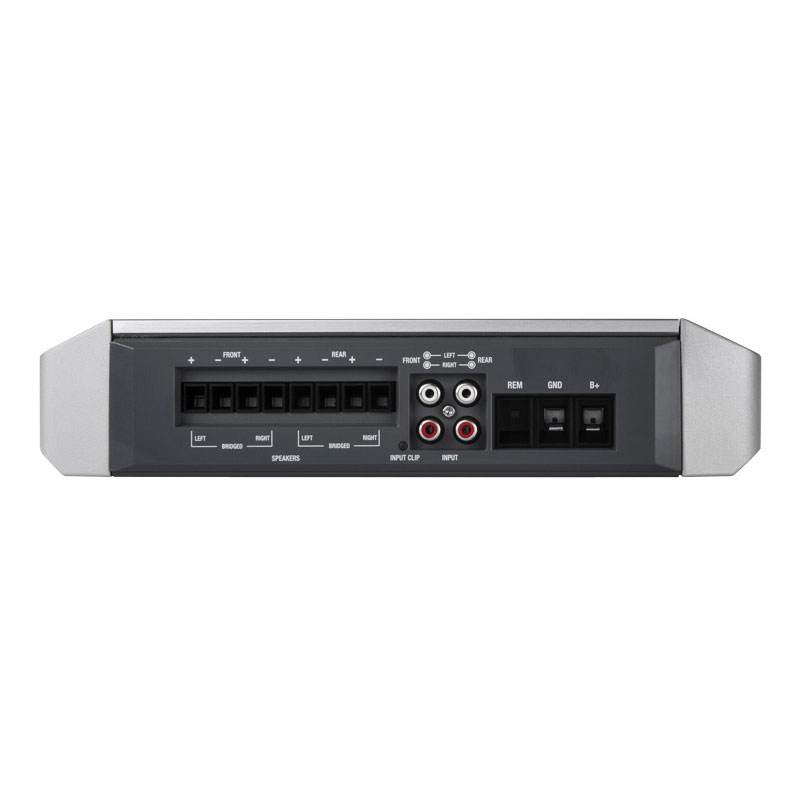

Signal Input: Hi/Low level: 2 RCA pair
Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Function depends upon LP/AP/HP switch position
Front High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
