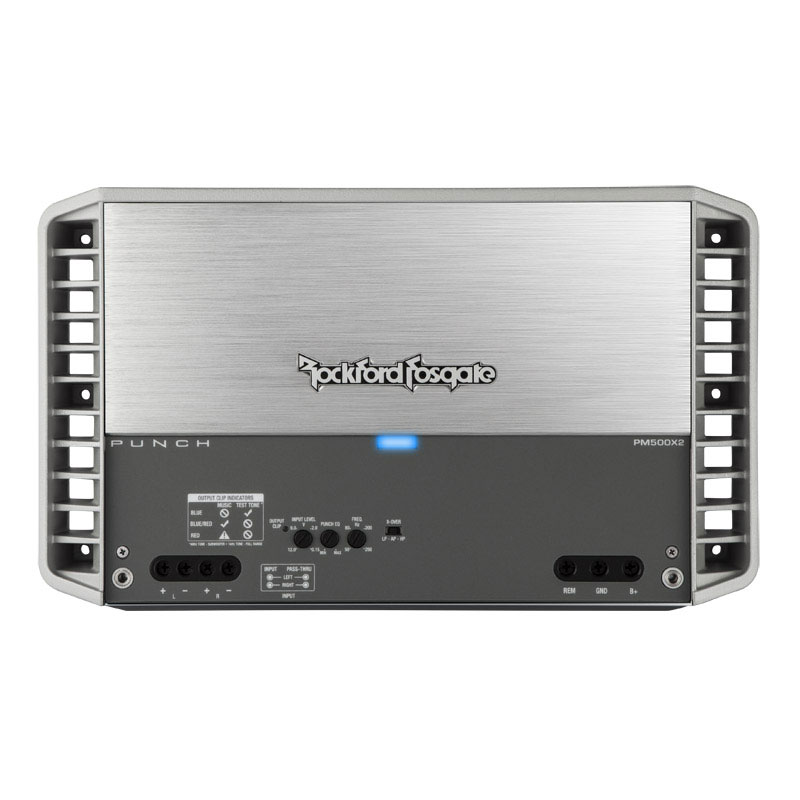

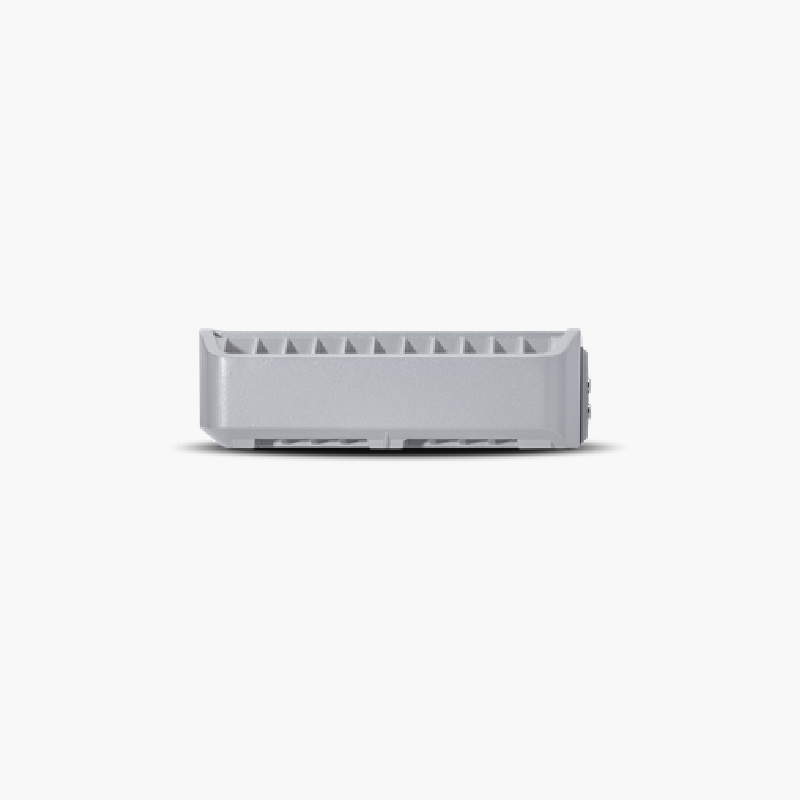

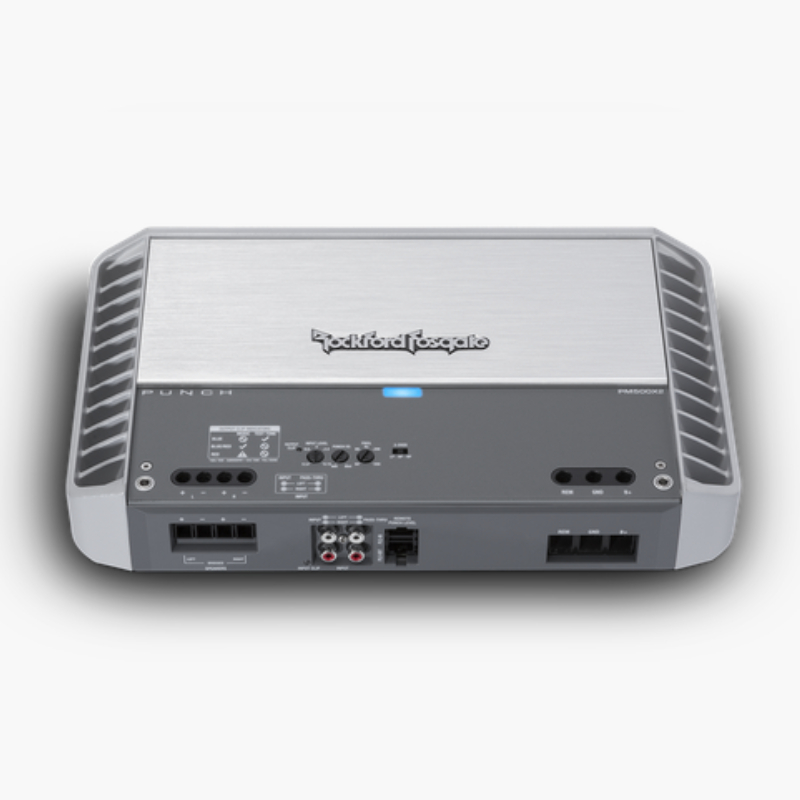

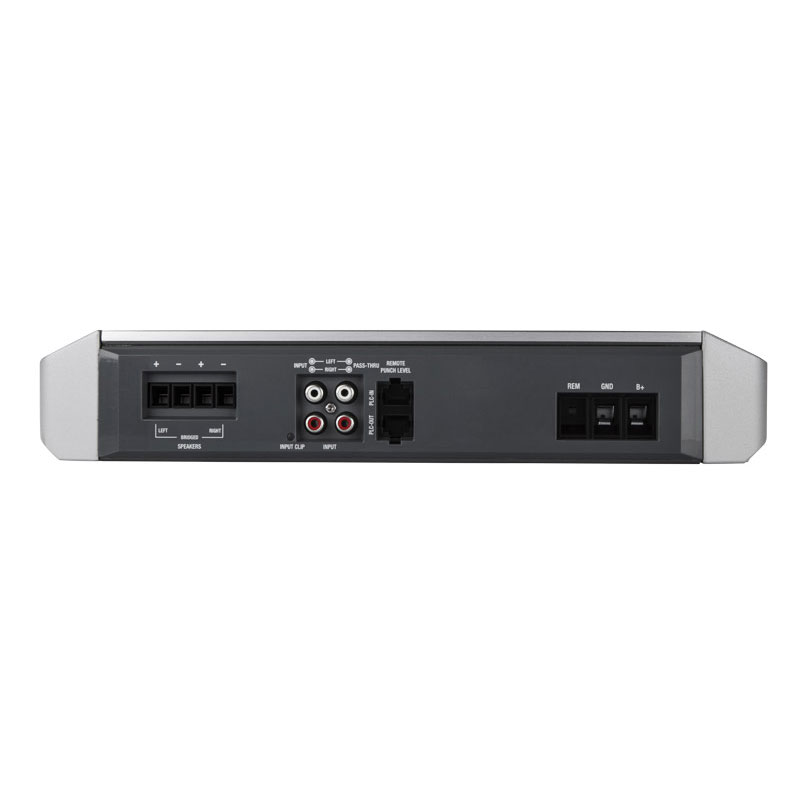

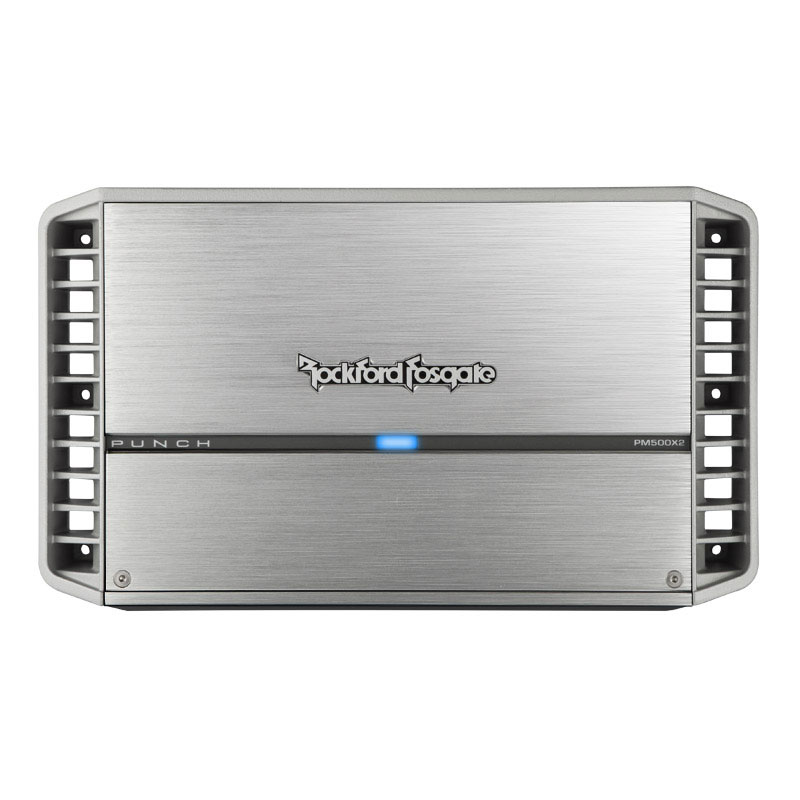

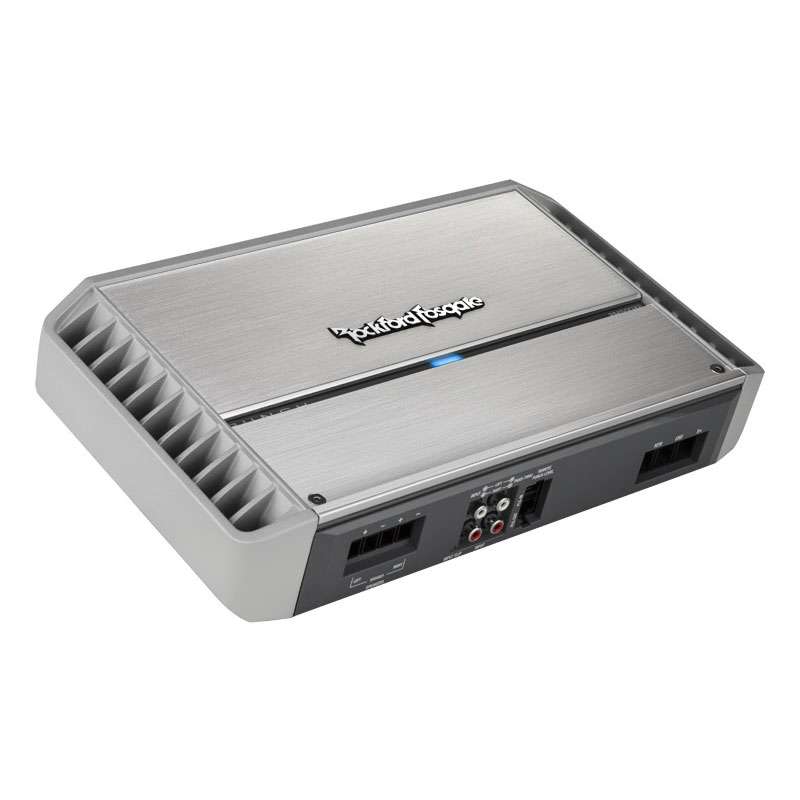

Rockford Fosgate PM500X2 Punch Series 250W x 2 RMS @ 2Ohms, 500W Max Power Class A/B 2-Channel Marine Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 2-Channel marine amplifier
• 2.5mm Allen wrench
• (4) 1-1/2" Self-tapping screws
• Setup guide
• Certificate of Performance Verification
• User's Manual
Rockford Fosgate designed their PM500X2 2-channel amplifier for marine, motorcycle, and powersports applications. This rugged, versatile amp can drive a pair of coaxial speakers, a set of component speakers, or a subwoofer or two.
Class A/B Amplifier

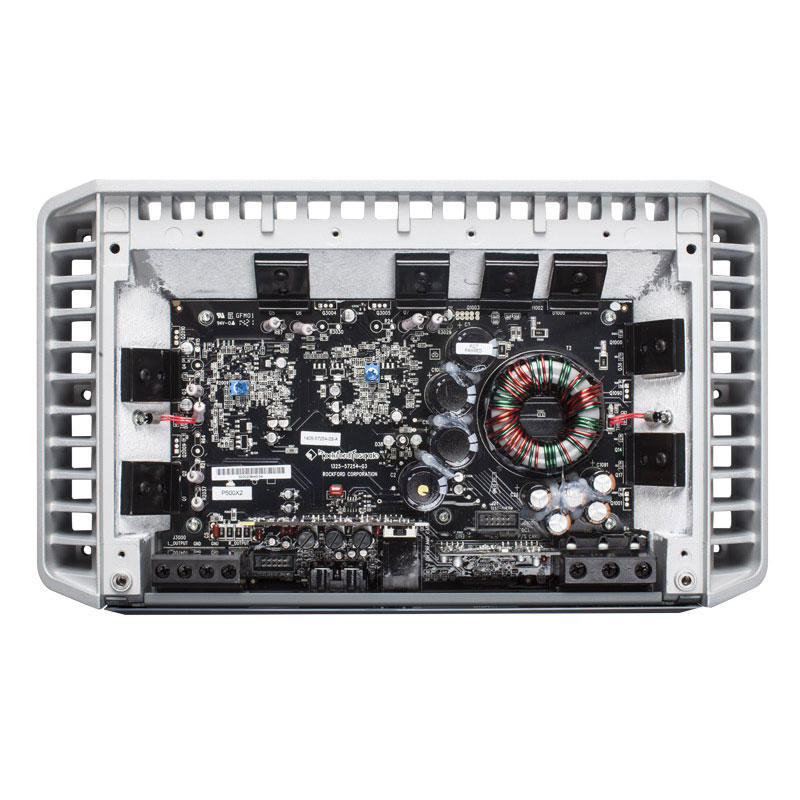

Using a Class AB design, the PM500X2 delivers outstanding performance from a compact package. It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion. Rockford Fosgate also uses the innovative Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space.
Maximum Power : 500 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 2
Frequency Response : 20-20000 Hz
RMS Power Output : 2x250 Watts
Amplifier Class : A/B
Fuse Rating : 80 A
High level input capable with Auto Turn-On circuit
Remote Controls: Optional Punch Level Control (PLC2) Ready
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge: 4 AWG
Power Input Connector: Captive C-Clamp
Speaker Wire Gauge: 8 AWG to 18 AWG
Speaker Output Connector: Captive C-Clamp
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 80 A
Average Current Draw (13.8V Music): 40 A
Max. Current Draw (13.8V Sinewave): 80 A
Suggested Alternator: 75 A
Dimensions (H x W x D):2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight: 12.3 Lbs. (5.57 Kg.)
