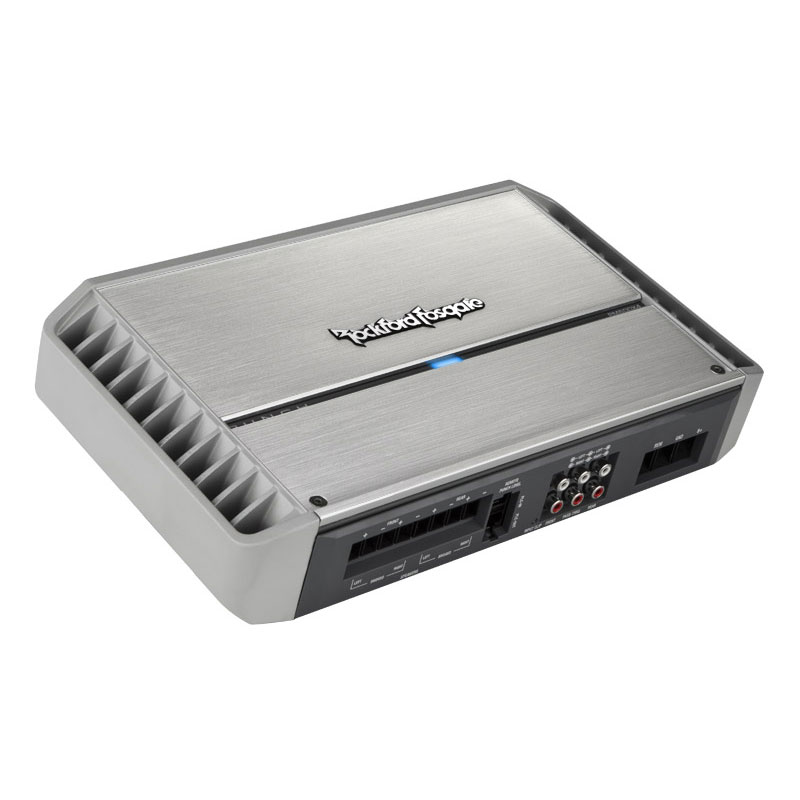

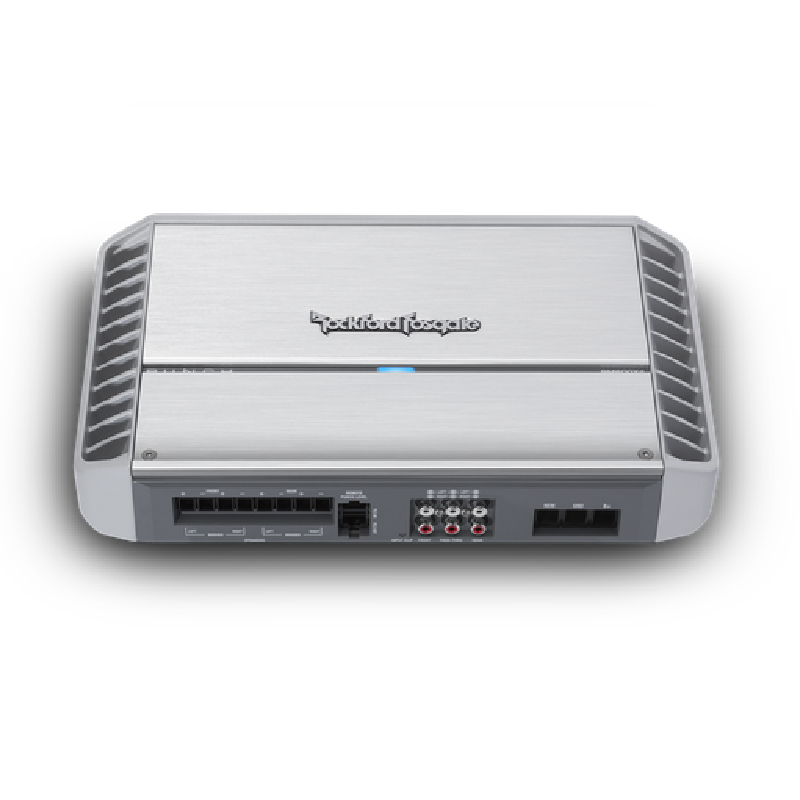

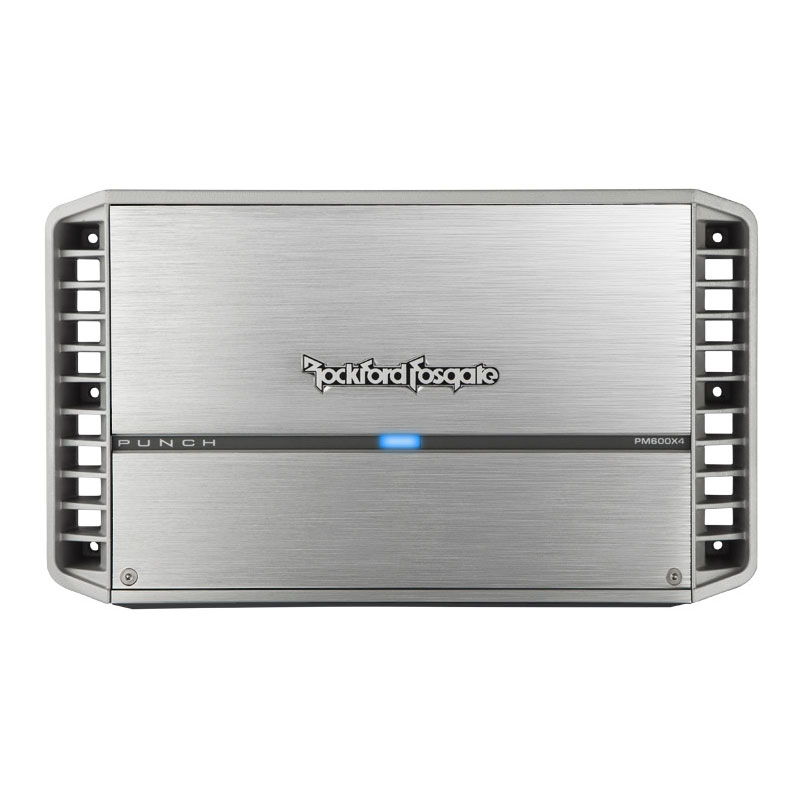

Rockford Fosgate  PM600X4

Punch Marine Series 150W RMS x 4 at 2-Ohms, Class AB Marine Amplifier

Item #41934

Condition:   Brand New

Product Highlights

  • Punch Marine
  • 4-Channel Amplifier
  • 150W RMS
  • Class AB
  • Marine Rated

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$649.99

Reg. Price $749.99  Save $100.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Rockford Fosgate Banner

Rockford Fosgate PM600X4 Punch Marine Series 150W RMS x 4 at 2-Ohms, Class AB Marine Amplifier


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel marine amplifier
  • • 2.5mm Allen wrench
  • • (4) 1-1/2" Self-tapping screws
  • • Certificate of Performance Verification
  • • Setup guide
  • Owner's Manual
Versatile Amplifier

Rockford Fosgate designed their PM600X4 4-channel amplifier for marine and powersports applications. You can power systems with front and rear speakers, drive a couple of subwoofers, or switch the amp to 3-channel mode to power a set of speakers and a subwoofer.

C.L.E.A.N Technology

The PM600X4 uses Rockford Fosgate's CLEAN level setting technology, so there's no more guesswork while setting your gain levels. Easy-to-see LED indicators identify clipping so you can set your amp up for maximum performance while eliminating distortion.

Class A/B Amplifier

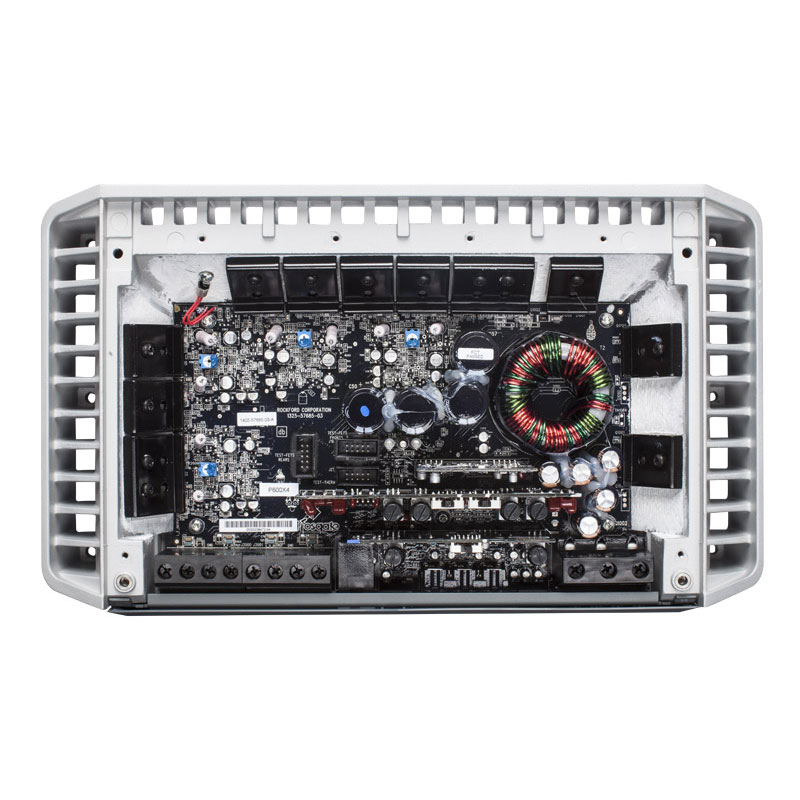

Using a Class AB design, the PM600X4 deliver outstanding performance from a compact package. It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion.

Uses the Maximum Efficiency Heat Sink Application

Rockford Fosgate also uses the innovative Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a tight space.


SPECIFICATIONS


  • Maximum Power : 600 Watts
  • Low Frequency Response : 50-250 Hz
  • High Frequency Response : 50-250 Hz
  • Number of Channels : 4
  • Frequency Response : 20-20000 Hz
  • RMS Power Output : 4x150 Watts
  • Amplifier Class : A/B
  • Fuse Rating : 100 A

FEATURES


Features:

  • High-Level Input with Auto Turn-On: Automatically powers the amplifier when a signal is detected
  • C.L.E.A.N. Set-Up: Provides precise calibration for optimal audio performance
  • RCA Pass-Thru Outputs: Allows easy connection to additional amplifiers or components
  • 12 dB/Octave Butterworth Crossover: Ensures accurate frequency separation for speakers
  • Optional Remote Punch Level Control (PLC2) Ready: Includes input clip indicator for precise adjustment
  • On-Board Punch EQ: Provides +18 dB boost at 45 Hz for enhanced low-end impact
  • Cast Aluminum Heatsink: Maximizes heat dissipation for reliable operation

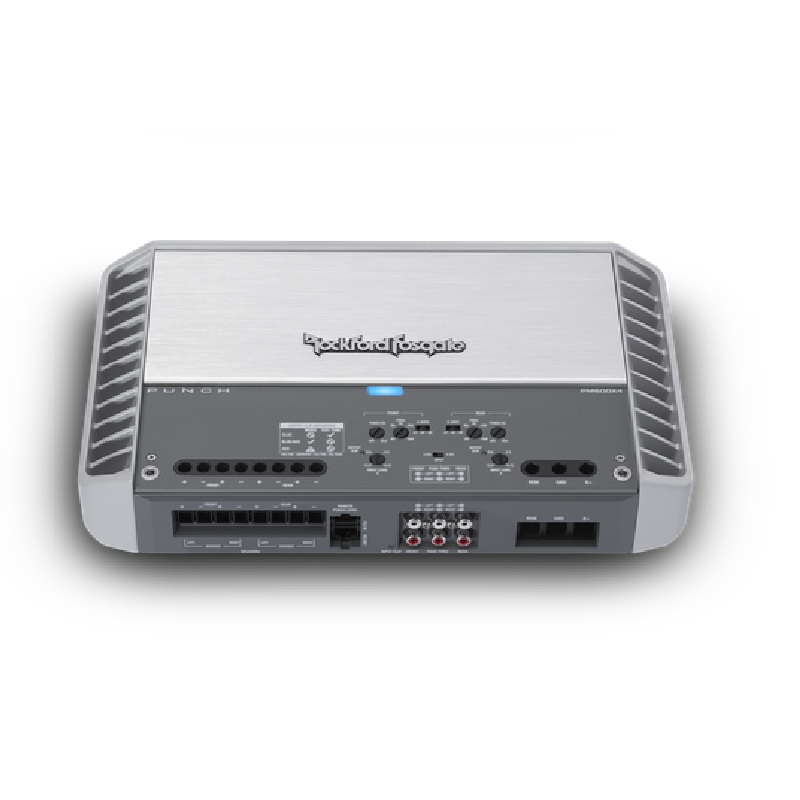

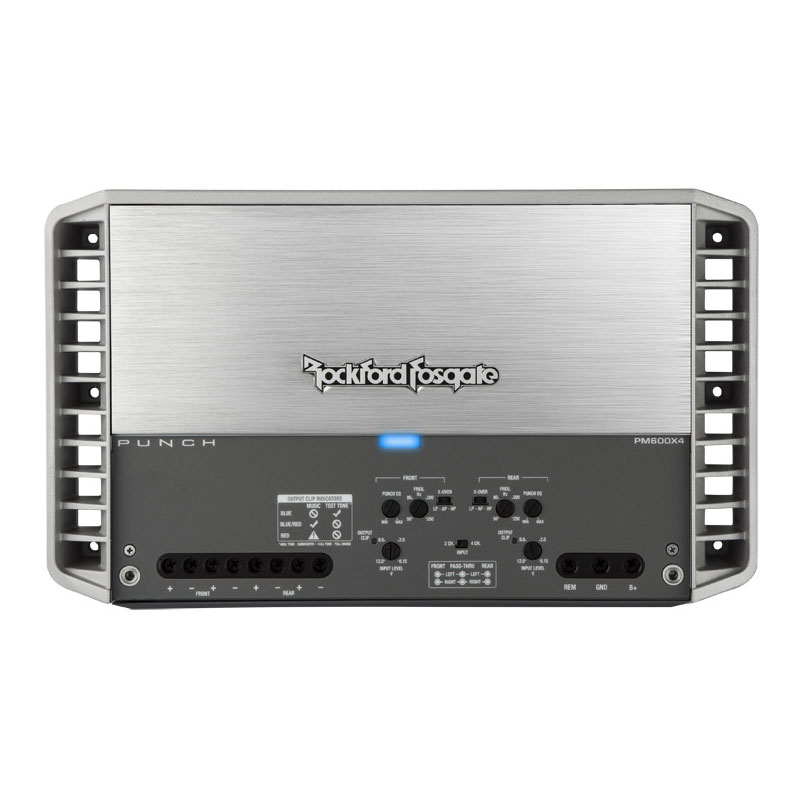

  • Stealth Top-Mounted Control Panel: Allows convenient adjustments without compromising installation aesthetics
  • Muted Turn-On: Prevents unwanted noise during power-up
  • Short Circuit & Over-Current Protection: Safeguards amplifier and connected components
  • Marine-Grade Two-Part Epoxy Coating: Protects circuit boards from moisture and corrosion
  • Marine-Grade Stainless Steel Hardware: Ensures long-lasting, corrosion-resistant mounting
  • 2-Year Warranty: Provides peace of mind with manufacturer coverage



Specifications:

  • Cta-2006 Compliant
  • Number of Channels: 4
  • Total Power (Sum of Rated Power): 600 Watts
  • Rated Power (RMS Continuous Power)
    • 75 Watts x 4 @ 4-Ohm
    • 150 Watts x 4 @ 2-Ohm
    • 300 Watts x 2 @ 4-Ohm Bridged
  • Dynamic Power (PVC/PowerCube®)
    • 129 Watts x 4 @ 4-Ohms 0° Res
    • 211 Watts x 4 @ 2-Ohms 0° Res
  • Bridgeable: Yes
  • Frequency Response: 20Hz to 20kHz +/- 1.0dB
  • Input Sensitivity: 150 mV - 12 V
  • Circuit Topology Class: Class A/B
  • Efficiency (average): 68% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise)
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%

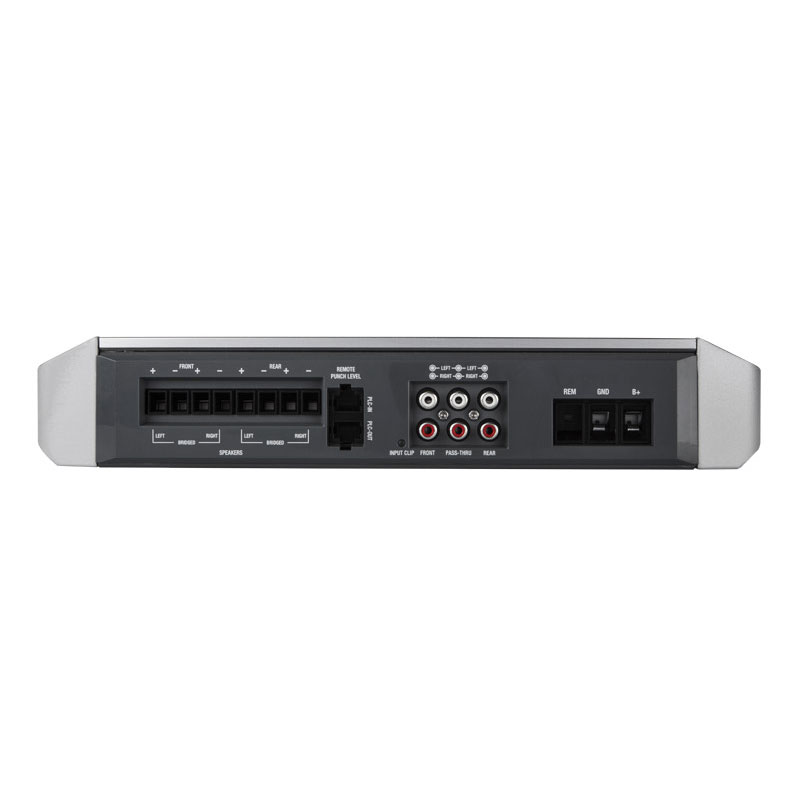

  • Signal Input: Hi/Low level: 2 RCA pair
  • Signal Output: Low level: 1 RCA pair
  • Tone Controls
    • Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
    • Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
    • Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
    • Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
    • Function depends upon LP/AP/HP switch position
  • Crossover Controls
    • Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
    • Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
    • All-Pass: Yes
  • Remote Controls: Optional Punch Level Control (PLC2) Ready
  • Visual Indicators:
    • Power/Protect/Thermal LED
    • Input Clip LED3
    • Output Clip LED1,2,3
    • LED Color Legend:
    • 1BLUE: <0.5% THD
    • 2VIOLET: 1% THD
    • 3RED: 10%+ THD
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Captive C-Clamp
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Captive C-Clamp
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 100 A
  • Average Current Draw (13.8V Music): 45 A
  • Max. Current Draw (13.8V Sinewave): 90 A
  • Suggested Alternator: 75 A
  • Dimensions (H x W x D): 2.38 x 7.76 x 13.28 (in)
    • 6.05 x 19.71 x 33.73 (cm)
  • Shipping Weight: 12.8 Lbs. (5.80 Kg.)
  • UPC: 780687345129
  • Weight: 13
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
