Rockford Fosgate PP4-NT Punch Series 1" 50W RMS (100W Peak Power Handling) 4 Ohms Neodymium Tweeter
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

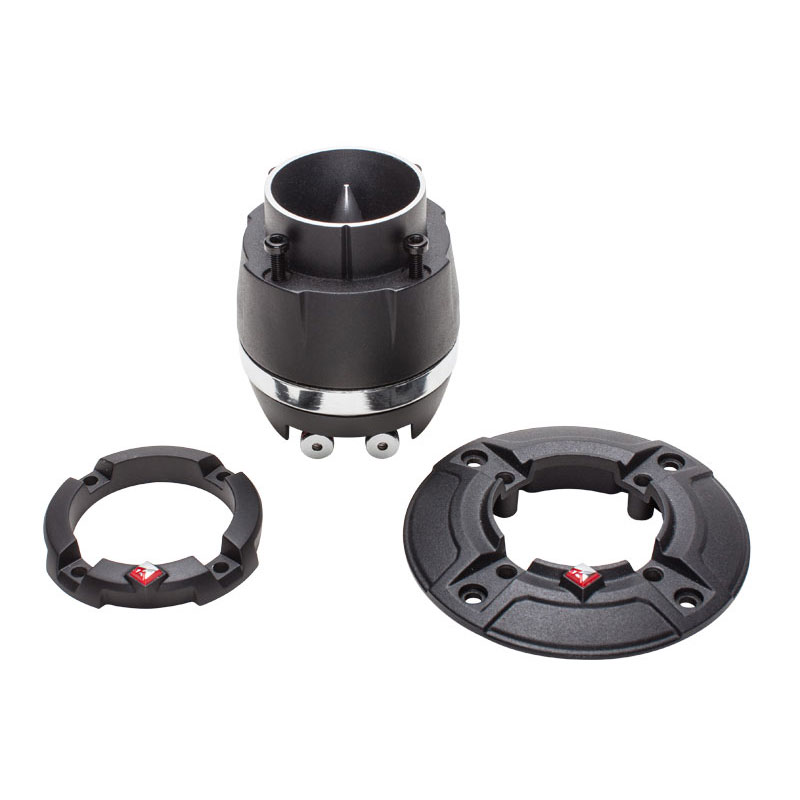

- • (1) Single Punch Pro Tweeter w/ Integrated Concealed Crossover
- • (1) Large Trim Ring Option
- • (1) Small Trim Ring Option

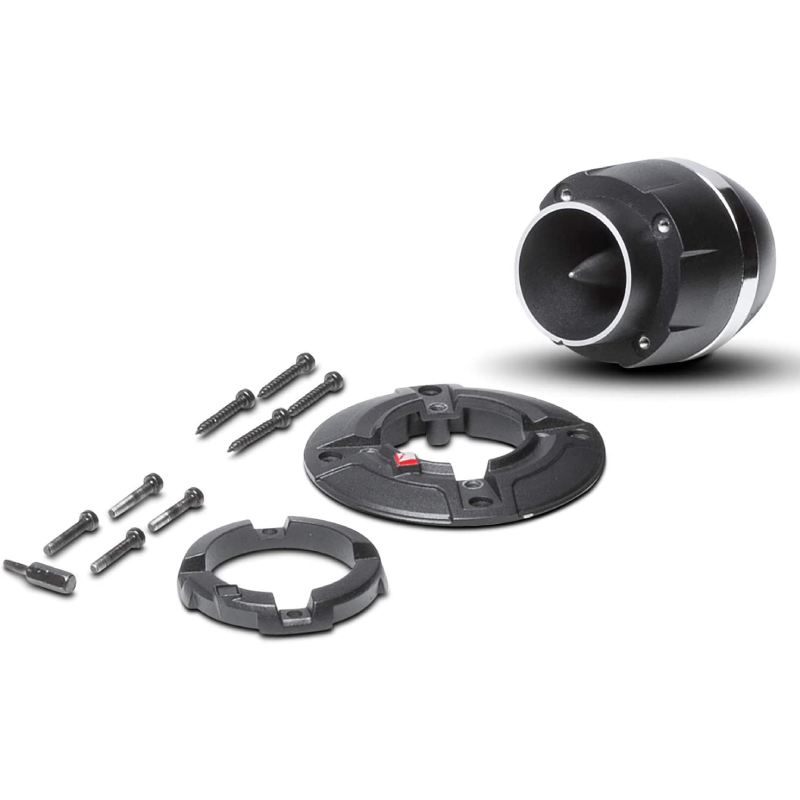

- • Mounting Hardware
- • Owner's Manual
Why Choose Rockford Fosgate PP4-NT Car Tweeter?
Built for Volume!
Designed to meet the needs of the customer who is most concerned about how loud their audio system can get, we created our Punch Pro series of drivers for that one purpose. Developed around highly efficient motor structures, they produce high-output sound without needing excessively large power amplifiers to drive them.
High Efficiency Horn Tweeter
The PP4-NT Punch Pro is a 1" tweeter with an integral 6 dB high-pass crossover engineered for high SPL (Sound Pressure Level) conditions. The neodymium motor structure and high-power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud!
Frequently Asked Questions (FAQ)
- • Why is there no sound from the tweeter?
Check the wiring, crossover connections, and amplifier output. Loose wires or incorrect connections can prevent proper high-frequency output.
- • Why do the highs sound too harsh?
Reduce the tweeter level or adjust the crossover if available. Excessive gain and strong EQ settings can also make the highs sound harsh.
- • Why do they sound distorted at higher volume?
Excessive gain or amplifier clipping can cause distortion. Lower the gain and verify the crossover is filtering low frequencies properly.
- • Why are the highs barely noticeable?
Check the crossover, polarity, amplifier gain, and EQ settings. Incorrect filtering or phase can reduce the high-frequency output.
- • Can these be used with my factory stereo?
Compatibility depends on the stereo and wiring setup. Use the proper crossover or filtering components and confirm the system's impedance requirements.
- • Why do I hear a buzzing or rattling noise?
Check for loose mounting hardware, damaged wiring, or nearby trim contacting the tweeter. Secure the mounting area and inspect the connections.
- • Does tweeter placement affect the sound?
Yes. Mounting angle and location affect imaging and high-frequency coverage. Aim them toward the listening area for more consistent sound.
- • Why does one tweeter stop working intermittently?
Inspect the wiring, crossover, and terminals for loose connections. Vibration can cause intermittent contact, especially around door or dash installations.
- • What should I check if a tweeter stops working completely?
Check the amplifier channel, crossover, wiring, and connections. Test the signal at the input before assuming the tweeter itself has failed.
- Diameter : 1 Inch
- Sensitivity : 105 dB
- Frequency Response : 4000-20000 Hz
- Peak Power Handling : 100 Watts
- RMS Power Handling : 50 Watts
Features:
- High efficiency horn tweeter
- Aluminum diaphragm
- Aluminum phase plug
- High temp Nomex former voice coil
- Die cast aluminum frame
- All metal input spring terminal connection
- Neodymium motor structure
- Built-in 6dB/Octave crossover
- Removable mounting flange
- Mounting hardware included
- PP4-X and PP8-X crossover compatible
Specifications:
- Voice Coil Diameter (in/mm)1" (25 mm)
- Tweeter Mounting Depth2.57" (65.8 mm)
- Midrange Mounting Depth—
- Tweeter Size
- (Nominal Diameter)1.0"
- Speaker TypeTweeter
- Crossover4kHz @ 6dB/Octave
- Mounting Hardware Yes
- Grille/Trim Ring IncludedNo
- Power Handling (RMS)50 Watts RMS
- 100 Watts Max
- Midrange Mounting Diameter—
- Tweeter Mounting DiameterLarge Trim Ring: 2.52" (64 mm)
- Small Trim Ring: 1.79" (45.5 mm)
- Nominal Impedance (Ohms): 4-Ohm
- Midrange Size: (Nominal Diameter)—
- Frequency Response (Hz): 4kHz - 20kHz
- Sensitivity (dB @ 1W/1M): 105
- UPC: 780687345358
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Excellent tweeters! The sound quality is one of the best for the price. Bright and clear and it doesn’t hurt my ears listening to it all day long.
