- Maximum Power : 1100 Watts
- Number of Channels : 5
- Frequency Response : 10-35 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 120x5 Watts
- Amplifier Class : D
What's Inside?

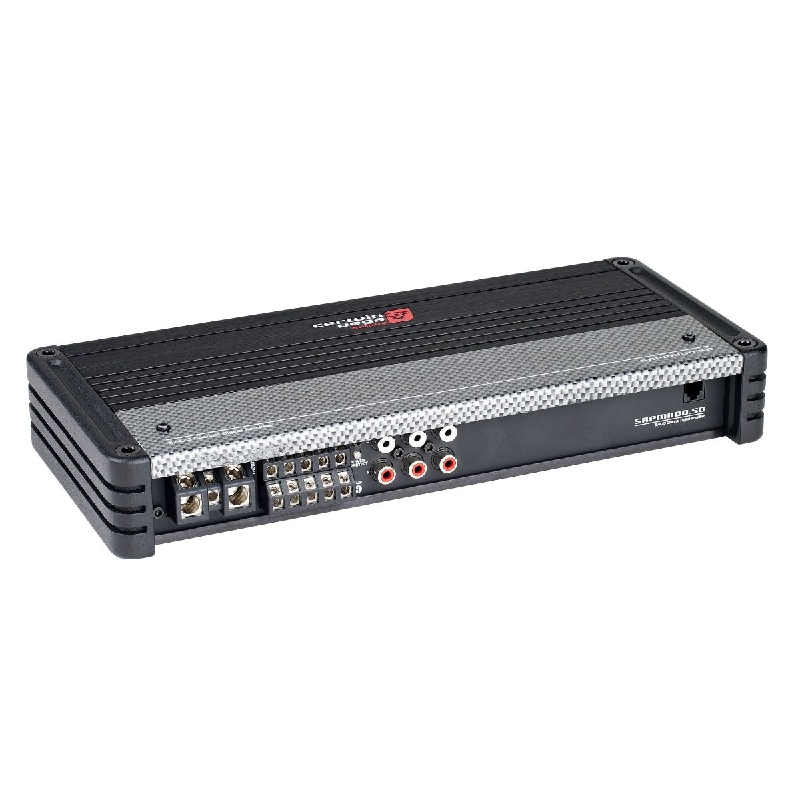

- 1 RPM Stroker Series Class D 5-Channel Car Amplifier
Features:
- Class D IR Chipset With DirectFET Power Mosfet Output Stage
- Conformal Coated PCB To Protect Against Moisture, Vibration/Mechanical Stress
- BTR Port For Bluetooth Receiver To Control Smart Devices and Media Content
- Top Mount Controls For Quick Precise Adjustments
- Advanced Rollback Thermal Protection
Specifications:
- MAX Power Rating: 1100W
- RMS Power(2Ω): 120 W x 4 / 500 W x 1
- RMS Power (4Ω): 100 W x 4 / 300 W x 1
- RMS Bridge (mono 1Ω): N/A
- RMS Bridge (mono 2Ω): N/A
- RMS Bridge (mono 4Ω): 200 W x 2 / 300 W x 1(4 Ω)
- Types: Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- Distortion - THD ([email protected]Ω): (0.3%)
- Distortion - S/N Ratio (A weight @ 1W): -76.7dBA
- Distortion - S/N Ratio (A weight @ FP): -96.7dBA
- Input Sensitivity - Hi/Low Input Level: YES/ 0.2mV – 10.0V
- Input Impedance - Low Input Level: 22 KΩ
- Output Impedance: 0.051 Ω
- Damping Factor ([email protected]Ω): >70
- Bandwidth (-3dB): 10Hz-35Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 30Hz-300Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: N/A
- Dimension - Length x Width x Height - Inches(mm): 10.25 x 5.28 x 1.75 ( 260 x 134 x 44.5
- UPC: 847169029172
- Weight: 10
