- Maximum Power : 1900 Watts
- Number of Channels : 5
- Built In Crossovers : Yes
- RMS Power Range : 150x4 Watts
- Amplifier Class : D
- Fuse Rating : 60 A
Features:

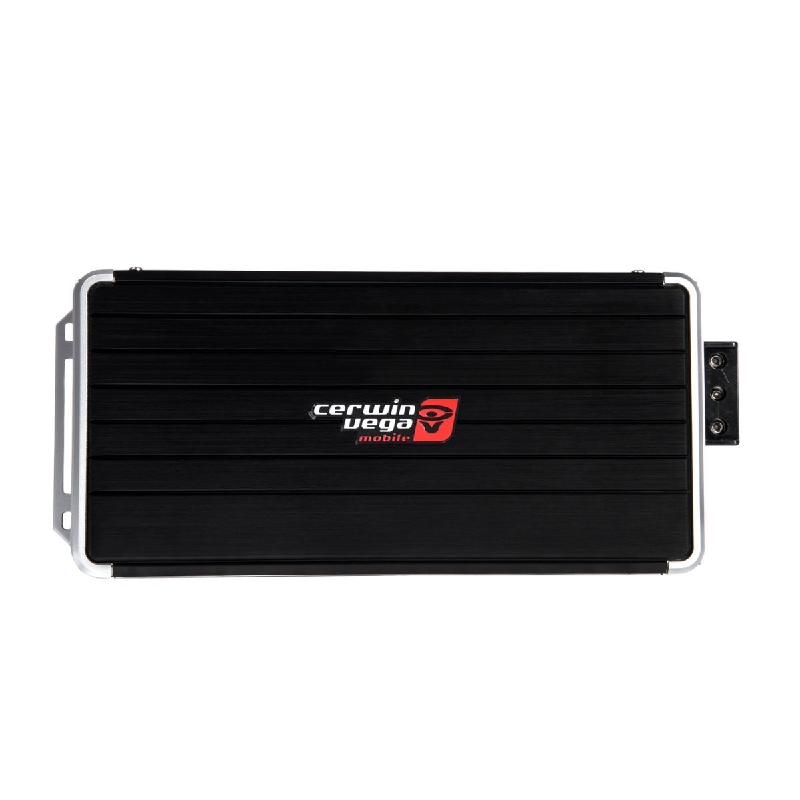

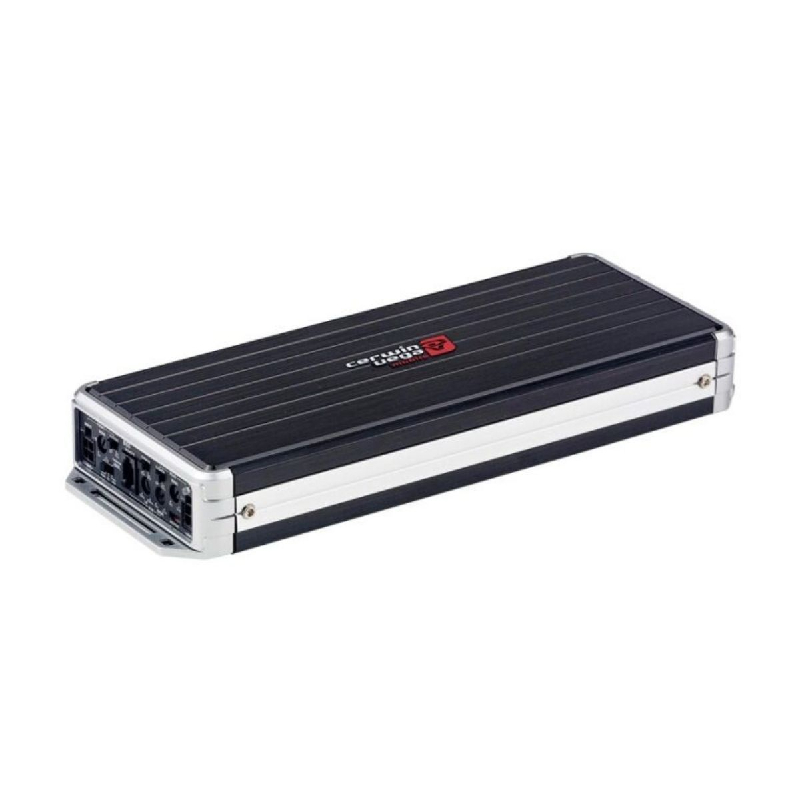

- 5-Channel Bomber Series Class D Amplifier
- Ultra-Compact High-Density Aluminum Alloy Chassis
- Advanced Rollback Power/Thermal Protection
- Class D IR Chipset with DirectFET Power Mosfet Output

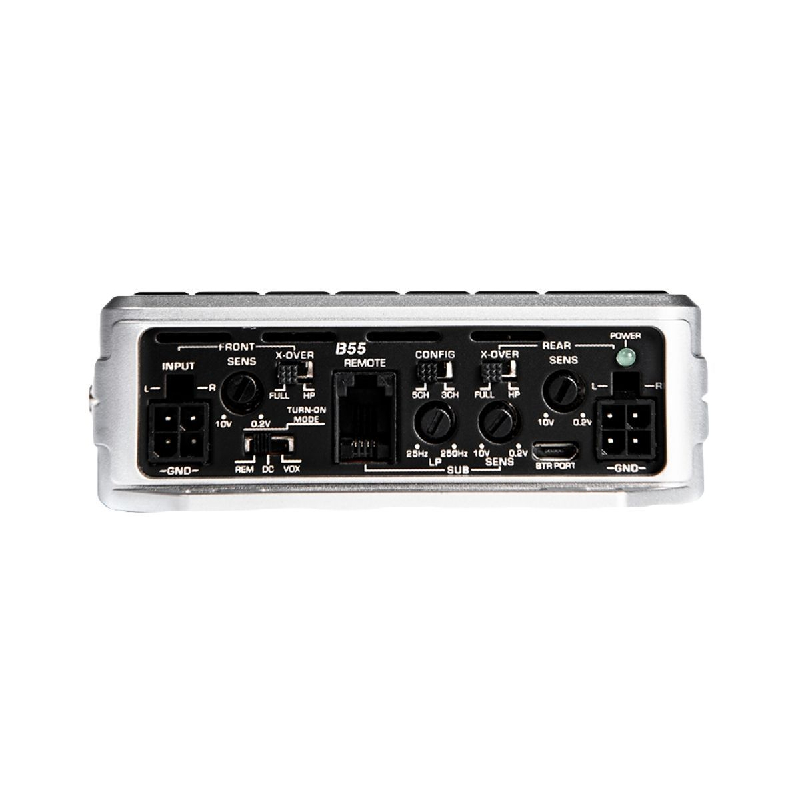

- Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost
- Remote Turn On Configurator – REM/DC/VOX
Specifications:
- 150W X 4/350W X 1 @ 2Ω
- 80W X 4/200W X 1 @ 4Ω
- 1900W Max Power
- Types: Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0VDC-17.0VDC
- Idle Current: (0.7A)
- Distortion - THD ([email protected]Ω): 0.5%
- Distortion - S/N Ratio (A weight @ 1W): -85dBA
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity - Hi/Low Input Level: 200mV-10.0V
- Input Impedance - Low Input Level: 20 kΩ
- Input Impedance - AUX Input Level: 20 kΩ
- Output Impedance: 0.018 Ω
- Damping Factor ([email protected]Ω): >70
- Bandwidth (-3dB): 10Hz-35KHz
- Crossover (-12 dB/ Oct) Variable High-Pass Flat or Fixed: 70Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: 60A
- Dimension - Length x Width x Height - Inches(mm): 10.45 x 4.0 x 1.4 (265.6 x 102 x 36)
- UPC: 0847169024276
- Weight: 10
