Orion  CTW125 RK Hot Deal

Cobalt CTW125 Pro Bullet Horn Tweeter Replacement Voice Coil

Item #43059

Condition:   Brand New

Product Highlights

  • Model: Cobalt CTW125
  • Type: Pro Bullet Horn Tweeter
  • Component: Replacement Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$9.89

Reg. Price $19.46  Save 49%
In Stock
In Stock

Limited Stocks left!
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Orion Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

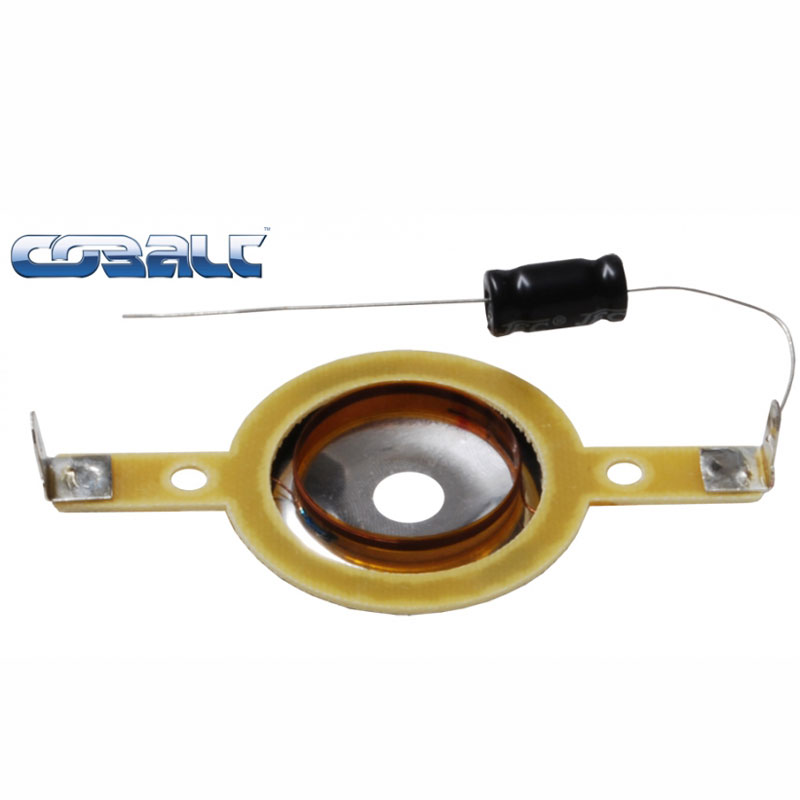

Orion CTW125 RK Cobalt CTW125 Pro Bullet Horn Tweeter Replacement Voice Coil


We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Tweeter Replacement Voice Coil
  • • Owner's Manual
Pro Bullet Horn Tweeter Replacement Voice Coil

Restore your compatible Cobalt CTW125 Pro bullet horn tweeter with the Orion CTW125RK replacement voice coil. Designed for automotive audio applications, this replacement component is a practical solution for replacing a worn or damaged voice coil and helping bring your tweeter back to proper working condition.


Frequently Asked Questions (FAQ)


  • • Why Does My Orion CTW125RK Replacement Coil Still Produce No Sound?
    If the replacement voice coil does not restore output, users should check the tweeter terminals, coil seating, crossover connection, and amplifier channel before assuming the new coil is defective.
  • • Why Did My CTW125 Voice Coil Burn Out Again After Replacement?
    A replacement coil can fail again if the tweeter is exposed to excessive power, clipping, or frequencies below its intended operating range. The CTW125 is rated at 50W RMS, and Orion lists a recommended 3.3µF/100V capacitor.
  • • Why Does My Orion CTW125 Sound Extremely Bright After Installing a New Coil?
    Some CTW125 owners have specifically described the highs as very strong or harsh. EQ settings, amplifier gain, and crossover frequency can significantly affect how the replacement coil sounds.
  • • Why Is My CTW125RK Difficult to Install Without Damaging the Rear Components?
    One user reported that installation required extra care because of the rear resistor and terminal arrangement. The mounting area may need additional clearance and careful positioning during installation.
  • • Why Do the Terminals on My CTW125RK Not Line Up Easily?
    A customer review noted that the CTW125's terminal placement required some creative adjustment for proper fitment. Users replacing the coil should verify terminal orientation before forcing connections into place.
  • • Can I Run the Orion CTW125RK Without a High-Pass Crossover?
    The CTW125 is a high-frequency bullet tweeter rather than a full-range driver. Product guidance recommends using a 12 dB/octave high-pass crossover at 3 kHz minimum, with 4 kHz recommended for maximum power handling.
  • • Why Does My Replacement CTW125 Coil Distort at High Volume?
    Distortion can occur when the amplifier clips, the tweeter receives excessive power, or the crossover allows too much low-frequency energy through. Proper gain adjustment and high-pass filtering are important for protecting the replacement coil.
  • • How Do I Know if the CTW125RK Is the Correct Replacement Coil?
    The CTW125RK is specifically listed as the replacement voice coil for the Cobalt CTW125 Pro Bullet Horn Tweeter. Users should verify the original tweeter model before ordering because Orion offers separate replacement coils for several CTW-series models.
  • • Why Does My CTW125 Sound Different After Replacing Only the Voice Coil?
    A change in sound after reconing can lead users to inspect the coil installation, diaphragm seating, wiring polarity, crossover components, and amplifier settings. The CTW125 uses a 1-inch voice coil and aluminum diaphragm design.
  • • Why Does My Orion CTW125RK Work at Low Volume but Cut Out When Played Loud?
    A tweeter that works normally at moderate levels but cuts out under heavy playback may be experiencing excessive thermal load, amplifier clipping, or protection-related behavior. The CTW125 is specified for 50W RMS and 200W maximum, so the amplifier should be configured around its continuous power capability.

SPECIFICATIONS



FEATURES


Features:

  • Replacement voice coil for Cobalt CTW125 Pro bullet horn tweeter
  • Orion CTW125RK replacement component
  • Designed for compatible bullet horn tweeter applications
  • Suitable for car and in-car audio systems
  • Helps restore tweeter performance
  • Ideal for replacing a worn or damaged voice coil
  • Compact replacement component
  • Single voice coil
  • UPC: 638353482824
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
