What's Included:
- HDMI bracket
- Sleeve
- Trim ring
- Microphone with bracket
- Radio removal tool
- Wiring harness
- Instruction Manual
- Rubber boot
- 6.5' Parking brake wire
- Visor clip
- 4 ISO-screws
- Rear-support bolt
- Warranty card
Product Highlights:
- General Features:
- DVD/CD receiver with AM/FM RDS tuner
- built-in internal amp (22 watts RMS/50 peak x 4 channels)
- motorized, retractable 6.95" touchscreen with 5-position angle adjustment
- built-in Bluetooth for hands-free calling and audio streaming
- fits single-DIN dash openings
- Smartphone Features:
- True Mirror enables smartphone screen viewing and receiver control using optional cables with the HDMI/MHL input
- built-in iPod, iPhone, and iPad control
- Siri voice control with select iPhones
- playback and control through USB of music files on compatible Android devices
- Pandora, iHeartRadio, and AUPEO! control with iPhone and Android
- Audio/Video Features:
- plays CDs, DVDs, and USB memory devices
- 5-band parametric EQ with DSP and Drive EQ
- high- and low-pass filters
- subwoofer level controls
- digital time alignment
- Expandability:
- works with SiriusXM tuner (not included)

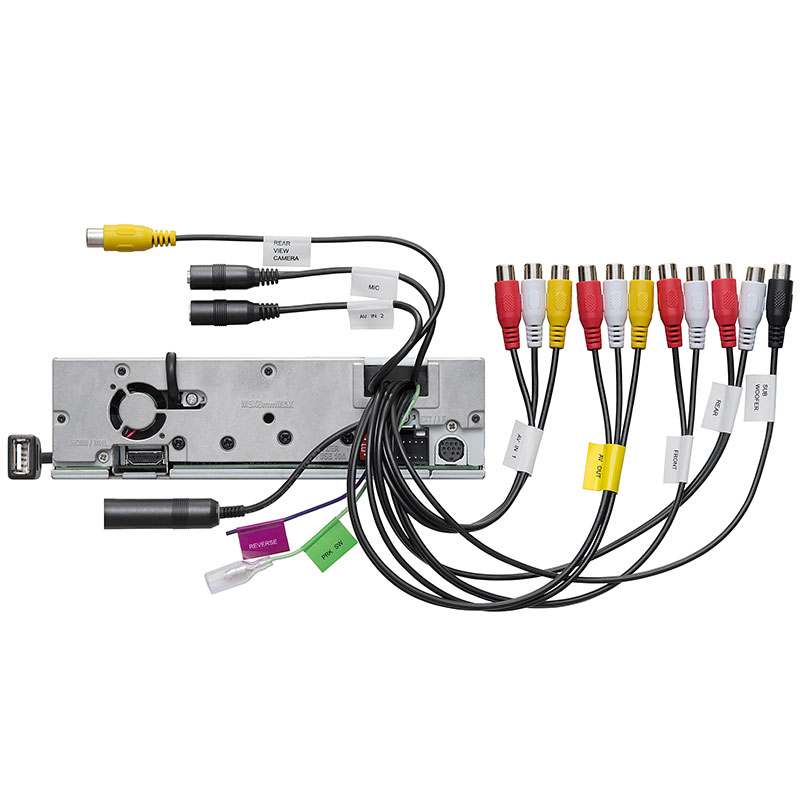

- inputs: rear USB input, rear HDMI/MHL input, dual rear A/V inputs, rear-view camera input
- outputs: rear video (RCA) output, 5-channel preamp outputs (4-volt front, rear, mono subwoofer)
- Other Information:
- compatible with most factory steering wheel audio controls (adapter required)
Kenwood has been a long time partner of Onlinecarstereo and we make sure you get your products on time. We source our supplies straight from the manufacturer / dealer so you can be sure you're getting an authentic and original Kenwood product.
- Maximum Power : 50Wx4 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 7 Inch
- Audio/Video Inputs : 2
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : N0
- Rear USB Input : 1
- Preamp Outputs : 3
- Audio/Video Outputs : 1
- Color : Black
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes

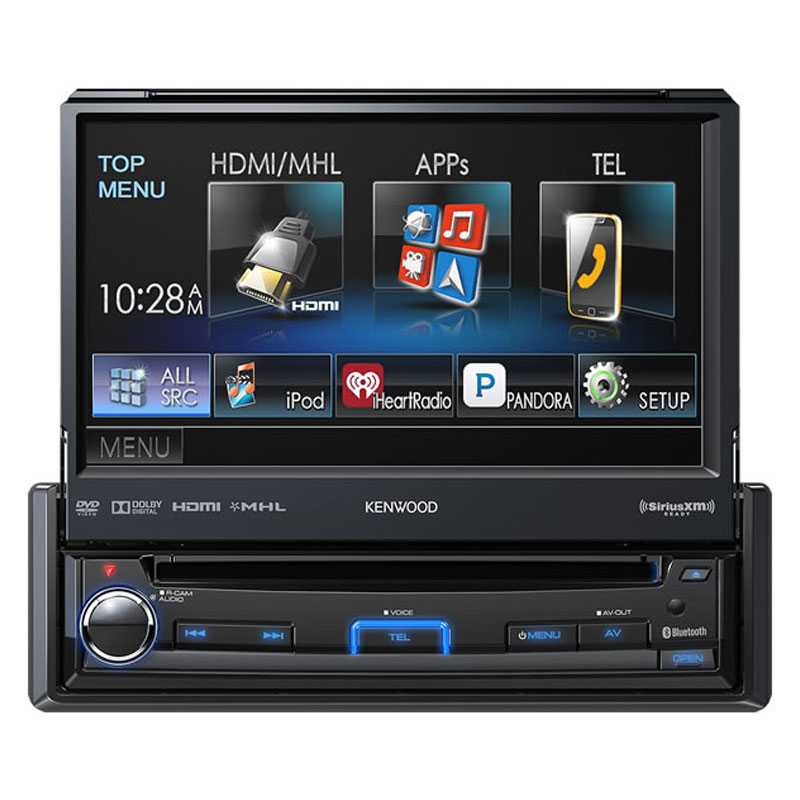

Kenwood KVT-7012BT features a motorized-retractable 6.95" touchscreen display with a TFT active matrix system. The screen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000 total pixels. This unit has touchscreen controls with interactive video graphics, making menu navigation easy
The Kenwood KVT-7012BT is equipped with built-in Bluetooth Allowing you to make and receive phone calls wirelessly through the receiver.Therefore, stream music wirelessly from your smartphone to the head unit. You can paired and connected to an iPhone with Siri via Bluetooth
| Specifications |
| Number of pixels |
1,152,000 800H x 480V x RGB |
| 44.1k Sampling |
20 - 20,000 Hz |
| Video Decoder |
MPEG1/MPEG2 |
| Audio Decoder |
Linear PCM, Dolby digital, MP3/WMA/AAC |
| D/A Converter |
24Bit |
| Pixel arrangement |
RGB striped arrangement |
| Wow & Flutter |
Below Measurable Limit |
| Sampling Frequency |
44.1kHz/48kHz, 96kHz |
| Effective pixels |
99.99% |
| Dynamic Range |
90dB(DVD-Video 96k) |
| Drive system |
TFT active matrix system |
| Picture size |
6.95 inches(diagonal) wide |
| Display system |
Transparent TN LCD panel |
| W x H |
154.1mm x 85.9mm (6-3/16 x 3-3/16 inch) |
| Back lighting |
LED |
| 96k Sampling |
20 - 20,000 Hz |
| 48k Sampling |
20 - 20,000 Hz |
| Total Harmonic Distortion 1kHz |
0.020% |
| Signal to Noise ratio |
90dB(DVD-Video 96k) |
| DISC Format |
DVD-Video/DVD-VR/VIDEO-CD/CD-DA |
| Quantifying Bit Number |
16/20/24bit |
- UPC: 0019048212283
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
