Pioneer TS-D1330C

5-1/4" D-Series 180-Watt Component Speaker Package

FREE Shipping in US 48!

Save $85.15 | Reg. Price $180.00

What other people bought after viewing this product.


  • 2 Woofer grilles
  • 8 Speed clips
  • Two woofers
  • 2 Passive crossovers (each with 17" Input wire/ 37" Tweeter output wire/ 18" Woofer output wire attached)
  • Template/ Installation instructions/ Specifications on box
  • Four 4mm x 14mm Self-tapping screws
  • Eight 4mm x 8mm Screws
  • Two tweeters with attached 9" speaker leads
  • Two 6x8/5x7 Adapter brackets
  • 2 Angled surface-mount housings (tweeter)
  • 2 Flush-mount housings
  • Eight 4mm x 20mm Self-tapping screws
  • 8 Flat washers

Product Highlights:

  • frequency response: 37-44,000 Hz
  • woofer top-mount depth: 2-5/16"

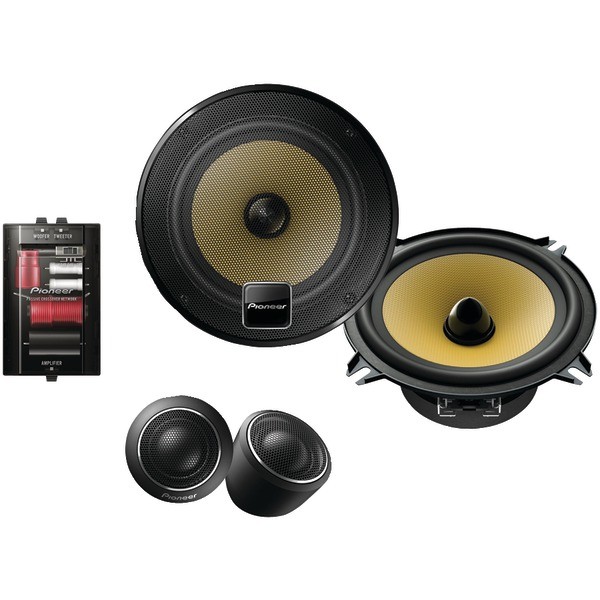

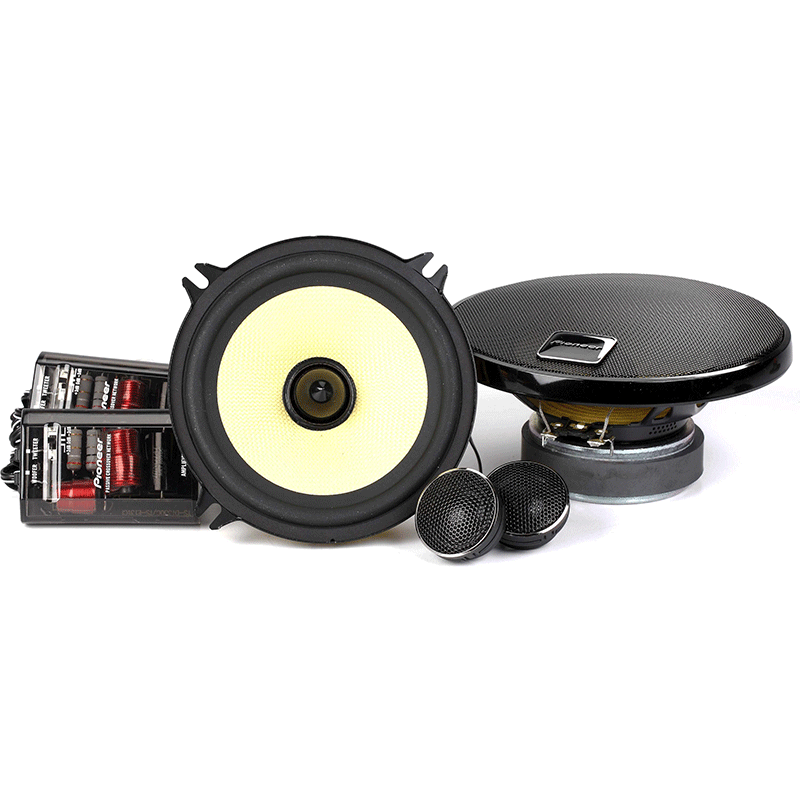

  • component speaker system includes two 5-1/4" woofers, two tweeters, two external crossovers, and two woofer grilles
  • sensitivity: 88 dB

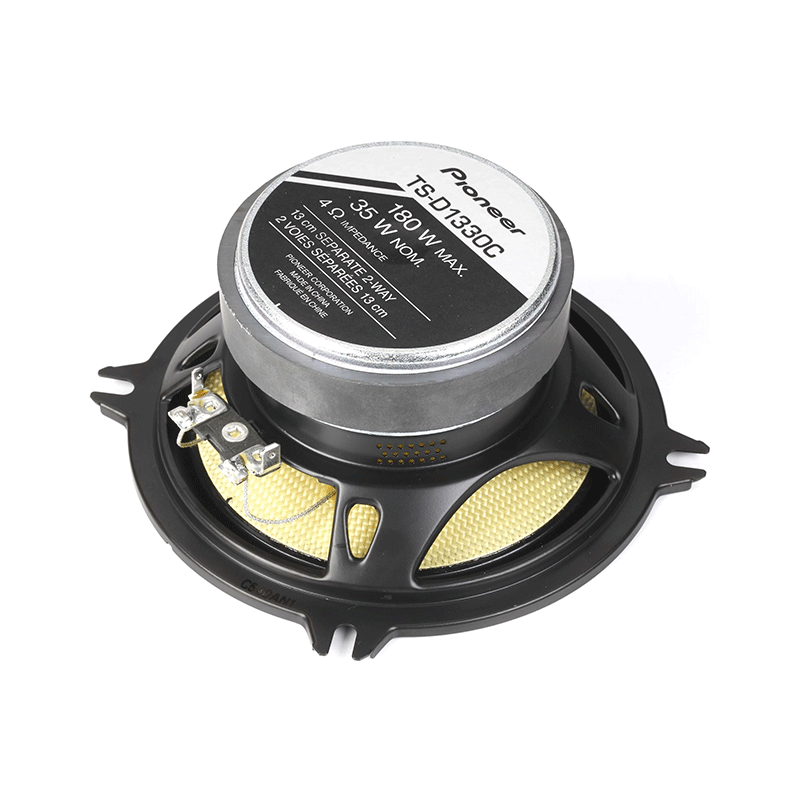

  • Twaron® aramid fiber woofer cone with rubber surround

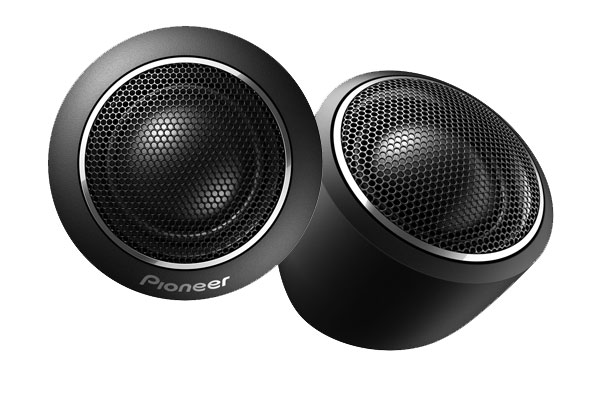

  • 7/8" fabric dome tweeter
  • external crossover system with 3-level tweeter control (-3dB, 0dB, +3dB)
  • 4-ohm impedance
  • 5-35 watts RMS power range (180 watts peak)

New cone and surround on the Pioneer TS-D are constructed from Twaron woven cloth that is hardened and shaped to produce a rigid, yet low mass cone with excellent dampening characteristics.

Two adapter brackets are included, allowing the 5-1/4 woofers to fit in a variety of 5x7 and 6x8 applications. The brackets also have knockouts for mounting the tweeters. Please refer to the Crutchfield vehicle selector to confirm fit in your vehicle.

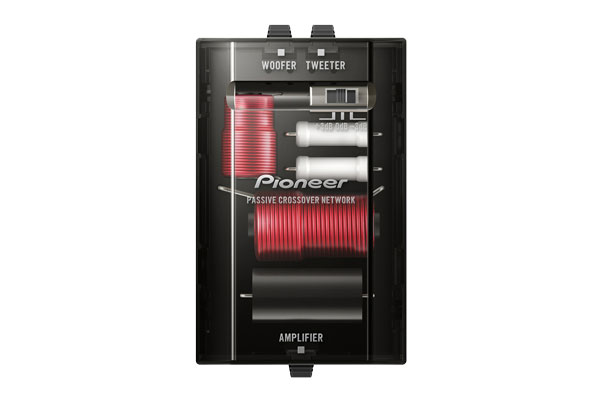

The 2-way crossovers have input and output wires attached; 17" input, 37" tweeter output, and 18" woofer output. Each of the output wires has quick slide terminals so the woofers and tweeters are easily connected.


RMS Power Range (Watts) 5-35
Top-mount Depth (Inches) 2 5/16
Woofer Composition Twaron Aramid Fiber
Frequency Response 37 - 44k Hz
Impedance (Ohms) 4
Tweeter Composition Fabric
Bottom-mount Depth (Inches) N/A
Design 2-way
Tweeter Design 7/8" Dome
Speaker Size 5 1/4
Peak Power Handling (Watts) 180
Sensitivity 88 dB
Cutout Diameter or Length (inches) 4 9/16
Woofer Surround Rubber
  • Car speakers are usually sold as a pair unless otherwise noted.
  • UPC: 884938292580
  • Weight: 34.8
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
