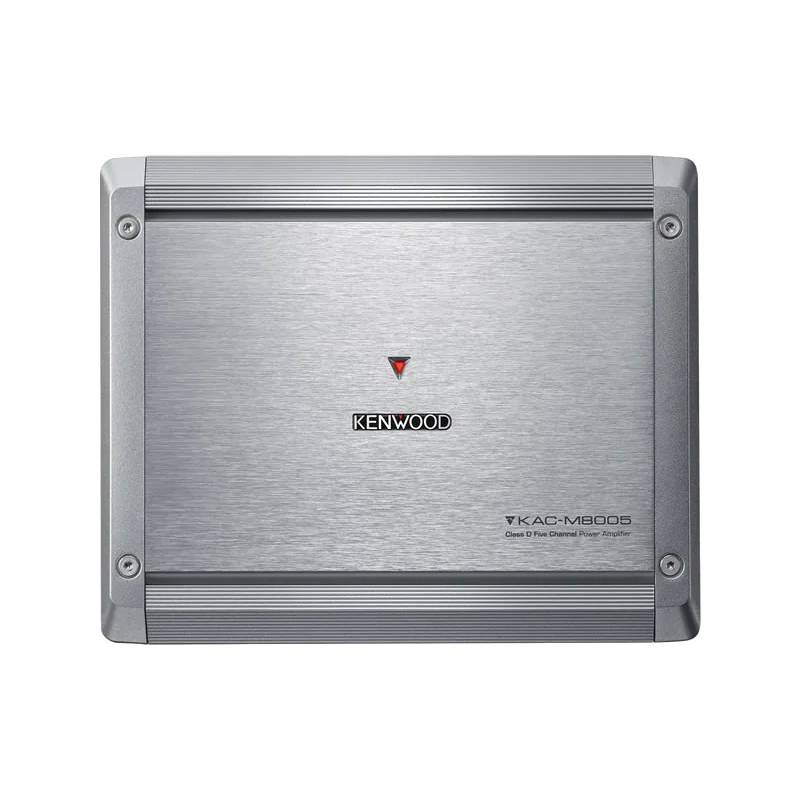

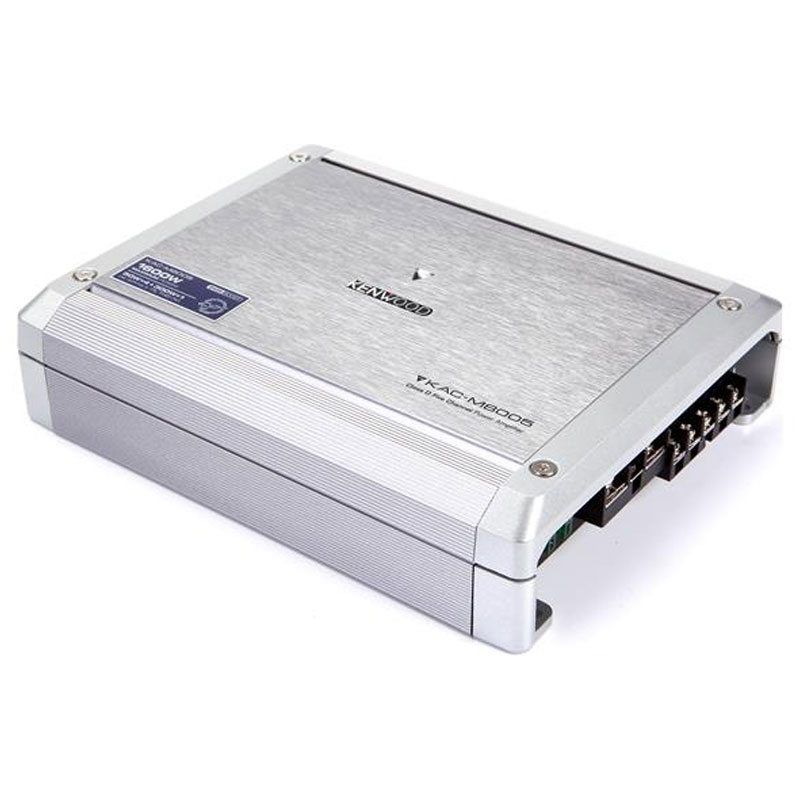

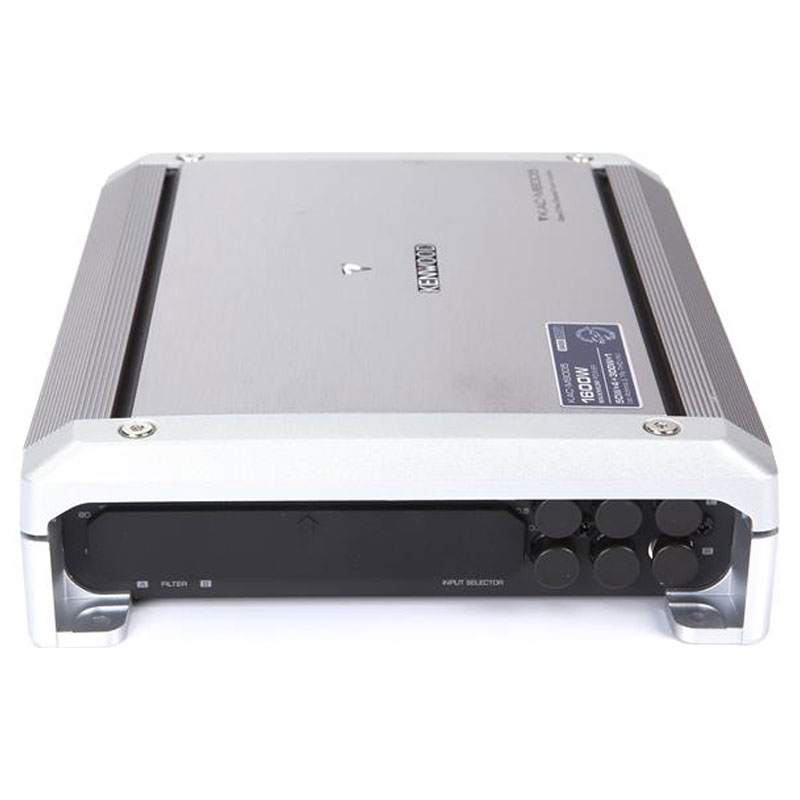

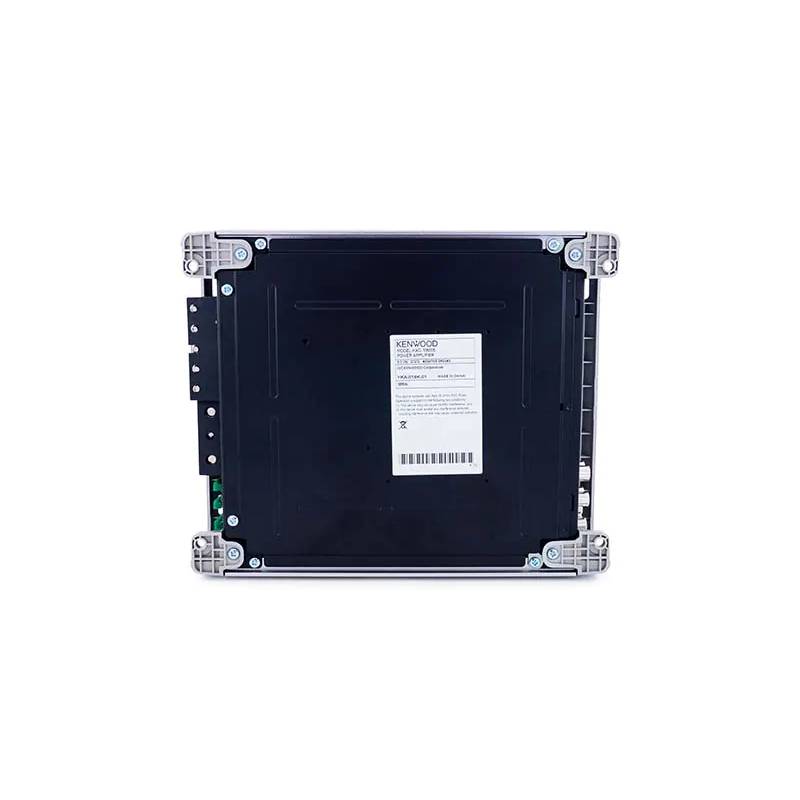

Kenwood 5-channel Conformal Coated Bridgeable Marine Power Amplifier
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 5-Channel Marine Amplifier
• (3) 30A ATO fuses (installed)
• Rubber control cover
• 2.5mm Allen wrench
• (4) Self-tapping screws (M4 x 16mm)
• Owner's Manual
Can Power Your Entire Sound System
Kenwood's KAC-M8005 5-channel amplifier can power your entire sound system, sending out 50 watts RMS each to your four full-range speakers, and up to 500 watts RMS to your sub. This amp, will accept an input signal from just about any source, whether you're using RCA cables or speaker wires from your radio. When you use the speaker-level inputs, the amplifier will sense the signal and turn itself on, so you won't need to run a remote turn-on lead to your receiver.
5-channel Marine Stereo Amplifier
Give every speaker the power it needs for loud-but-clear audio with this five-channel marine stereo amplifier. Kenwood designed this amp to work with all the frequencies needed for a balanced sound. At 2-ohm output, the amplifier sends out 75 watts RMS each to four full-range speakers, tweeters or squawkers. The fifth channel pumps another 500 watts to the subwoofer. Four-ohm output is also supported, though at lower wattages.
Low Frequency Response : 50-200 Hz
High Frequency Response : 50-200 Hz
Number of Channels : 5
Frequency Response : 20-20k Hz
Built In Crossovers : Yes
RMS Power Output : 50 x 4 Watts
Amplifier Class : D
Fuse Rating : 90 A
RMS Power Output (Watts x Channels): 50 x 4
Frequency Response at Rated RMS Power: 20-20k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 80 dB
Input Voltage: 14.4v
Peak Power Output (Watts x Channels): ---
Power at 2 Ohms (Watts x Channels): 75 x 4
Bridged Power (Watts x Channels): 150 x 2
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Amplifier Class: D
Low-Pass Crossover Frequency: 50-200 Hz
Low-Pass Slope (dB/octave): 24 dB/octave
High-Pass Crossover Frequency: 50-200 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: 0-18 dB
Bass Boost Frequency: 40 Hz
Fan Cooled: No
Fuse Rating: 90
Speaker Level Inputs: Yes
Preamp Outputs: No
Height (inches): 2-3/16
Width (inches): 9-1/8
Depth (inches): 7-3/8
5-channel marine amplifier
50 watts RMS x 4 + 300 watts x 1 at 4 ohms
75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
conformal-coated circuit board — suitable for power sports and marine applications

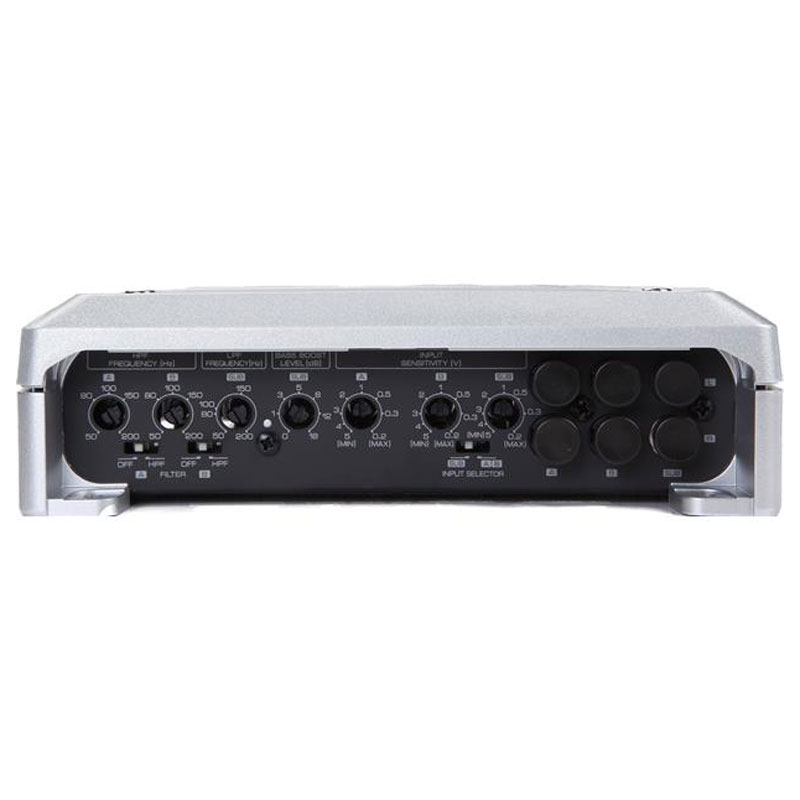

variable low-pass filter on subwoofer channel (50-200 Hz at 24 dB per octave)
separate variable high-pass filters on front and rear channels (50-200 Hz at 12 dB/octave)
variable bass boost on sub channel (0-18 dB at 40 Hz)

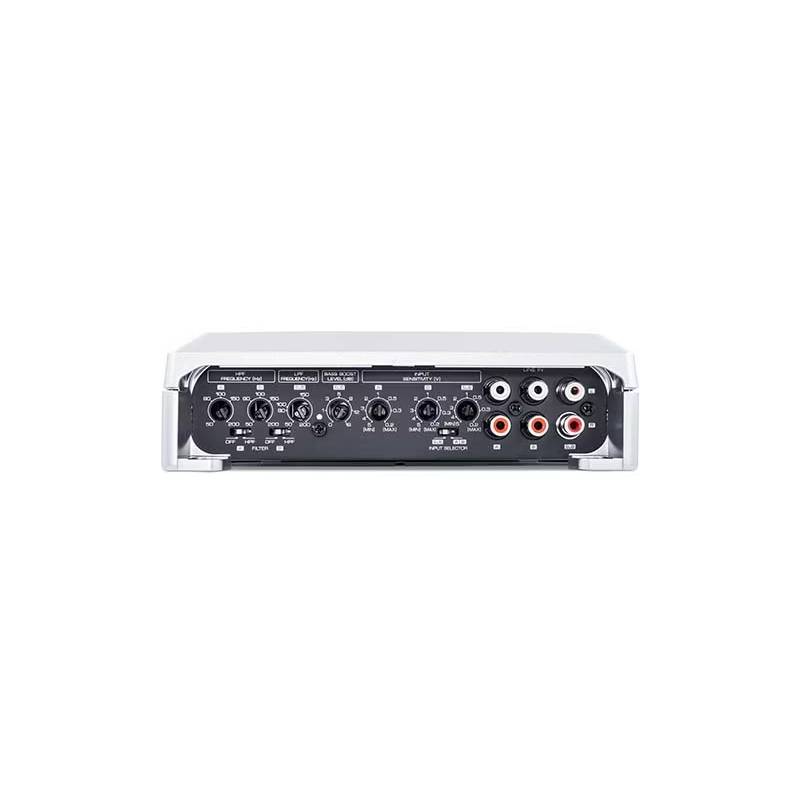

preamp and speaker-level inputs
fuse rating: 30A x 3
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
9"W x 2-3/16"H x 7-3/8"D
